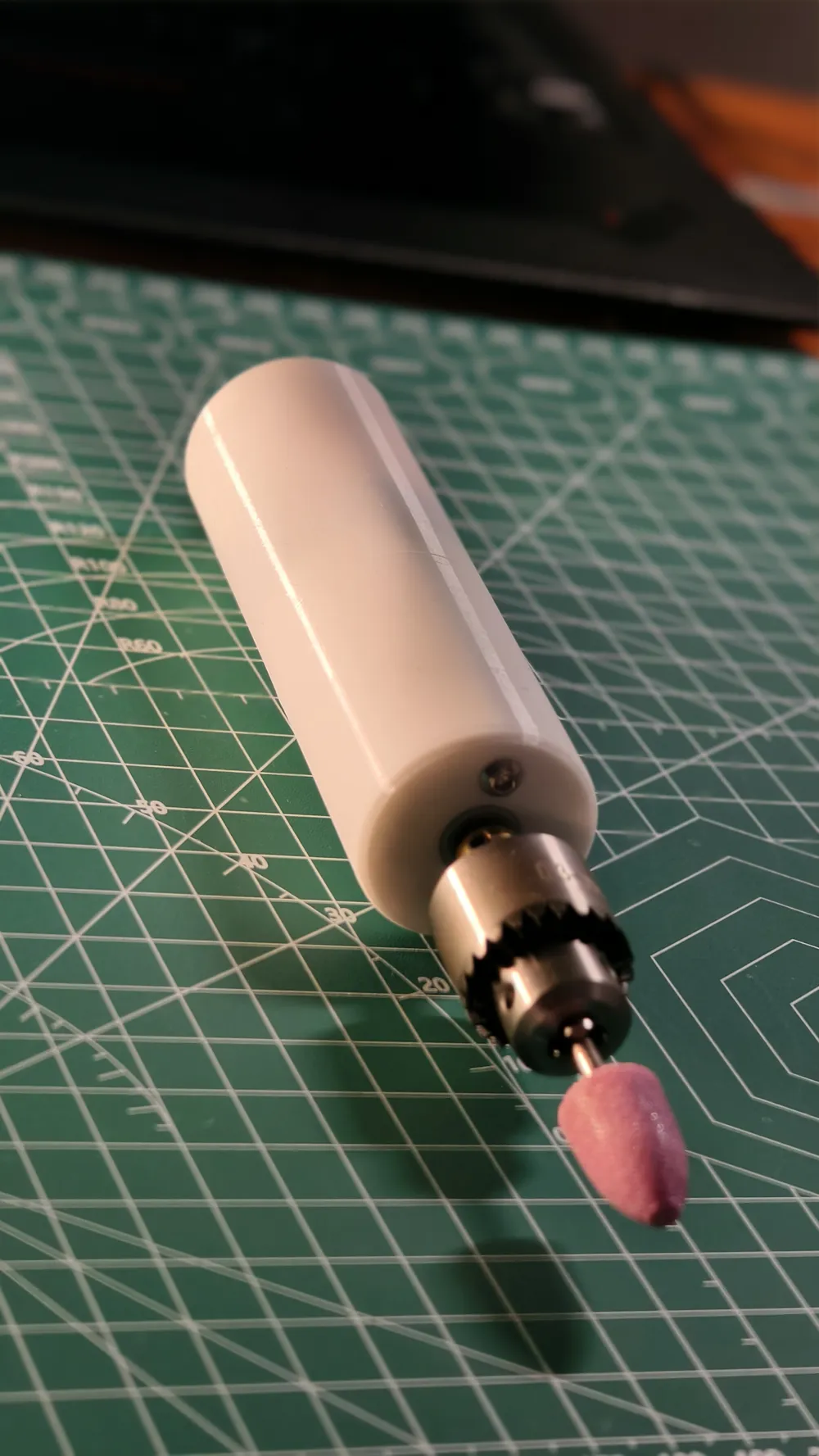

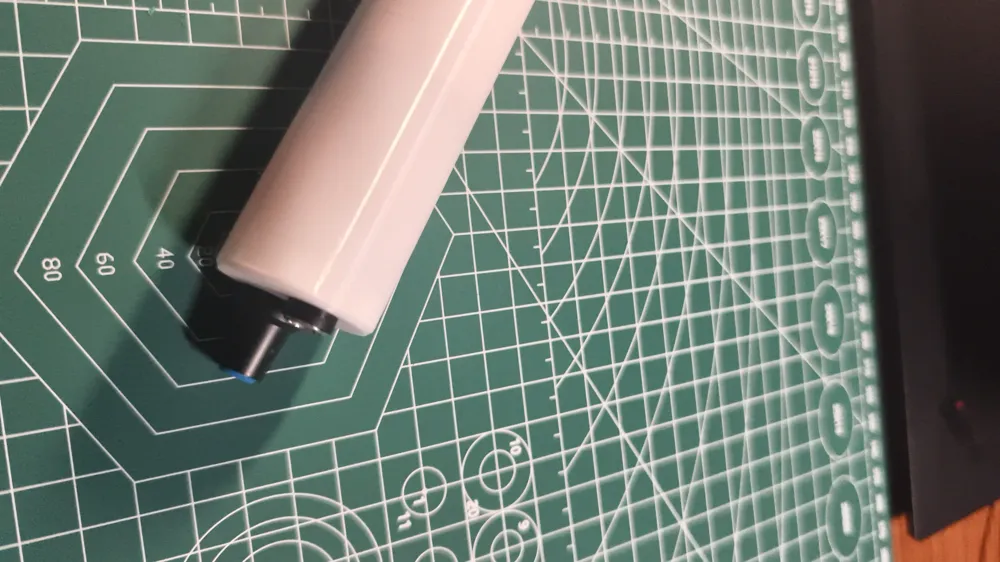

Low-cost handheld variable speed mini electric drill, mini electric grinder, electric grinding pen, handheld mini electric drill
Print Profile(1)
Description
Advantages of this electric drill: powerful, high precision, low reproduction cost, wide voltage range (motor standard voltage 12V), actual tests show it can operate normally from 3-35V. Higher voltage means higher power; try not to exceed 24V for operation.

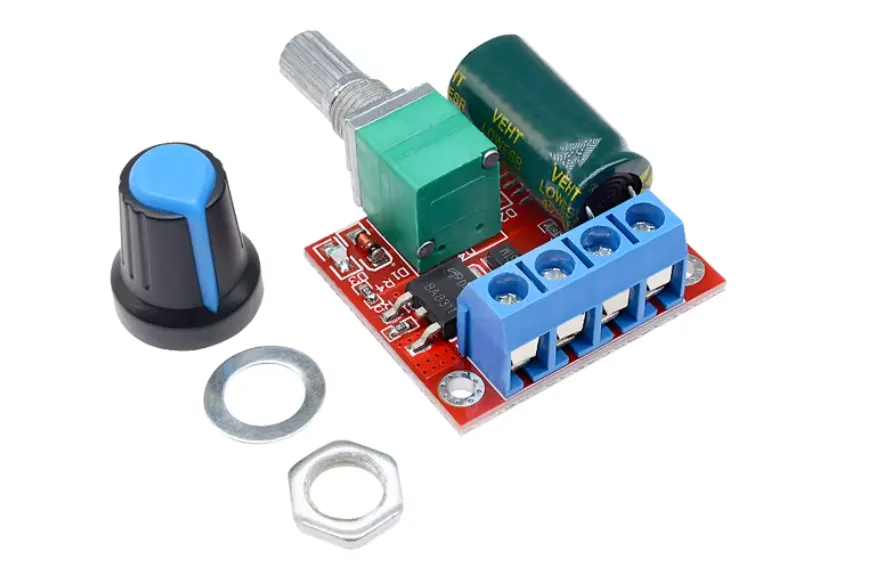

Using a PWM DC motor control board with a wide voltage range of 3-35V, the maximum current can reach 5A, easily exceeding 50 watts. Price: 2.99;

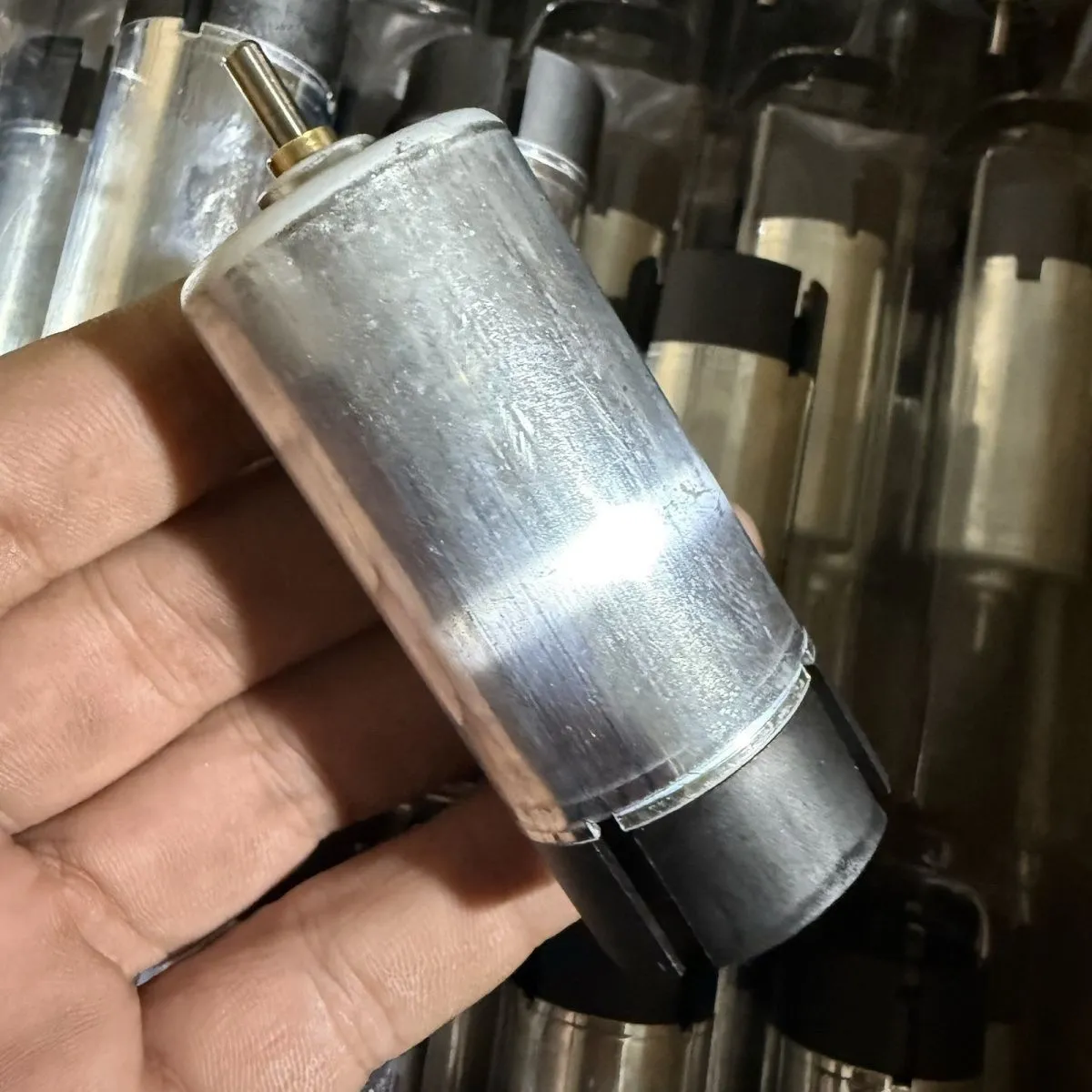

Automotive-grade brushed motor price: 3.88 yuan;

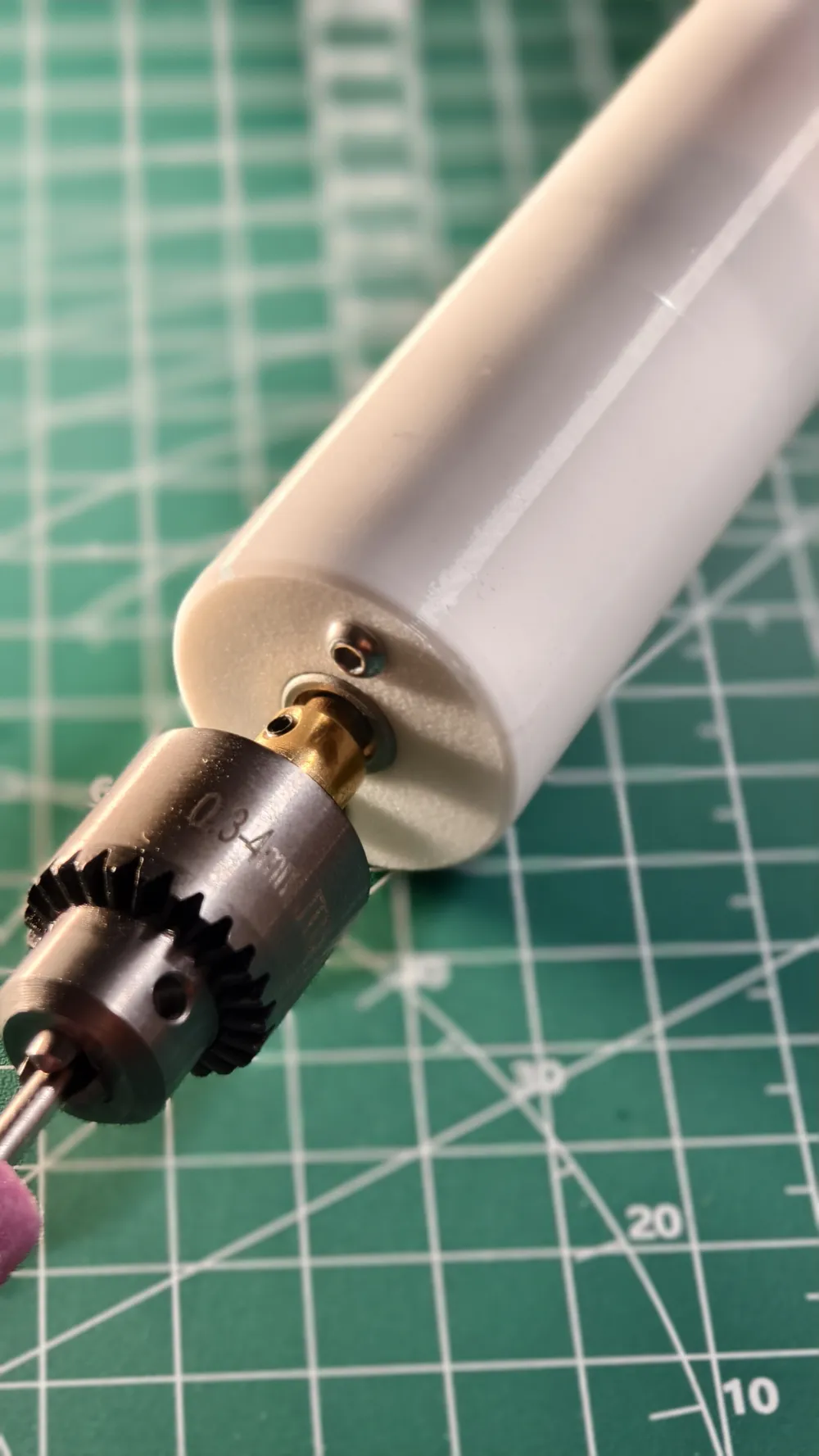

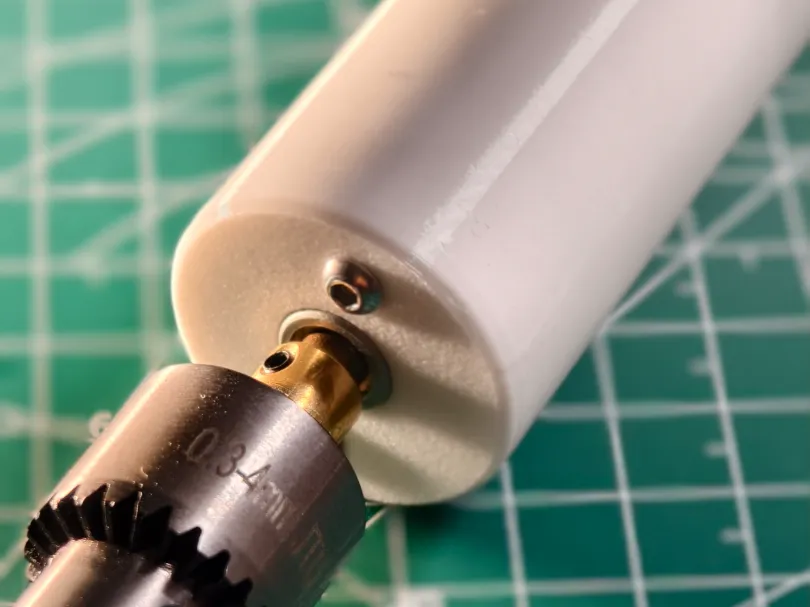

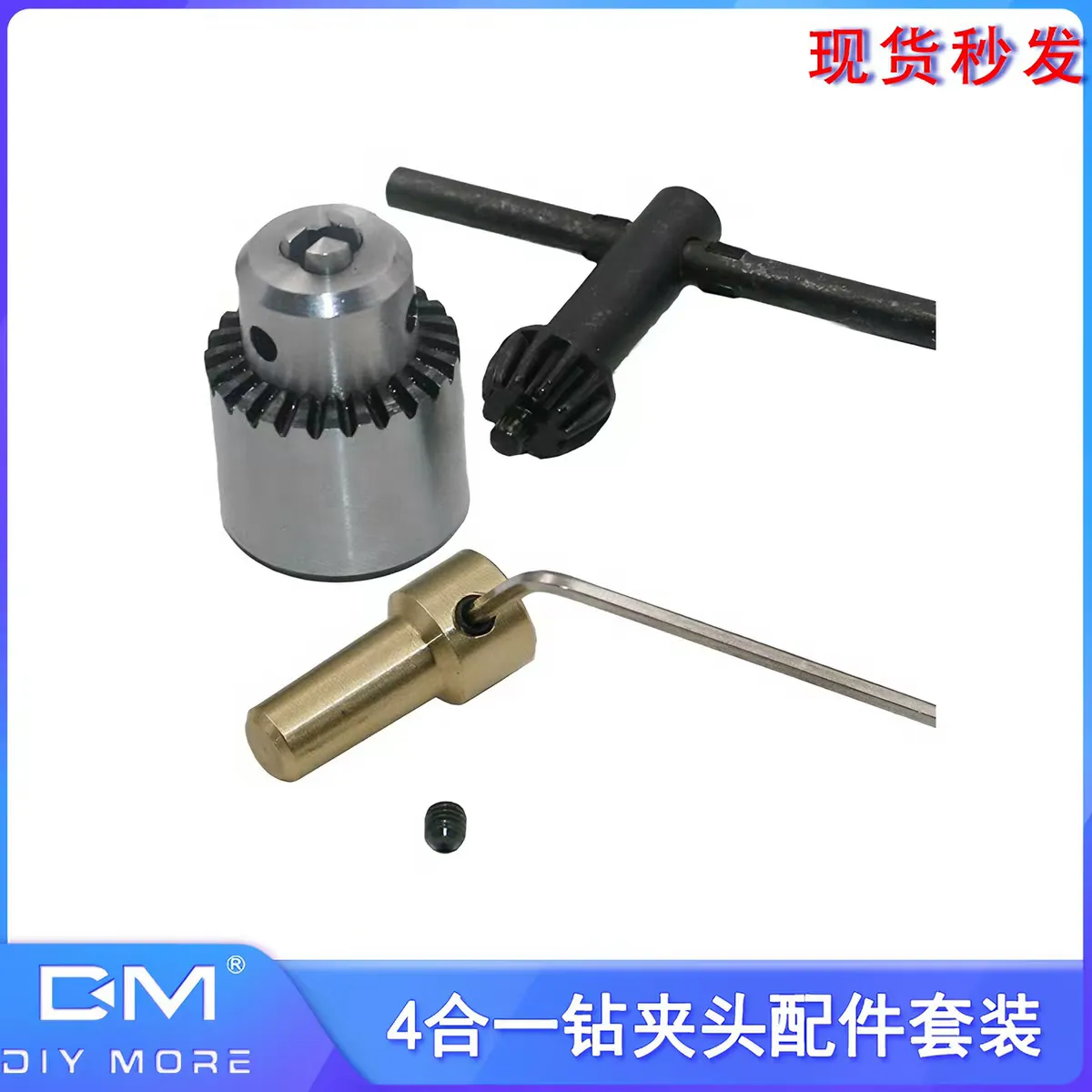

0.3-4mm three-jaw chuck: 12 yuan

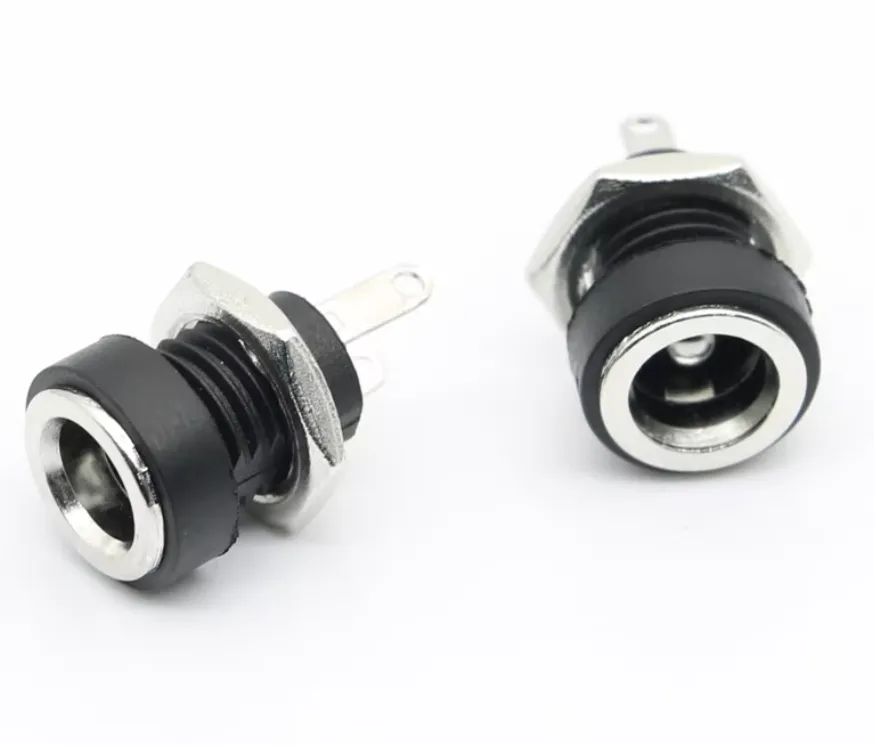

Power input uses DC-022B 2.0 pin: 0.1 yuan
With a combination of coupons from Douyin, Pinduoduo, and Taobao, you can essentially get these parts for under 10 yuan:

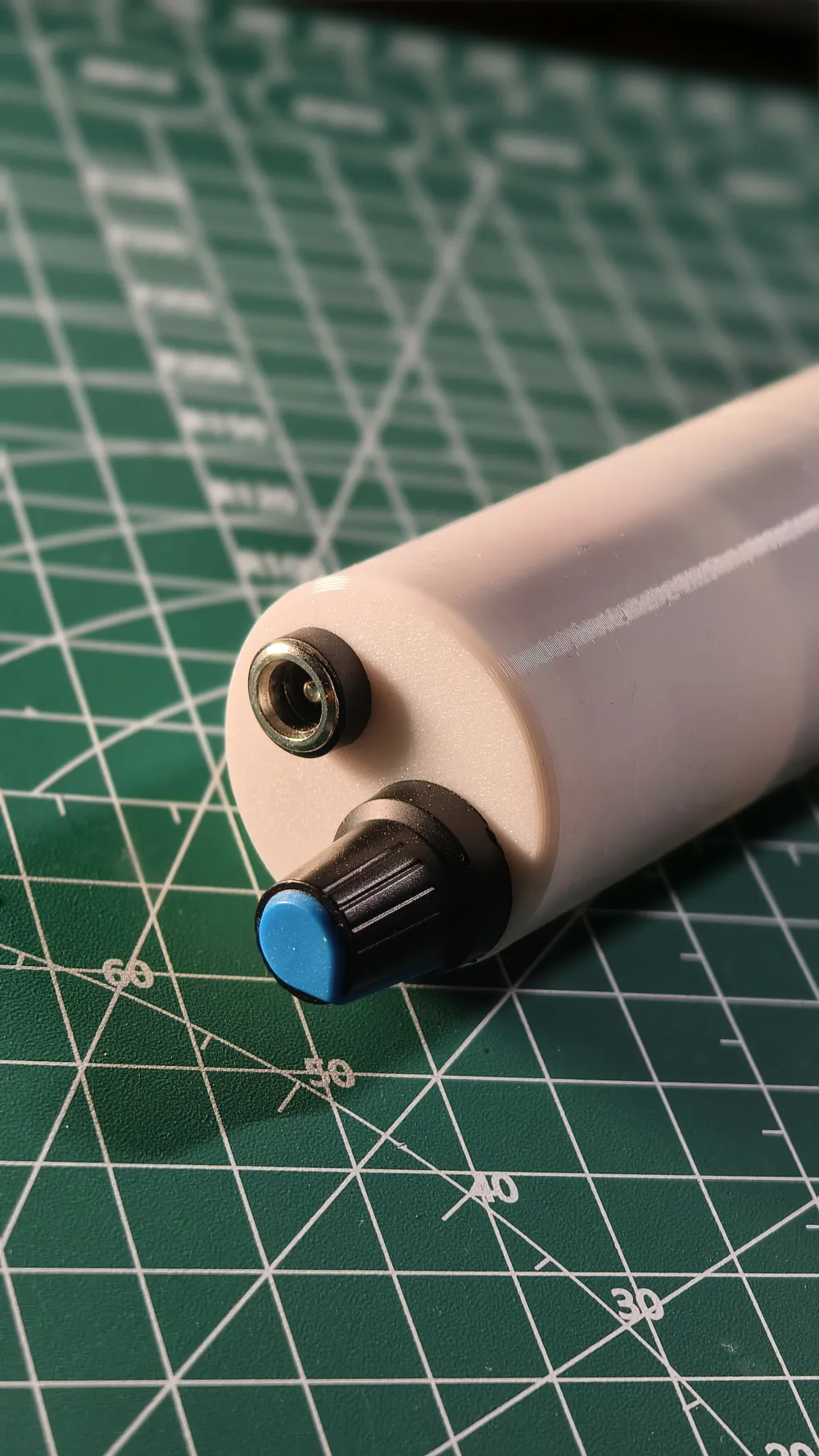

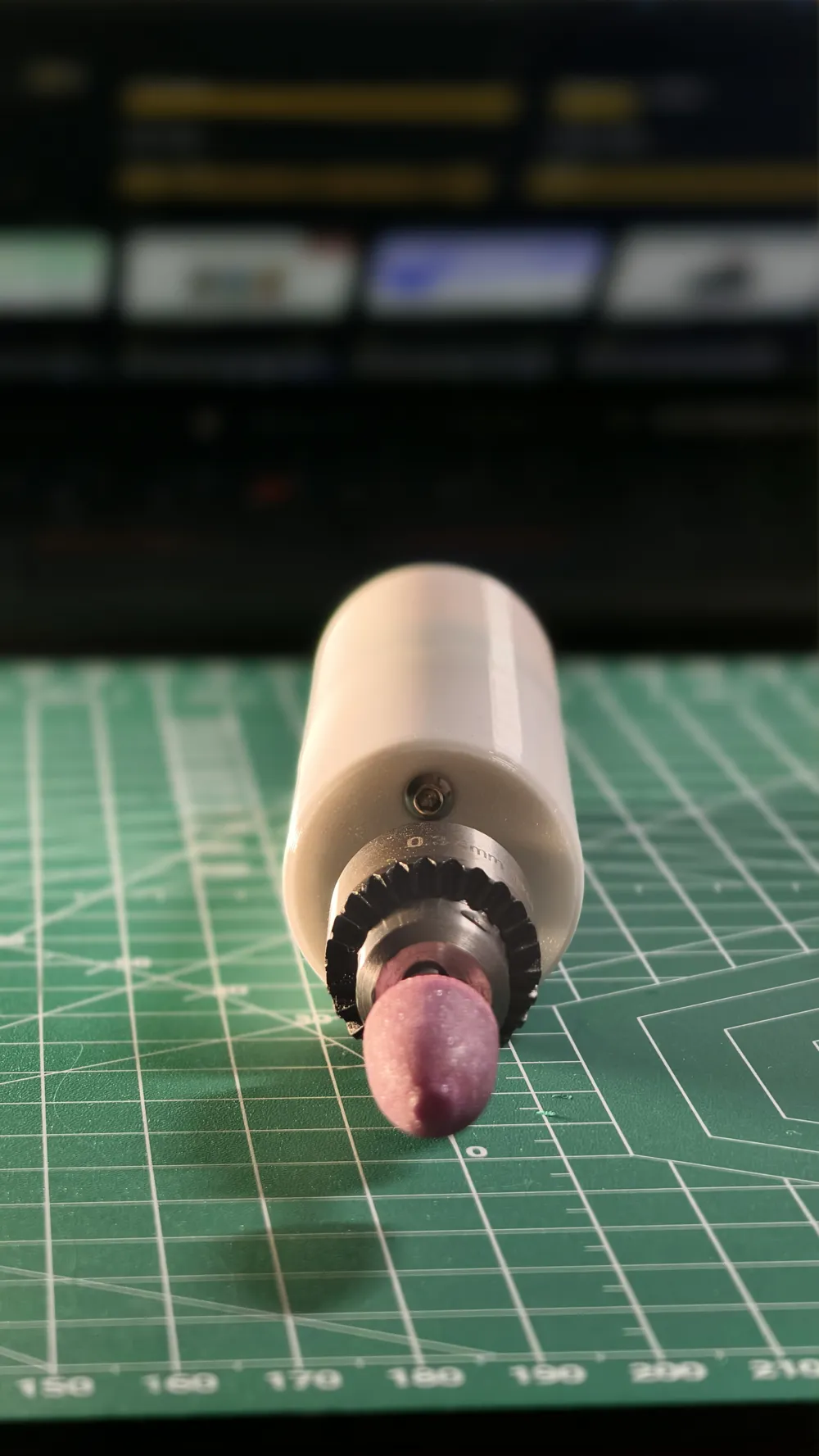

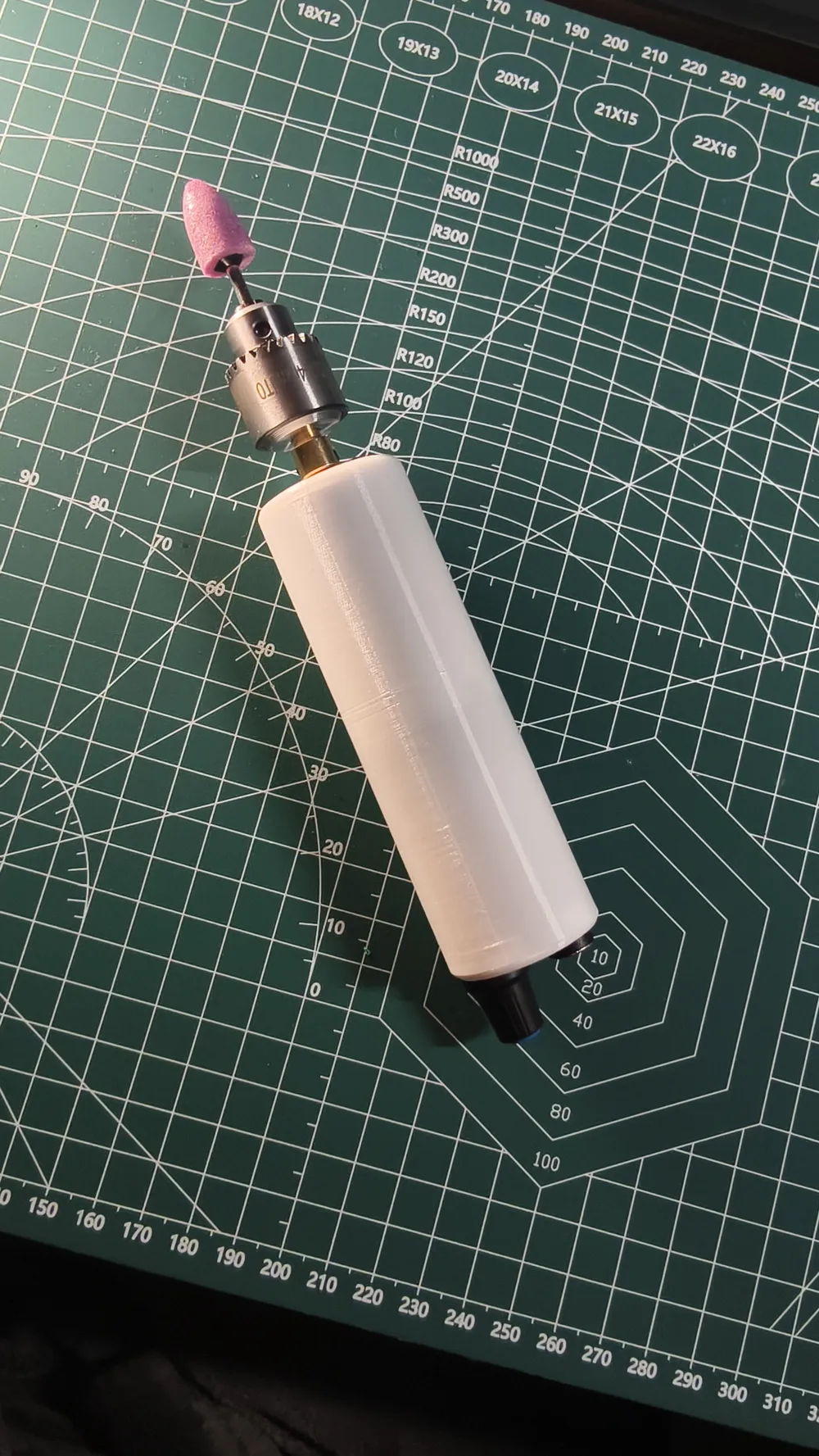

Reinforcement ribs are drawn inside the casing, which can block heat transfer between the motor and the casing; the overall fit is seamless. The motor is secured with 3mm hex screws, which are very easy to find. The control board is fixed using a sliding slot. Internal wiring uses 20AWG silicone wire. Remove the control board terminals and directly solder the wires, then place the whole assembly in. The rear cover secures the control board screws for a tight, stable, and reliable fit. The rear cover and body are secured with snap fasteners. After debugging, 9100 glue can be used for auxiliary fixation to prevent the base from being pulled out along with the DC connector. Currently, after two weeks of use, it is stable and reliable. Variable speed grinding and drilling are precise. The installation video has not yet been edited and uploaded to Bilibili, but will be added later. However, the wiring connection is extremely simple, and its power and precision far exceed similar products on the market at the same price point.
The shopping list can be directly identified from the image. To avoid criticism, no links are provided. Coupons are available on major e-commerce platforms; most items can be bought for a few cents or dimes. The chuck, however, might cost a few yuan even after coupons.
Please leave a comment for installation questions; I will answer everything I know without reservation.
