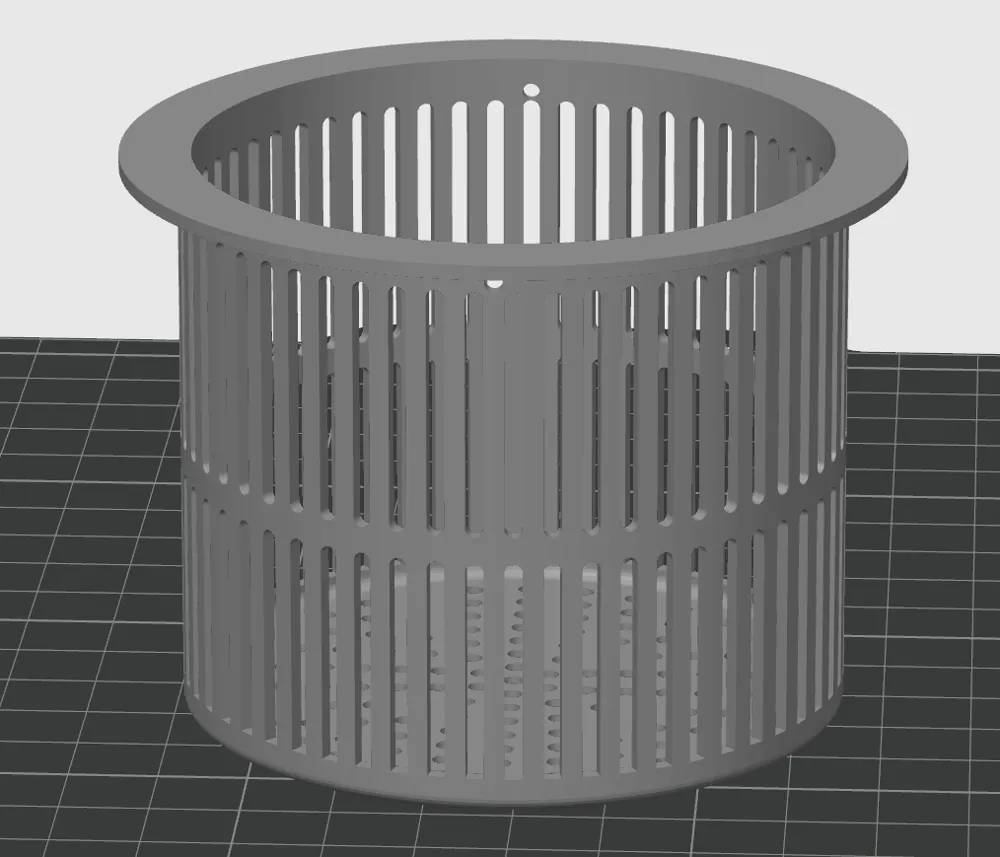

Kitchen stainless steel sink strainer kitchen drain clog prevention basin vegetable washing basin dishwashing basket filter with handle

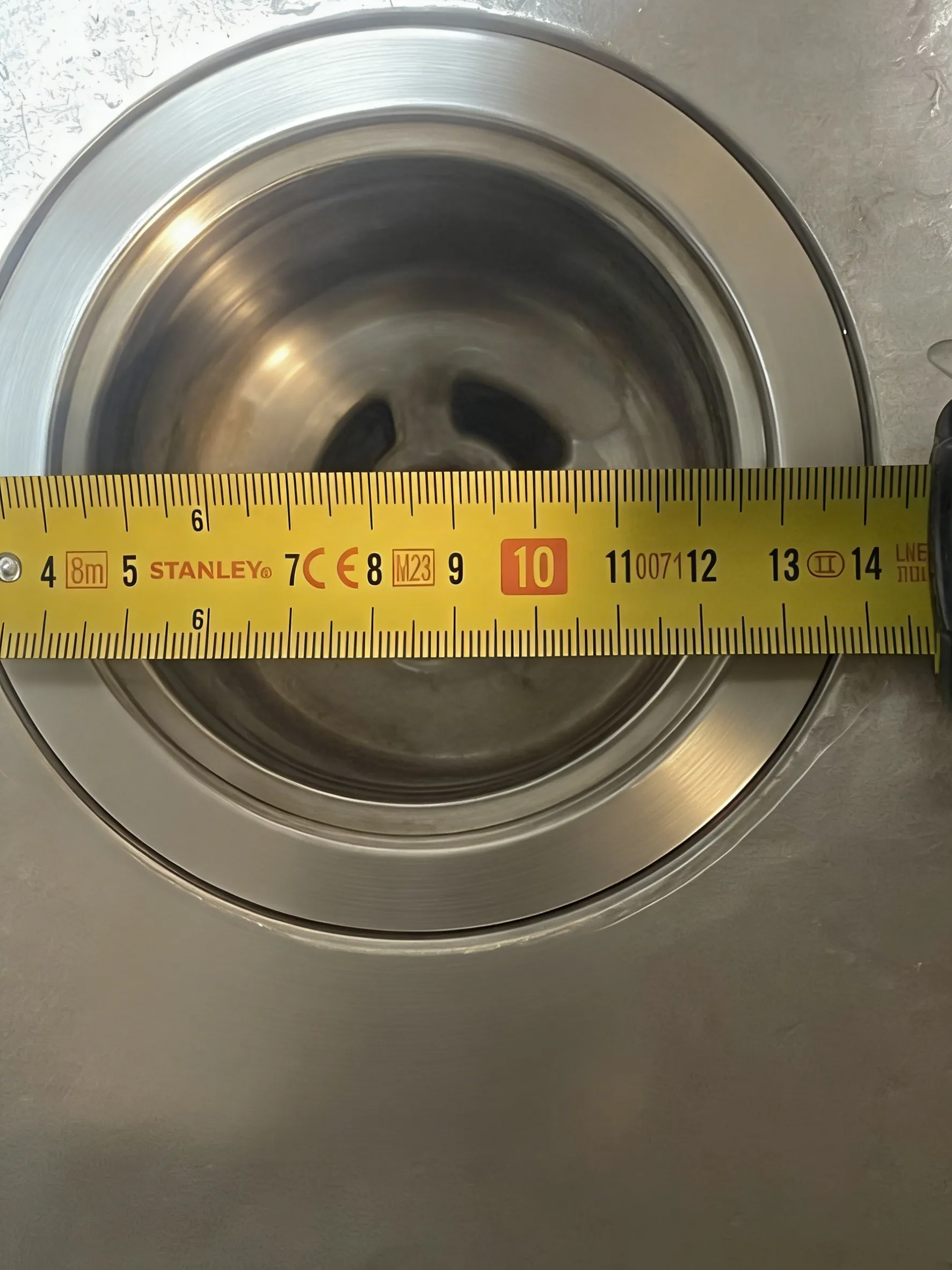

This model is suitable for a sink drain with a diameter of 80mm and a depth (height) of approximately 70mm

The outer rim of this model's top has a diameter of approximately 89mm and a depth (height) of approximately 65mm

If your sink size deviates, you can consider non-uniformly scaling the model's X/Y/Z dimensions

This model's design is taken from the following product, which is no longer available for purchase, so I made one myself

• Such items can achieve their desired functions in the simplest way (drain water | collect residue), which in turn can increase their lifespan and make them simple and convenient to use

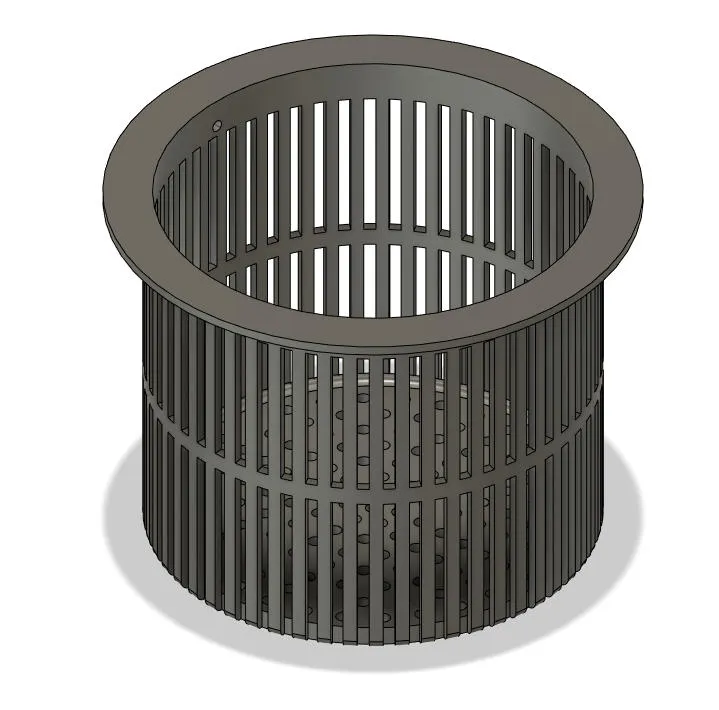

• Reduced unnecessary hole designs, all sides adopt a vertical bar fence style with a spacing of about 2mm, which is convenient for printing, improves printing speed, creates a beautiful effect, and fully meets the need for separation

I previously designed a handle, but due to material and size, its strength was not ideal

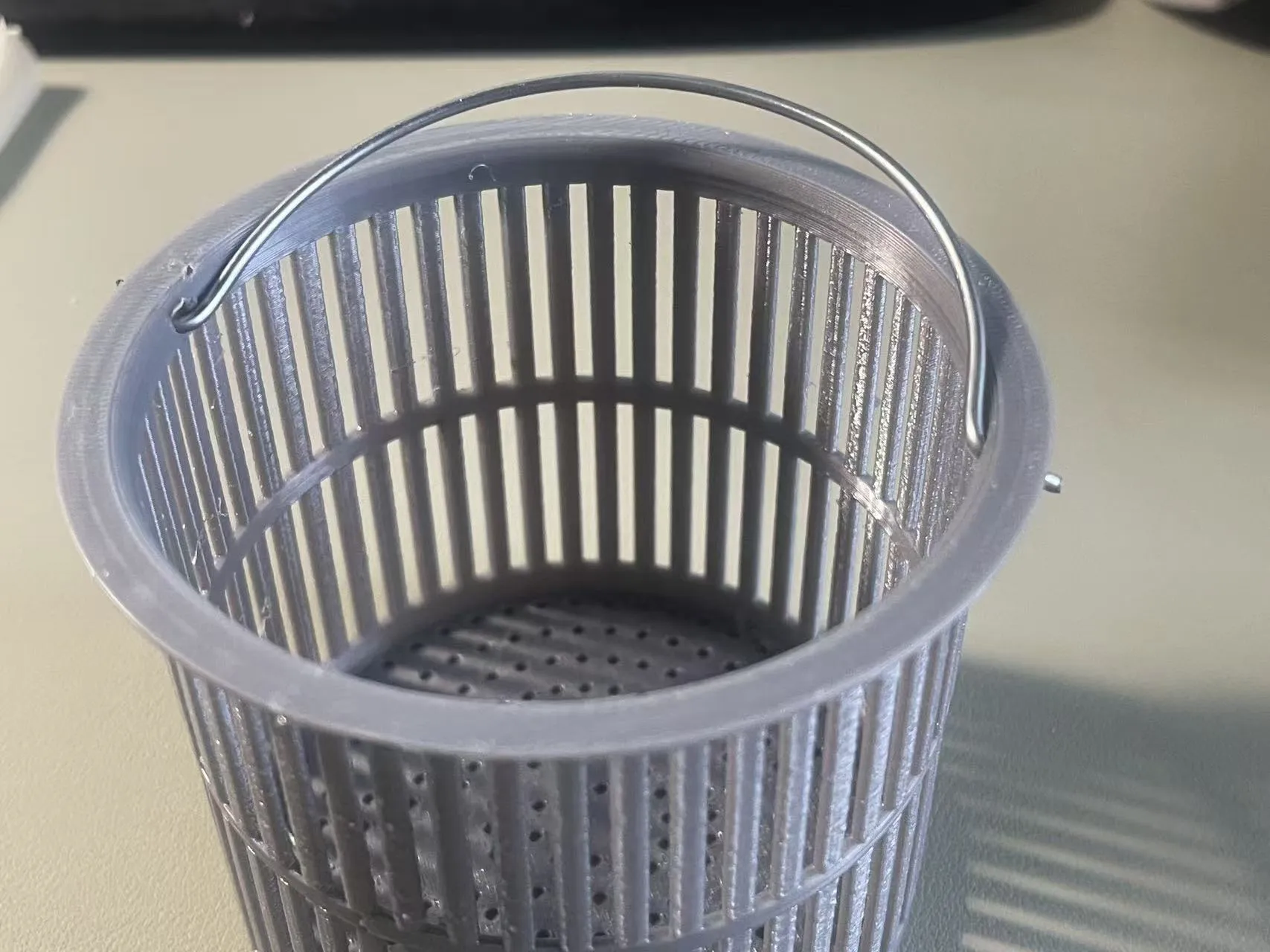

It is recommended to use 1.5mm iron wire instead, the pre-drilled hole size is 2mm. It would be better to bend it on a hard cylindrical object before assembly, do not bend it using the model itself

Of course, you can also choose not to use the handle, select according to your needs

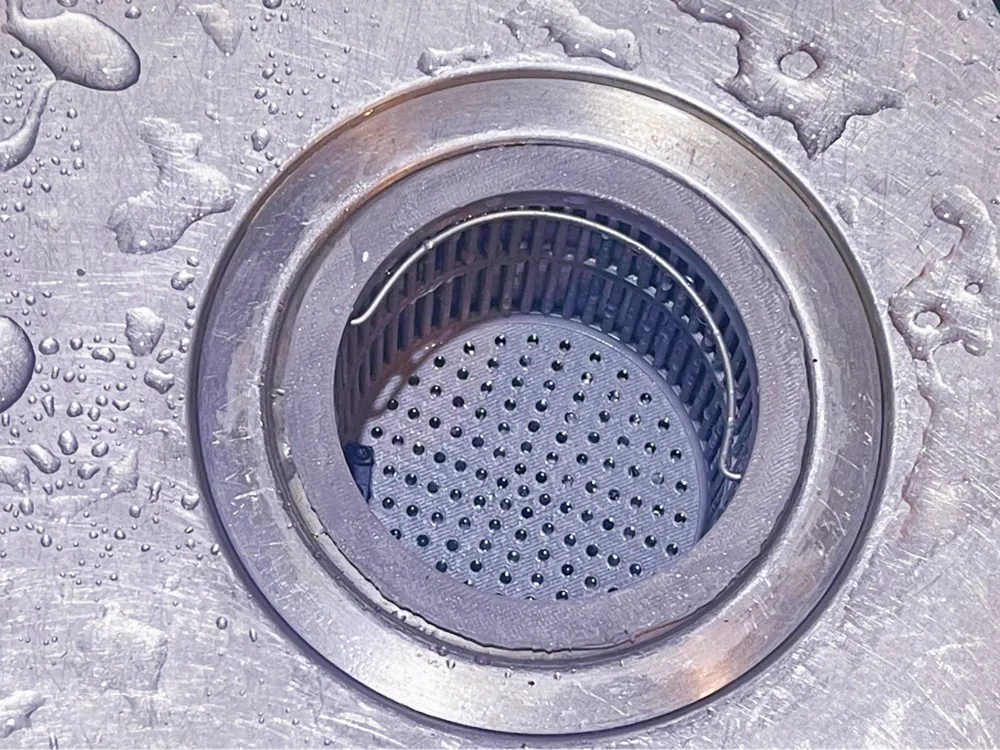

The top rim has an angled chamfer design to better fit the sink drain

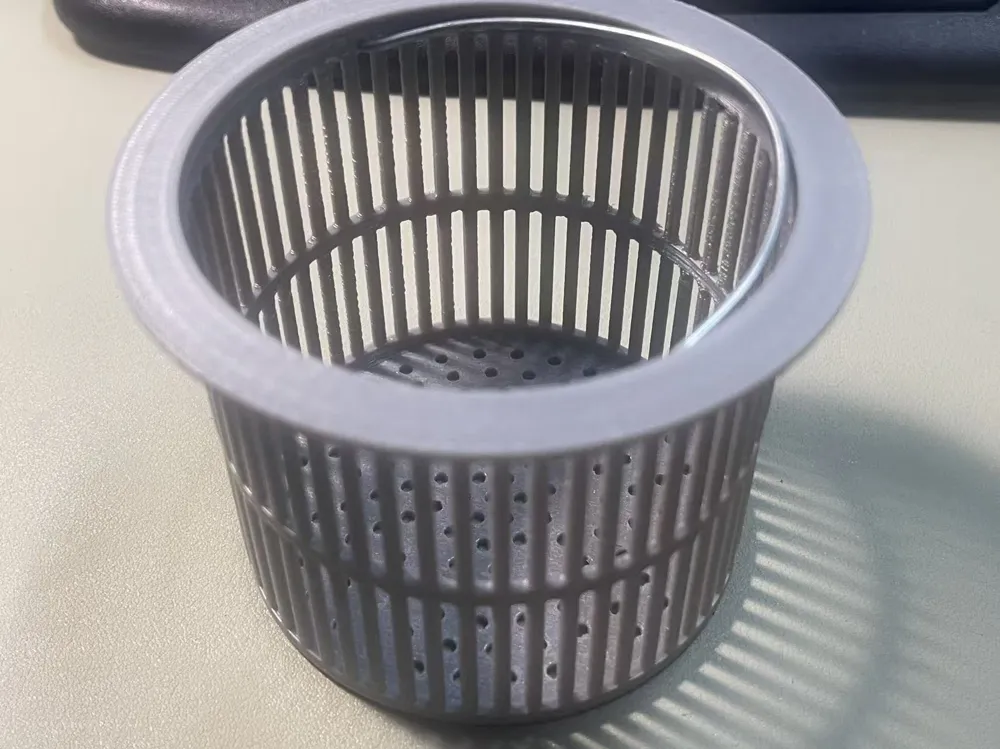

The upgraded version adds a fillet design for structural optimization, to solve the problem of potential fracture at contact surfaces due to flat printing + horizontal layer lines, using fillets to distribute stress

Setting variable layer height can shorten printing time, no additional settings are needed for direct printing

You can flexibly change the model size according to your needs, be careful not to check uniform scaling

Recommended to print with PETG or higher materials, temperature resistance up to 70℃+
