H2D/H2S/H2C Vertical Exhaust Vent 4in(100mm)
Print Profile(1)
Bill of Materials
Description
By special request from: @katbyte , here is a vertical adaptation of my low profile Left/Right exhaust. This model installs Up or Down to fit your space.

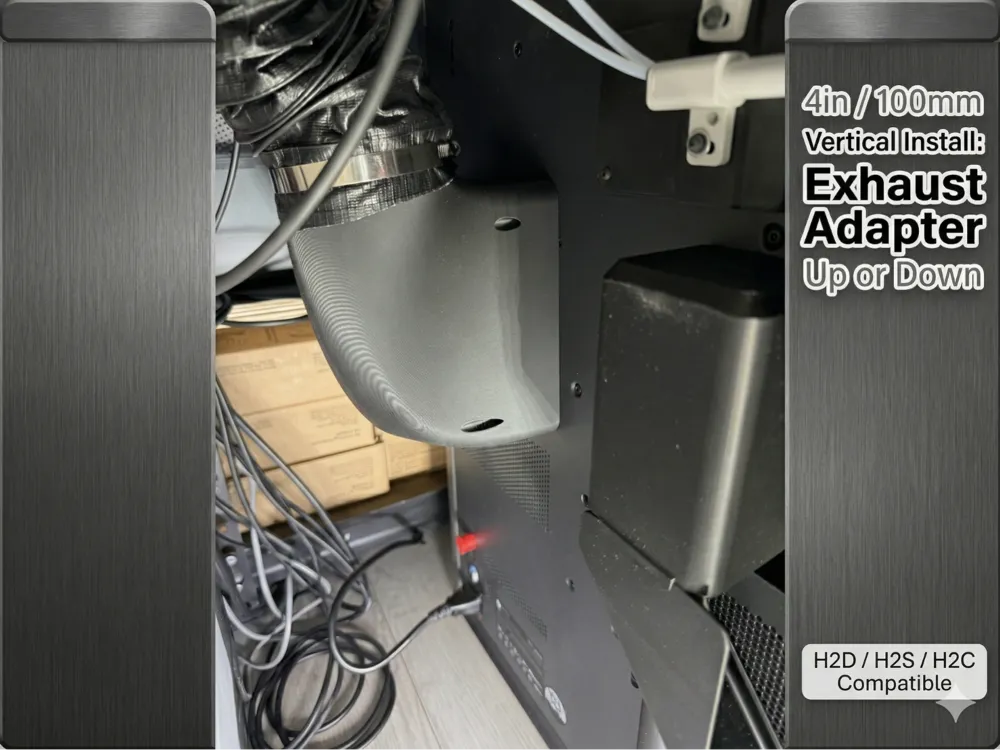

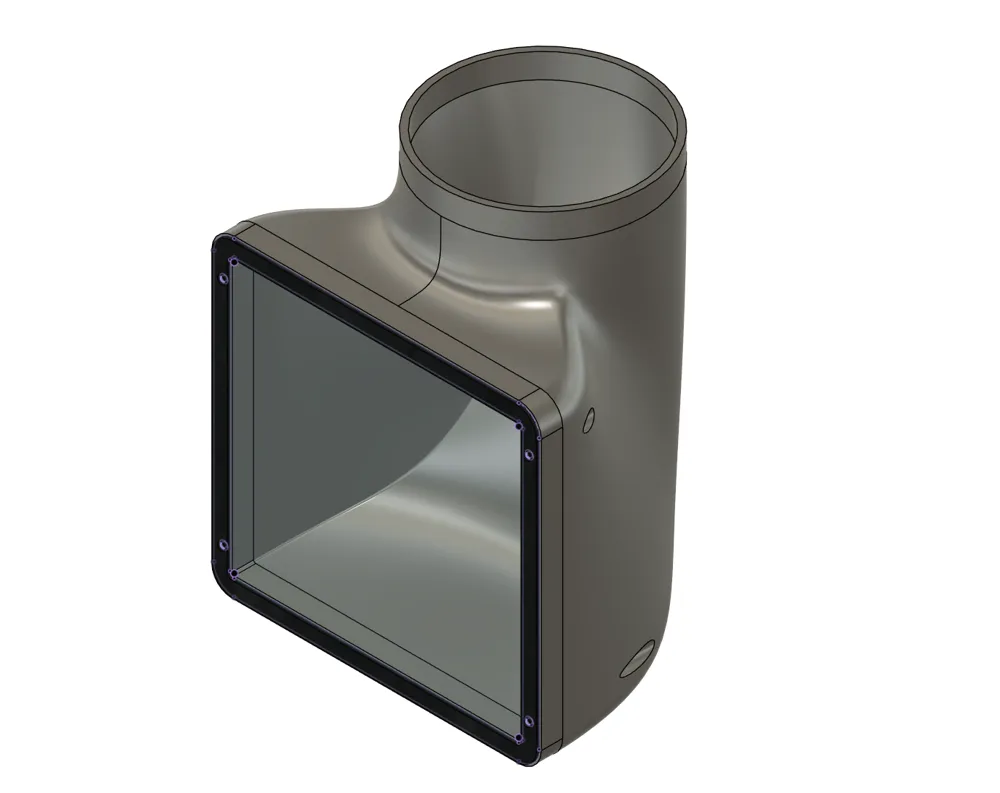

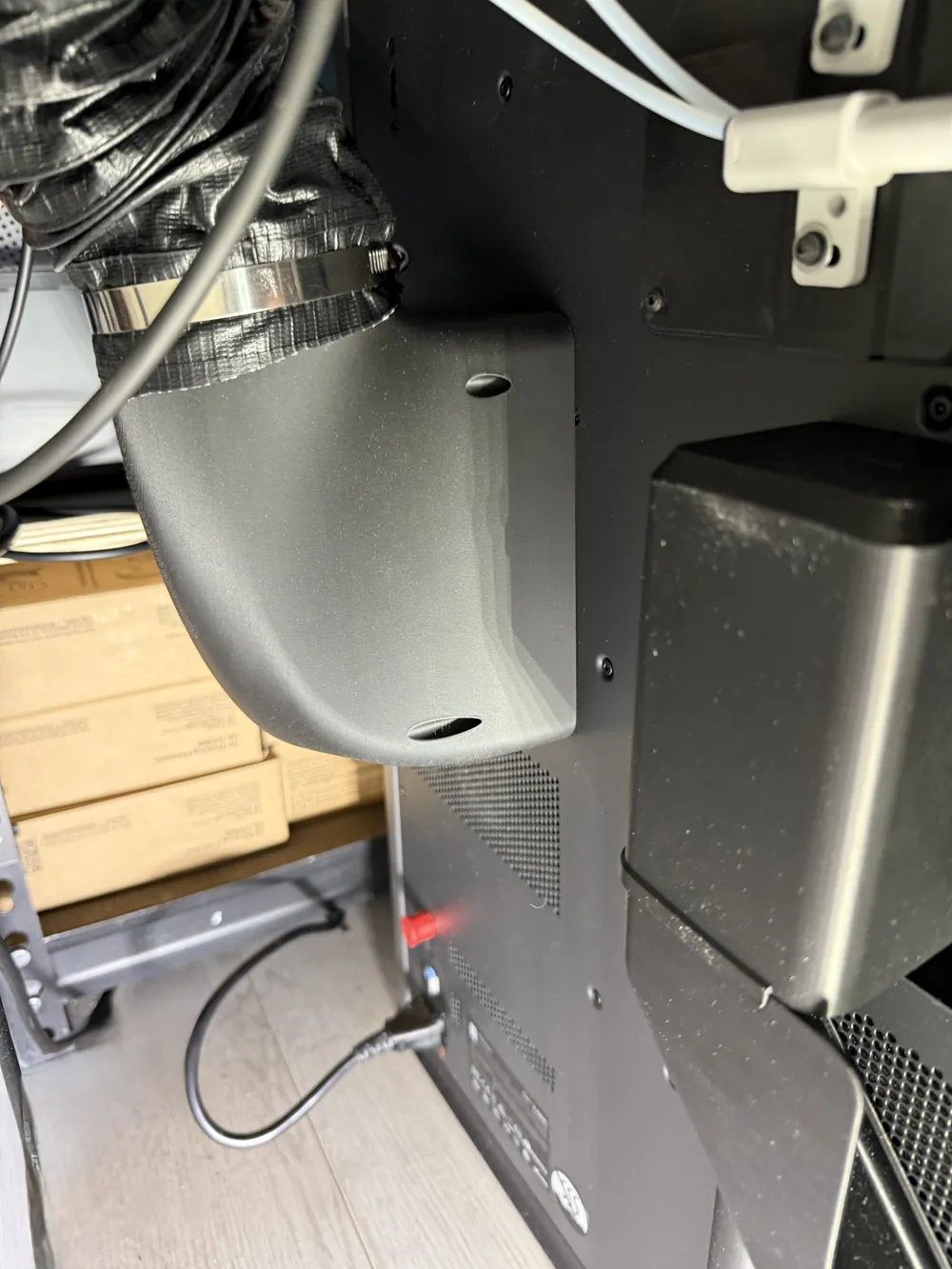

The Bambu Labs H2D / H2D Pro / H2S / H2C are undoubtedly awesome and LARGE! The vent is essential for clean air but the size of the printer makes the provided exhaust connection unfeasible in a lot of situations. This right-angle adapter will let you vent either directly UP OR DOWN with the slimmest possible profile. Right now it is just a 4 in / 100mm hose connections but let me know if a 3in/75mm is desired. The print uses the standard screws provided with the printer and are installed with the provided hex key or you can buy them below.
The laser version of the printer comes with a 100mm hose as shown in the 4 in / 100mm pictures.
If you're looking to vent the non-laser version, here is 4in/100m hose: https://amzn.to/45Z3av5
Need to vent out a window? https://amzn.to/47ZeKXN
Or move a lot of air over a long distance? https://amzn.to/4f1J8EN

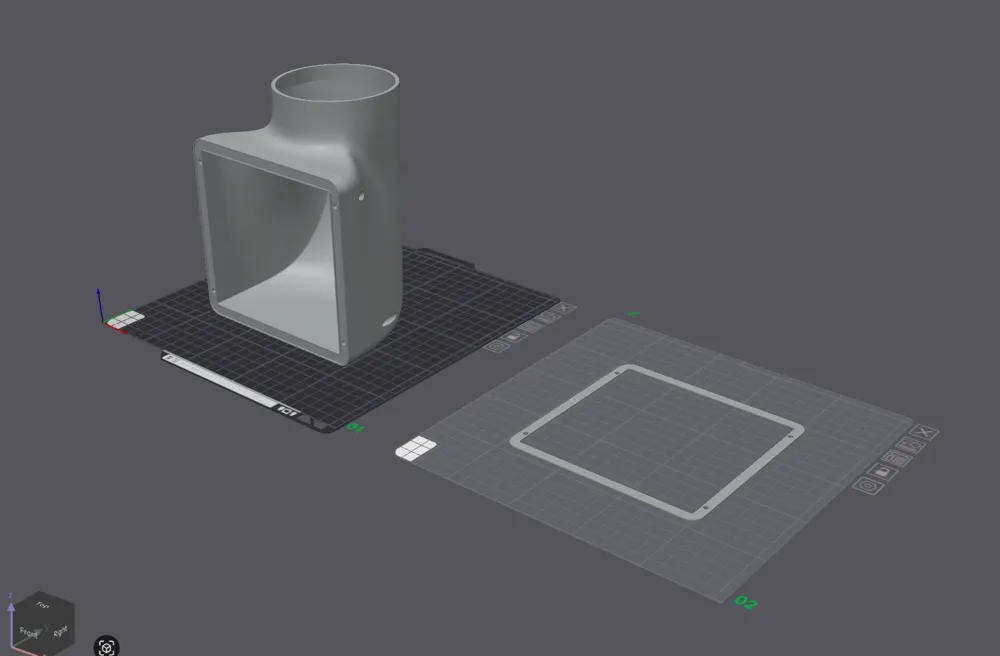

I've also provided a model for a TPU gasket. If you'd prefer to laser cut a gasket, I made an adjusted profile here: https://makerworld.com/en/models/1746334-h2d-h2d-pro-h2s-h2c-exhaust-gasket#profileId-1856220
I made one from 2mm cork sheet but foam sheet would also work well.
The automatic vents to operate freely, without modification.
