The Last Supper – Curved Lithophane (Early Edition)


This project includes two print‑ready curved lithophanes inside one 3MF file:

• 100 mm height version – larger display size
• 75 mm height version – faster print with excellent clarity

Both versions use the same carefully prepared master image with all figures present and balanced tonal depth for strong backlit contrast.

About This Lithophane

This curved lithophane of The Last Supper has been refined specifically for lithophane use.
The artwork was cleaned and balanced to ensure:

• Smooth tonal transitions
• Clean silhouettes
• Strong backlighting performance
• No missing or merged figures

The result is a clean, display‑ready lithophane suitable for stands, windows, or LED backlighting.

Included in the 3MF File

• 100 mm height version (11 hr 6 min print time)
• 75 mm height version (6 hr 41 min print time)
• Both versions are fully sliced and ready to print
• Identical curvature and depth mapping across both sizes

Creator Notes

This is the Early Edition release.
Both sizes are included so users can choose between a faster print or a larger display piece.

Created by N.M.P Designs.

Print Notes

All slicer settings are default, with only a few small adjustments for lithophane printing:

• Layer Height: 0.12 mm
• Top Layers: 0
• Bottom Layers: 0
• Infill Density: 100%
• Infill Pattern: Rectilinear
• Seam Position: Rear
• Supports: None
• Material: PLA

White or natural PLA gives the best backlit clarity.

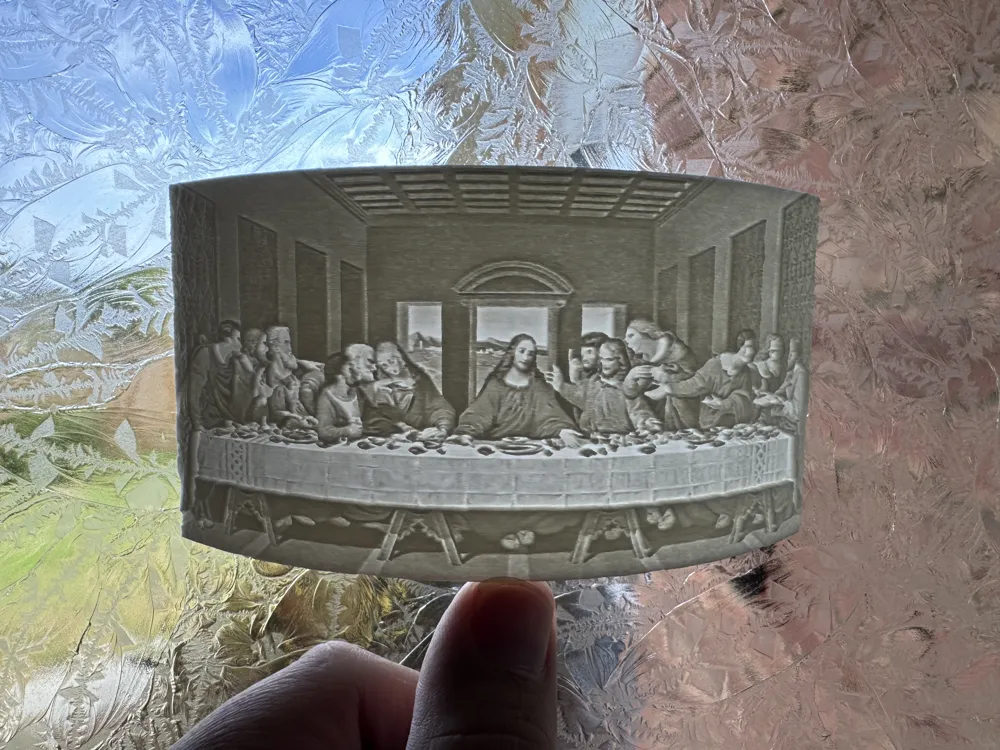

Curved lithophanes naturally sharpen when illuminated from behind.

Adhesion Note

For best results, print on a clean textured PEI plate. PLA Basic White adheres very well, but if your plate is worn or has fingerprints, apply a light glue‑stick layer for extra grip.
