Monitor-Stem Tablet Clamp for Lenovo T27h-30
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
6
29
0
0
38
19
Released
Description

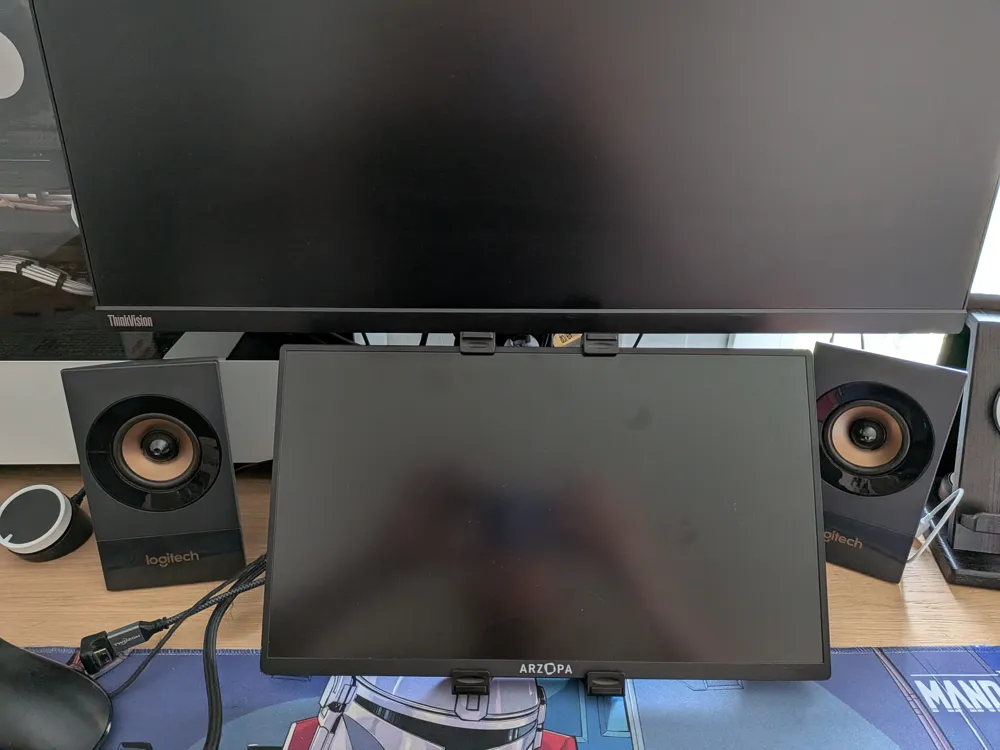

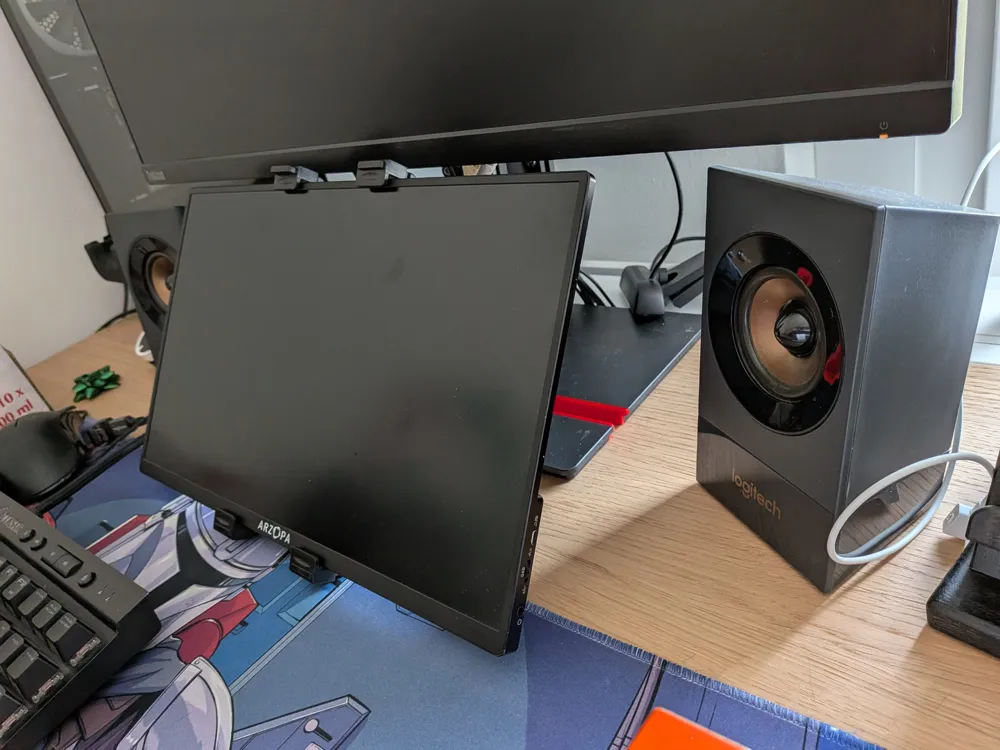

Monitor-Stem Tablet Clamp for Lenovo T27h-30. I needed a clamp for my Arzopa second screen monitor and i created it, here the specs:
4 screws M5 lenght 25-30mm + 4 dadi M5

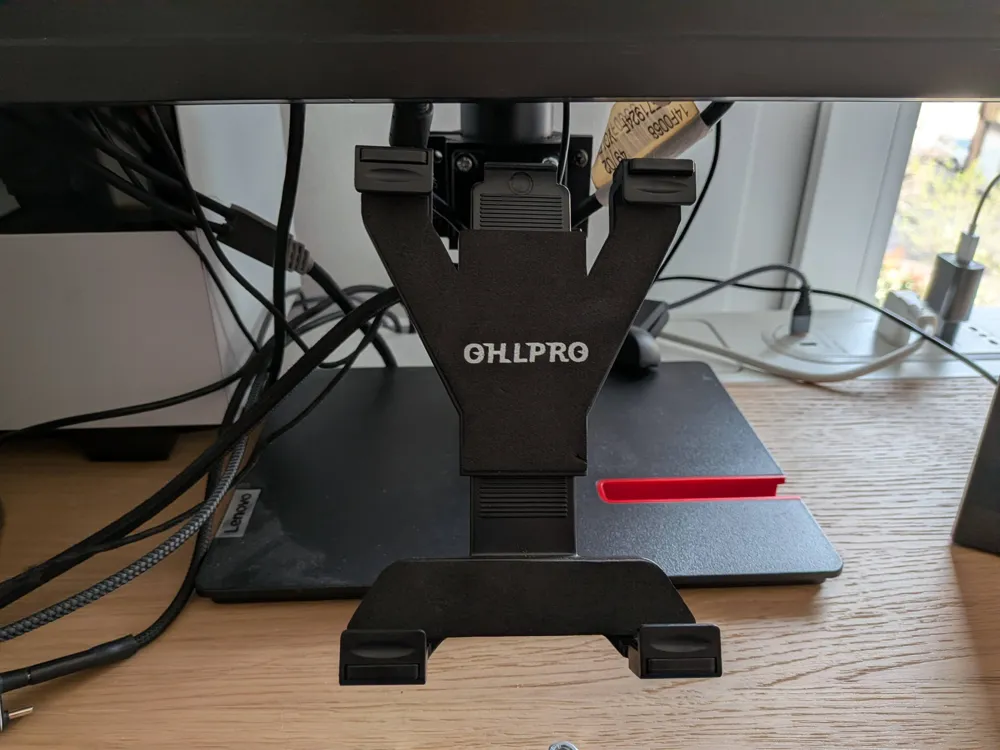

Upgrade your workspace by mounting a secondary screen directly to your monitor stand! This no-drill, non-destructive clamp is designed to bridge your main monitor's stem to a standard tablet mount, creating a seamless dual-screen experience without damaging your hardware.
Features:

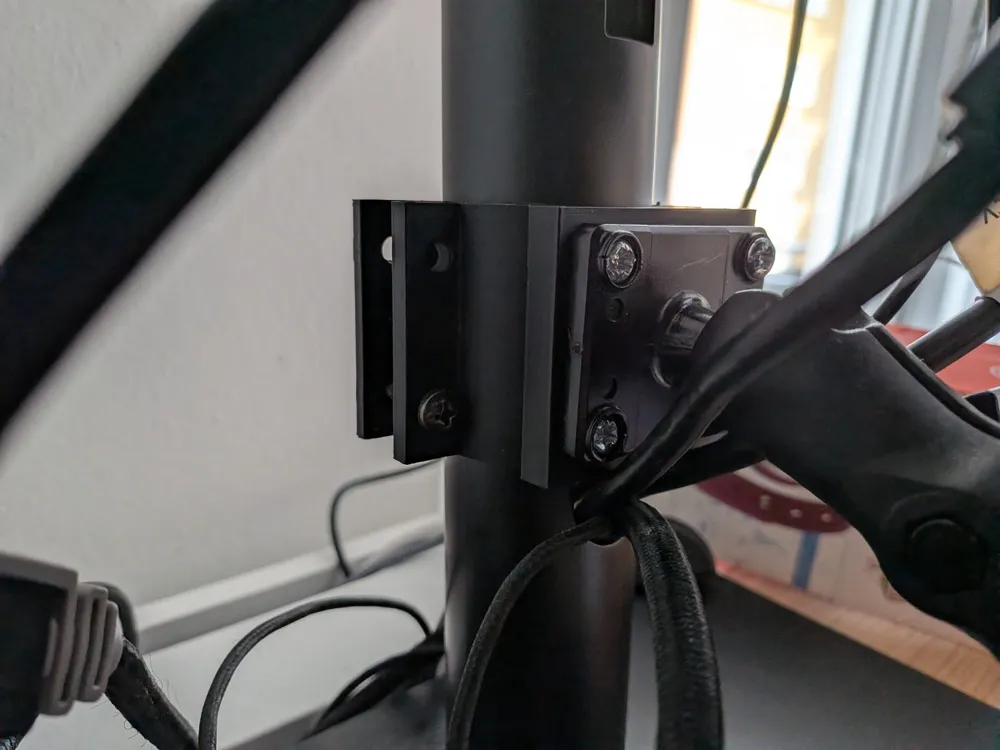

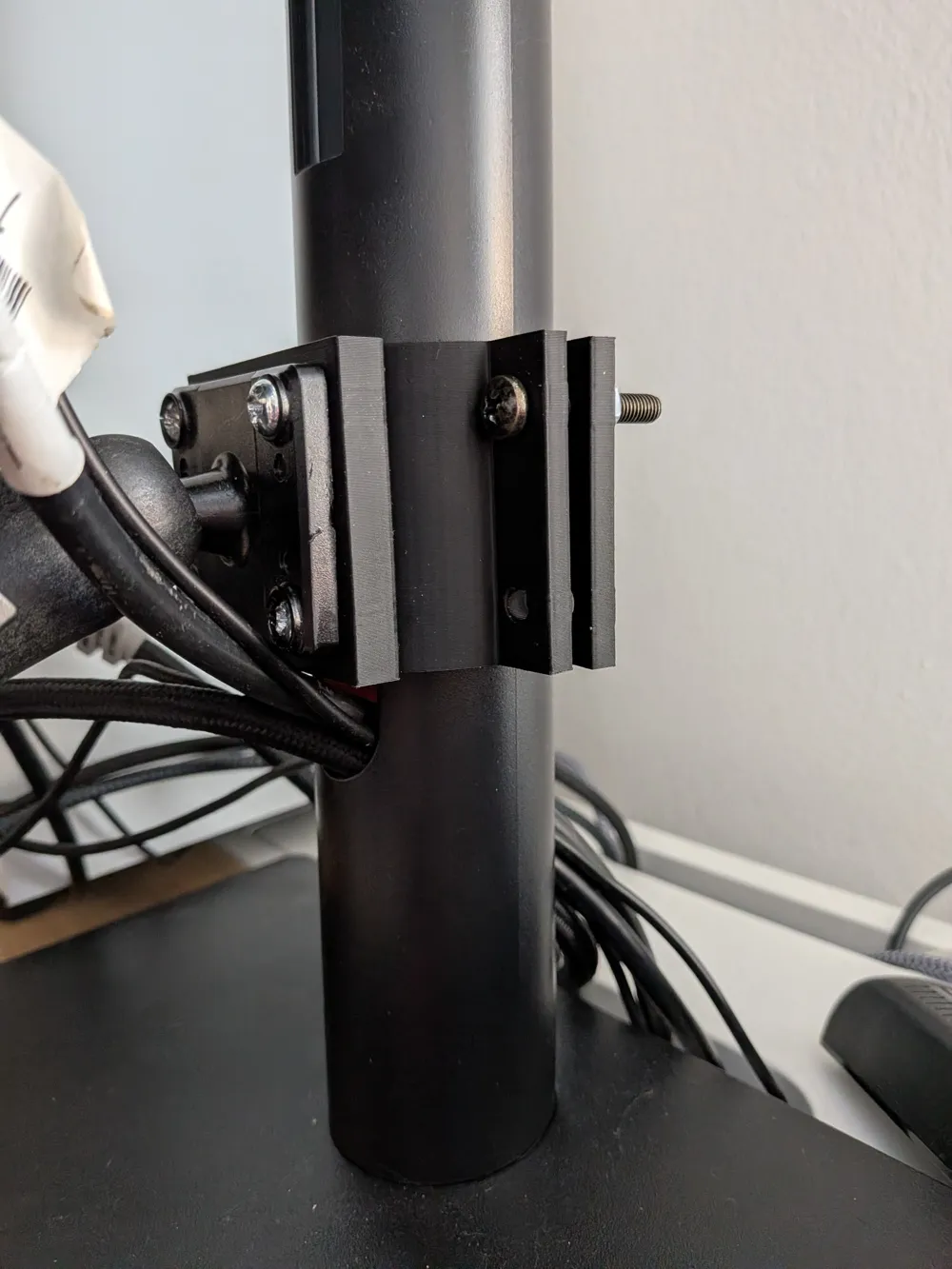

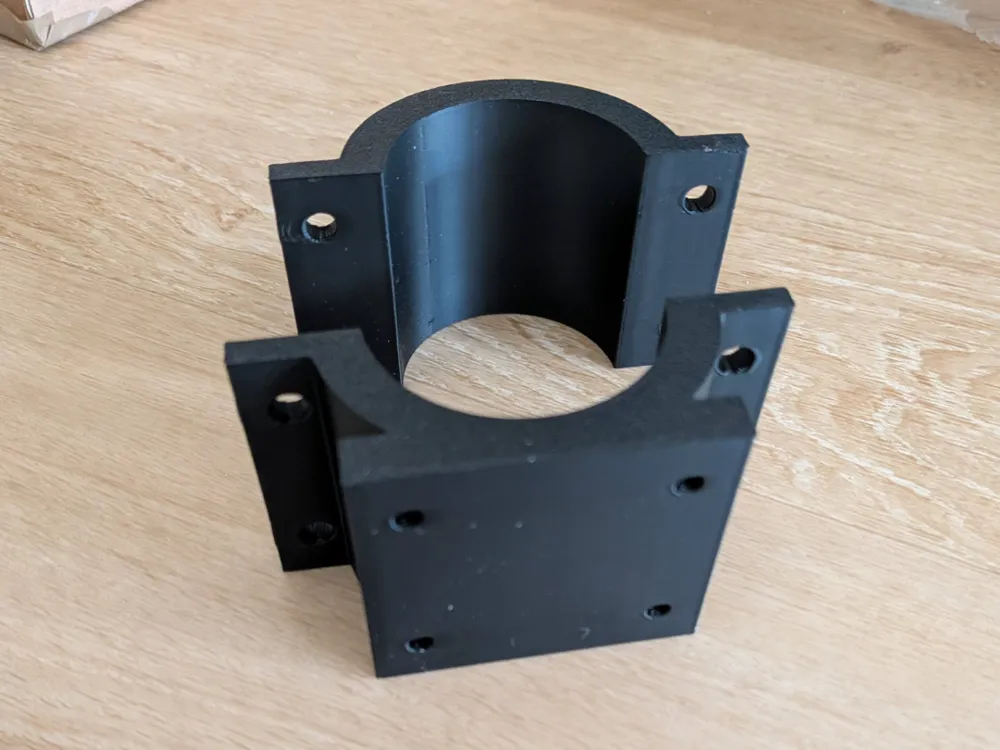

- No-Drill Design: Securely "sandwiches" around your monitor stand using a high-tension bolt system.

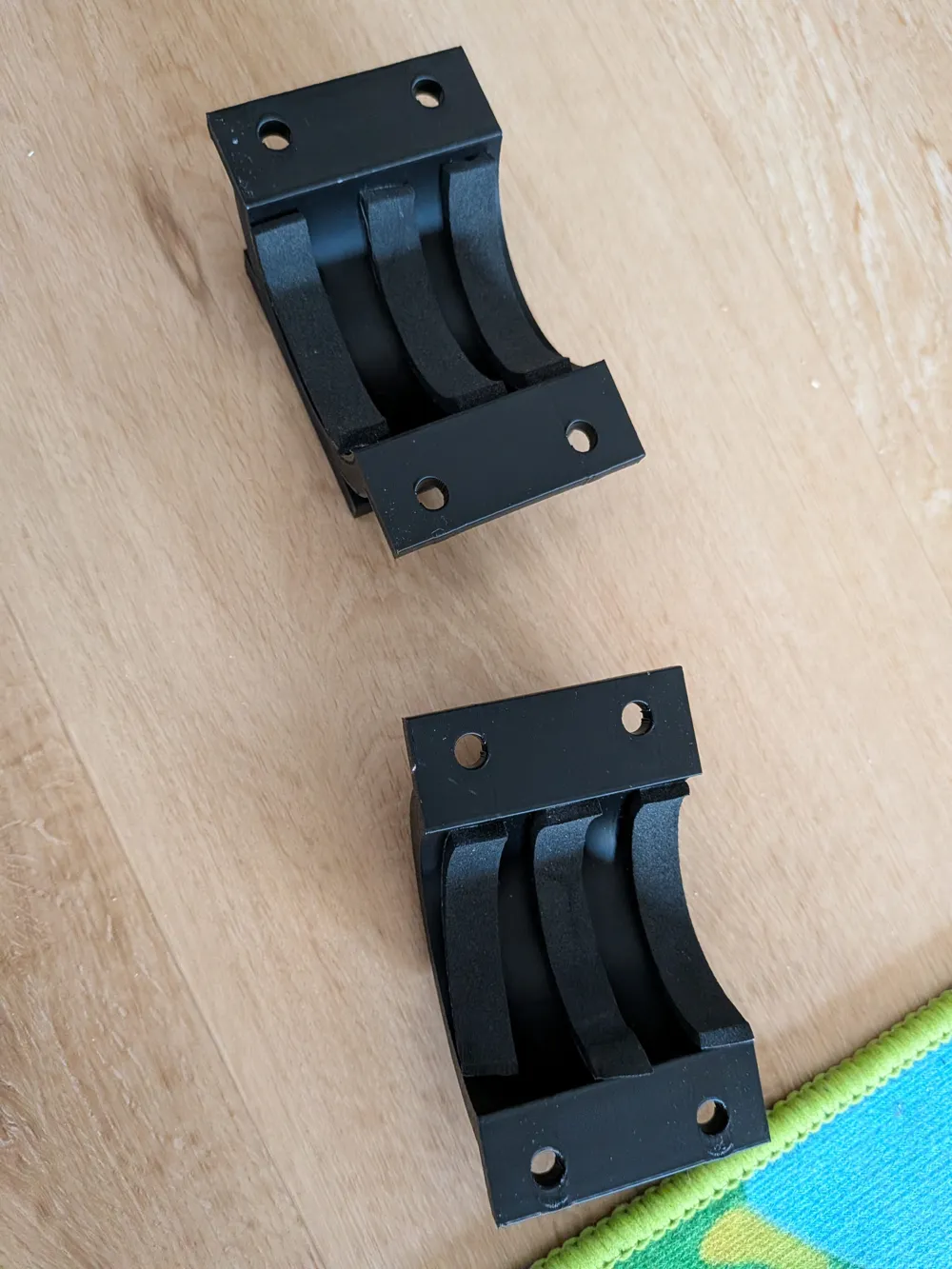

- Rock Solid: Engineered with thick walls for maximum structural rigidity to support heavy tablets (iPad Pro, Surface, etc.).

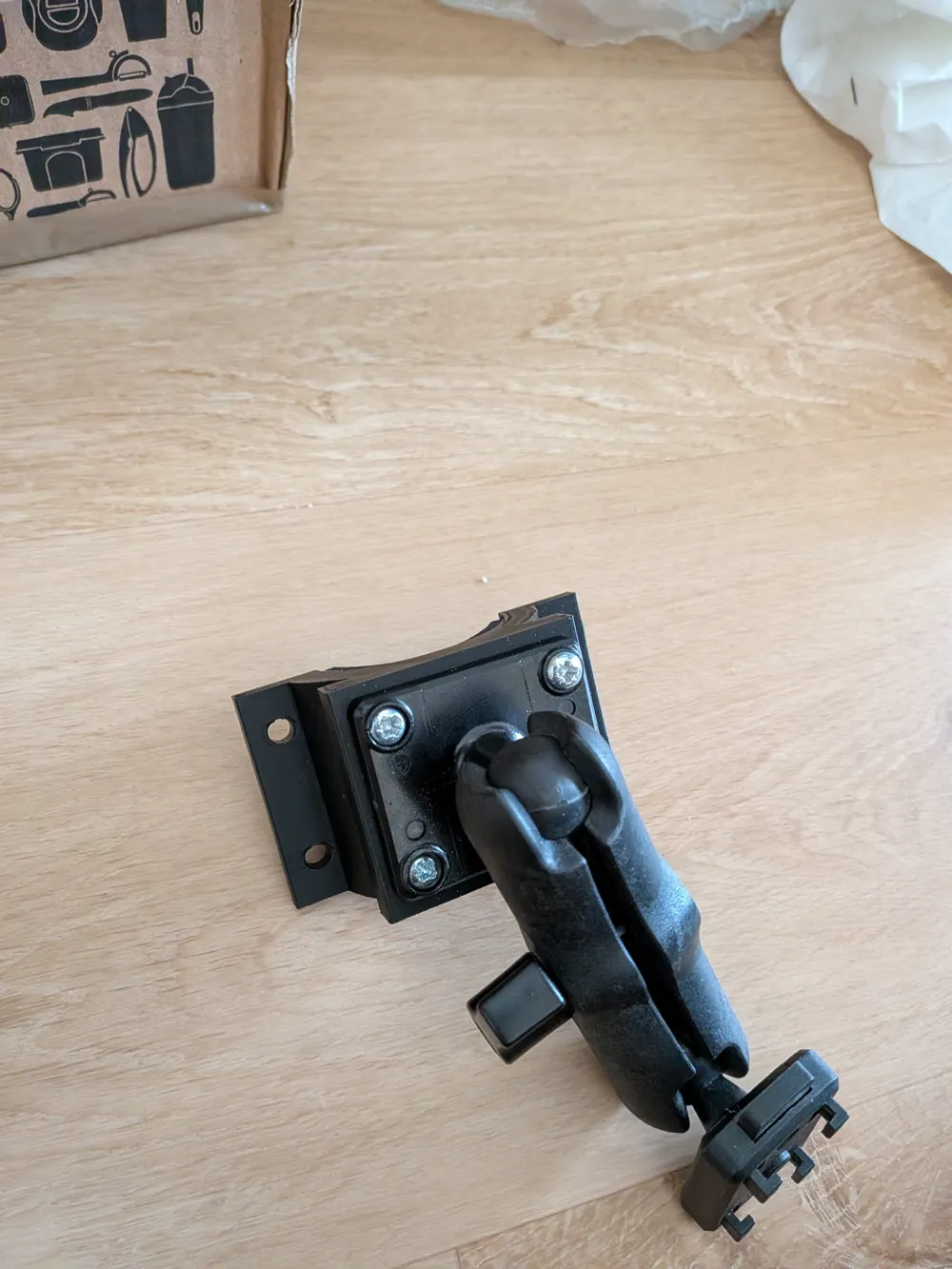

- Universal RAM Compatibility: Features a standard 40mm x 32mm 4-hole pattern, perfect for RAM-style ball mounts or articulated arms.

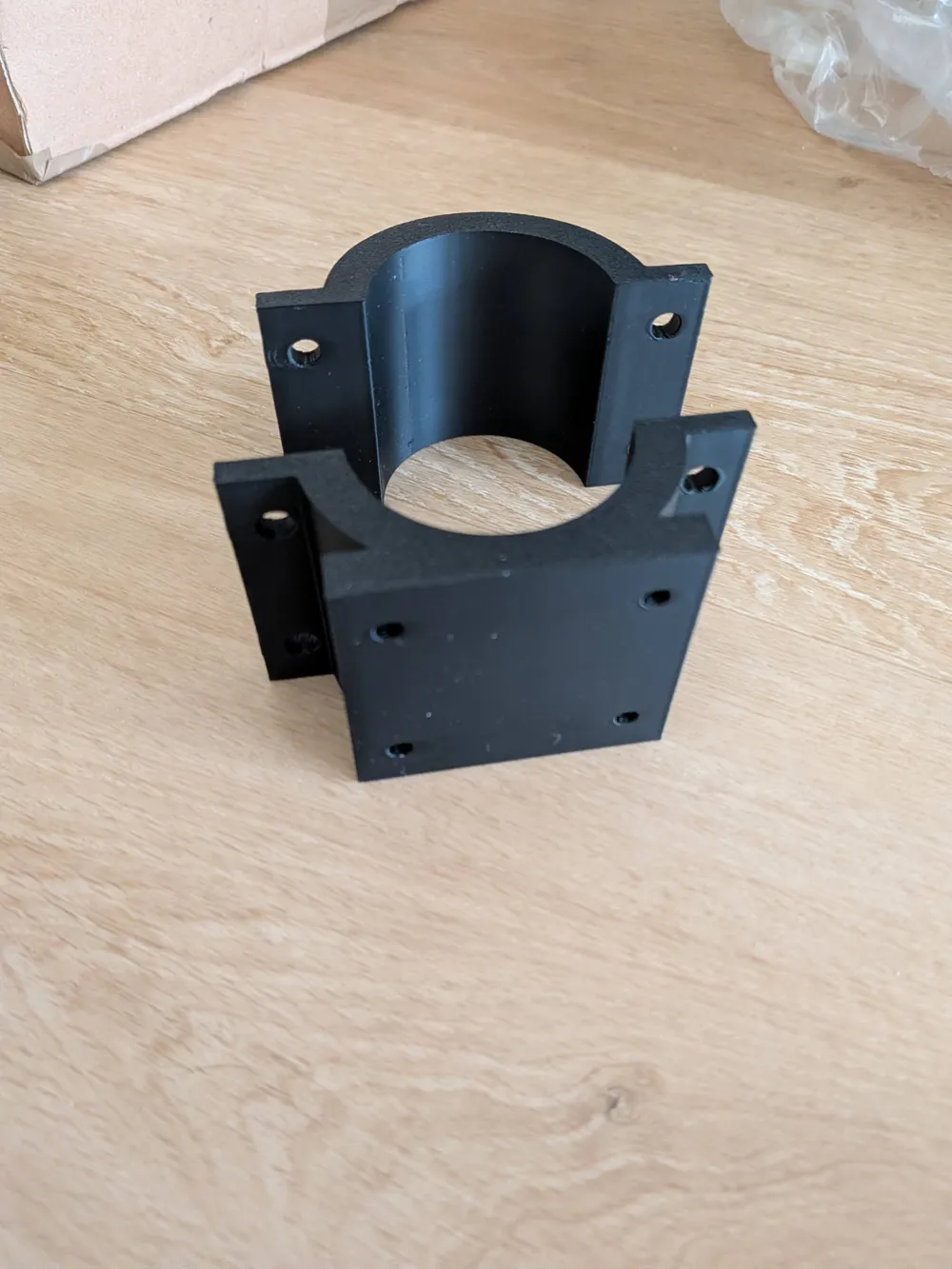

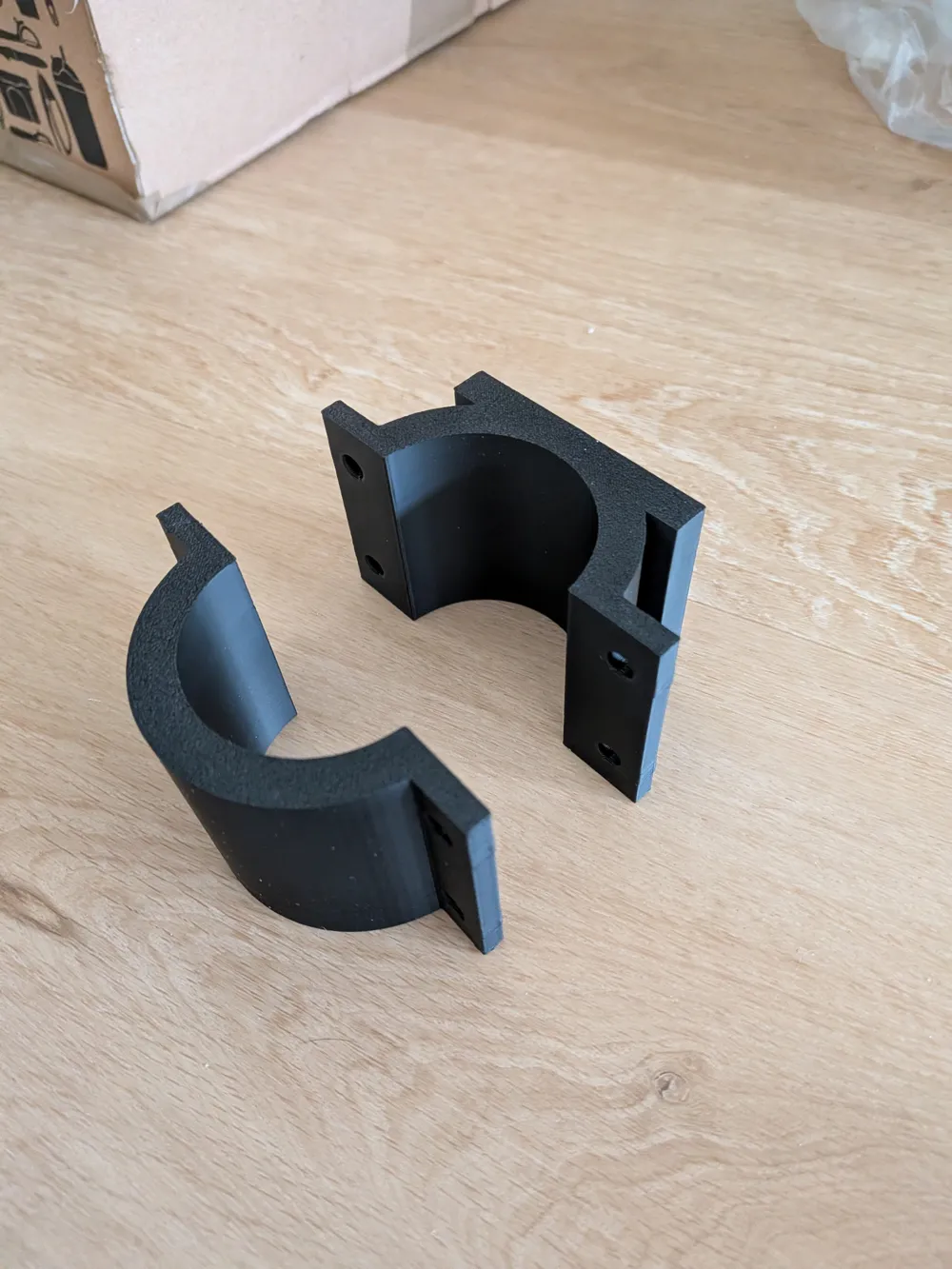

- Optimized Proportions: Tailored for a 46mm diameter circular monitor stem (easily adjustable via OpenSCAD).
Technical Specs:
- Stem Fit: 46mm Diameter (Circular).

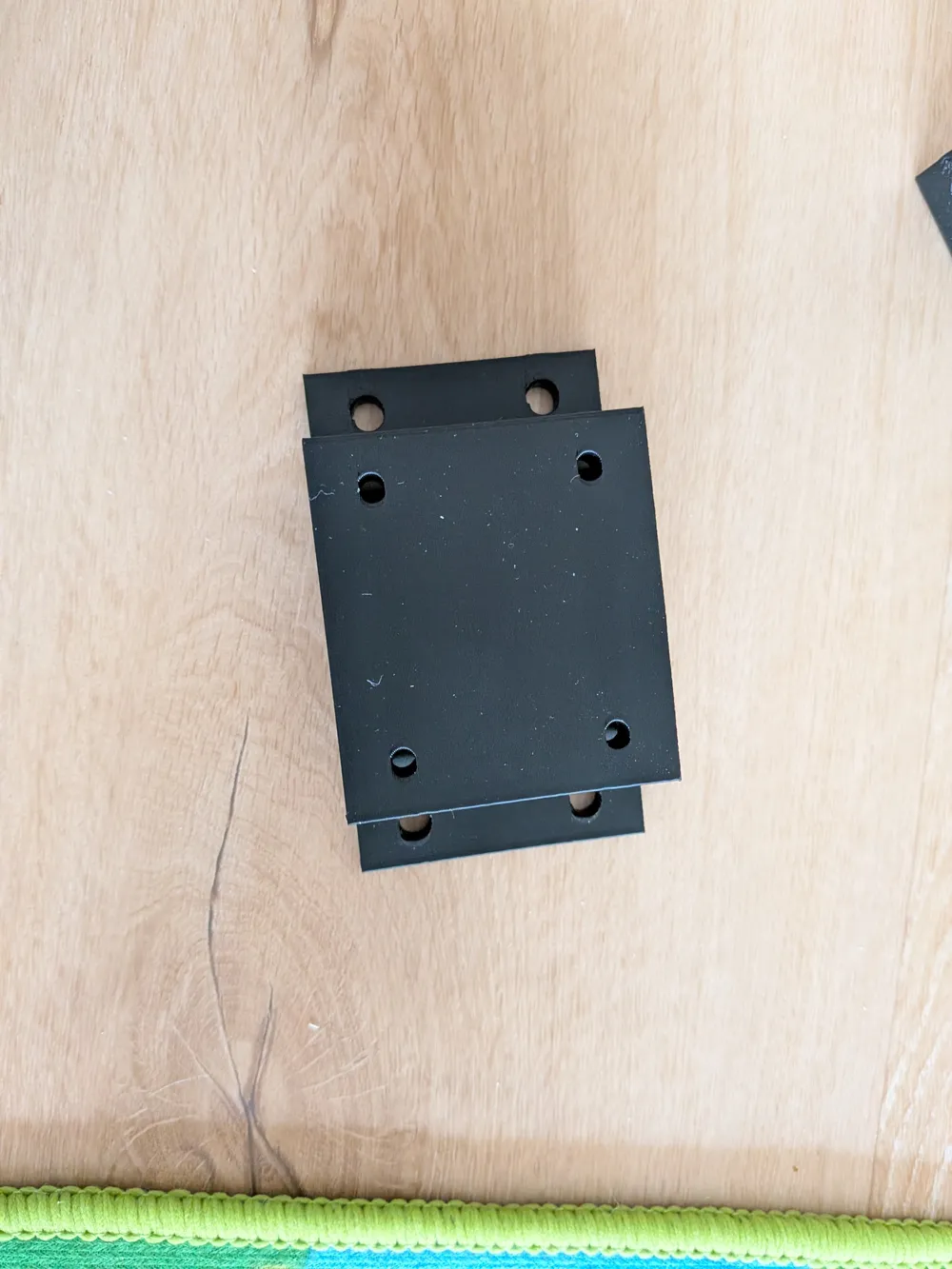

- Mounting Pattern: 50mm x 42mm Base (40x32mm Hole Centers).
- Hardware Required: * 4x M5 x 30mm Bolts + Nuts (for the Clamp).
- 4x M4 x 12mm Screws (for the Tablet Arm).
Print Settings (Recommended):
- Material: PETG or ASA (Highly recommended for mechanical stress and heat resistance near monitors).
- Wall Loops: 4-5 for maximum strength.
- Infill: 40-50% (Gyroid).
- Support: Tree supports recommended for the bolt flanges.
- Adhesion: Use an Outer Brim (5-8mm) to prevent warping.
