RJ45 Holder for Electrical Panel
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.1 h
1 plate
Open in Bambu Studio
Boost
0
3
0
0
0
0
Released
Description
Content has been automatically translated.
Description

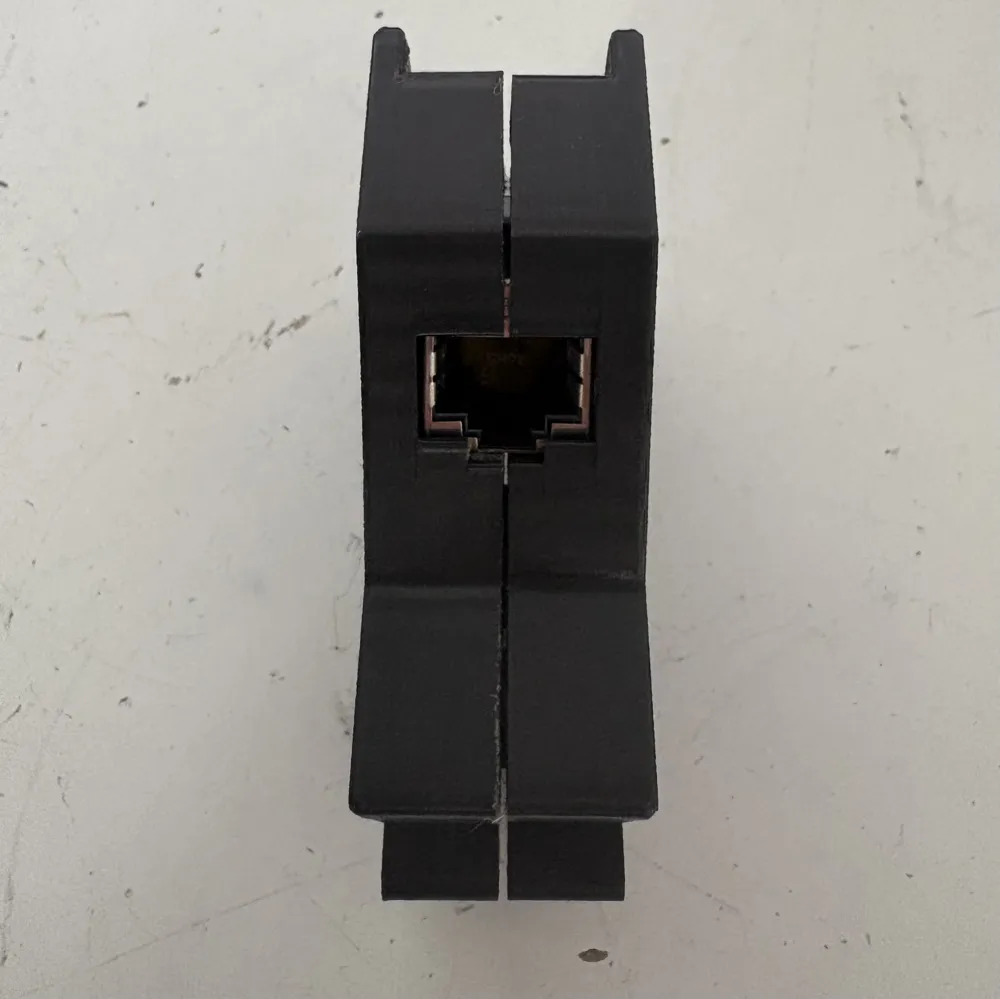

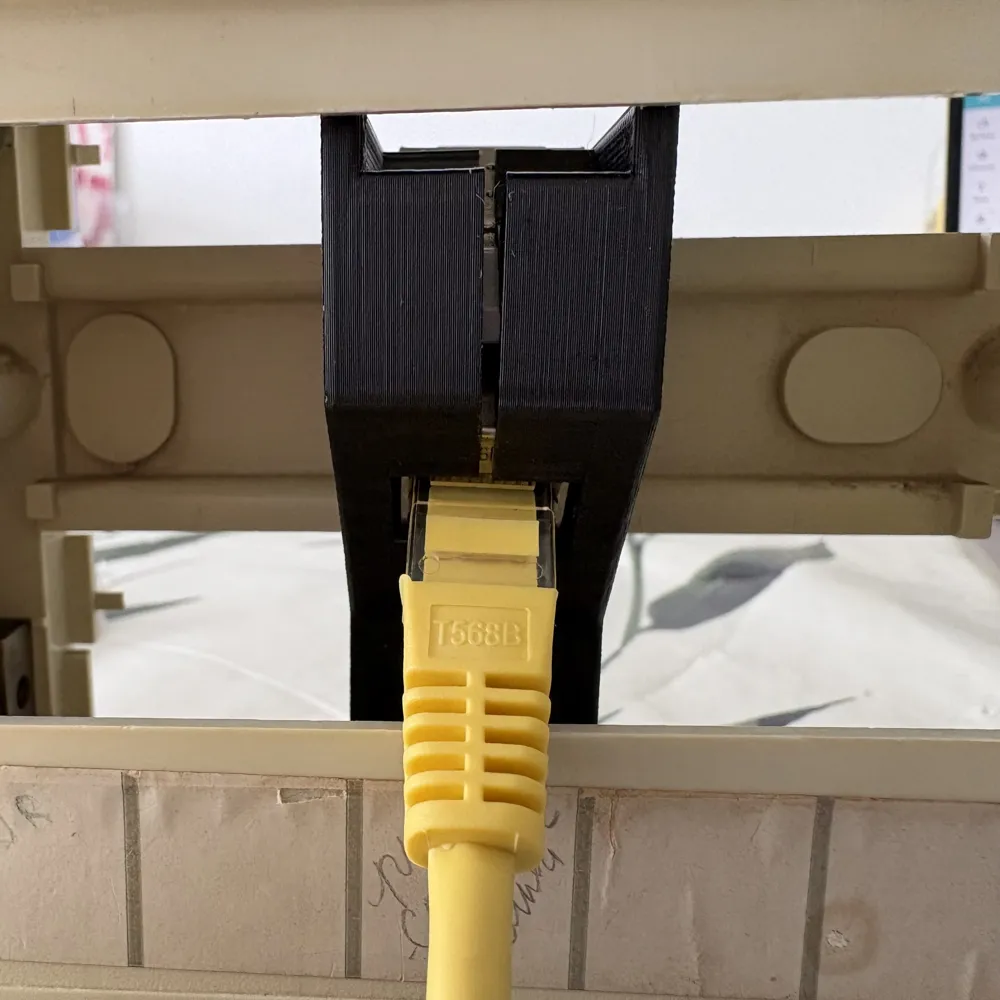

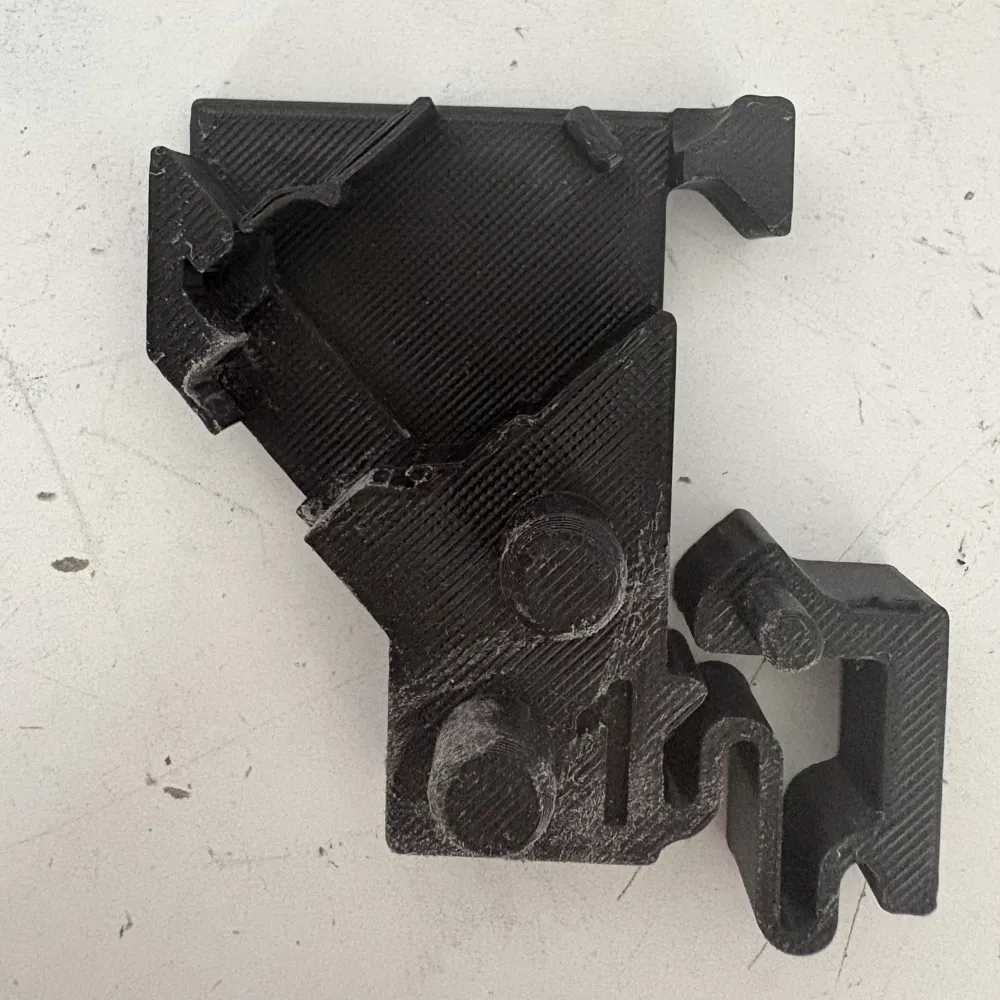

This model is an RJ45 keystone jack holder designed to be fixed on a DIN rail inside a communication enclosure.

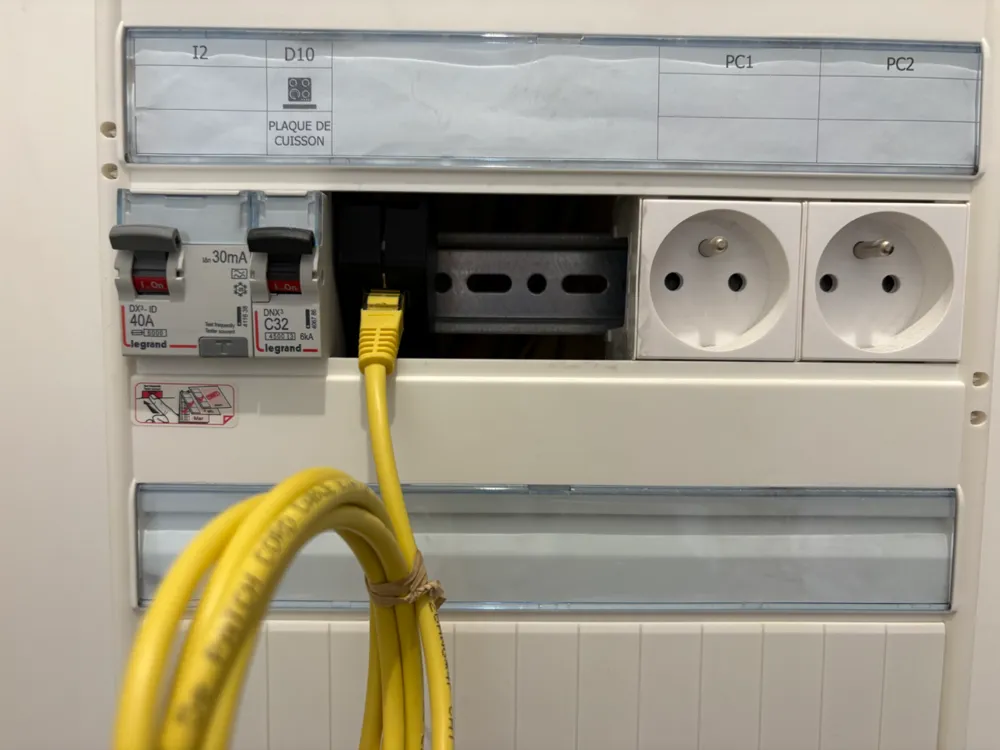

The objective is to improve the integration of network connections in an electrical panel by:
- facilitating access to RJ45 sockets
- reducing cable strain
- optimizing available space
This angled holder helps limit the bending of Ethernet cables, thereby reducing the risk of damage while improving installation ergonomics.
This model was developed as part of a BTS CPI prototyping project.
Recommended print settings
- Technology: FDM (filament deposition)
- Material: PLA or PETG
- Layer height: 0.2 mm
- Infill: 20–40 %
- Supports: NO (if orientation optimized)
- Orientation: back face on the build plate
