Underwater Camera Tray trigger Olympus tg-5-7

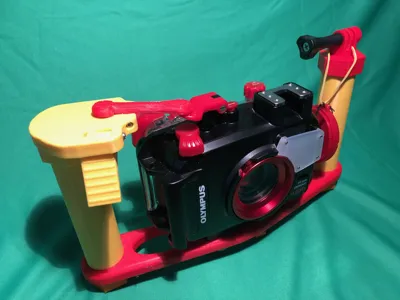

This project aims to adapt the handle of the "Underwater Camera Tray"

• The tray has not undergone any modification.

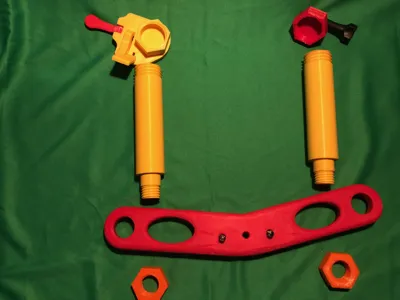

• The handles have been shortened by 30 mm to fit the device.

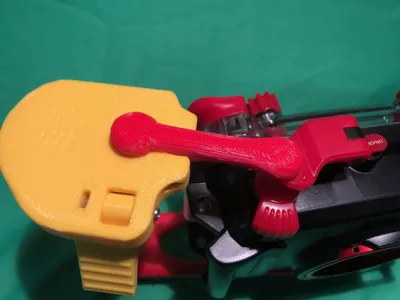

• The trigger mechanism plate has been redesigned to attach to the handle.

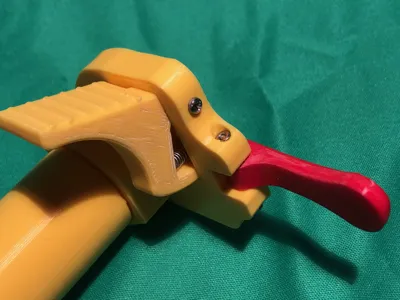

• The trigger lever has been slightly modified for better pressure on the PT-058 housing's trigger button
  and improved movement transmission by the trigger's release.
• The trigger release has not undergone any modification.

A spring has been added for better return and comfort of the trigger release. For this, I used a pen spring that I cut because it was too long at the base.
Assembly is done with 2 M2 30mm screws + 2 M2 nuts.

Tip: use light sanding to achieve smooth movement
of the parts.
