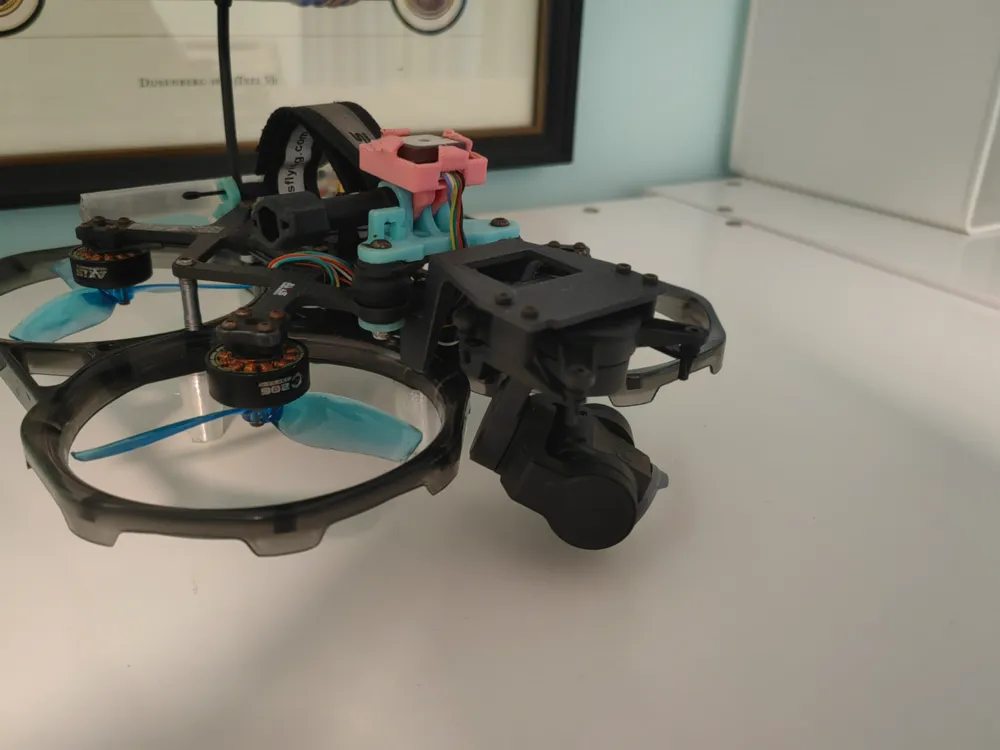

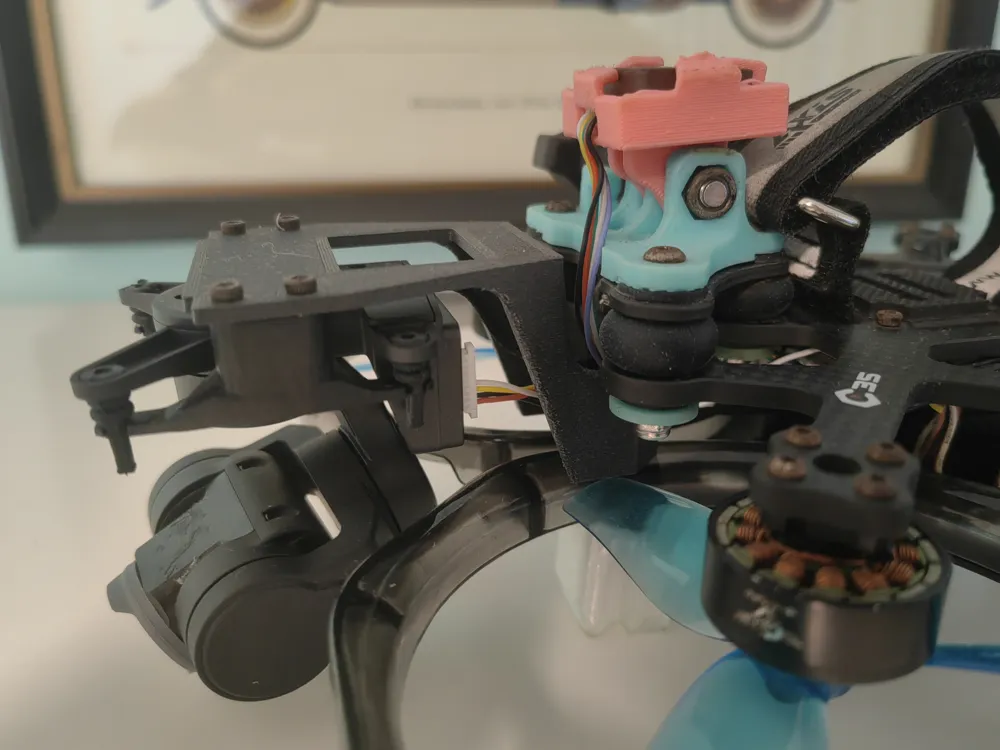

To have a drone capable of basic aerial photography, I designed this gimbal connector, allowing it to achieve stable aerial photography effects similar to DJI drones. It is suitable for the Xianfei C-20T gimbal. I use the Micoair 743 v2 AIO flight controller as the FC because it can use APM firmware to communicate with the gimbal via the Mavlink protocol.

It is recommended to use PA12-CF or high-rigidity carbon fiber reinforced filament, as PLA-CF might not withstand prolonged exposure to sunlight.
