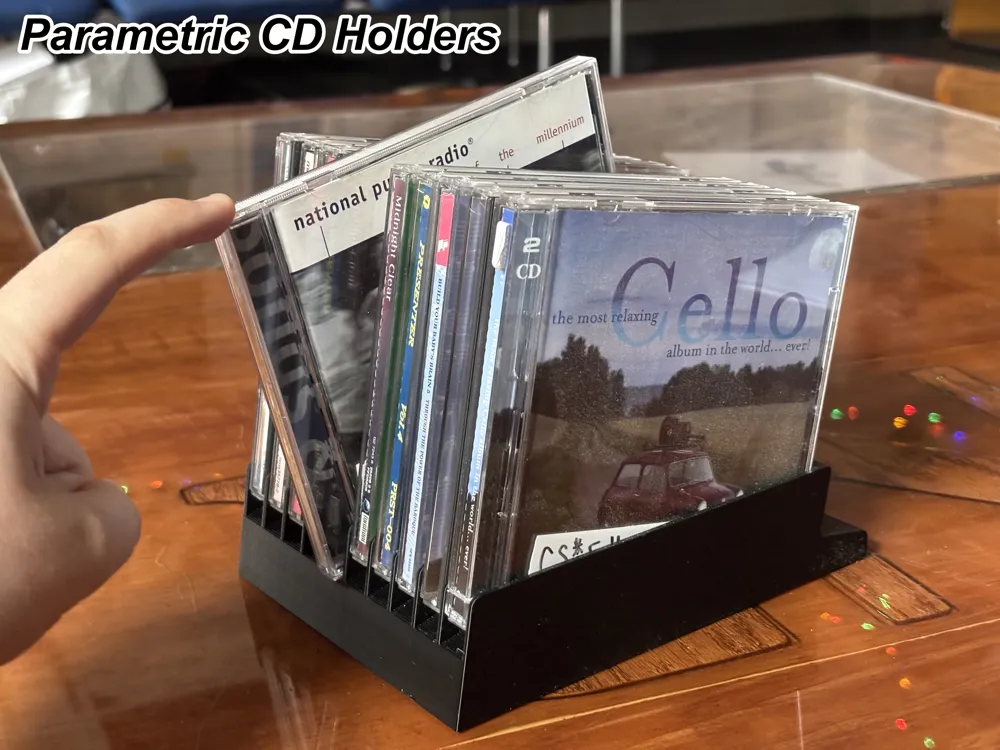

CD Jewel Case Holder Rack (Parametric)

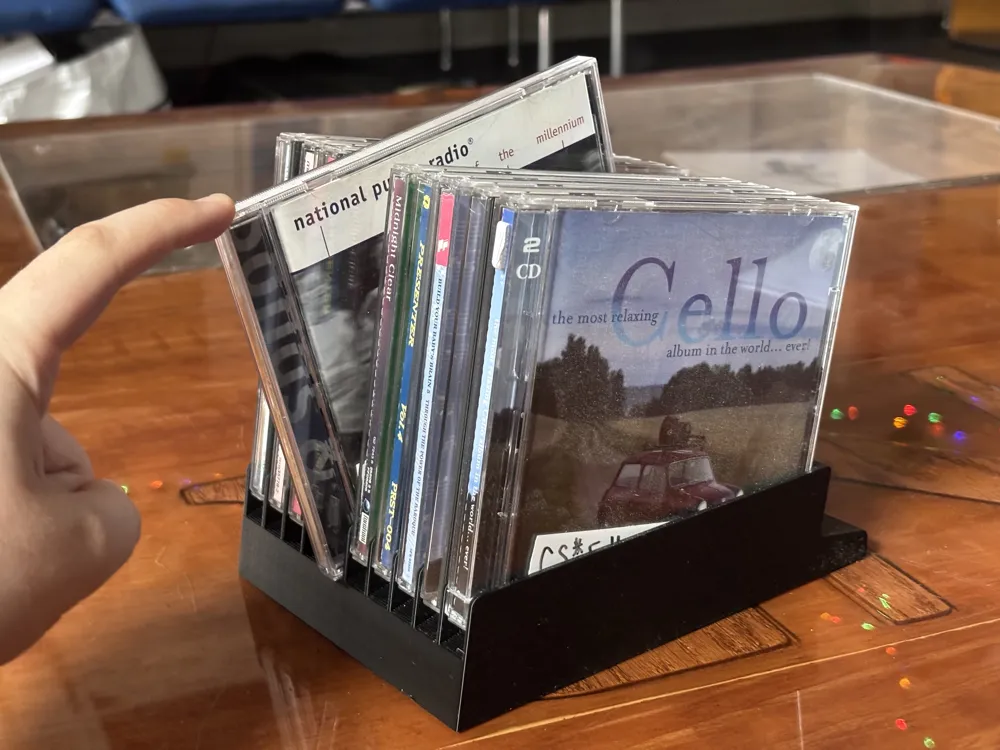

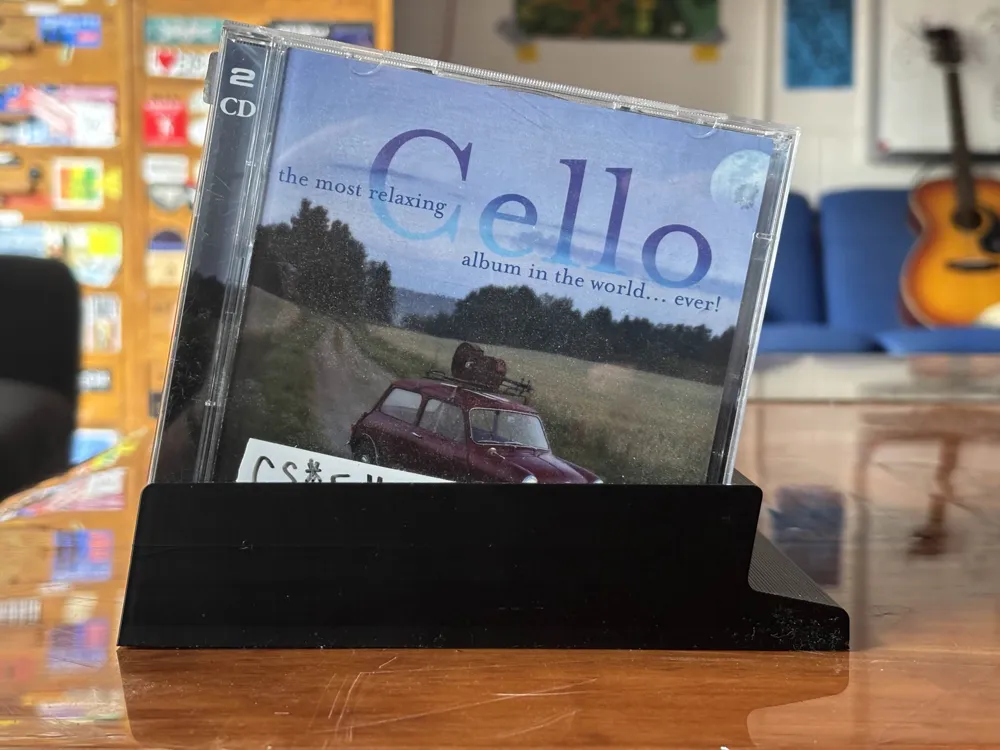

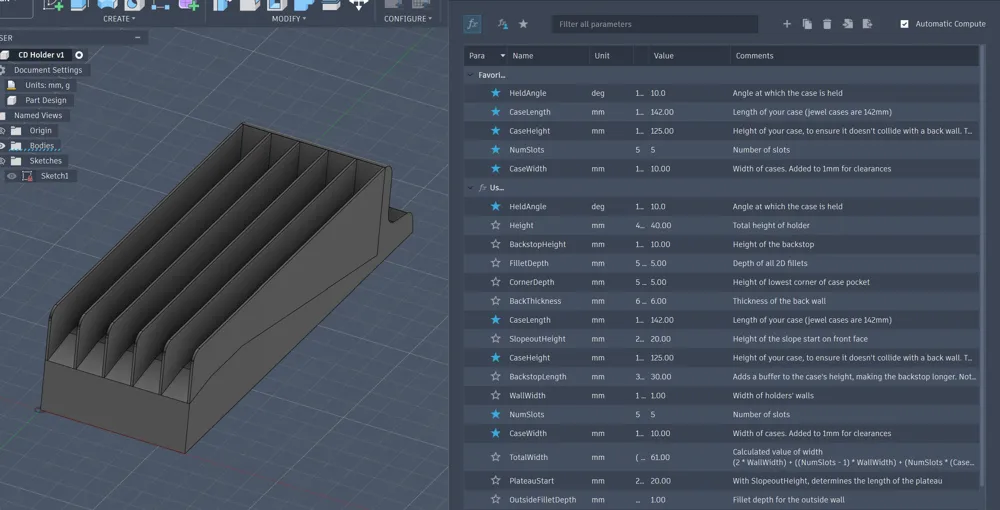

Thanks to the internal bevel, you can press down on the top corner of any case to pivot it towards you, making it easy to pull it out. The cases, by default, are held at a 10 degree angle, though this can be changed in the STEP file, along with all the other parameters to fit any regularly sized case. The provided examples are 17.2cm deep and 4cm tall and fit standard jewel cases. Feel free to remix with your own edits!

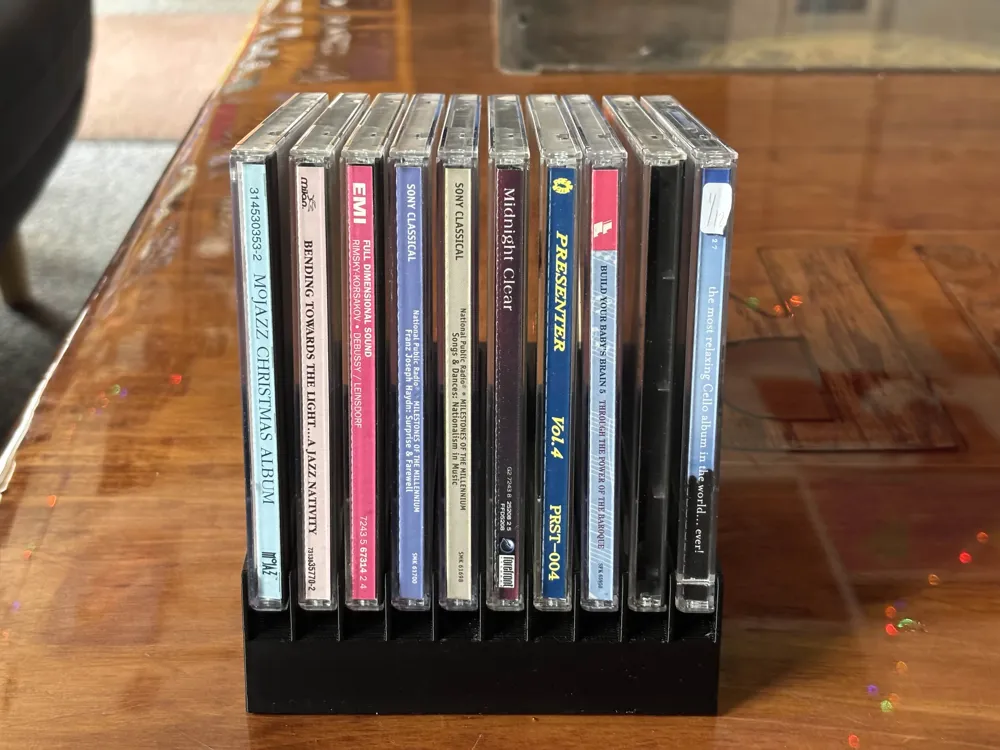

The older non-parametric versions measure 18.1cm deep and 4.1cm tall. Width depends on the number of slots you print. Each slot is 11mm wide, so smaller cases might wiggle around, and wider or broken cases may not smoothly fit.
