Functional Models

Universal wireless charging circuit

Clear rubber bumpers

22AWG wire

Heat shrink for 22AWG wire

Double_Wired_Charging_Stand.pdf

Double_Wireless_Charging_Stand.pdf

Single_Wired_Charging_Stand.pdf

Single_Wireless_Charging_Stand.pdf

cover














<figure class="table"><table><thead><tr><th style="width: 340.65625px">Setting</th><th style="width: 331.65625px">Value</th></tr></thead><tbody><tr><td style="width: 340.65625px">Filament Type</td><td style="width: 331.65625px">PLA matte is ideal for aesthetics. Other filament types are fine too.</td></tr><tr><td style="width: 340.65625px">Layer height</td><td style="width: 331.65625px">0.2 mm</td></tr><tr><td style="width: 340.65625px">Wall loops</td><td style="width: 331.65625px">3</td></tr><tr><td style="width: 340.65625px">Infill density</td><td style="width: 331.65625px">15%</td></tr><tr><td style="width: 340.65625px">Bridge speed</td><td style="width: 331.65625px">40 mm/s</td></tr><tr><td style="width: 340.65625px">Initial layer speed</td><td style="width: 331.65625px">50 mm/s</td></tr><tr><td style="width: 340.65625px">Outer wall speed</td><td style="width: 331.65625px">200 mm/s</td></tr><tr><td style="width: 340.65625px">Inner wall speed</td><td style="width: 331.65625px">300 mm/s</td></tr><tr><td style="width: 340.65625px">Support type</td><td style="width: 331.65625px">Tree (auto)</td></tr><tr><td style="width: 340.65625px">Support style</td><td style="width: 331.65625px">Default</td></tr><tr><td style="width: 340.65625px">Support threshold angle</td><td style="width: 331.65625px">35%</td></tr><tr><td style="width: 340.65625px">Support critical regions only</td><td style="width: 331.65625px">✅</td></tr></tbody></table></figure>

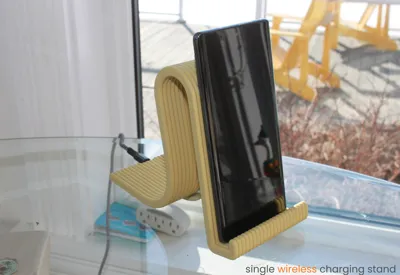

Single Wireless Charging Stand



Single Wired Charging Stand

Double Wireless Charging Stand

Double Wired Charging Stand





<figure class="table"><table><thead><tr><th>Setting</th><th>Value</th></tr></thead><tbody><tr><td>Filament Type</td><td>PLA matte is ideal for aesthetics. Other filament types are fine too.</td></tr><tr><td>Layer height</td><td>0.2 mm</td></tr><tr><td>Wall loops</td><td>3</td></tr><tr><td>Infill density</td><td>15%</td></tr><tr><td>Bridge speed</td><td>40 mm/s</td></tr><tr><td>Initial layer speed</td><td>50 mm/s</td></tr><tr><td>Outer wall speed</td><td>200 mm/s</td></tr><tr><td>Inner wall speed</td><td>300 mm/s</td></tr><tr><td>Support type</td><td>Tree (auto)</td></tr><tr><td>Support style</td><td>Default</td></tr><tr><td>Support threshold angle</td><td>35%</td></tr><tr><td>Support critical regions only</td><td>✅</td></tr></tbody></table></figure>

All Stands

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

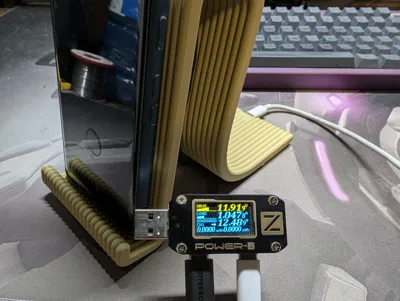

<h2><strong>AnyDock – Universal Charging for Modern Workspaces</strong></h2><p><strong>Features</strong></p><ul><li><strong>Single or Double </strong>phone charging </li><li><strong>Rubber anti-slip</strong> <strong>feet </strong>for stability</li><li><strong>iPhone &amp; Android </strong>support (wireless charger variants)</li><li><strong>Minimalist design </strong>- ideal for offices</li></ul><h3><strong>Instructions</strong></h3><ul><li>Choose your stand, then select the corresponding <strong>assembly guide </strong>(attached)<strong> </strong>for more info.</li></ul><h3>Notes for <strong>Wireless </strong>Variants</h3><ul><li>⚡Basic soldering skills required</li><li>⚠️Before snapping the PCB into place, remove any excess/sagging filament from behind the PCB tabs. Clean up the cylinder that the charging coil mounts to as well.</li><li>Charging rate depends on device, cable, power supply, and charger. </li><li>Recommended charger claims to support iPhone &amp; Android. </li><li>Tested with Google Pixel 7 Pro, measured ~12.5W with A1-611 PD 30W GaN charger (see last image).</li></ul>

anyDock – Universal Charging for Modern Workspaces

ASIA

Print Profile(5)

Bill of Materials

Description

AnyDock – Universal Charging for Modern Workspaces

Instructions

Notes for Wireless Variants
