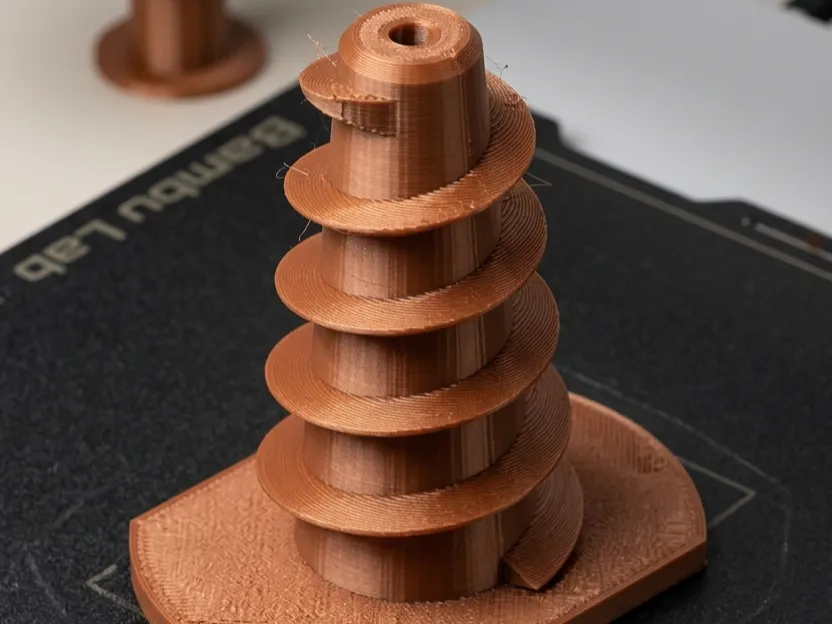

🔩 Ultra-Strong Hollow Wall Anchor – Heavy Duty Edition

This hollow wall anchor (cavity plug) was engineered for situations where standard solutions fail. Focused on maximum shear and tensile strength, this design is optimized for serious loads in drywall and hollow structures.

🛡️ High-Performance Design Features

Reinforced Base Plate: The wall-side base is significantly thickened to distribute pressure across the surface and prevent pull-through.
Structural Integrity: Optimized for 4 walls to ensure the core can handle high torque without snapping.

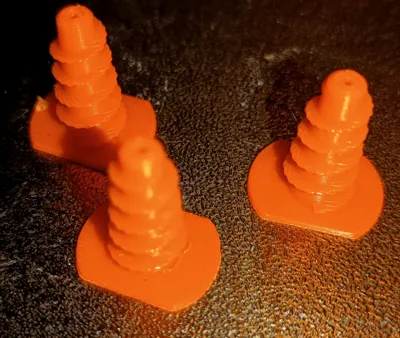

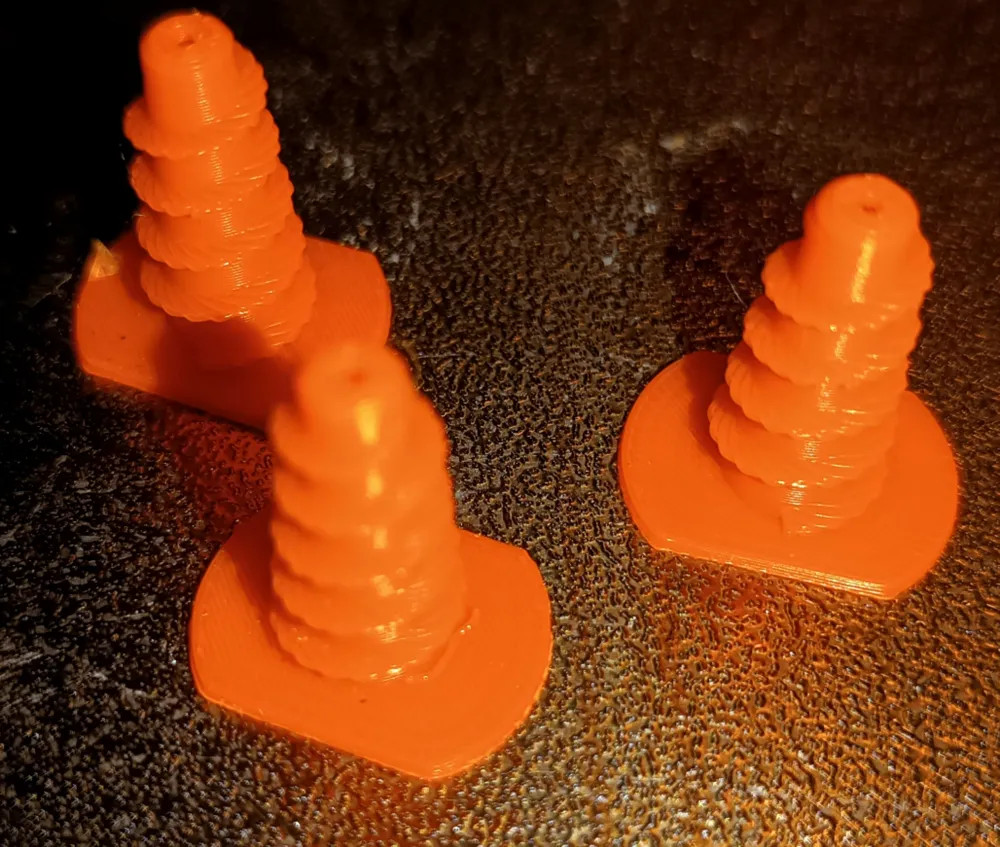

Multi-Size System: Includes various sizes to accommodate different screw diameters and wall thicknesses.

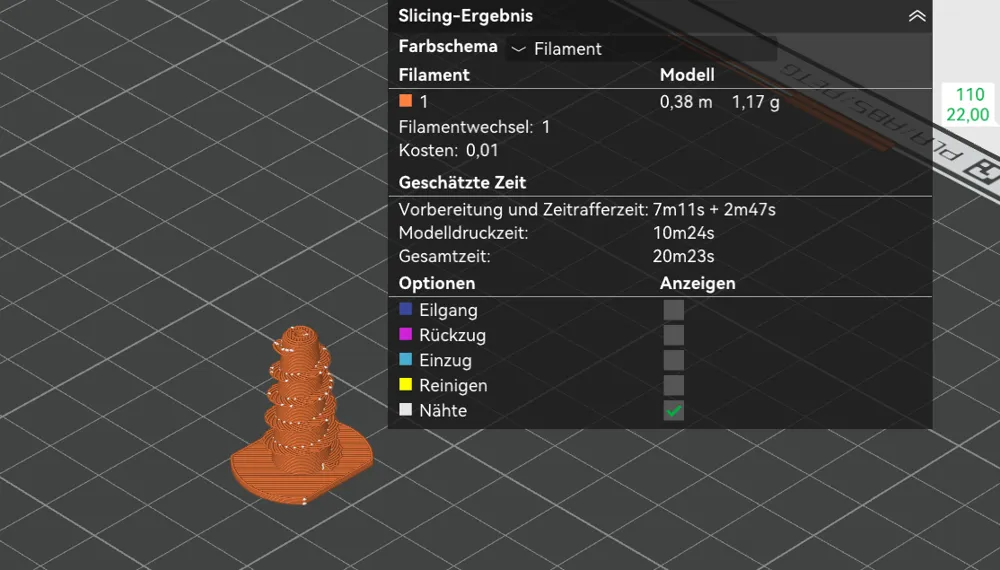

🛠️ Recommended Print Settings

To achieve the promised stability, these settings are highly recommended:

Wall Loops: Minimum 4 (Crucial for torsional rigidity!)
Infill: 40-60% (Gyroid or Grid recommended)
Material: PETG, ASA, or Nylon (Avoid PLA for long-term heavy loads due to material "creep" over time).
Layer Height: 0.16mm - 0.2mm for precise thread engagement.

Danke fürs Vorbeischauen!

Wenn dir meine Modelle gefallen, freue ich mich über Likes, Downloads, Makes oder Feedback.
Gemeinsam verbessern wir die MakerWorld‑Community Schritt für Schritt.

– Viel Spaß beim Drucken :)
