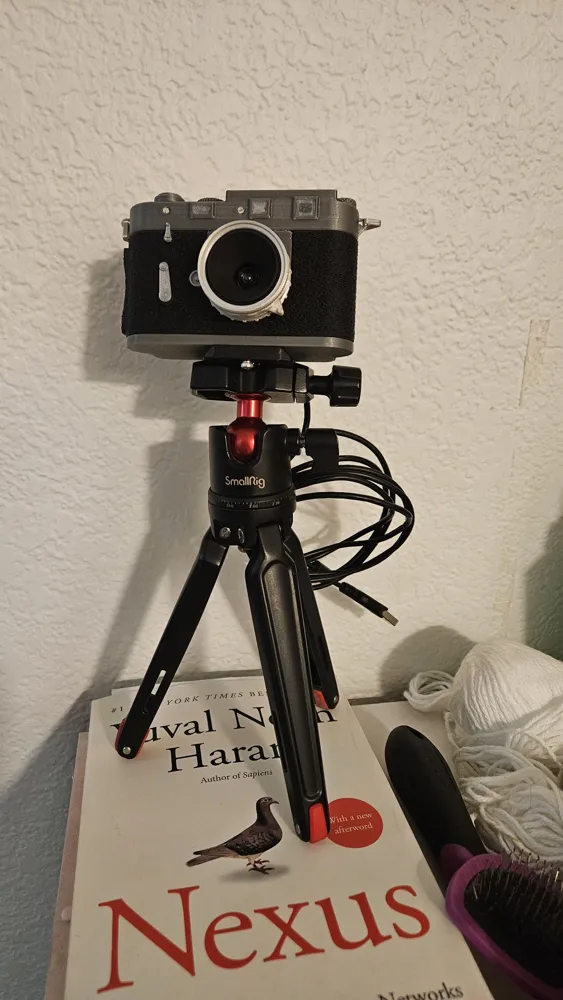

Logitech C920 / C930e Webcam Shell- Leica Inspired

A multi part printable shell casing for a Logitech C920 / C930 Webcam, removed from the manufacturer's shell.


SEE FILES FOR 3MFs

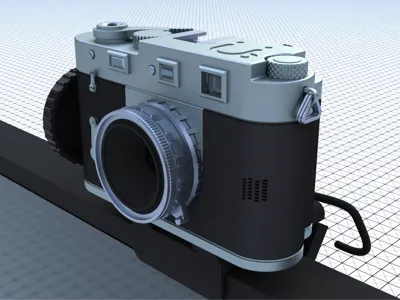

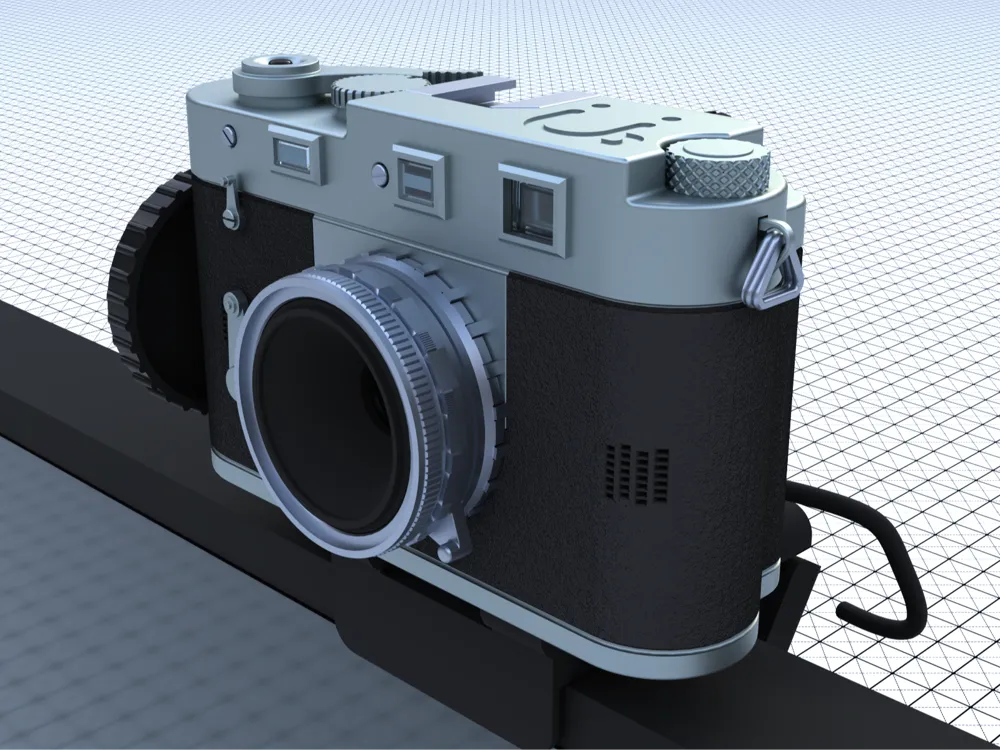

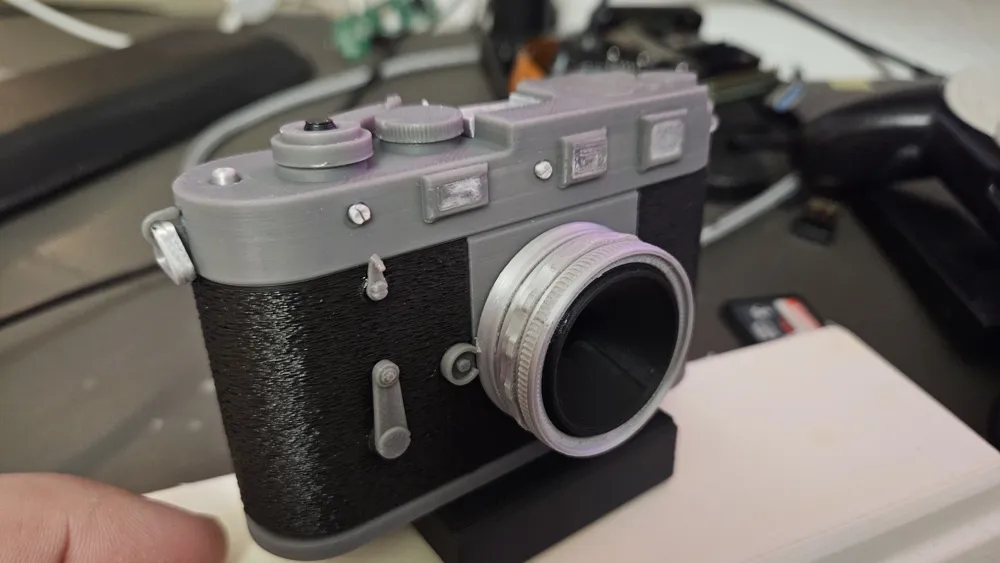

NOTE: I've updated the files: Removed the mount i previously designed to be printed, and updated the design to implement the original mount from the Logitech camera. See the first 3 images for reference, as others show the old design.

The design includes:

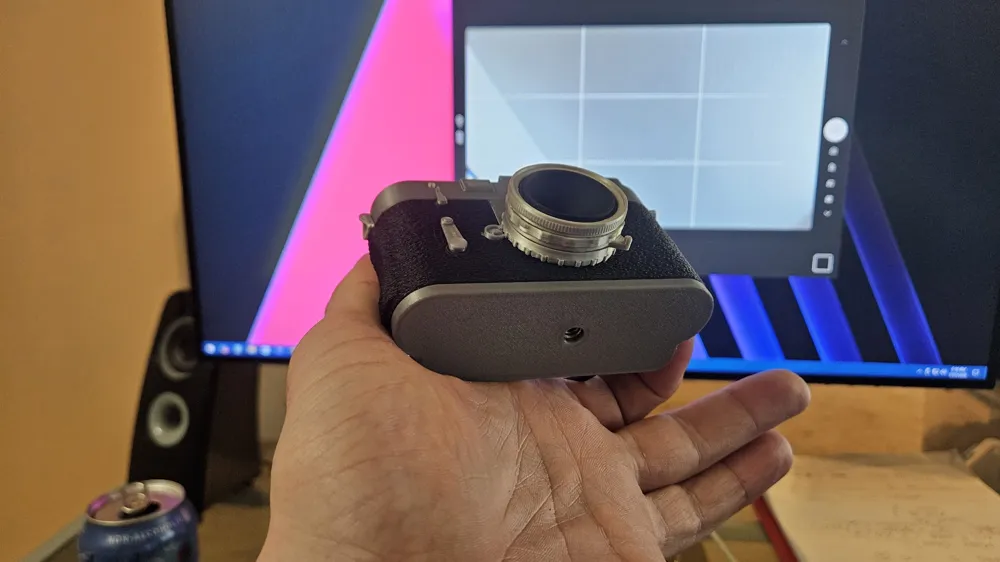

•  A 1/4"-20 threaded mount interface (via embedded nut), allowing compatibility with virtually any standard tripod, arm, or camera rig.

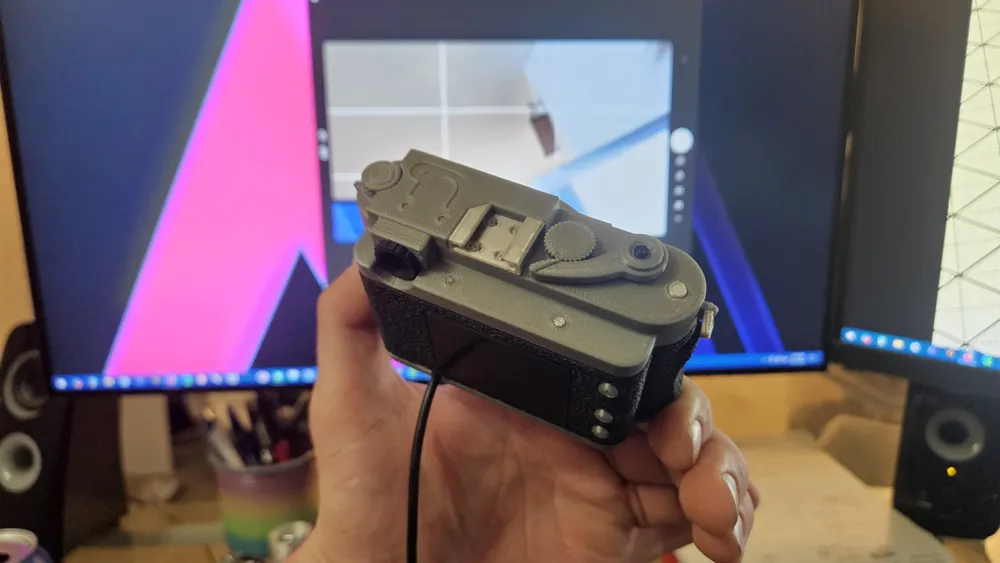

• A functionally sized hot shoe on top for accessories.
• A printable lens cap, plus a dedicated side storage slot so it never gets lost.
• Optional 1.75mm alignment pin channels at key mating surfaces. These can be filled with filament scraps and used as positioning guides during assembly. Gluing the major components is recommended for best rigidity.
• Included a version without the camera cutout, to make your own device fit in this design easier, although it is a previous version, before the mount update and other enhancements

Non-printable Hardware required:

• (1x) Logitech C920 Webcam
• - (1x Optional) 1/4"-20 Nut

I am working on an assembly guide PDF currently. The 3MF files were authored in the latest Bambu Studio (sorry).

Please refer to the following ifixit guide for disassembly of the camera:
https://www.ifixit.com/Guide/Logitech+C920+Webcam+Disassembly/115077
