Bracket for prism, mount bolt Survey Leica trimble
Print Profile(1)
Description

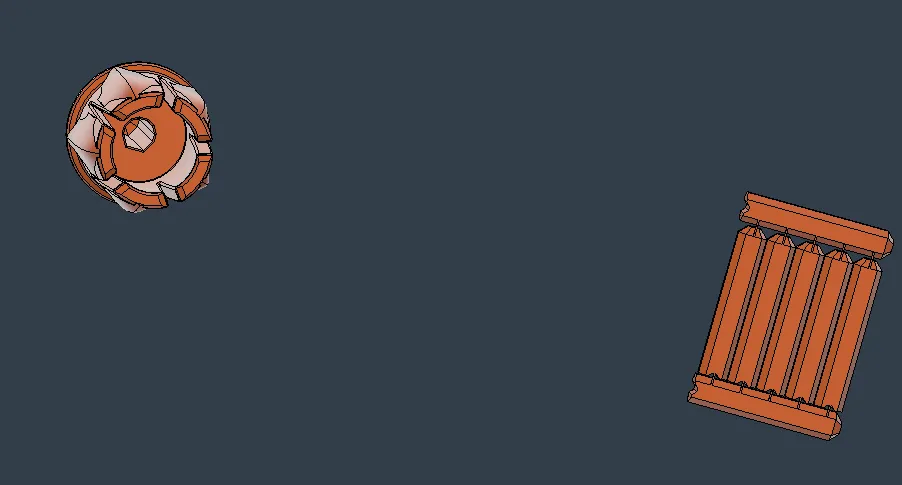

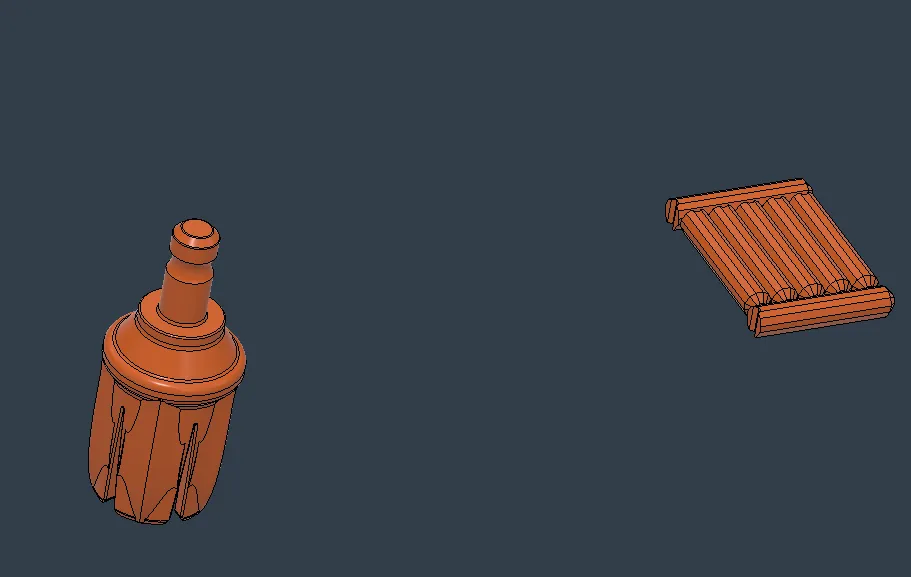

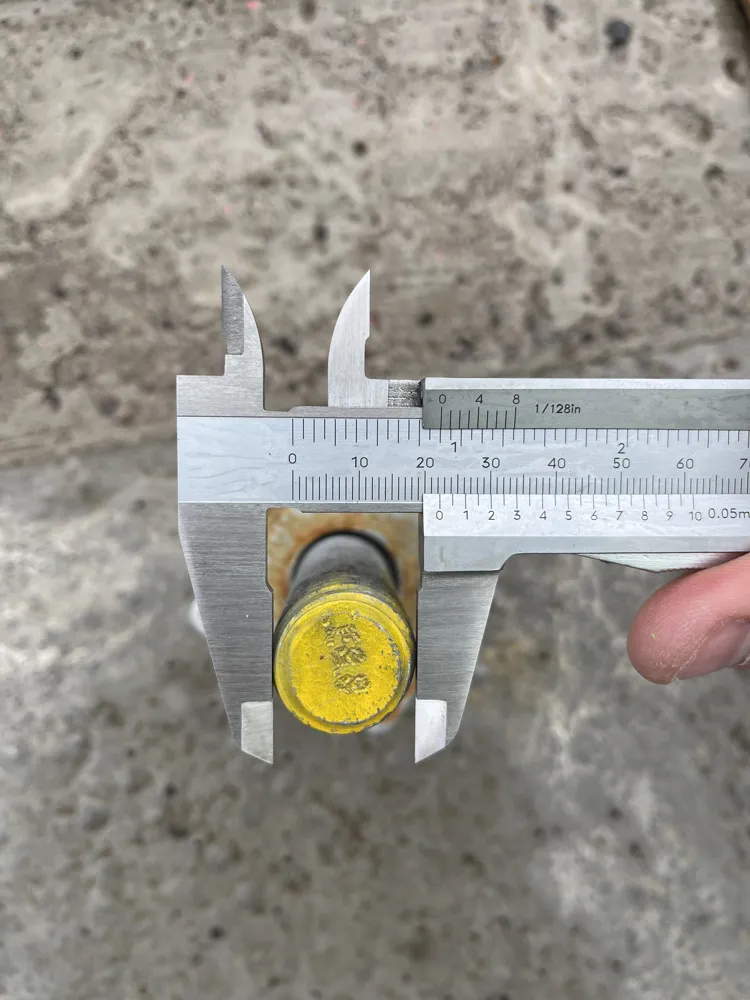

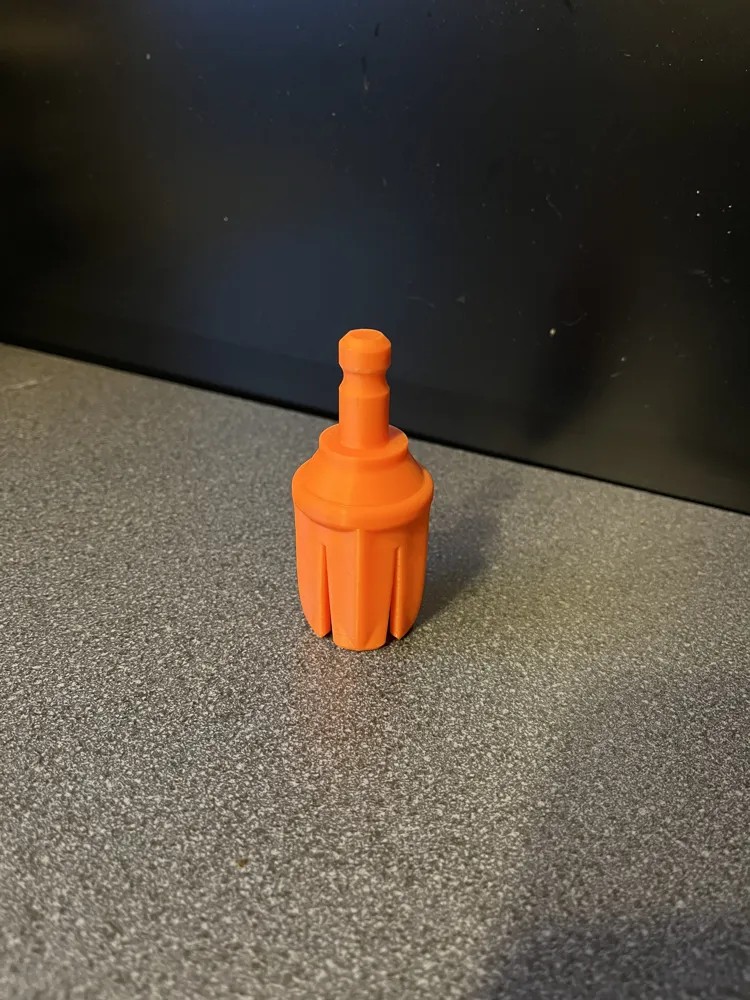

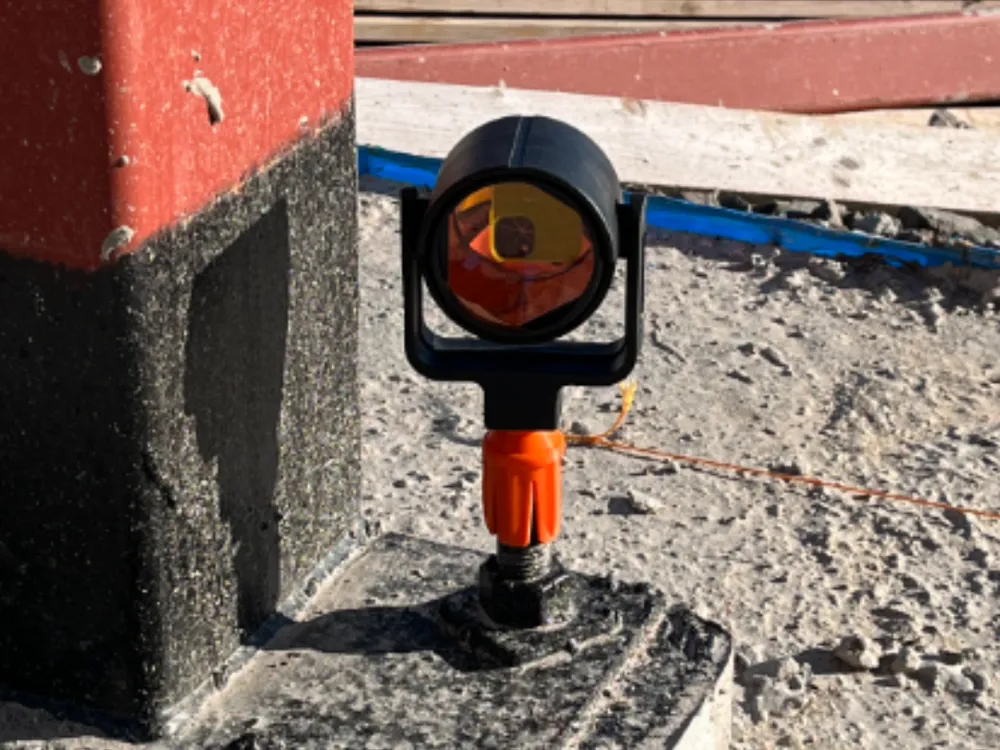

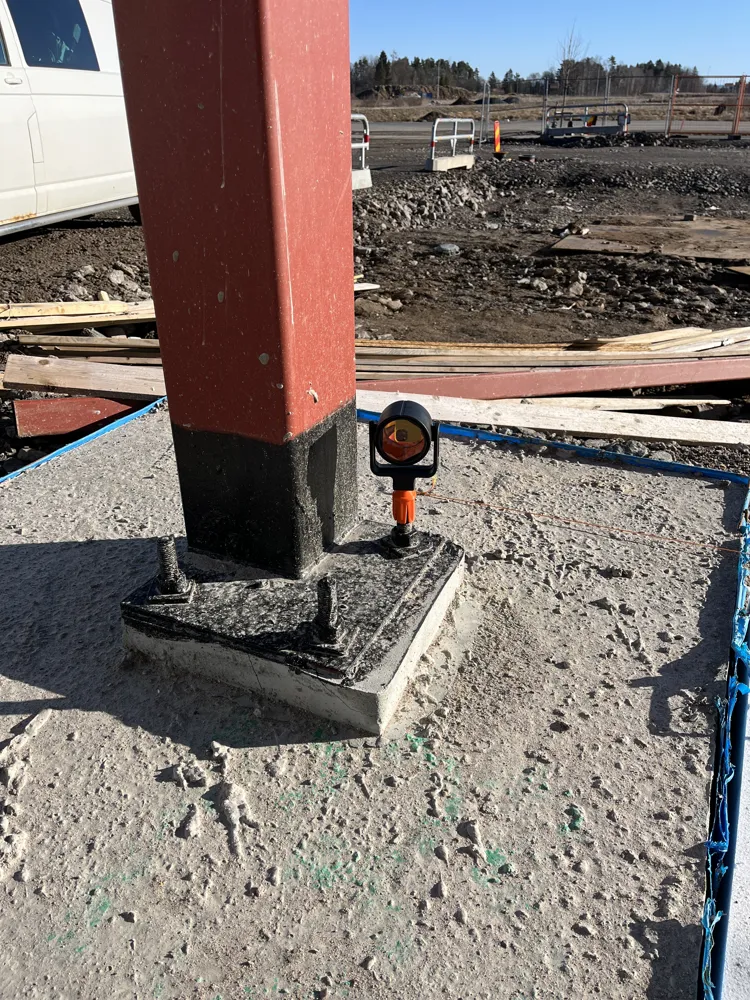

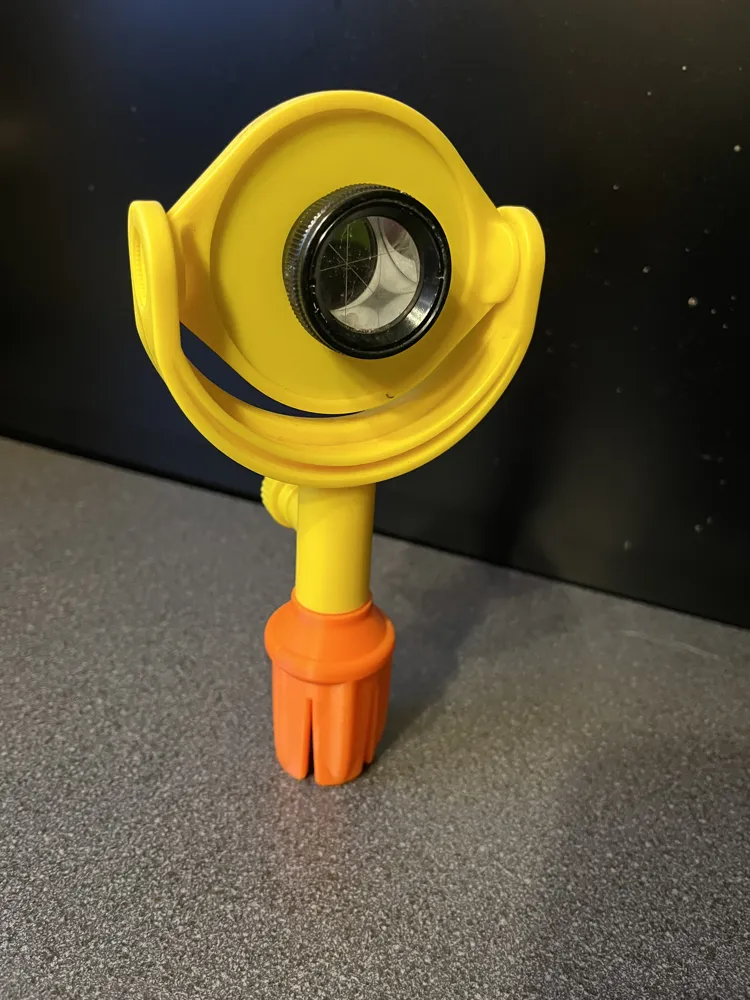

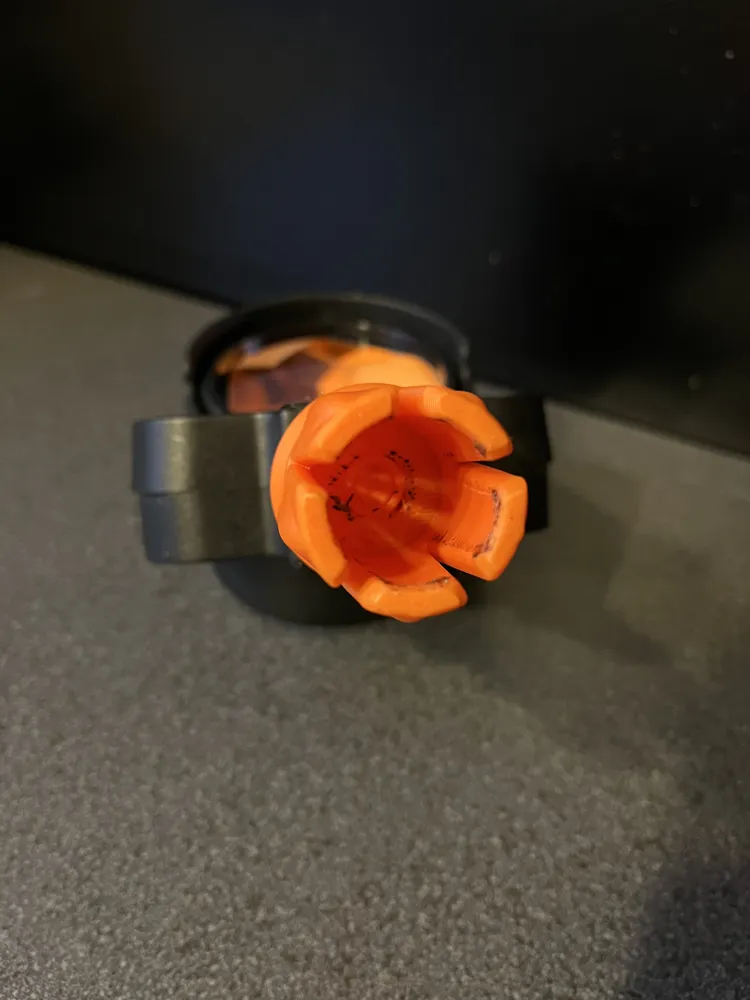

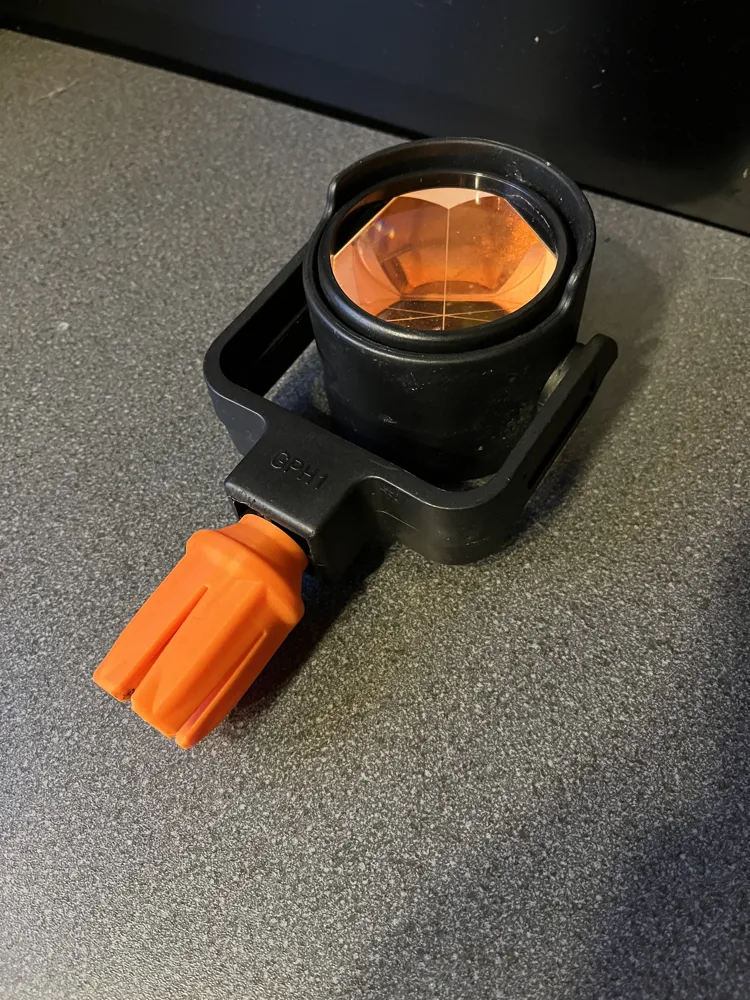

I have made a bracket for prisms that can be mounted on 22mm bolts. There are a bit of tension in the legs to pinch around the bolt. You can print this standing up. I have also made a pin that is printed lying down this is pressed in to get strength in the bracket. Mine holds up but if unsure you can glue the pin or scale the pin for a werry tight fit.
