Pioneer CDJ3000 Spotify NFC player
Print Profile(1)
Description
Pioneer CDJ‑3000 Spotify NFC Player

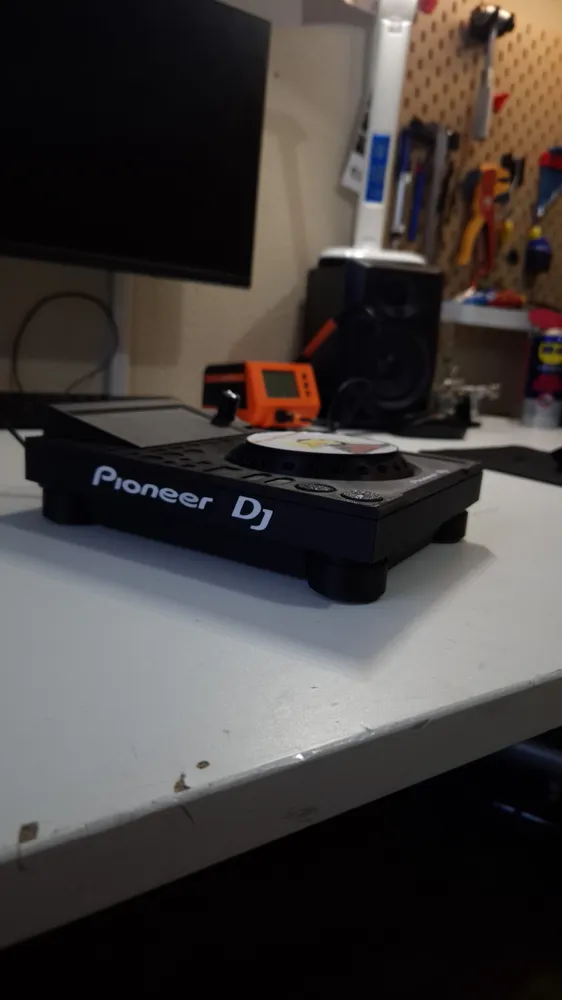

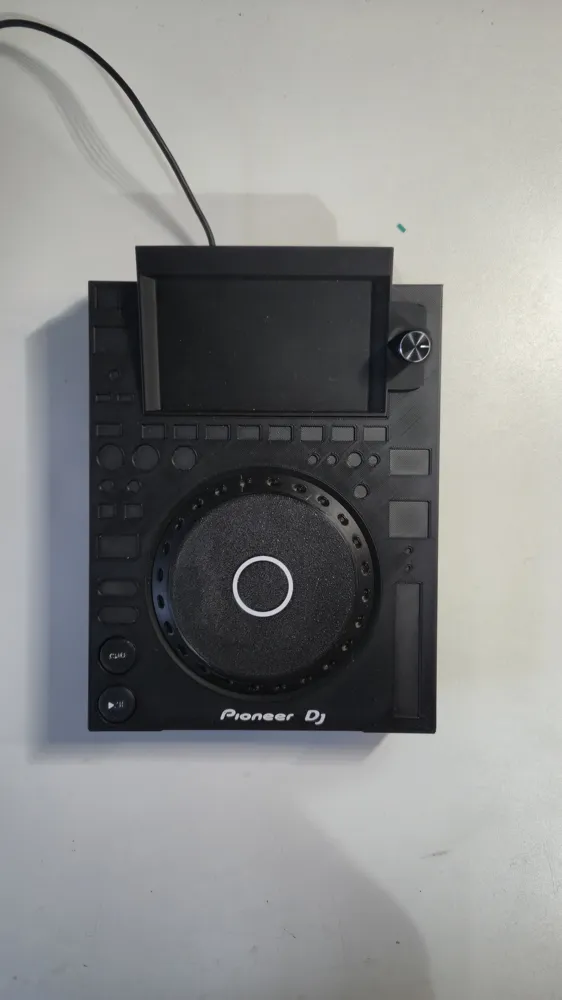

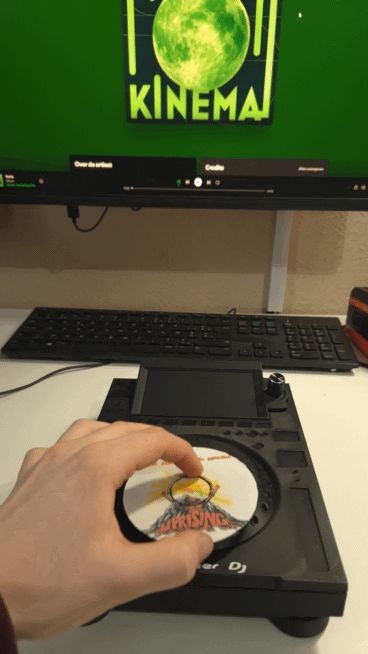

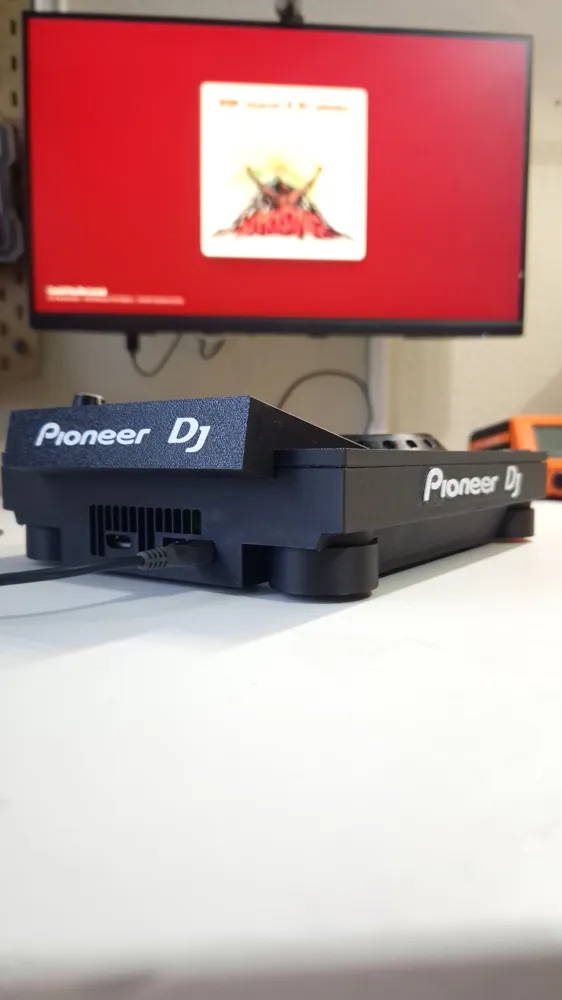

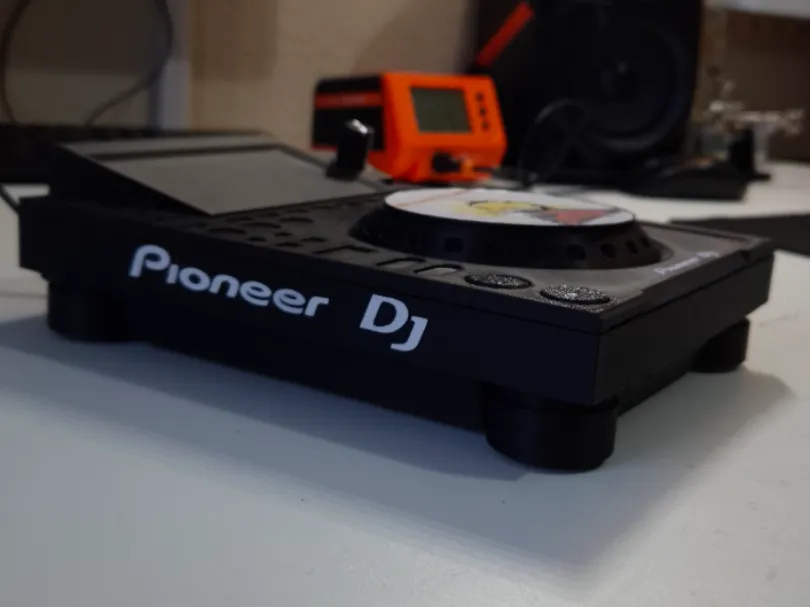

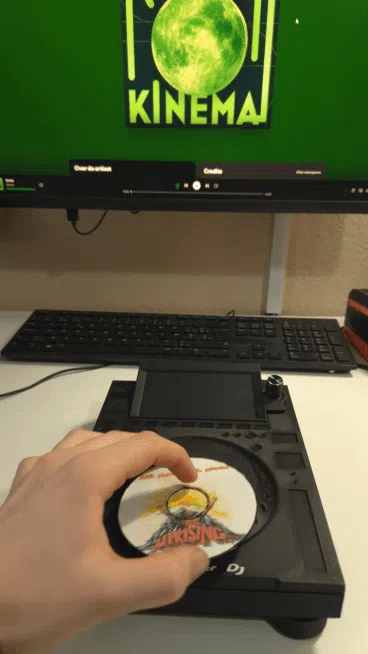

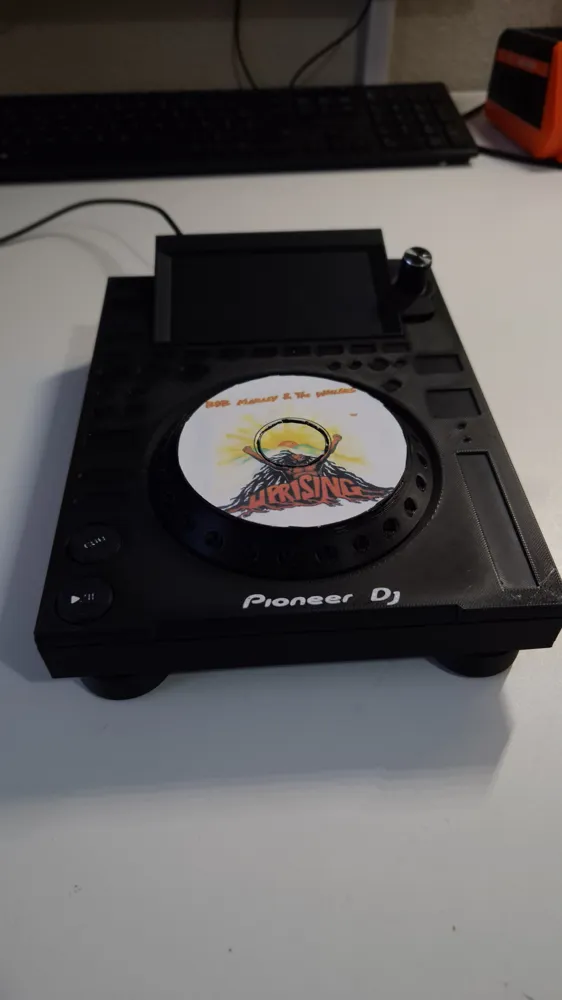

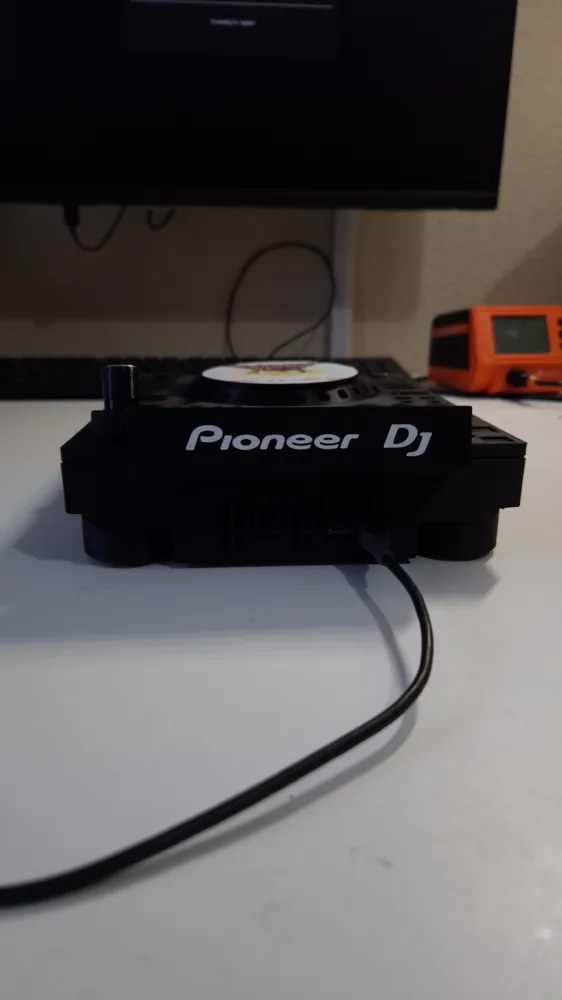

A compact, Raspberry‑Pi‑powered music player inspired by the Pioneer CDJ‑3000. Instead of USB sticks or CDs, this build uses NFC cards to instantly trigger Spotify playback. Tap a card on the reader and the linked track, album, playlist, or artist starts playing through Spotify Connect.
The enclosure is fully 3D‑printed and includes a rotating jog wheel, a PN532 NFC module, and a rotary encoder for physical interaction.
Note: All software for this project was generated with AI assistance, so the code may contain bugs or require manual adjustments.
Boost Me (for free)
Print it, test it, love it — grab the model today.
What You Need
- Raspberry Pi (Zero 2 W recommended)
- PN532 NFC module (SPI mode)
- 28BYJ‑48 stepper motor + ULN2003 driver
- Rotary encoder HW040
- NFC chip sticker
- Momentary push button
- Jumper wires
- 5V power supply
- 3D‑printed enclosure parts
- M3 heat‑set inserts
- M3 bolts
- self tapping screws
- Soldering iron + heat‑insert tip
