Snap on wire cover for vslot 2040 and 2060
Print Profile(1)
Bill of Materials
Description

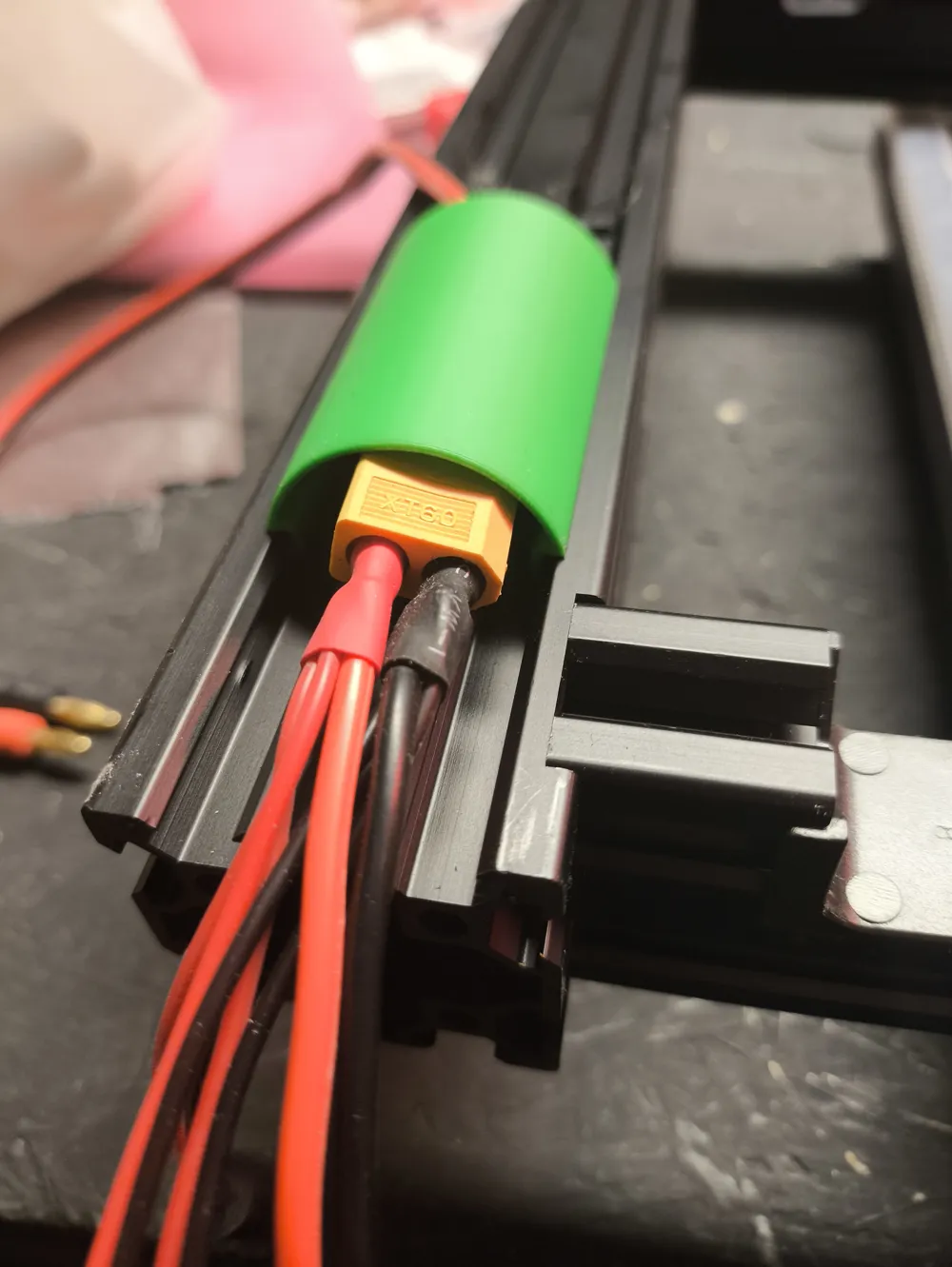

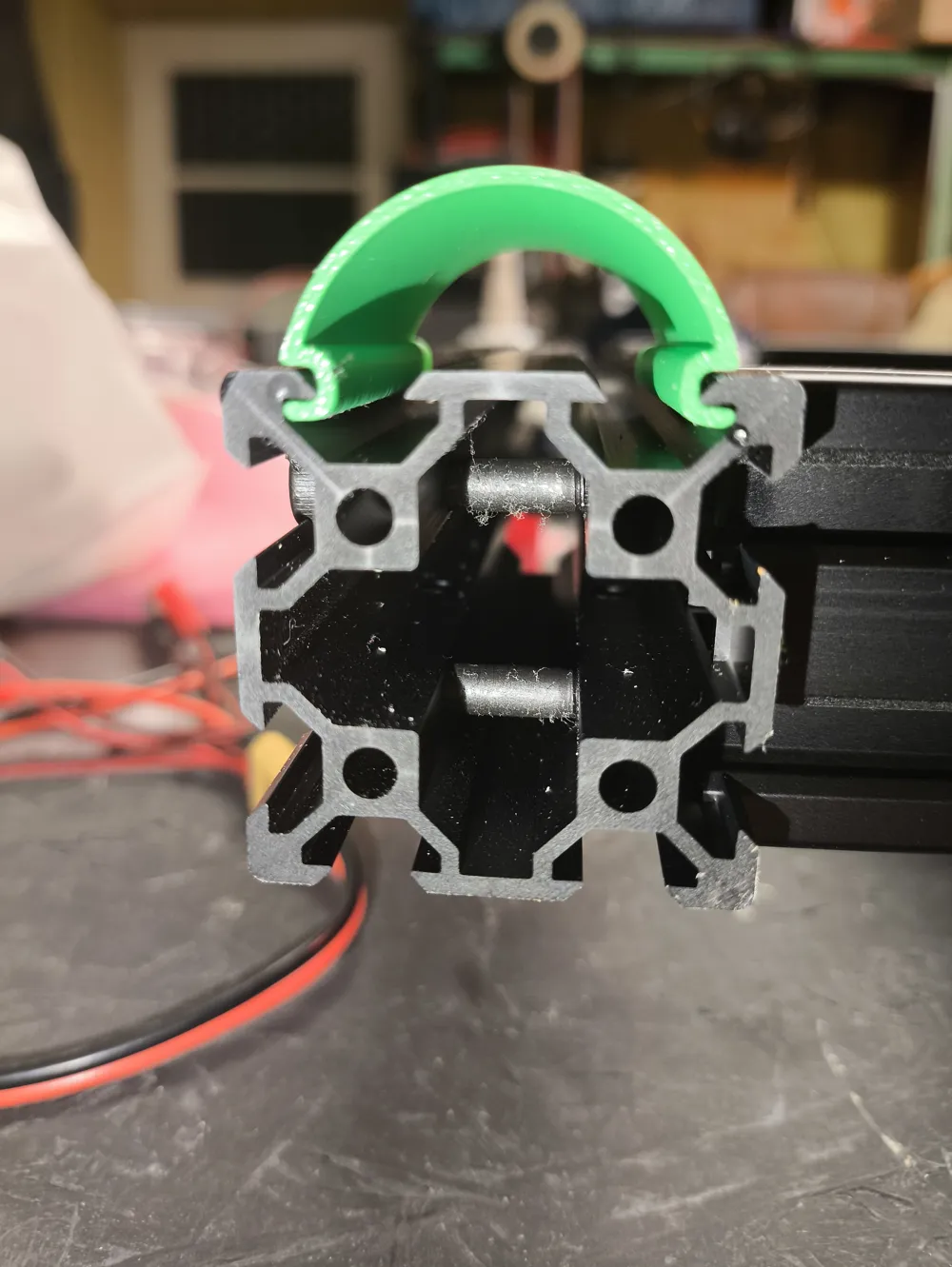

Simple yet functional cable management cover designed for 2040 and 2060 aluminum extrusions. It snaps securely into standard V-slot grooves.
Print in vertical orientation. PETG or another flexible, impact-resistant filament is recommended, although PLA has also worked without issues in testing.
Rescale in the Z axis to fit your requirements.

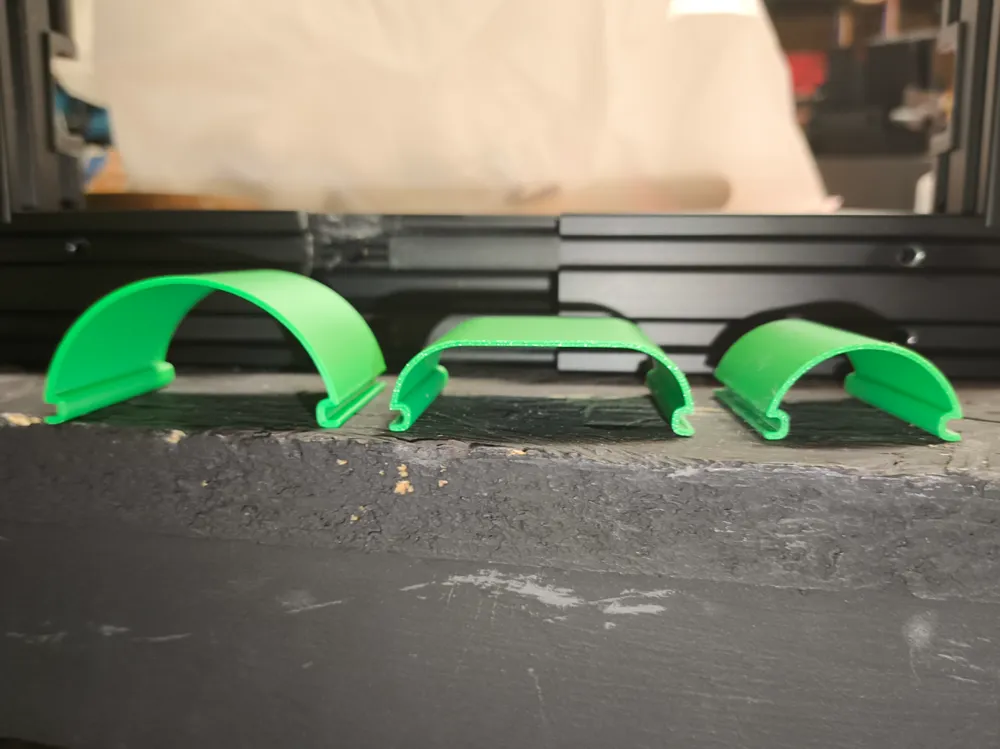

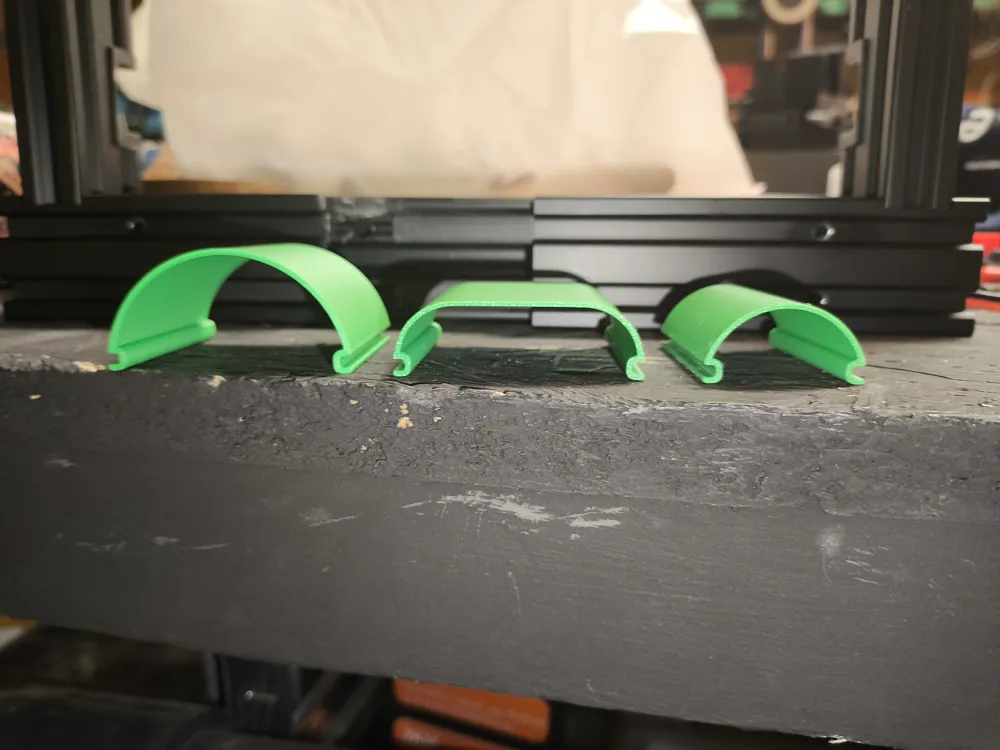

Area under the cable cover / internal height:
2040 — 240 mm² — height 10 mm
2060 (large) — 912 mm² — height 20 mm
2060 (flat) — 496 mm² — height 10 mm
