Gap Gauge / Feeler Gauge - 5mm and 10mm
Print Profile(1)
Description
These are two simple gap gauges used for measuring and adjusting gap dimensions on attachments in workshops and industry.
Gauge with 5mm Height:

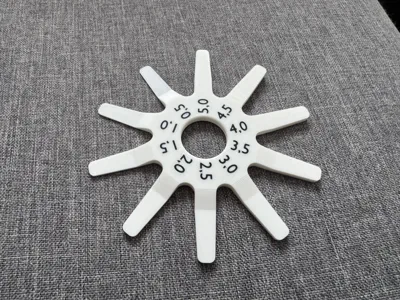

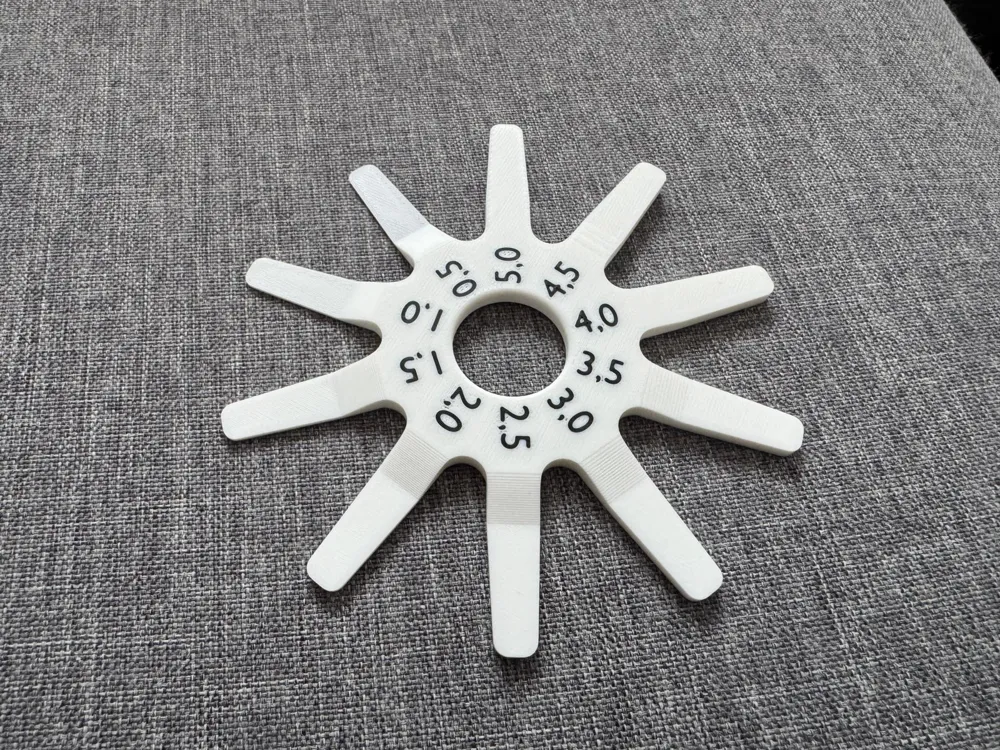

There are 10 measurements, ranging in 0.5mm increments from 0.5mm to 5mm.
The gauge is 120mm in diameter and 5mm high.

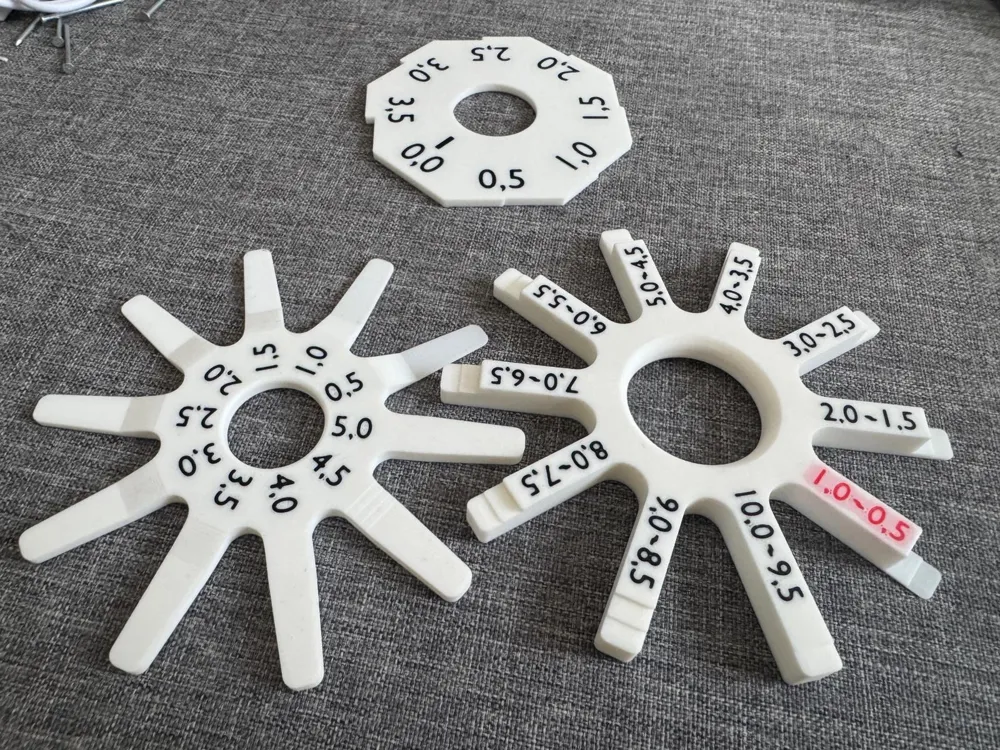

Gauge with 10mm Height:

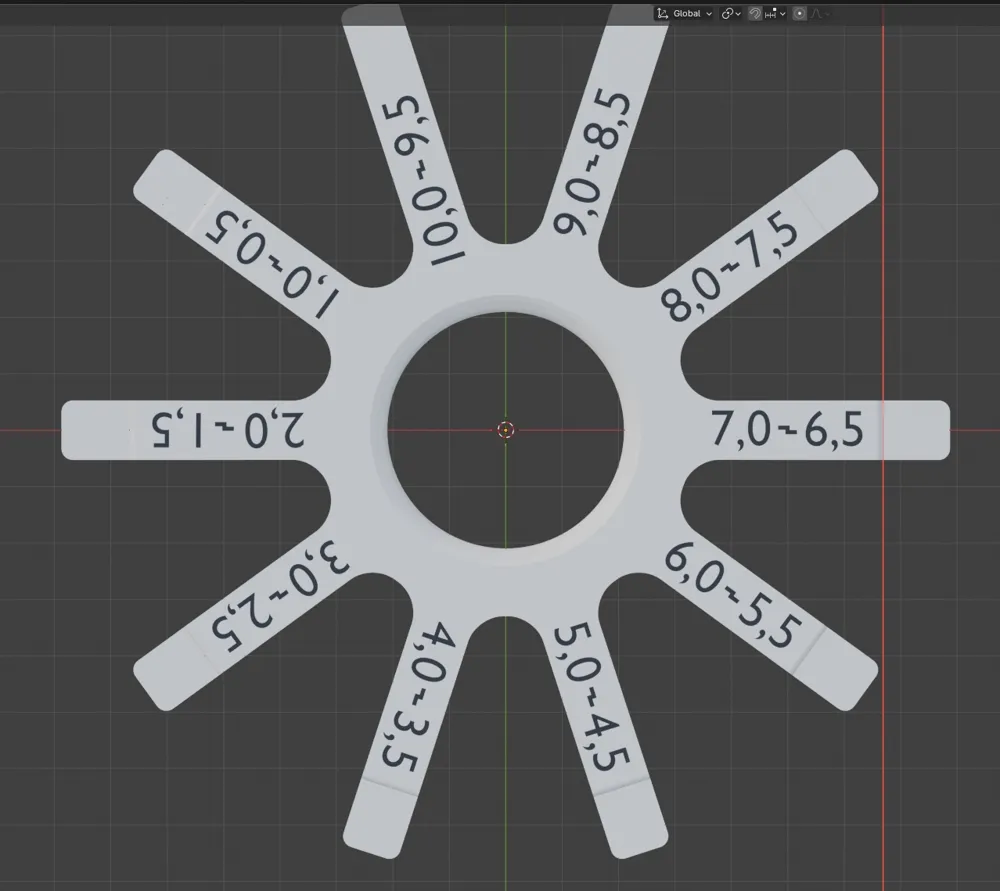

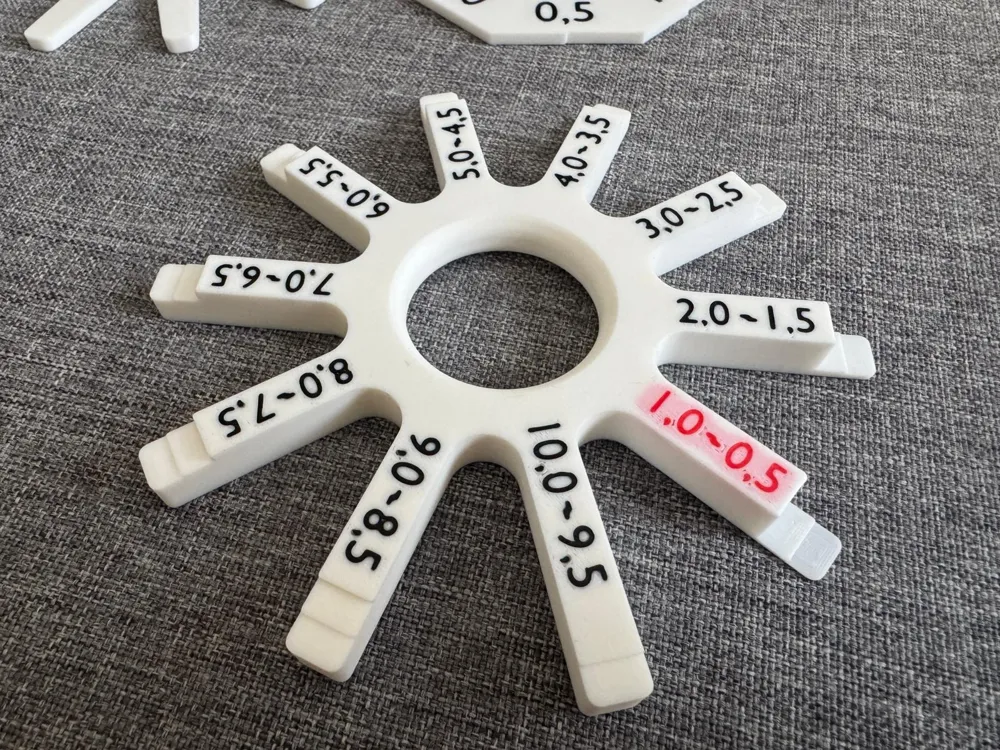

There are 20 measurements, ranging in 0.5mm increments from 0.5mm to 10mm.
Each pin has two heights stepped in 0.5mm increments.
The gauge is 130mm in diameter and 10mm high.

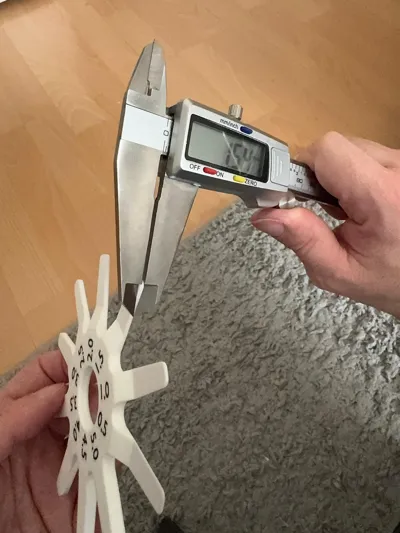

The central hole facilitates easy rotation on the finger, allowing for quick switching of the measuring gauges, which saves time with multiple measuring points.

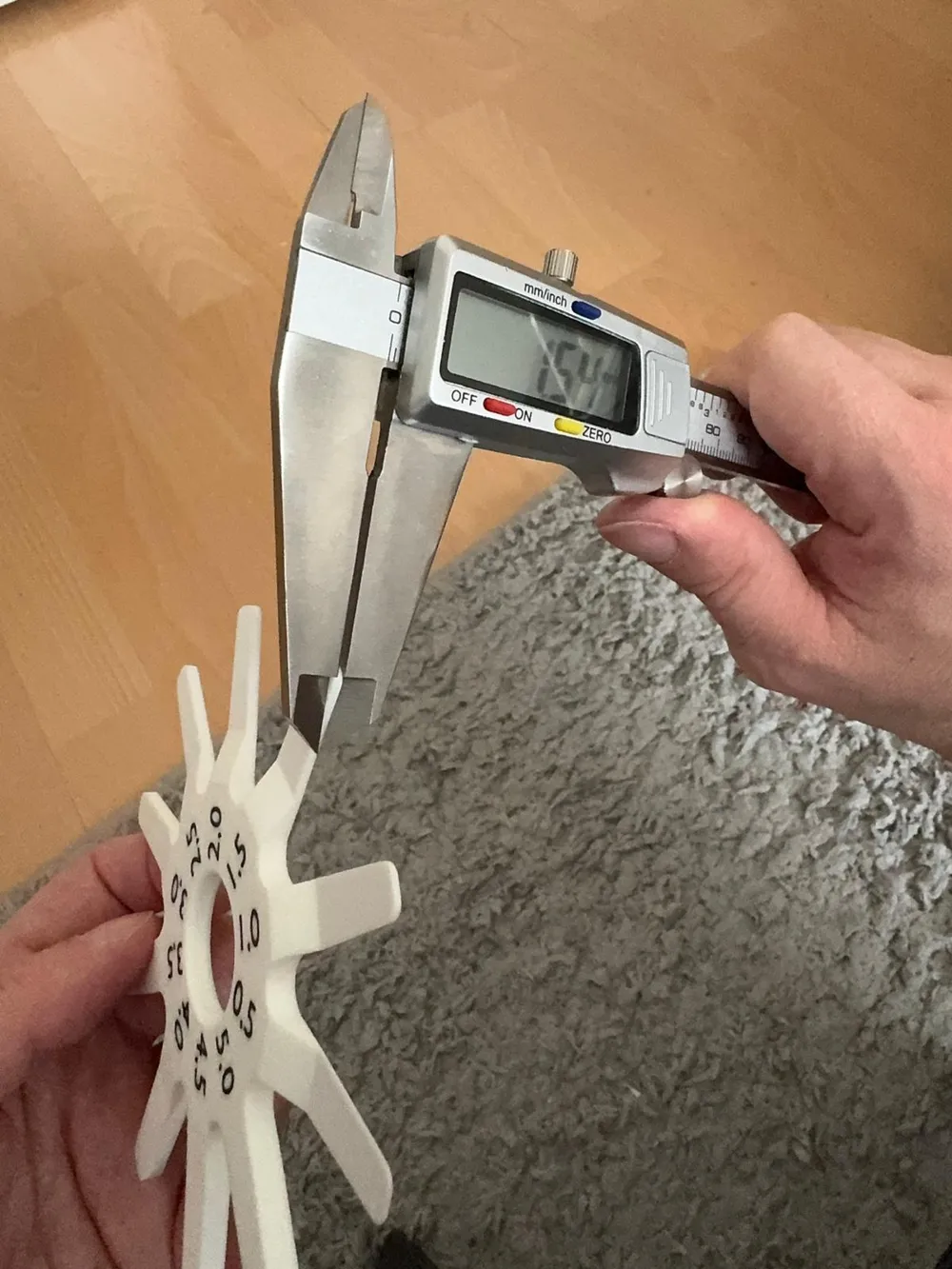

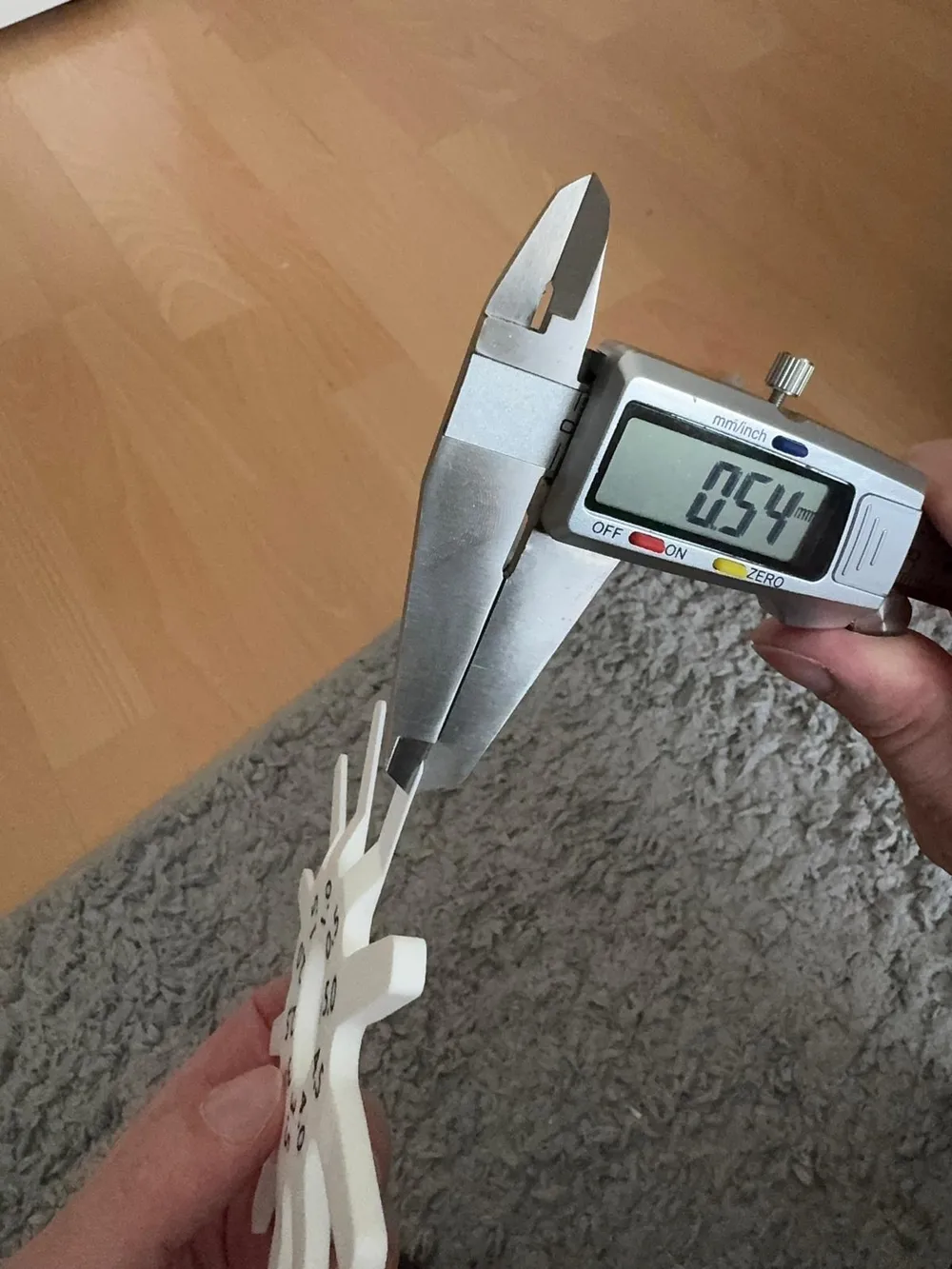

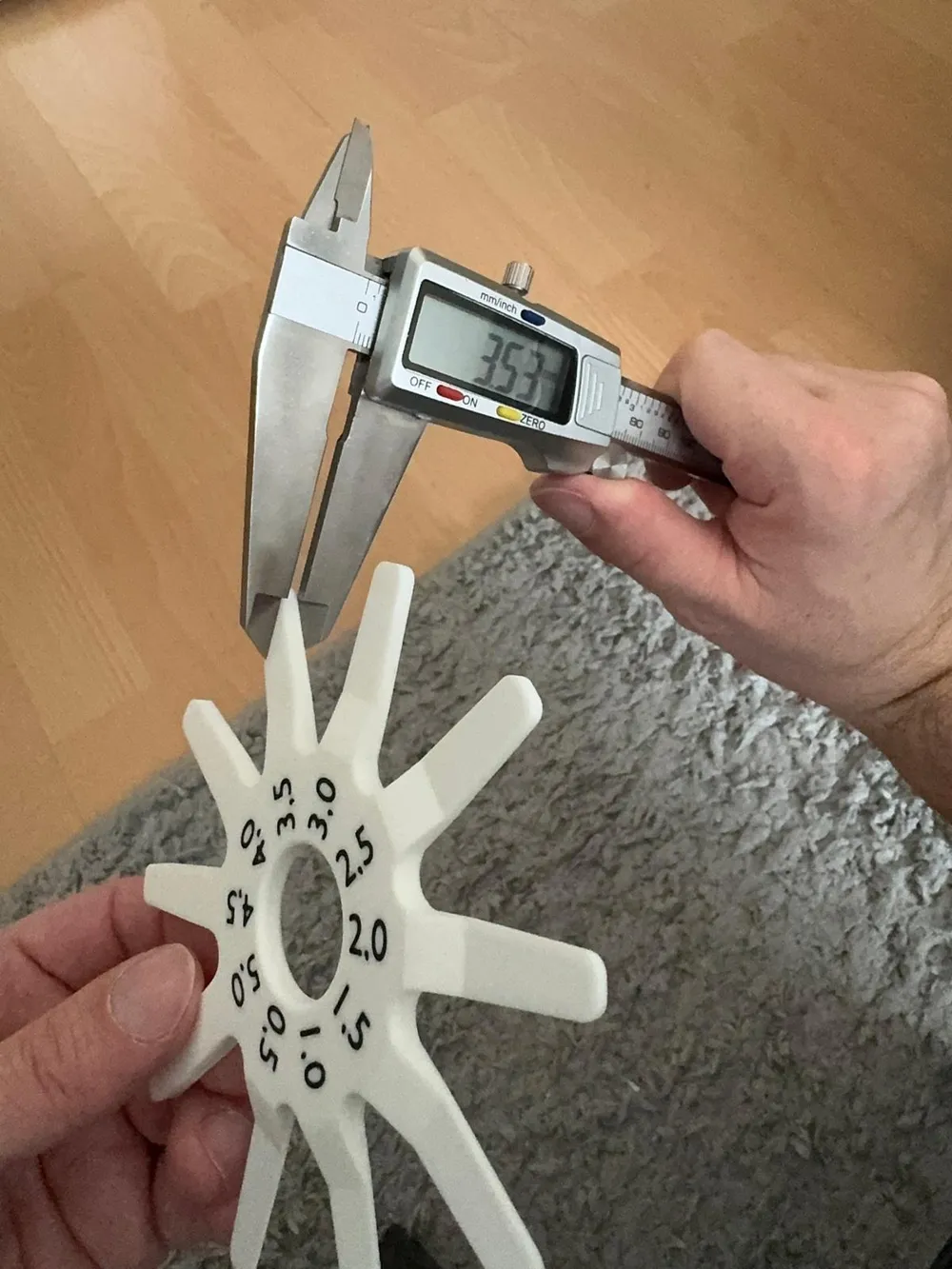

With a print height of 0.16mm, I found a deviation of only 0.06mm (Bambu Lab H2C, 0.4mm nozzle).
A flush gauge is available here:
https://makerworld.com/de/models/2585885-bundigkeitslehre#profileId-2852623

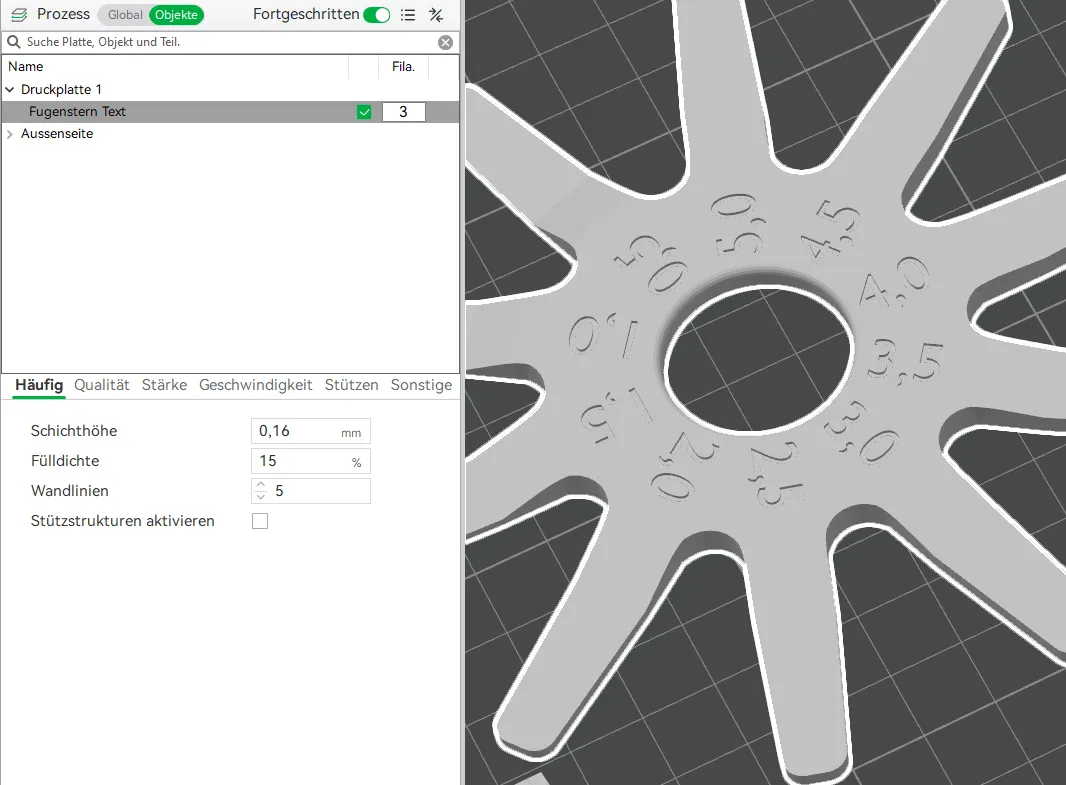

In case you cannot print in multicolor, you can remove the element "Fugenstern Text.stl" in the object editor. Then the lettering is released (of course, you can easily change the font color here).
