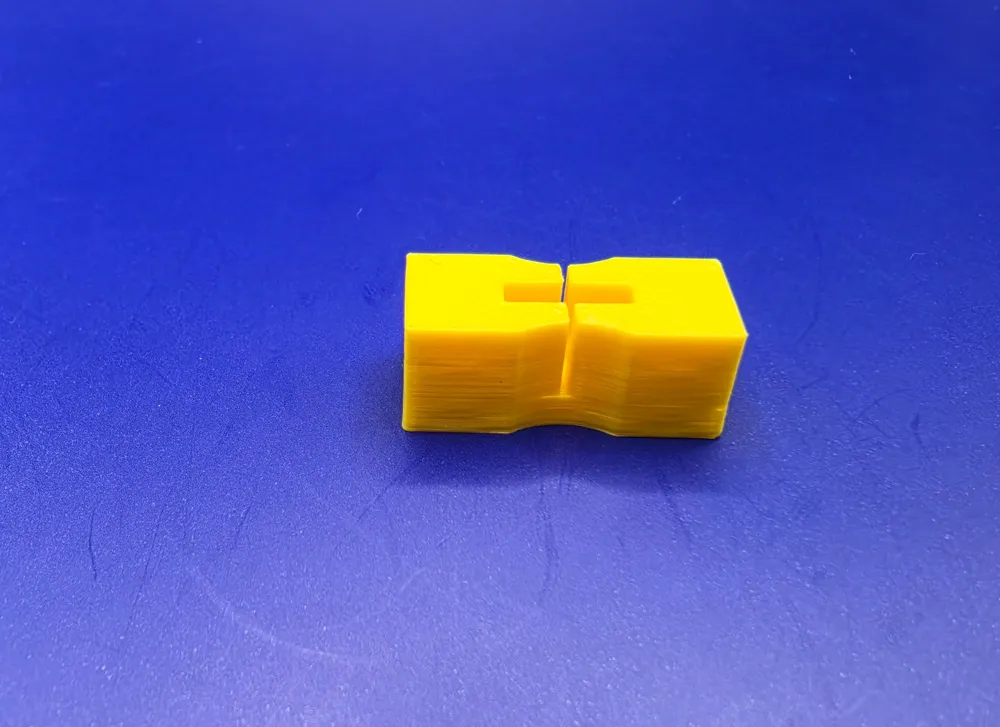

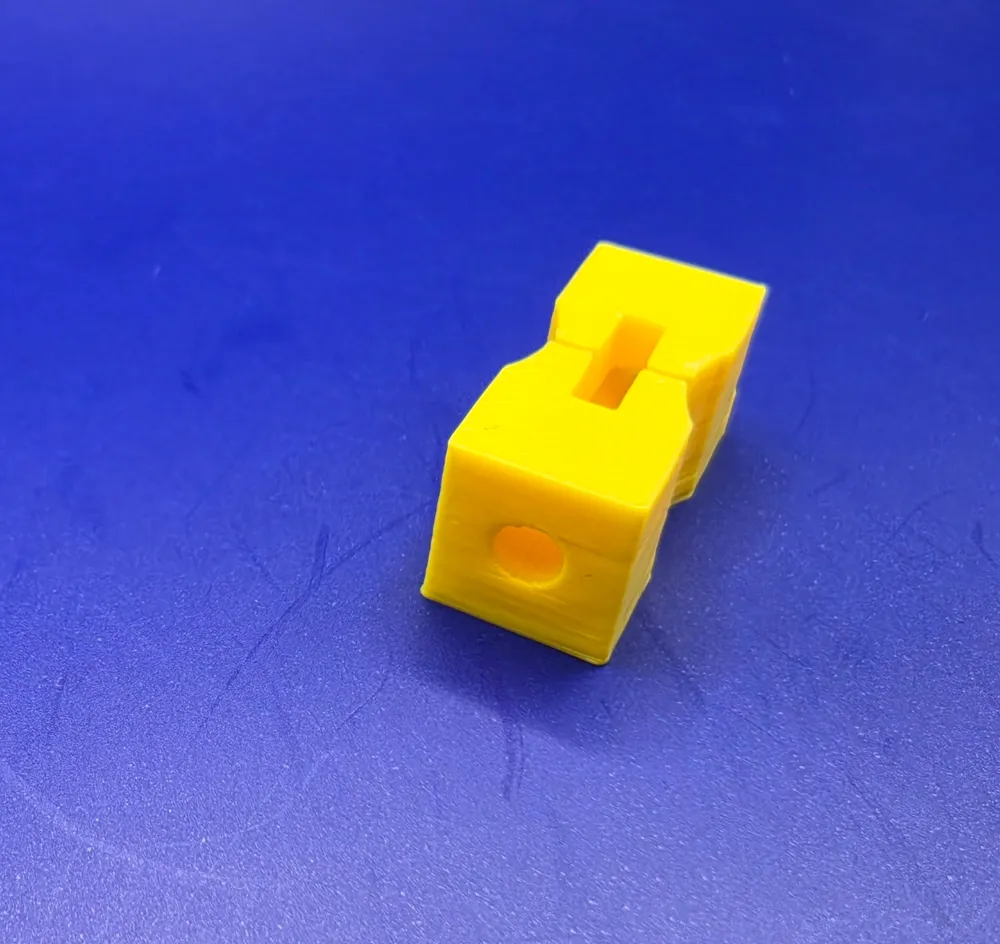

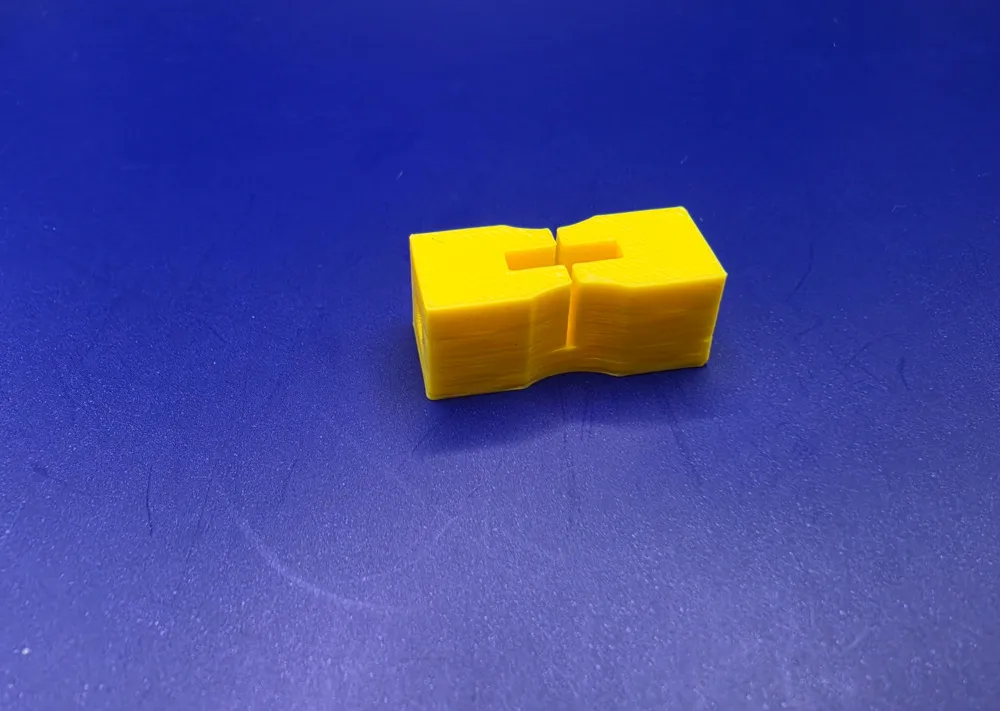

This parametric PTFE Tube Cutting Jig is designed to give you perfectly square, repeatable cuts on Bowden/PTFE tubing. Clean cuts matter — especially for printers that rely on tight tolerances inside the hotend or extruder. A crooked cut can cause clogs, gaps, or inconsistent extrusion. This jig fixes that.
Built in OpenSCAD, the model is fully customizable: tube diameter, blade thickness, jig length, wall thickness, and optional viewing window are all adjustable. The default settings are tuned for 4mm PTFE and a 0.65mm utility blade, but you can adapt it to any hose or blade you want.
Features
- Perfectly square cuts thanks to a long alignment channel
- Parametric design — customize every dimension in the SCAD file
- Blade slot sized to your blade thickness for clean, controlled cuts

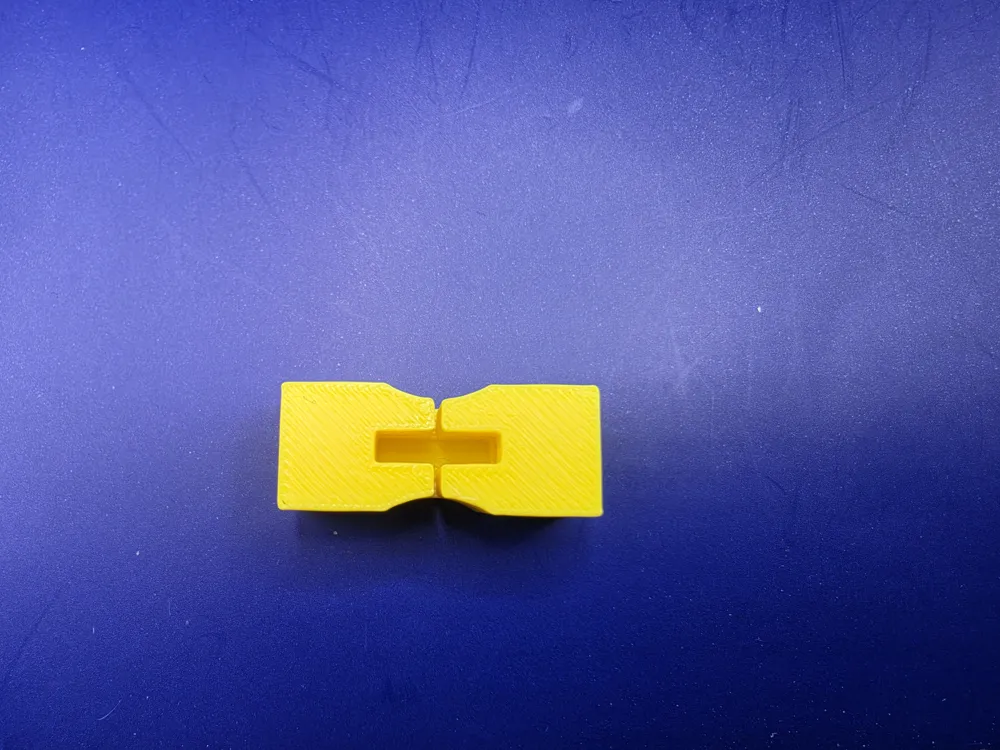

- Optional viewing window to see your cut mark without removing the tube
- Ergonomic side grips that reduce material and improve handling
- Strong walls to keep the tube firmly aligned
- Prints without supports
Default Dimensions
- Tube OD: 4.2 mm (4mm PTFE + clearance)
- Blade thickness: 0.65 mm
- Jig length: 30 mm
- Wall thickness: 4 mm

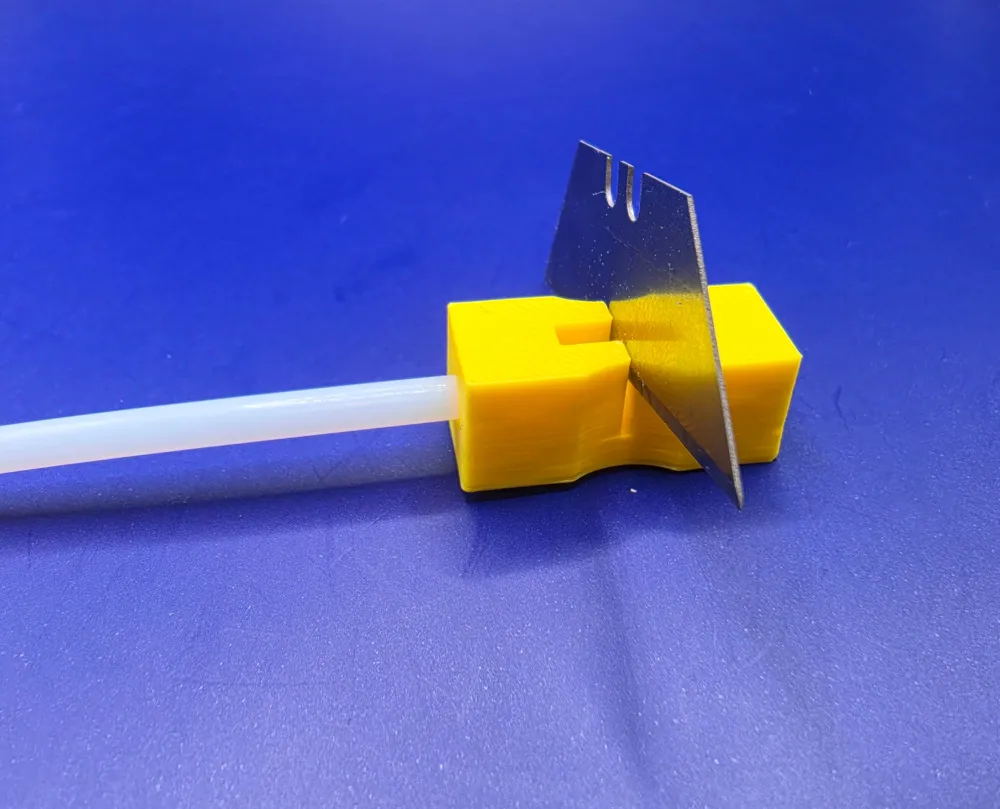

How to Use

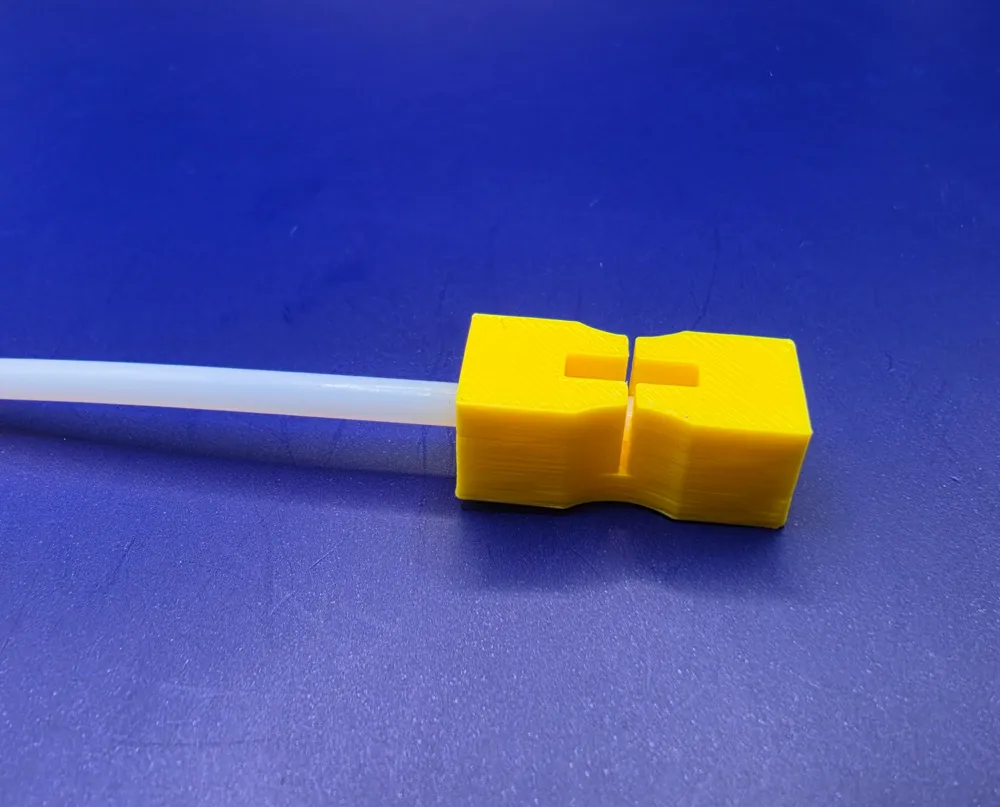

- Insert your PTFE tube through the channel.
- Align your cut mark with the viewing window (if enabled).

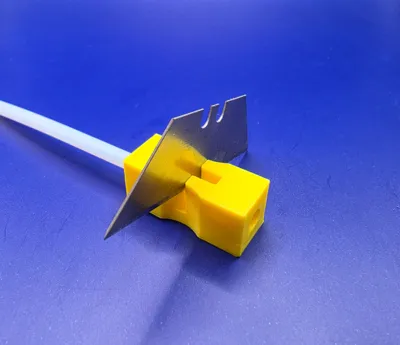

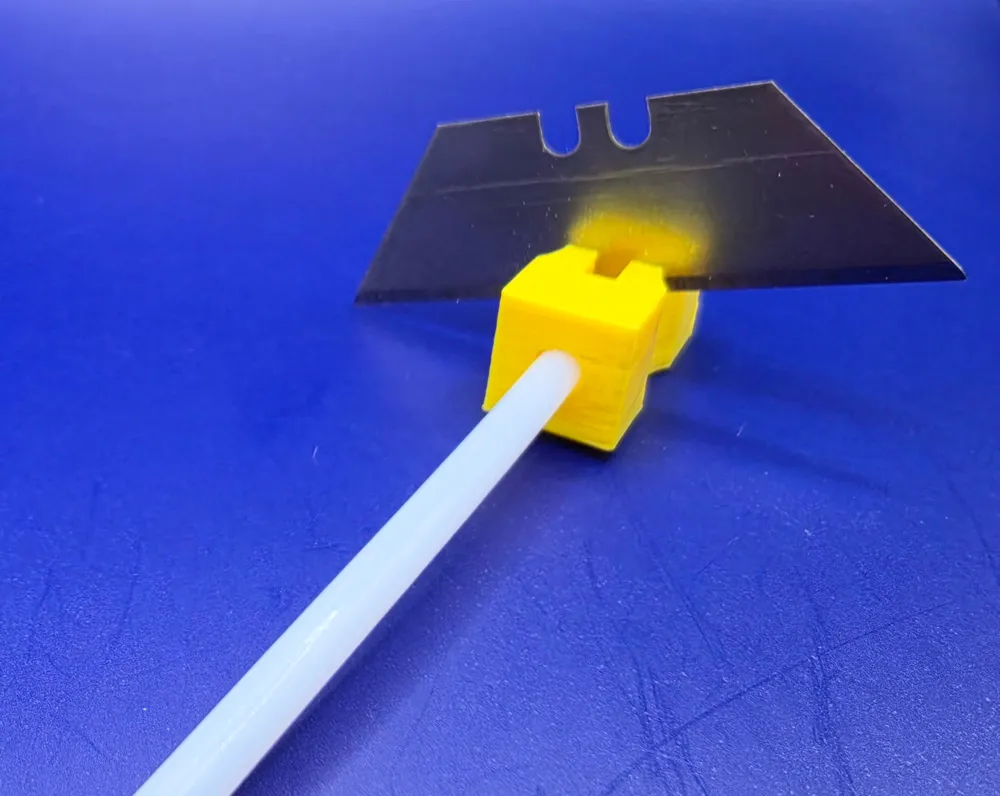

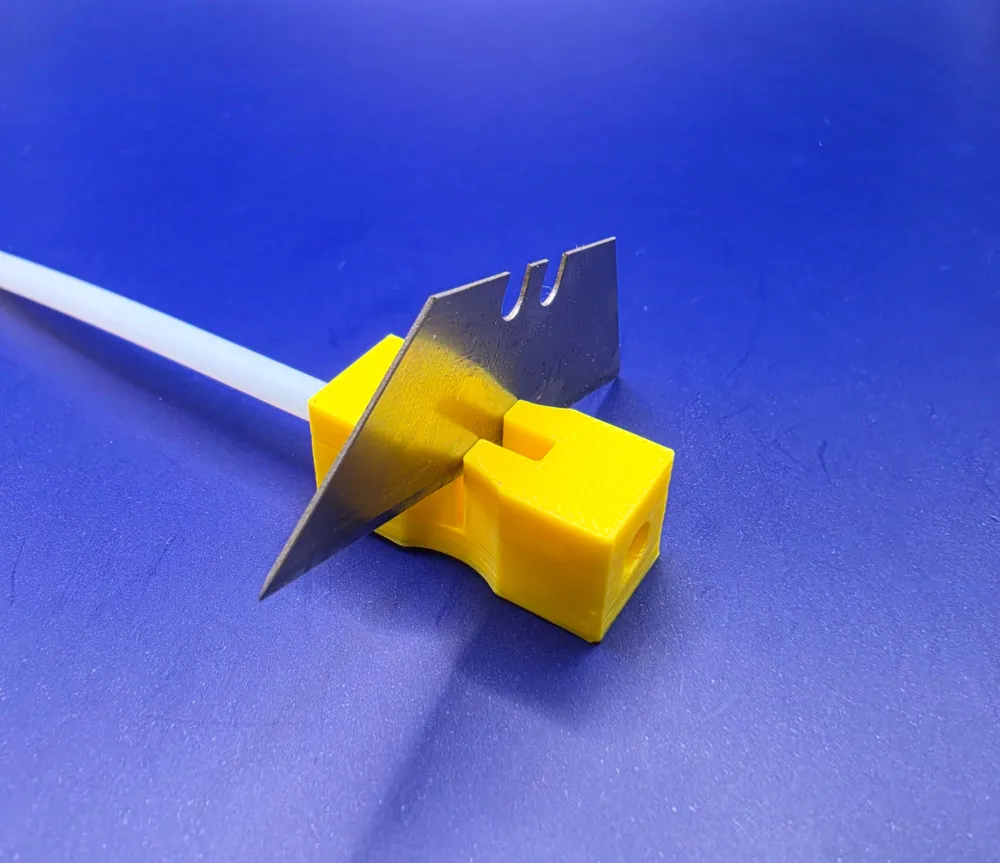

- Slide a utility or X‑Acto blade through the slot.

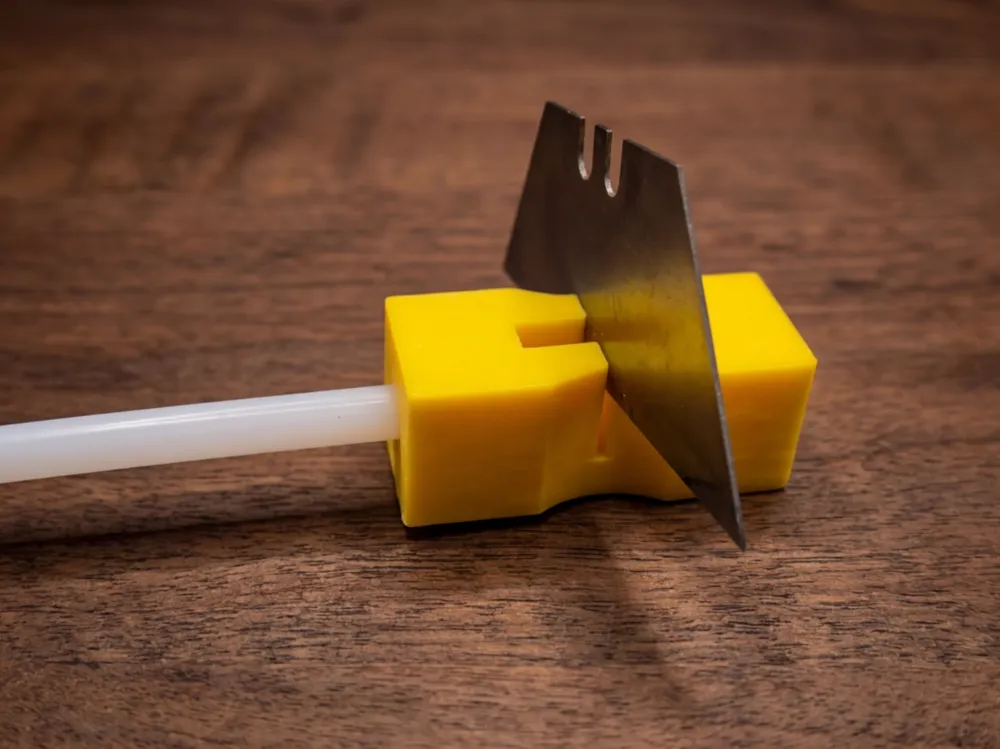

- Press straight down for a clean, square cut.
