š¬ Microscope Stand Extension Rod (M16x1.0 ISO Thread)

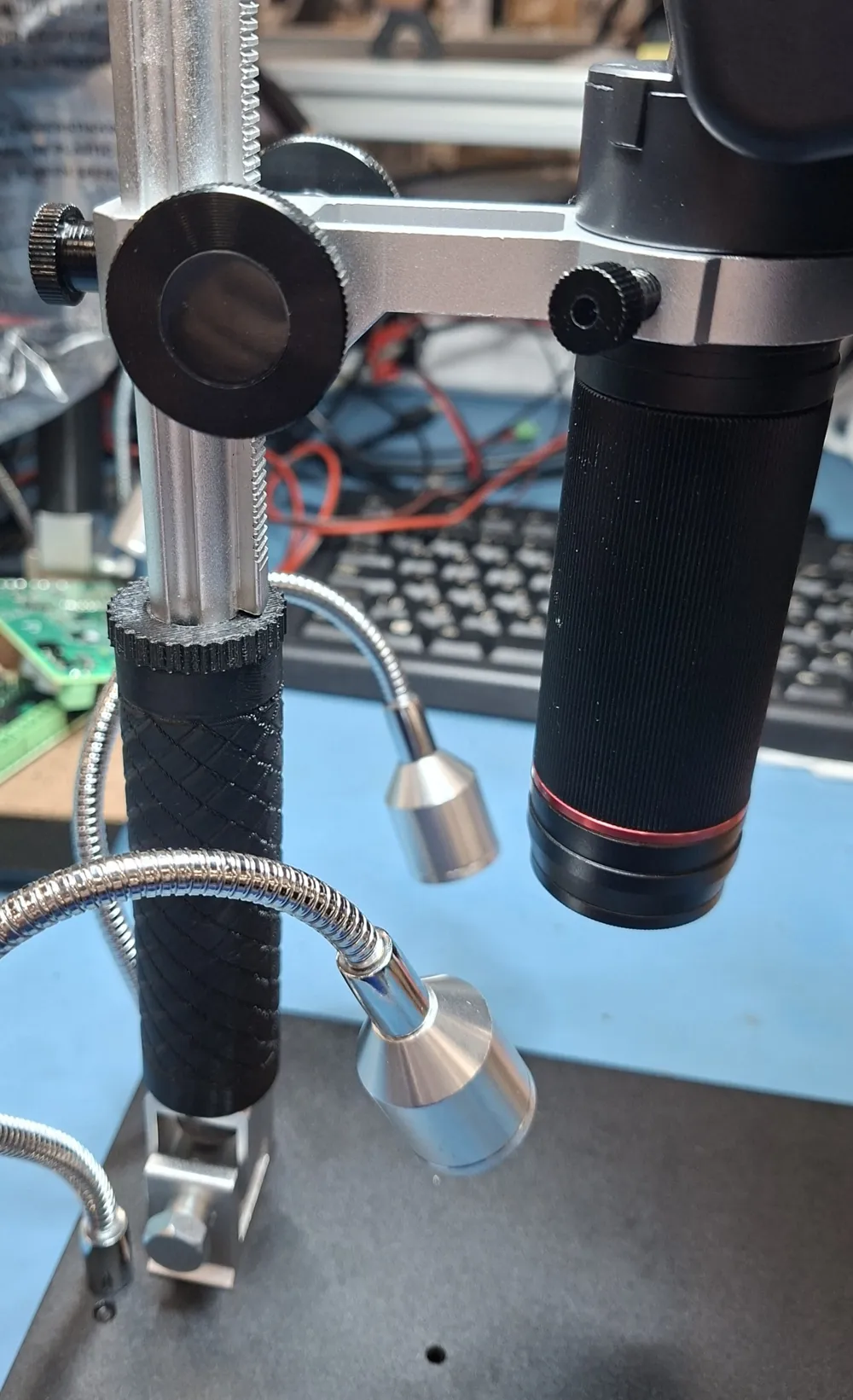

Professional extension rod for microscope stands, designed for easy screw-on installation. It provides extra working clearance, making it ideal for soldering and working with bulky components.
āļø Technical Details:
- Main Body Length: 100 mm.
- Fitting Type: Male-to-Female (for daisy-chaining).
- Thread: ISO Standard M16 x 1.0 (fine metric thread).
- Male Thread Length: 15 mm.
- Female Thread Depth: 15 mm.
- Design: Ergonomic diamond knurling for a secure grip and easy hand-tightening.

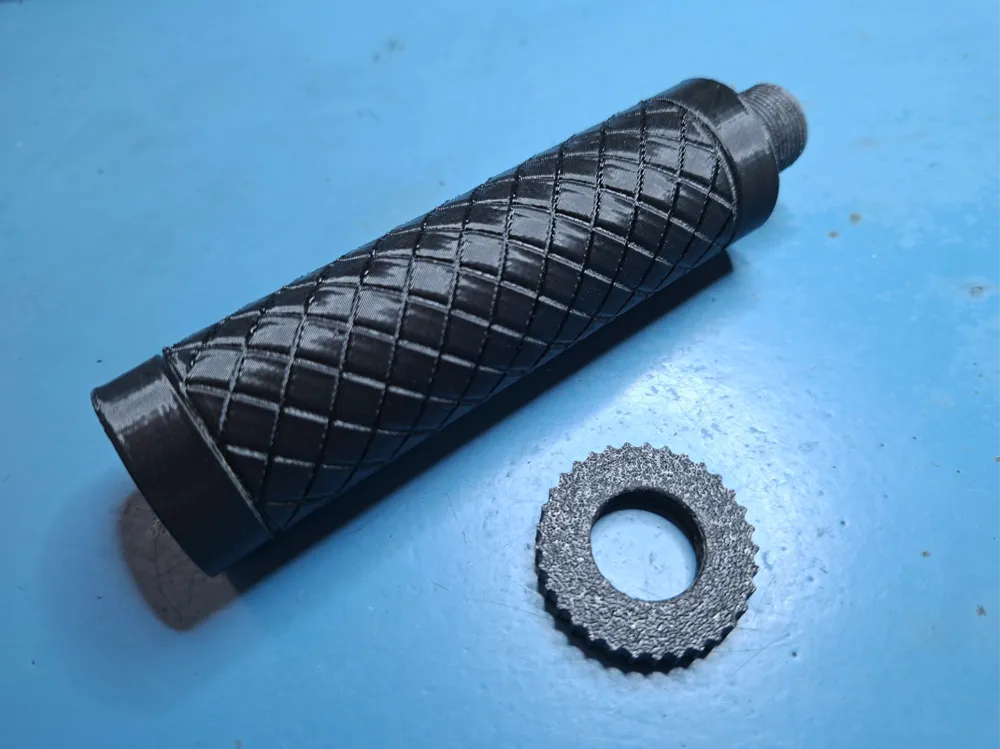

š¦ Content:
- Extension Body (100mm).
- Lock Nut: For precise orientation and locking of the microscope head.
šØļø Printing Instructions (Critical for Strength):
To prevent the threads from shearing off under the weight of the microscope:

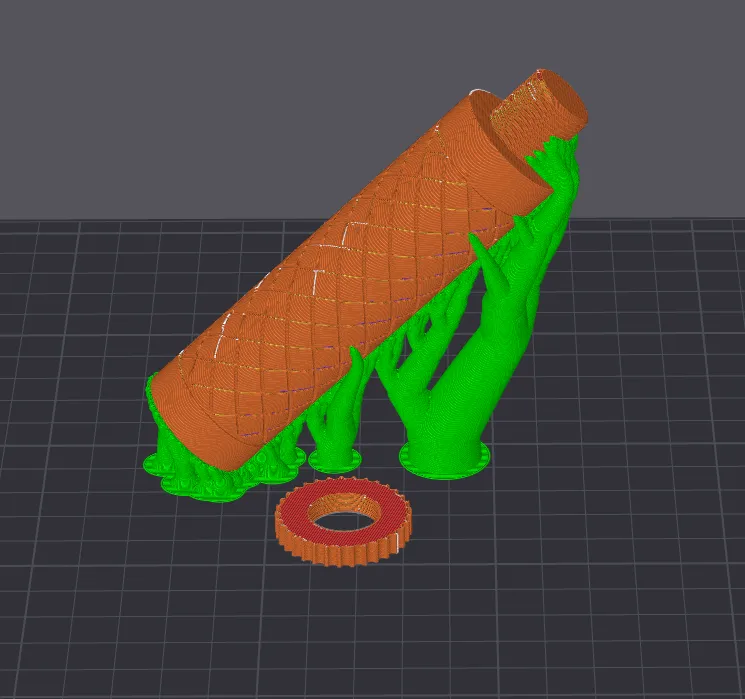

- Orientation: Print horizontally (laying down) or at a 45Ā° angle. This ensures the layers run along the length of the part, making it extremely durable.
- Layer Height: For clean and functional threads, it is recommended to use a layer height of 0.16 mm or 0.2 mm.
- Material: PETG (recommended for superior layer adhesion).
- Infill: 30-40% (Gyroid or Cubic).
- Walls: 5-6 Wall Loops ā this ensures both the male and female threads are solid.
