Hello friends,

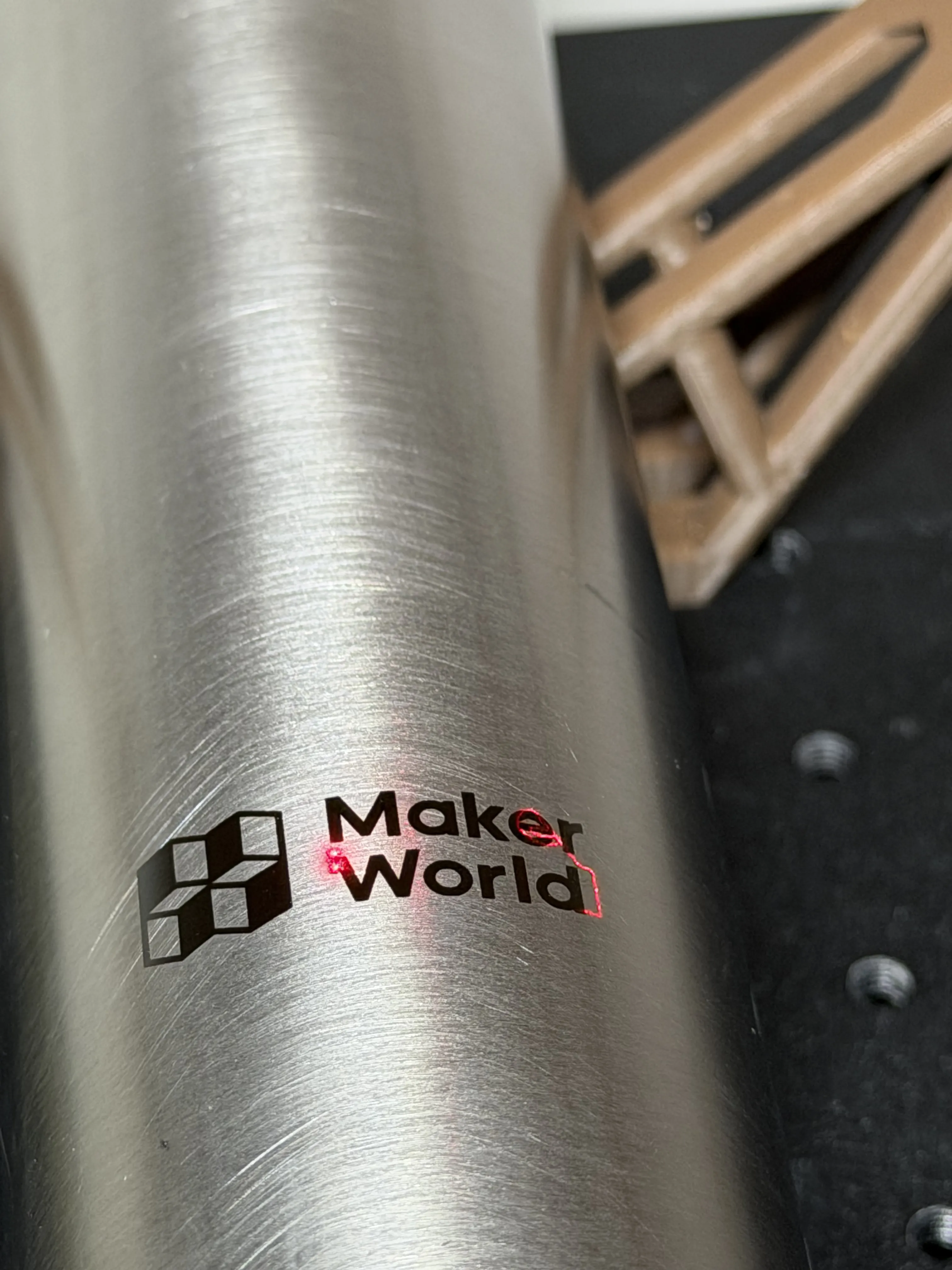

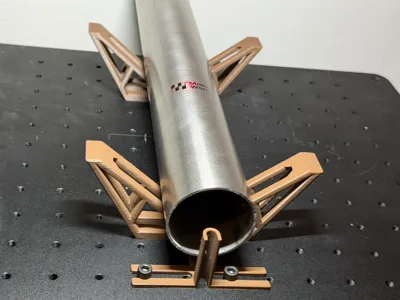

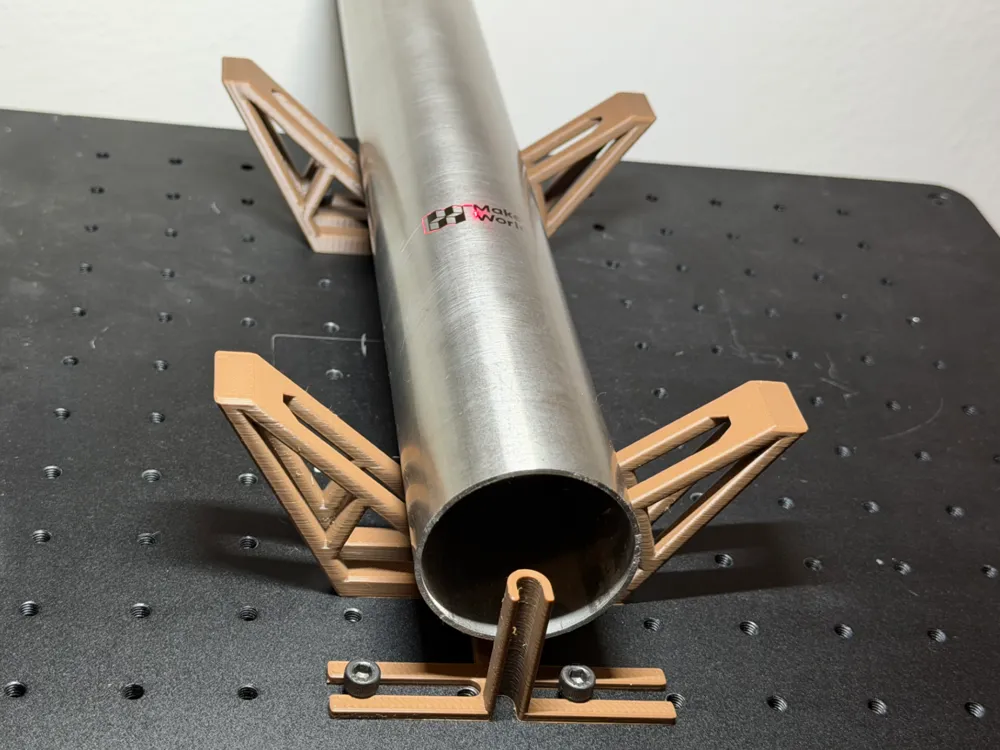

if you don’t have a rotary engraving attachment or if larger parts don’t fit into your chuck, this jig is just what you need. All parts feature a calibration groove. Thanks to this groove, it’s very easy to find the center of a tube or other cylinder you want to engrave.
Instructions:
Draw a straight line in the center of the coordinate system
Turn on Framing

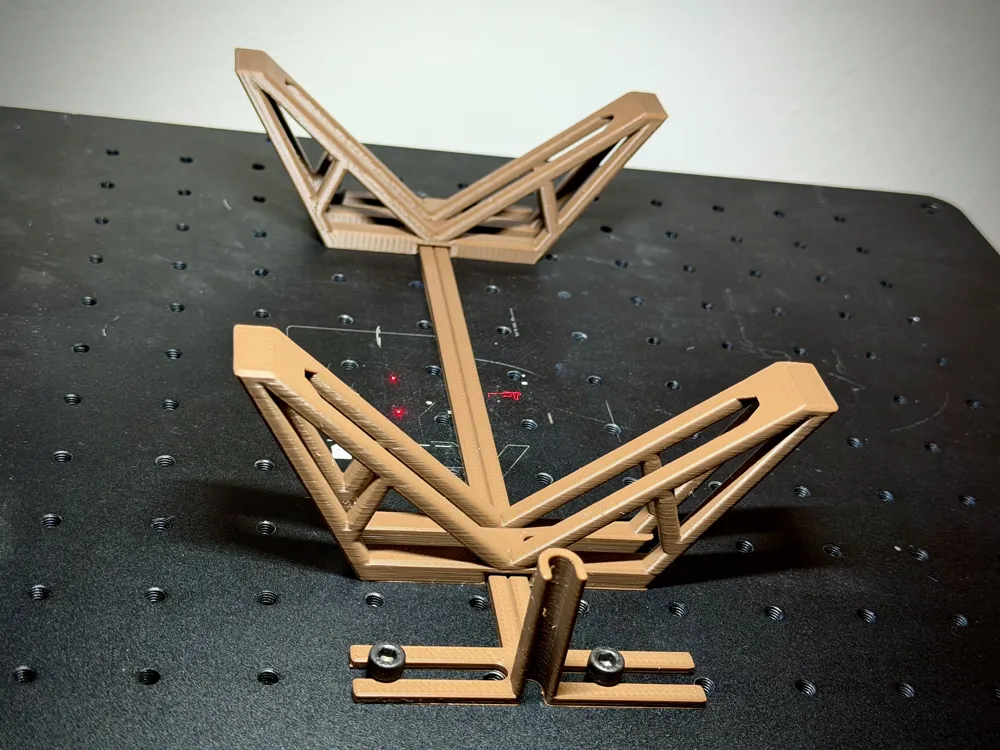

Align the center groove on the base with the projected line
Tighten the screws on the base
Voilà, you have the exact center and ensured coaxiality.
Note:
The line must be in the center of the coordinate system for calibration. Otherwise, changing the focus would cause the projection to shift.
Designed for bases with a 25 mm screw hole spacing
Required accessories:
8 pieces M5x20 mm screws
