Description
Bambu Studio Print Profile – “Cat Family Playhouse”
Printer & Material
- Printer model: Bambu Lab Printers
- Nozzle: 0.4 mm hardened steel (default is fine)
- Filament: PLA Matte or Standard PLA (multi‑color optional via AMS)
- Bed type: Textured PEI / Cool plate
- Adhesion method: None or light glue for large bases
General Quality
| Setting | Recommended | Notes |
|---|---|---|
| Layer Height | 0.20 mm (standard) | 0.16 mm if you want ultra‑smooth character faces |
| Number of Perimeters (Walls) | 3 | Improves rigidity for the playset |
| Top/Bottom Layers | 6 top / 5 bottom | Hides infill & gives smooth flats |
| Infill Density | 12 – 15 % Gyroid | Saves time and filament |
| Ironing | On (top surfaces only) | Glossy, toy‑like roof & floors |
Speeds
| Part | Speed | Notes |
|---|---|---|
| Walls | 45 mm/s | Keeps clean aesthetic edges |
| Top Surface | 35 mm/s | Smooth finish |
| Infill | 100 mm/s | P2S handles fast interiors fine |
Temperatures (PLA Matte / Glossy)
| Parameter | Matte PLA | Standard PLA |
|---|---|---|
| Nozzle Temp | 205–210 °C | 195–205 °C |
| Bed Temp | 55–60 °C | 55 °C |
| Cooling Fan | 100 % | 100 % |
If details look faint, increase nozzle temp by 3–5 °C.
Supports & Adhesion
- Support Type: Only Touching Buildplate
- Overhang Angle: 55 °
- Support Density: 15 % (tree‑style)
- Brim: Off (enable if small contact area characters wobble)
Assembly / Printing Suggestions

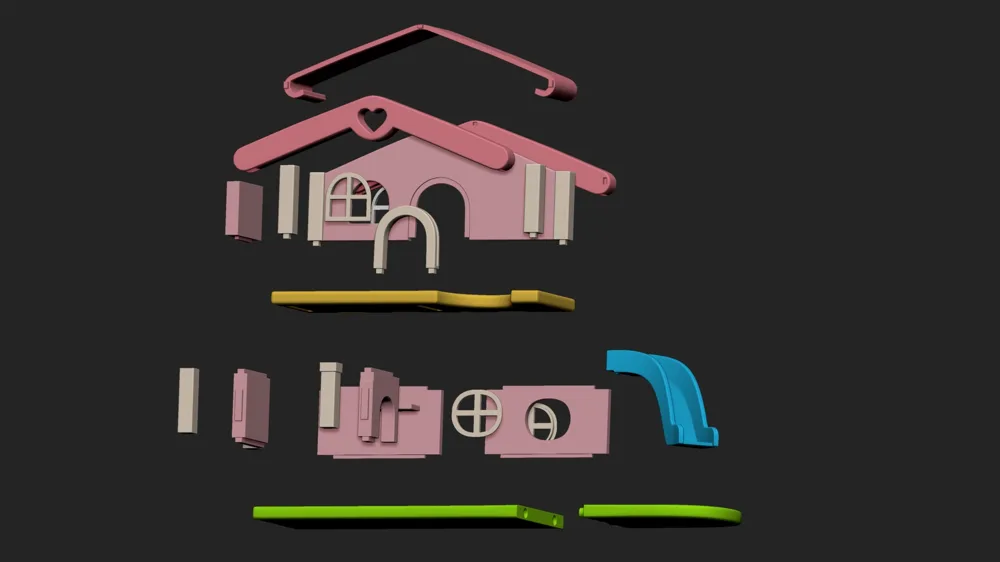

- House Sections: Print roof, base, slide as separate STLs for color change or support control.
- Characters: Print upright; small brim for foot stability; enable “ironing” for face top.
- Interlocking Pegs: Add 0.2 mm clearance in CAD for easy fitting.
- Multicolor: Assign via AMS; roof pink, windows white, furniture accents green/orange.
