Modular conveyor for JGA25-370 12V Motor
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
22.5 h
4 plates
Open in Bambu Studio
Boost
36
72
0
0
41
5
Released
Description

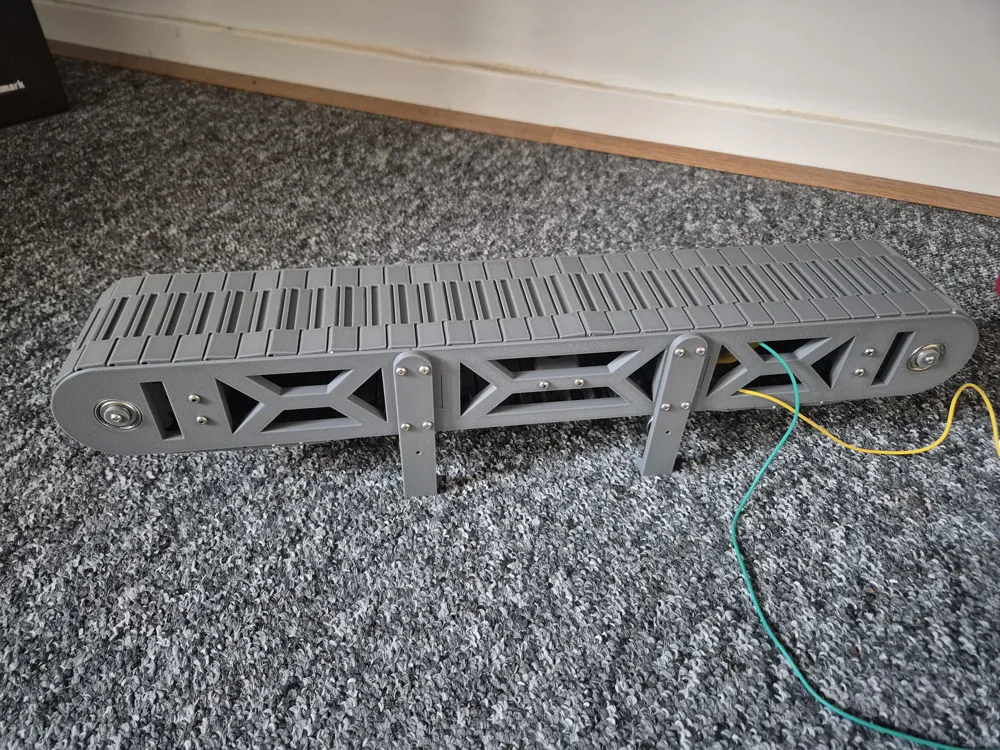

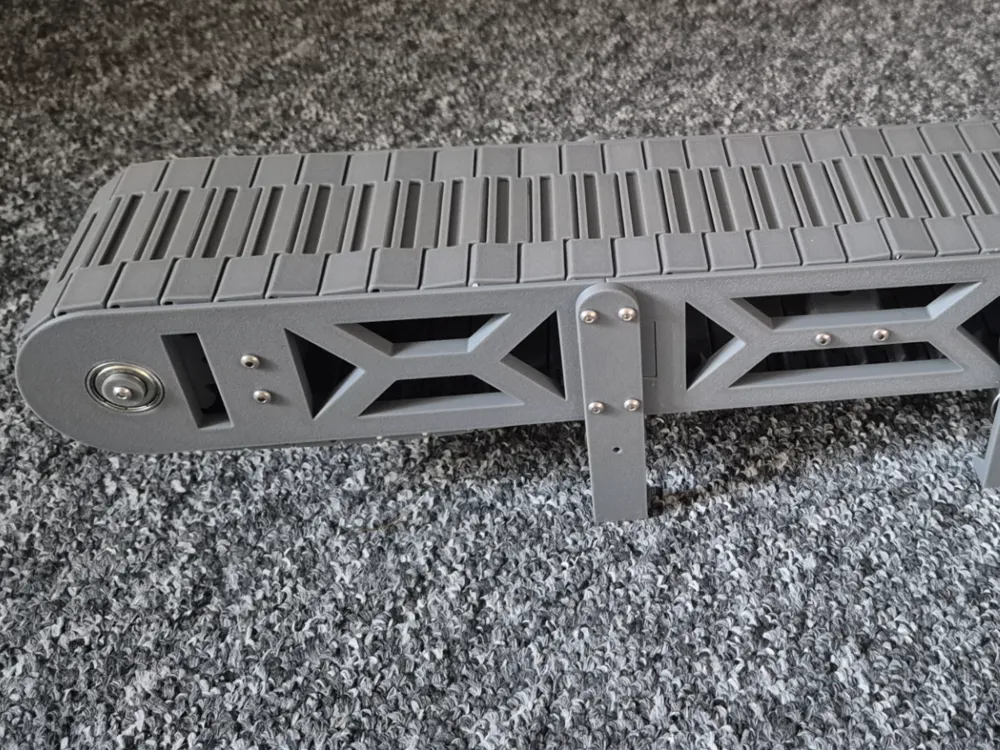

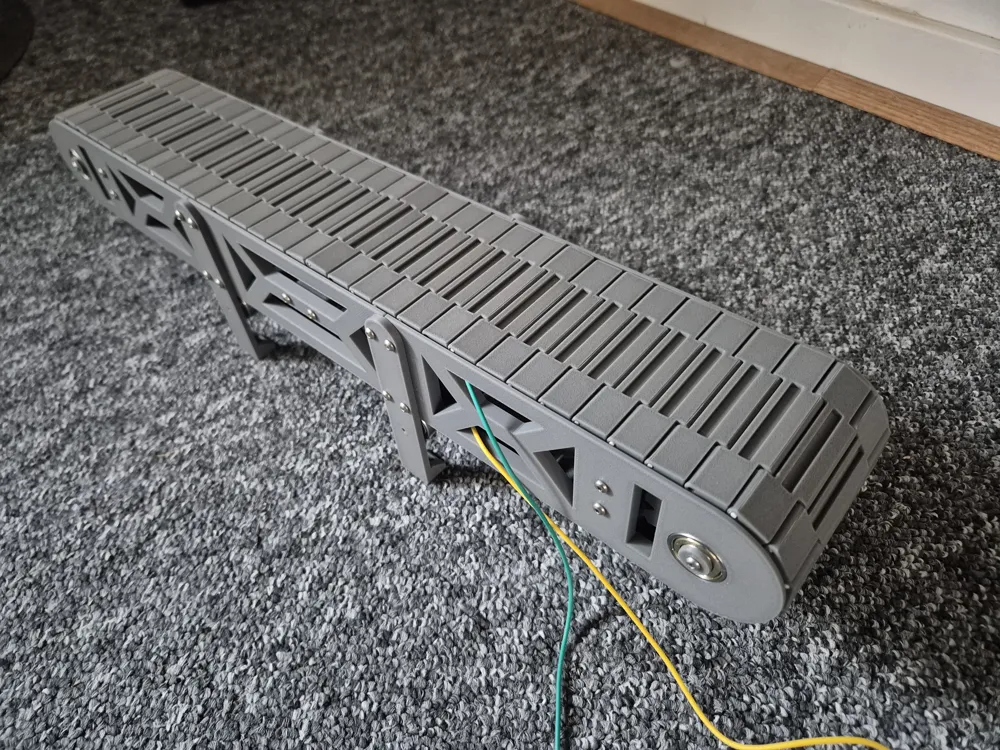

Modular conveyor belt for JGA25-370 12V dc motor.
Infinite extension. Approx 50cm long and 8cm wide with one extension.
Very few non-printet parts.
Part list:
- 8x 608 bearings
- 2x M3x25 (For motor mount)
- 4x M3x20 (For drivewheel bearings)
- 32x M3x12 (For generel assembly)

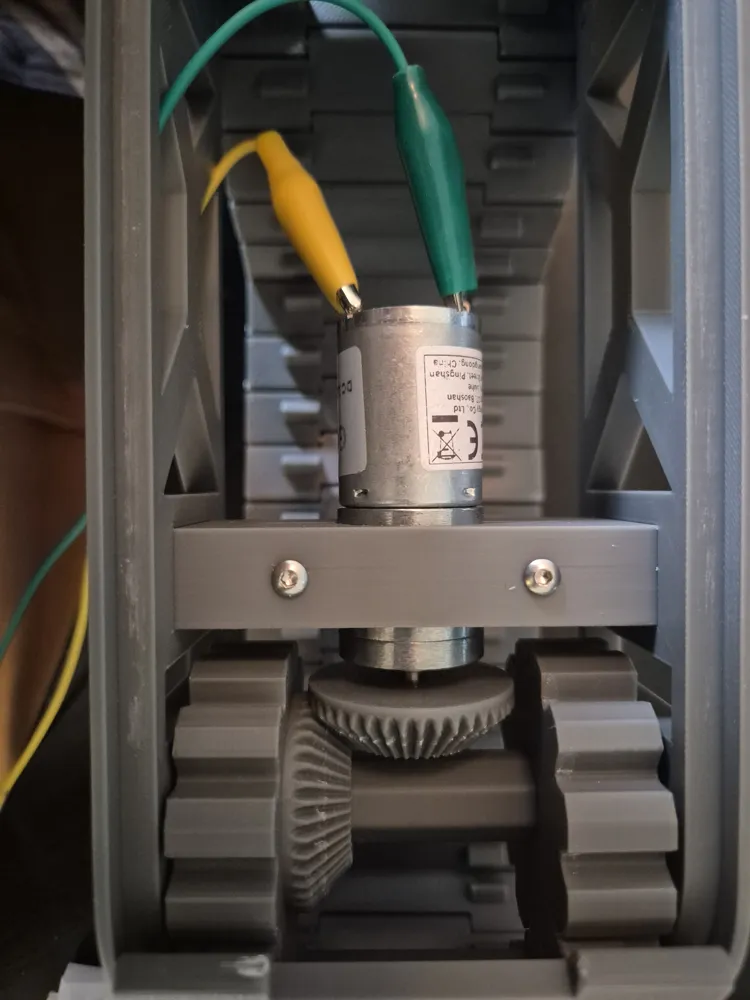

- 1x JGA25-370 motor. I've used 12V 35 rpm.
- Belt links are connected with raw filament.
Total printtime for full assembly including one extension is around 22h with 4 plates. Approx 600g filament.
