MatiDEV-PL

cover



0.2mm layer, 3 walls, 15% infill

QSnexus

remixed_model_with_custom_brim_built-in_to_model_now_deleted_and_magnet_holes_added_shown_in_Bambu_Studio_app_(1).png

remixed_model_with_custom_brim_built-in_to_model_now_deleted_and_magnet_holes_added_shown_in_Bambu_Studio_app.PNG











remixed_model_with_custom_brim_built-in_to_model_now_deleted_shown_in_OrcaSlicer_app.PNG

This is a remix of the original model by “<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/@MatiDEVPL">MatiDEV-PL</a>”, which has a single change made to it, to take the original model and simply remove (delete as a part in the model) the custom brim that is built in to that original model, mainly to make it easier to rebase the model if needed. That is the only single change to the original model. Note: As an alternative to this remix / print prifle, if you want the custom brim removed + magnet holes in all 5 of the bins, you can utilize the other “Removed custom brim, and added magnet holes on all 5 GF bins” print profile.&nbsp;0.20mm layer height (or 0.16mm layer height would be optimal)2 walls (you could use 3 walls but that is totally unnecessary as this isn&#39;t a heavy part or a load bearing part at all)15% lightning infill for the least amount of filament to utilize (or 7% cubic infill would be optimal, which would only add 2-3 grams)No supports are needed (optionally you can use a 10% &#34;Threshold angle&#34; setting if you want, which will only add the small supports to each of the 5 bins)Brim 9mm or more (12mm would be optimal, or up to 15mm); as the Gridfinity base on this remix model has the custom brim deleted in it as compared to the original model that has a custom brim part built-in to the model (as can be seen in the last two pictures, to show those differences). Gridfinity models tend to warp severely, and the custom brim in the original model should detach cleanly from the model after printing with the original model, but that custom brim makes the model incompatible with easily replacing the Gridfinity base on the model, with a web app such as with the &#34;Gridfinity Rebase&#34; (https://gridfinity.tools/rebase/) web app (but this remixed model file hasn&#39;t been rebased yet, but this remix model just makes it ready to do so without erroring like the original model will). This remixed model now has the custom brim piece deleted in it, as the only change to the original model.

Removed custom brim only, 0.2mm layer, 2 walls, 7% infill

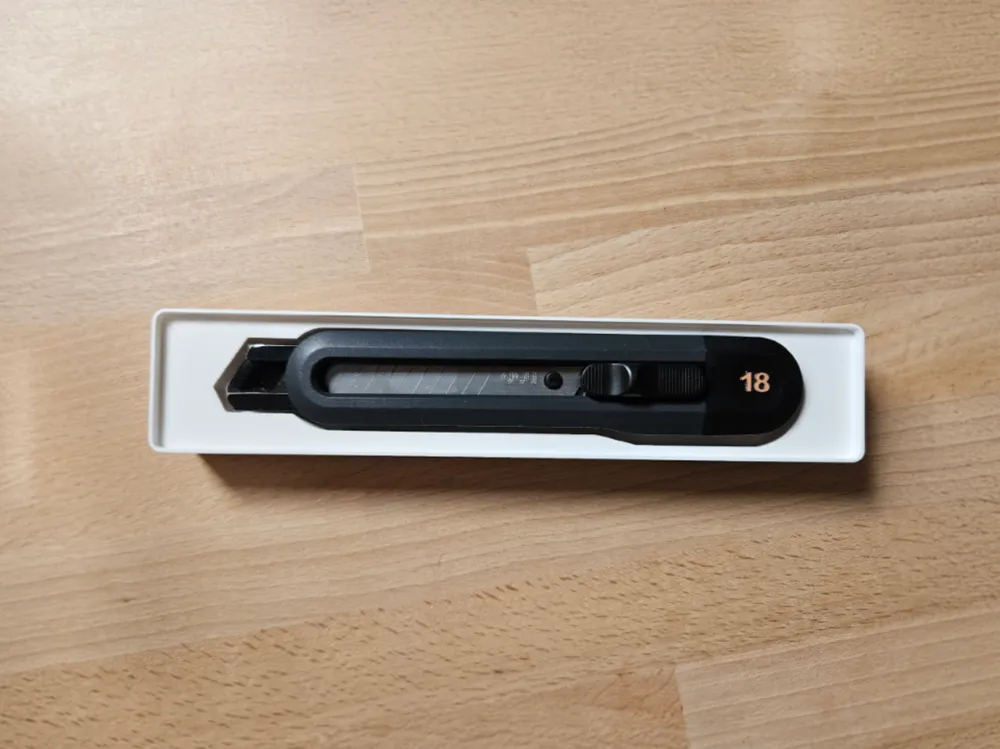

1x5x4 Gridfinity bin fitting Deli HT4018 Utility Knife. This model has a custom brim designed to reduce warping. Gridfinity models tend to warp severely.

Deli HT4018 Utility Knife Gridfinity

Gridfinity Rebase website.PNG

Deli HT4018 Utility Knife Gridfinity (Remix)
