Universal Hand Mop (Hand Mop)

Turn any cloth, microfiber, or wipe into an ultra-efficient cleaning tool!
This project was born from a simple need: to have a robust, maneuverable hand mop that doesn't let the fabric slip during use.

Main Features
• Thumbwheel locking system: No more falling cloths. The two ergonomic (star-shaped) thumbwheels firmly grip your microfiber onto the plate.
• Articulated Joint: The head is movable, allowing you to reach difficult angles or clean vertical surfaces (walls, high windows) with a natural angle for the wrist.
• Removable Handle: The handle is designed to provide a comfortable and smooth grip to prevent blisters during prolonged use.
• Economical & Ecological: No more buying expensive disposable wipes. Use your own microfibers or fabric scraps.

Printing Parameters (Recommended):
• Material: PLA+ or PETG (for increased chemical resistance if using household cleaning products).
• Infill: 15-20% (Gyroid recommended for strength).
• Walls: 6 to ensure the strength of the rotation axes.
• Supports: no supports.
• Layer height: 0.2mm (standard).

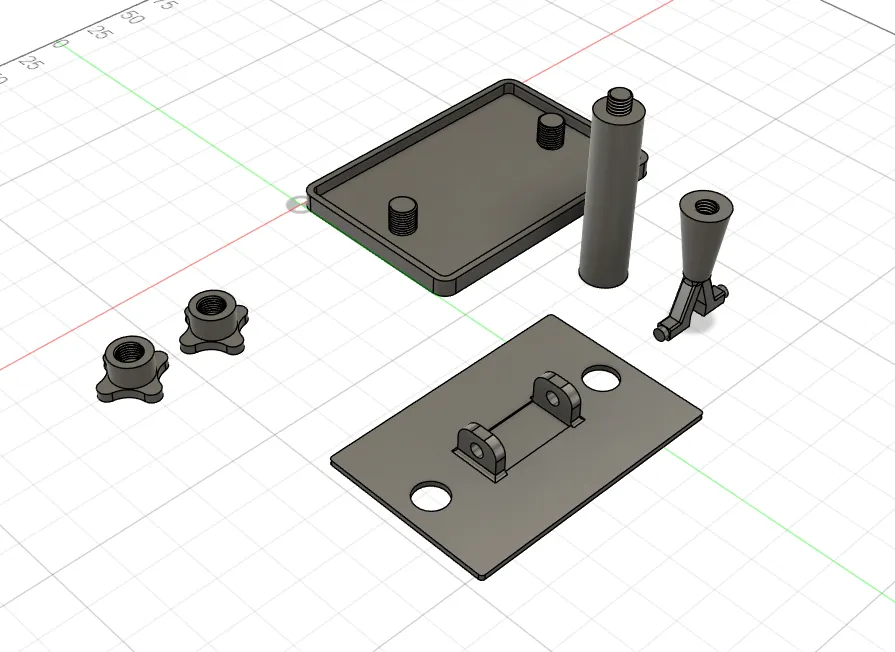

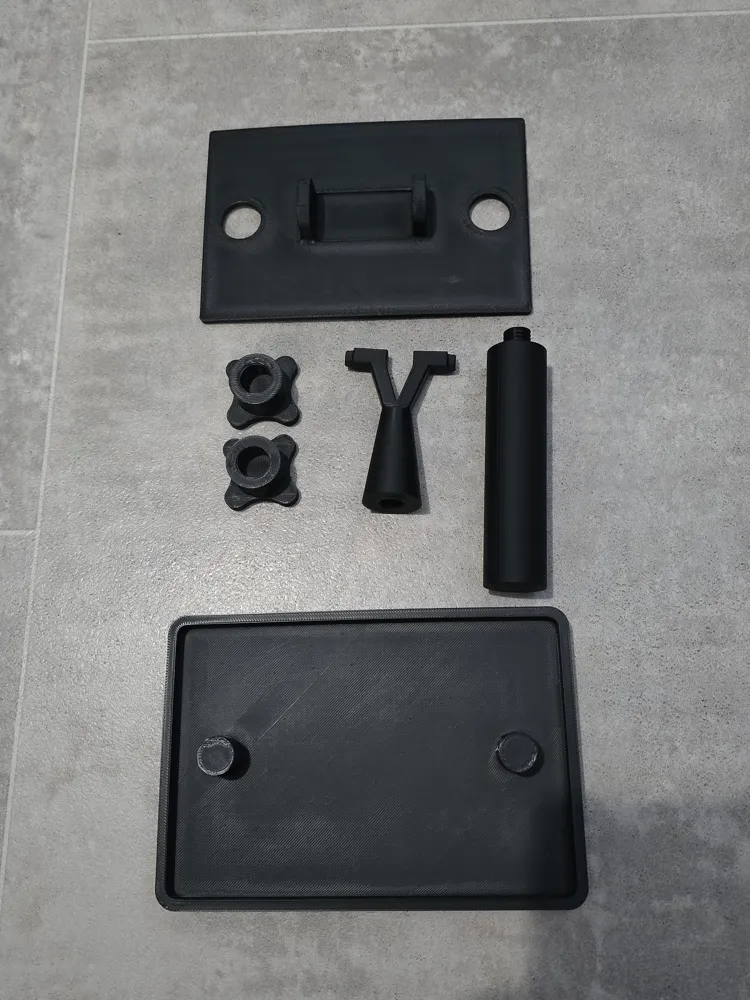

Model Content:
1. The Base: Wide base with a groove to hold the fabric.
2. The Top Plate: To secure the fabric.
3. The 2 Thumbwheels: Ergonomic design for easy tightening.
4. The Articulated Connector: For connecting the plate/handle.
5. The Handle: Smooth, cylindrical version for optimal comfort.

Assembly Tips:
1. Place your fabric under the base, fold the edges inwards.
2. Place the top plate over the folded fabric edges.
3. Screw the thumbwheels to lock the fabric.
4. Add the connector and screw on the handle.
5. Clean everything, from floor to ceiling!
