Box with magnetic lid
Print Profile(1)
Description

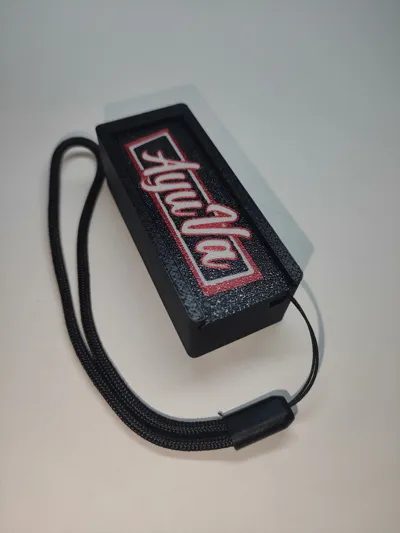

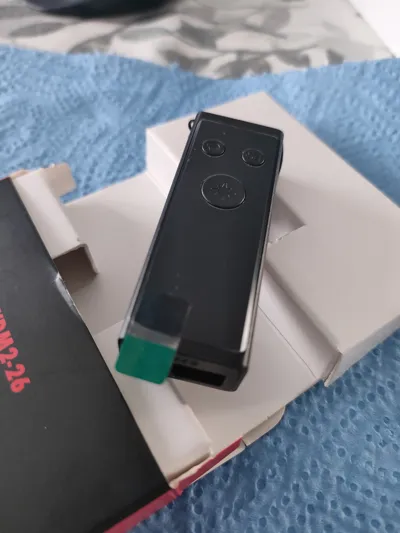

Compact box with a sliding lid designed to store and protect a Würth WDM2-26 type laser meter, although it is also perfect as an organizer for small items.
The closing system incorporates integrated magnets that keep the lid firmly closed, preventing accidental openings. The lid includes double housing for magnets, allowing it to be placed in both orientations.
Its compact size makes it ideal for daily use, transport, or as a personalized box for promotional gifts or events.
📐 Measurements:
Exterior:
- Length: 70.8 mm
- Width: 30 mm
- Height: 23.7 mm
Interior:
- Length: 61.5 mm
- Width: 23 mm
- Height: 16.5 mm
🧲 Closing system:
- 2 magnets in the lid (for reversible use)
- 1 magnet in the base
- Magnet size: 3x2 mm
🔧 Features:
- Sliding lid with magnetic closure
- Compact and robust design
- Opening in both directions
- Ideal for small items and tools
- Surface suitable for customization (logos, text, etc.)
