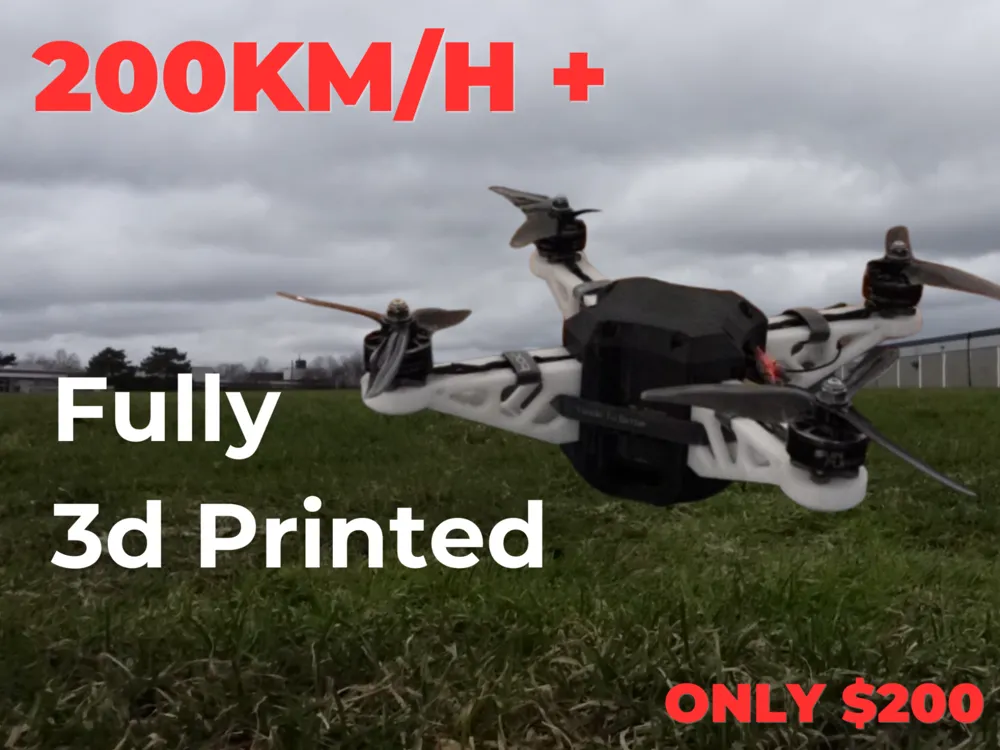

200 km/h 3d Printed Drone For Under $200 CAD

200 km/h 3D Printed Drone

Designed and engineered by Hydrance Robotics

Overview

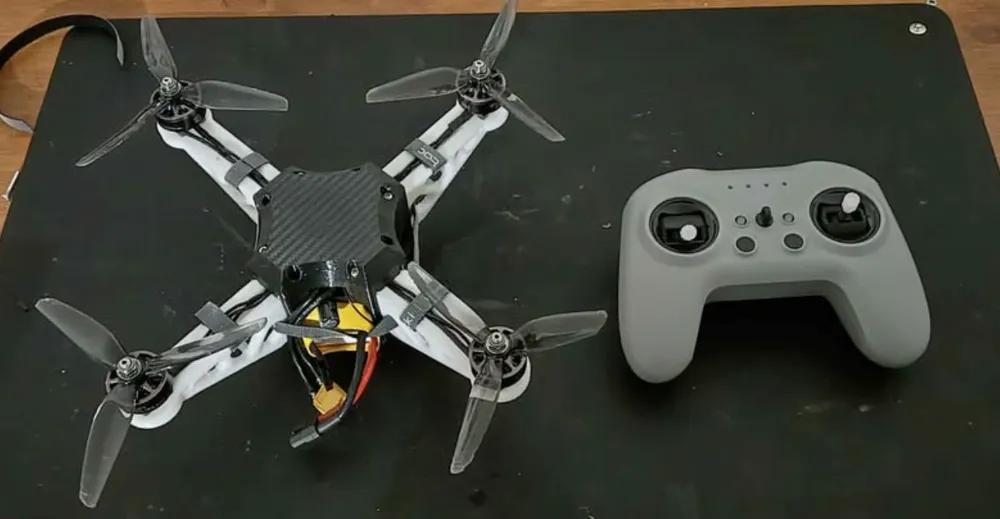

This project is a fully 3D-printed drone designed from scratch with a focus on minimal hardware, ease of assembly, and durability. The design uses a modular approach to simplify repairs and replacements.

Features & Specifications

Theoretical top speed: ~200 km/h Frame material: Fully 3D printed in PETG Hardware: No hardware required except screws Flight controller: F405 60A stack Motors: 2207 1750KV Battery: 6S LiPo Propellers: 5-inch Weight: ~600g (without camera) 3D Printer Used: Bambu Lab A1

IMPORTANT NOTE!!!

Please read this carefully. If you're 3d printing the parts for this drone using PETG or PLA on your printer, then go ahead and print, you can skip the next part. If you're ordering the parts from PCBWay however, then please do not use the STEP or 3MF files from here, the clearances on this model was specifically made for FDM 3d printing, if you use it on PCBway the parts will be too loose.

Go to my github page, you'll see a folder named PCBWay STEP Files. Please order using those.

Components List:

Motors (1750kv):

https://www.aliexpress.com/item/1005005247800911.html

Transmitter

https://www.aliexpress.com/item/1005010435495846.html

Propellers:

https://www.aliexpress.com/item/1005006718265658.html

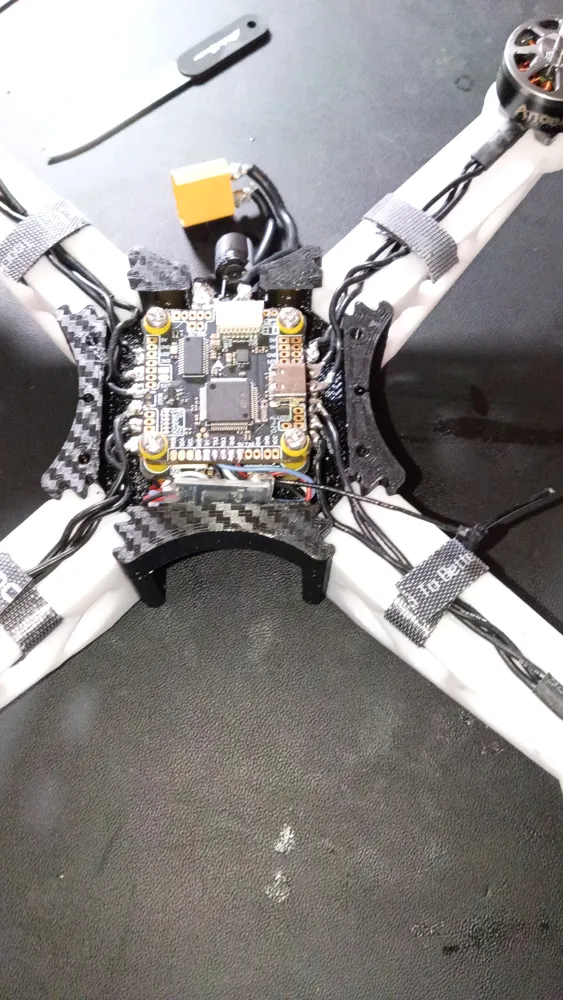

Flight Controller and ESC:

https://www.aliexpress.com/item/1005008885319773.html

Battery (6s 1200mah):

https://www.aliexpress.com/item/1005008637995187.html

Receiver:

https://www.aliexpress.com/item/1005009645506956.html

Total Cost: $200 CAD Total Cost: $167 USD (price may be different depending on your location and discounts)

OPTIONAL:

GPS Module

https://www.aliexpress.com/item/1005004598597402.html

Strap

https://www.aliexpress.com/item/1005005909577742.html

Design Notes

Modular construction for easier assembly and maintenance Designed to minimize the use of additional hardware Arms securely slot into the main hub without fasteners TPU recommended for components requiring impact absorption (e.g., bottom brace)
