DIN35 Snap universal clip
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
32 min
1 plate
Open in Bambu Studio
Boost
18
28
1
0
46
26
Released
Description

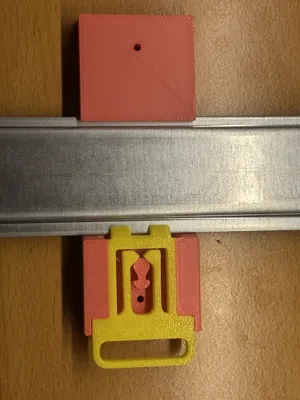

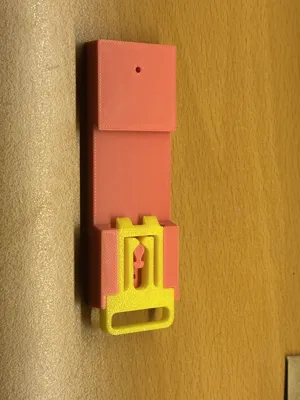

This is a two-part DIN35 rail mount clip designed for fast and secure installation on a standard DIN rail.

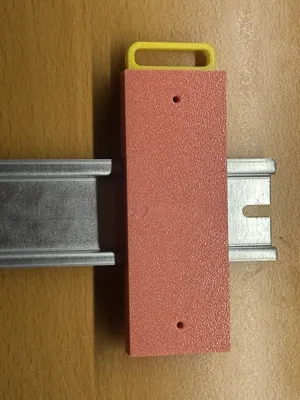

The clip uses a snap-fit style locking feature to hold onto the rail firmly. It also includes two mounting holes, symmetrically positioned with respect to the DIN35 rail centerline and chamfered to make screw insertion easier, so you can attach your own custom part, plate, module, or enclosure to the bracket.
Main features:
- Overall size: 35 x 96 mm
- Mounting hole spacing: 76 mm
- Hole diameter: 2.5 mm (chamfered entry)
- Suitable for M3 metal screws
- Standoff height from the DIN rail: 5 mm
