QB1 SW-420 plate
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
22 min
1 plate
Open in Bambu Studio
Boost
0
1
1
0
0
0
Released
Description

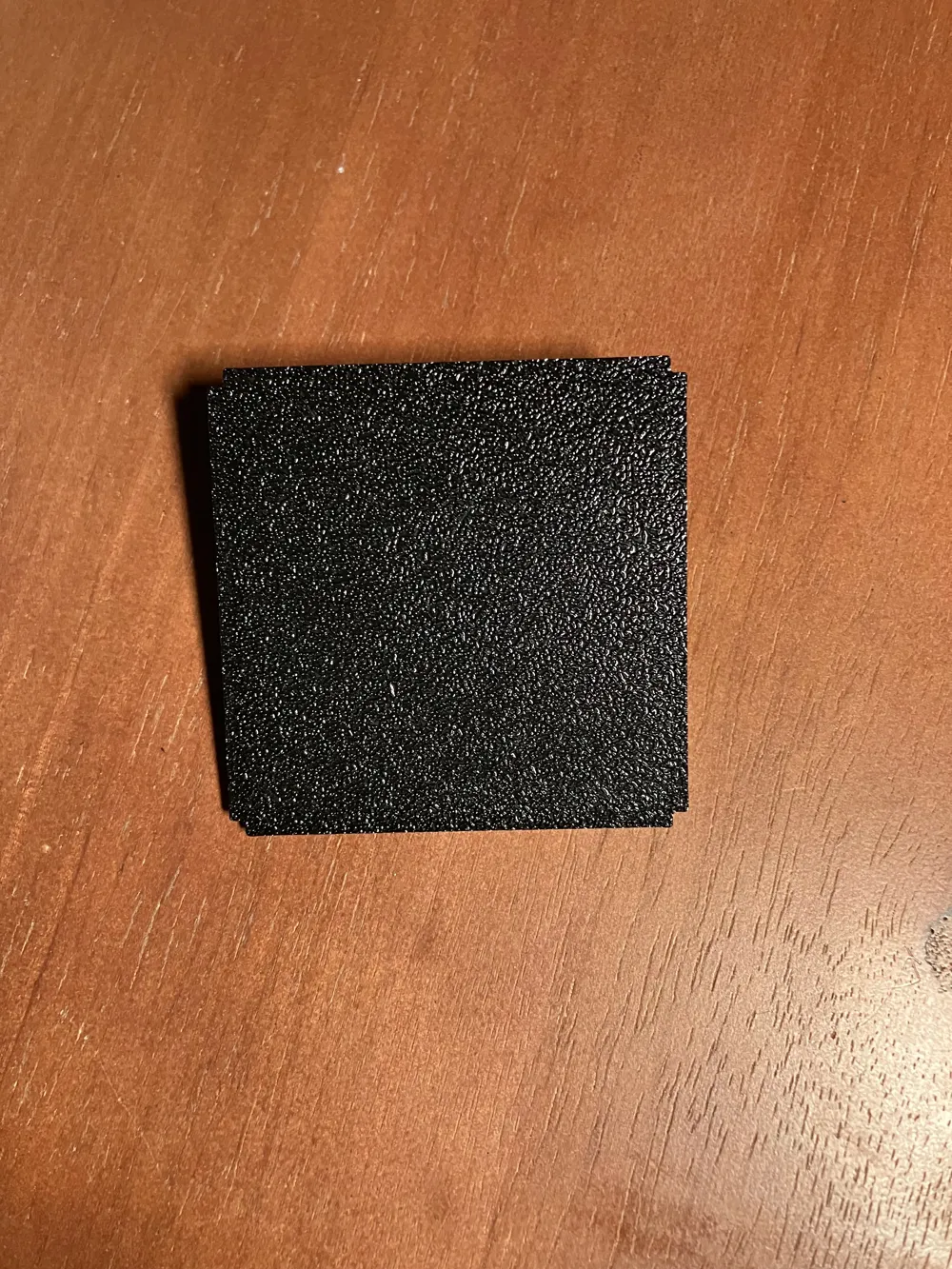

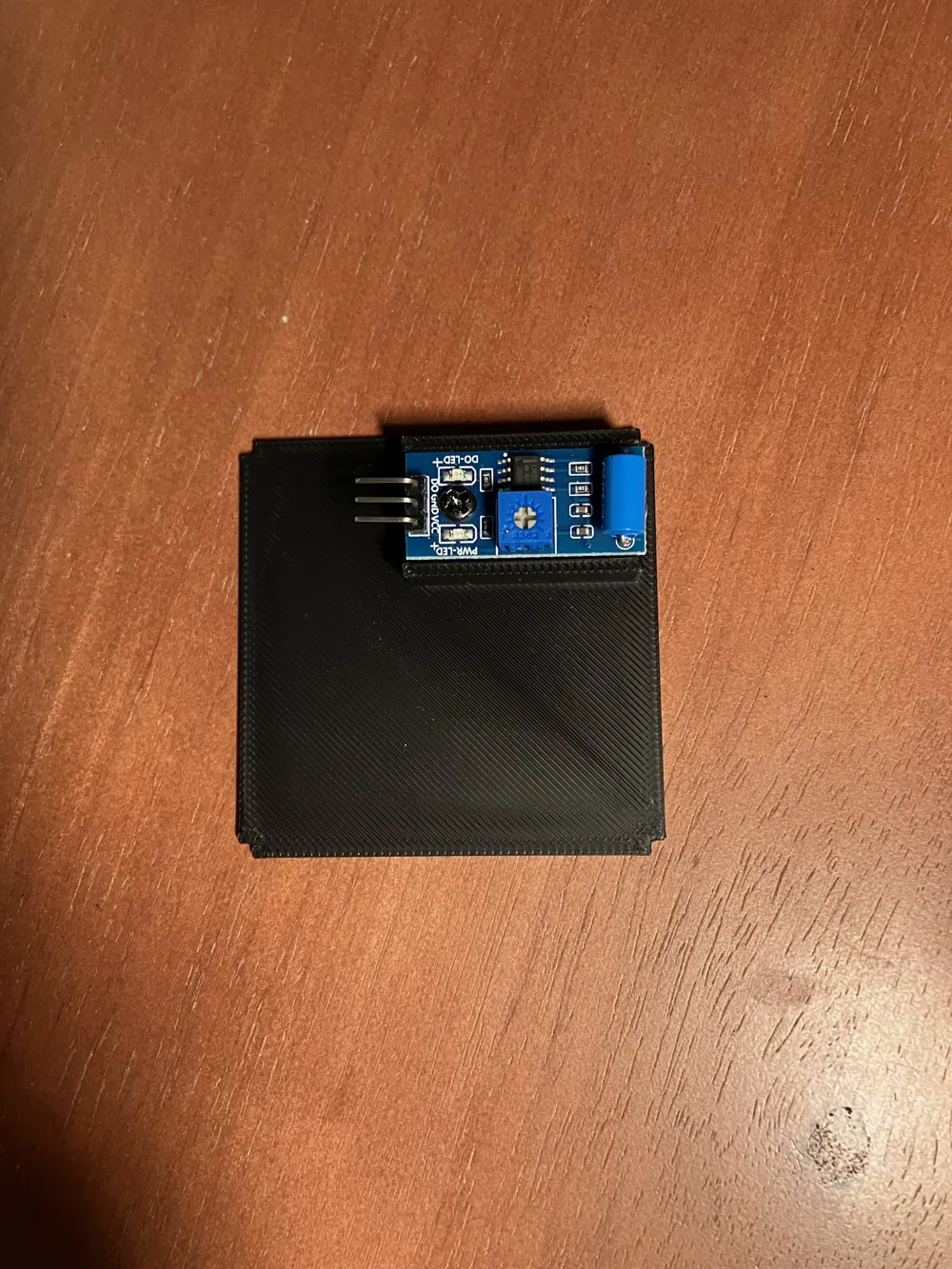

QB1 is a rapid prototyping system for ESPHome and ESP32. This is a face plate for a SW-420 vibration module. To assemble, solder the header connector to the top of the sensor module board, place the board on top of the two posts with the connector toward the center of the face plate, and attach to the plate using a single M3x8mm self tapping screw. The other screw post is only there to support the module.

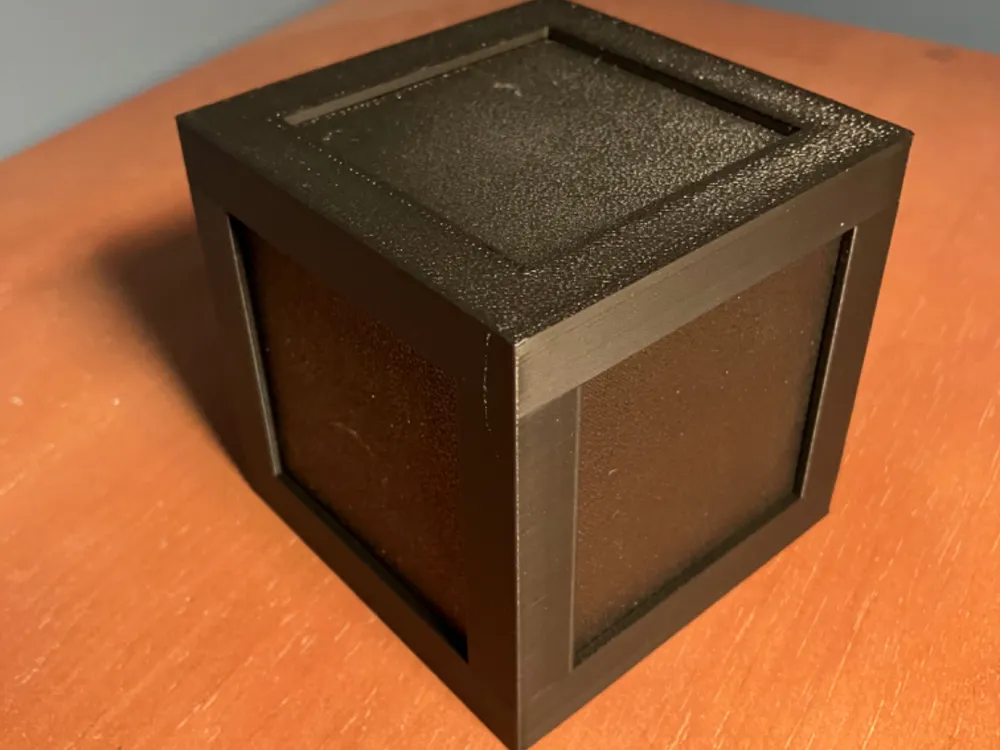

A complete QB1 enclosure requires a top piece, a bottom piece, and a peripheral/mounting/blank plate for each cube face. All enclosure pieces are listed in the QB1 collection. For more information about QB1, see the project page on GitHub.
