QB1 VL53LOX plate

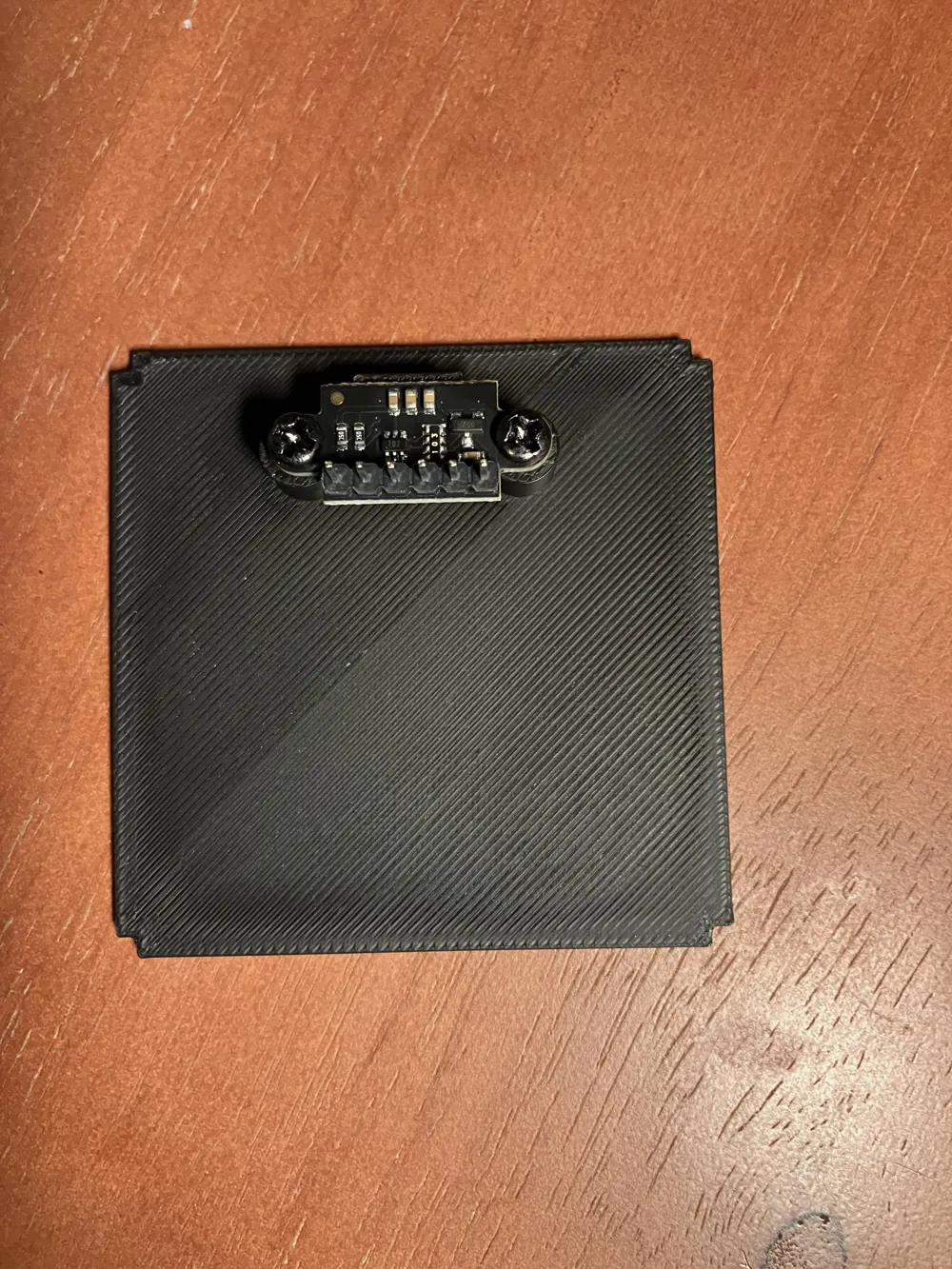

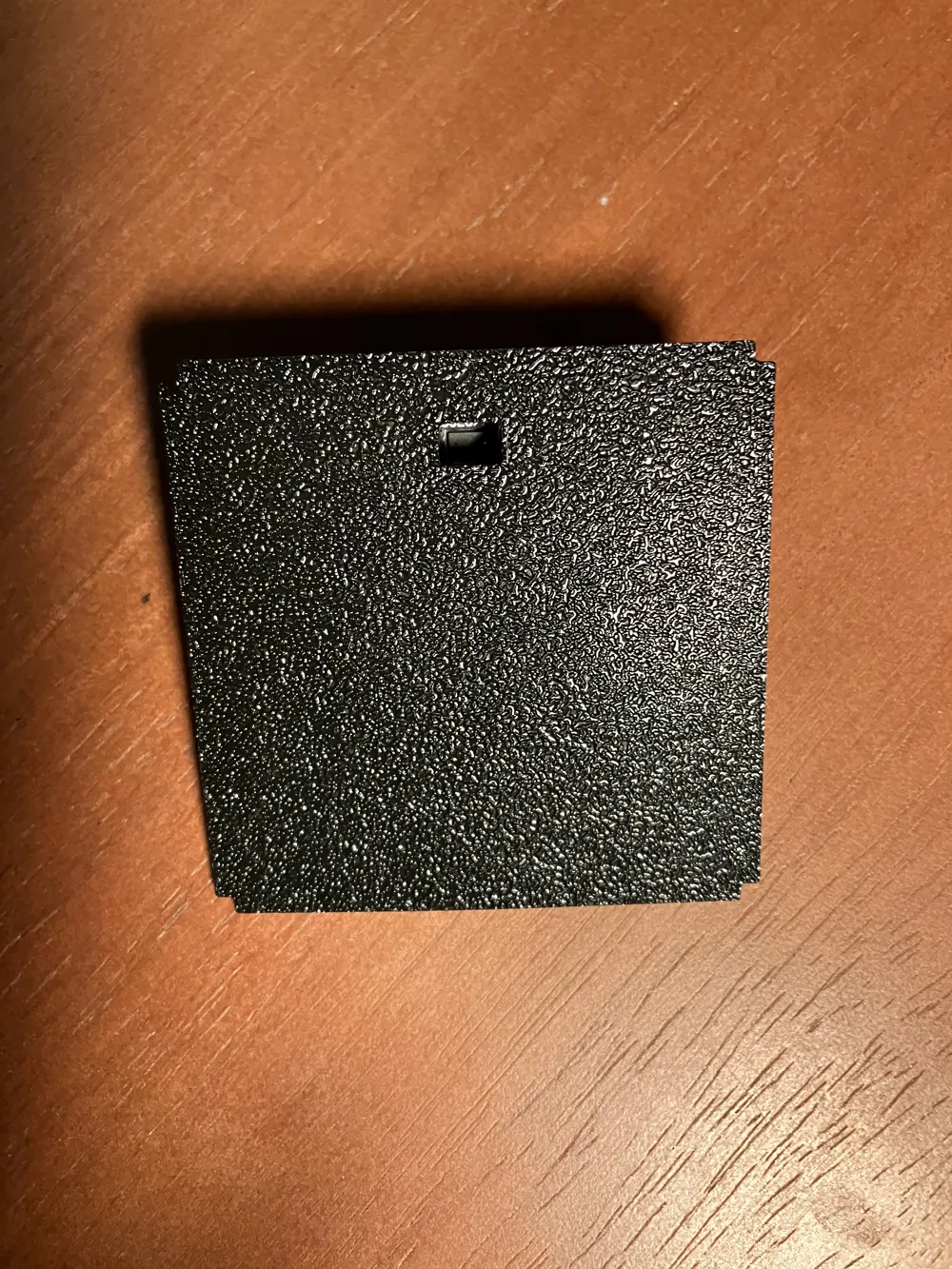

QB1 is a rapid prototyping system for ESPHome and ESP32. This is a face plate for a VL53LOX time-of-flight laser distance sensor module. The face plate accepts the VL53LOX module with two screw holes and a 6-pin connector. To assemble, solder the connector to the back of the sensor module board (with the pins pointing away from the sensor), and then screw on to the face plate using two M3x8mm self tapping screws.

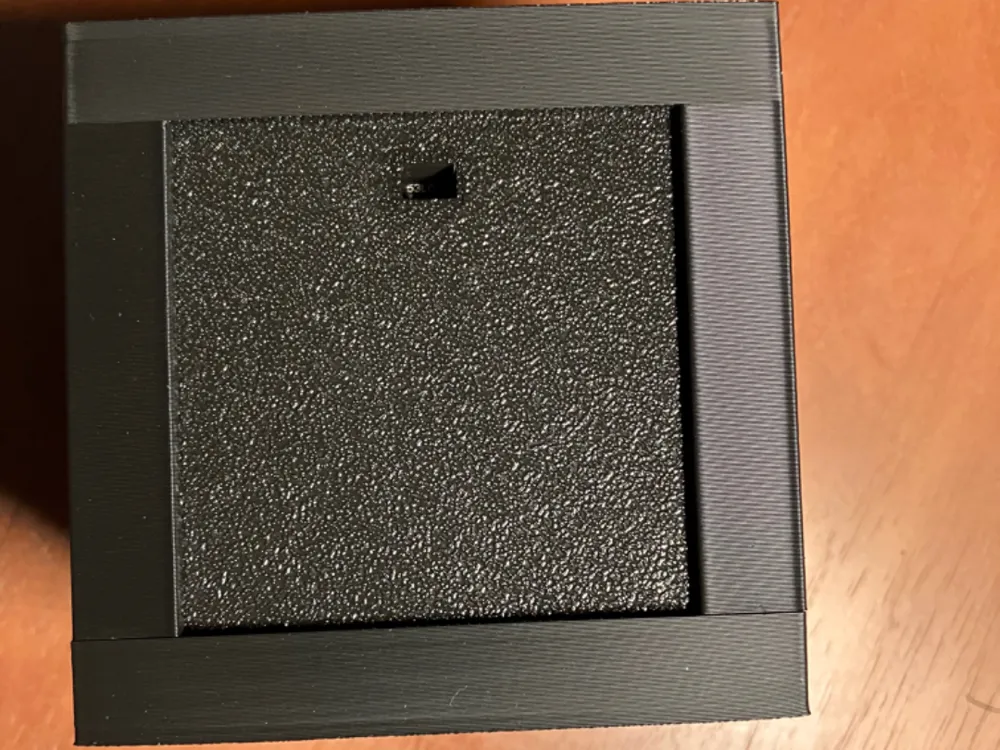

A complete QB1 enclosure requires a top piece, a bottom piece, and a peripheral/mounting/blank plate for each cube face. All enclosure pieces are listed in the QB1 collection. For more information about QB1, see the project page on GitHub.
