ALLIGATOR CARBINE KIT v3.1 for DX2011 (previously missing part 14 fixed) - Free 3D Print Model

Search models, users, collections, and posts

P3NNY0814

Props & Cosplays>Cosplay Weapons

IP Report

Print Profile(1)

All

P2S

H2S

H2D

H2C

H2D Pro

X2D

A2L

0.16mm layer, 4 walls, 100% infill; for stress-bearing parts, an infill of no less than 50% is recommended

Designer

49.2 h

13 plates

Open in Bambu Studio

Boost

553

1452

439

Released

Bill of Materials

Bambu Filaments

Select all

Black (31100) / Filament with spool / 1 kg

PETG-CF

PLA Basic

List other parts

M2*10 内六角薄头螺丝 x 2:
M2* 12 内六角薄头螺丝 x 1:
M2.5*6 内六角沉头螺丝 x 1:
M2.5* 8 内六角沉头螺丝 x 2:
M3*5 内六角沉头螺丝 x 2:
M3*10 内六角沉头螺丝 x 1:
M3*6 内六角杯头螺丝 x 3:
M3*8 内六角杯头螺丝 x 4:
M3*12 内六角杯头螺丝 x 2:
M3*16 内六角杯头螺丝 x 1:
M3*20 内六角杯头螺丝 x 2:
M3*24 内六角杯头螺丝 x 2:
M3*35内六角杯头螺丝 x 2:
M3*40内六角杯头螺丝 x 3:
M3*5 基米螺丝 x 2:
M4* 25 杯头半牙螺丝 x 1:
M4* 30 杯头半牙螺丝 x 1:
M3 螺帽 x 9:
M3*10*S5 双通螺柱 x 4:
M3*20*S5 双通螺柱 x 1:
M4 螺帽 x 2:
M2*25 销钉 x 2:
0.7 * 7 *10 压缩弹簧 x 1: 此规格长度仅供参考，实际使用长度可能存在力度偏差。以实际测试为准
0.7 * 9 *22 压缩弹簧 x 1: 此规格长度仅供参考，实际使用长度可能存在力度偏差。以实际测试为准
0.3*3*30 压缩弹簧 x 1: 此规格长度仅供参考，实际使用长度可能存在力度偏差。以实际测试为准
M3 垫片 x 10:

Description

Content has been automatically translated.

Show original

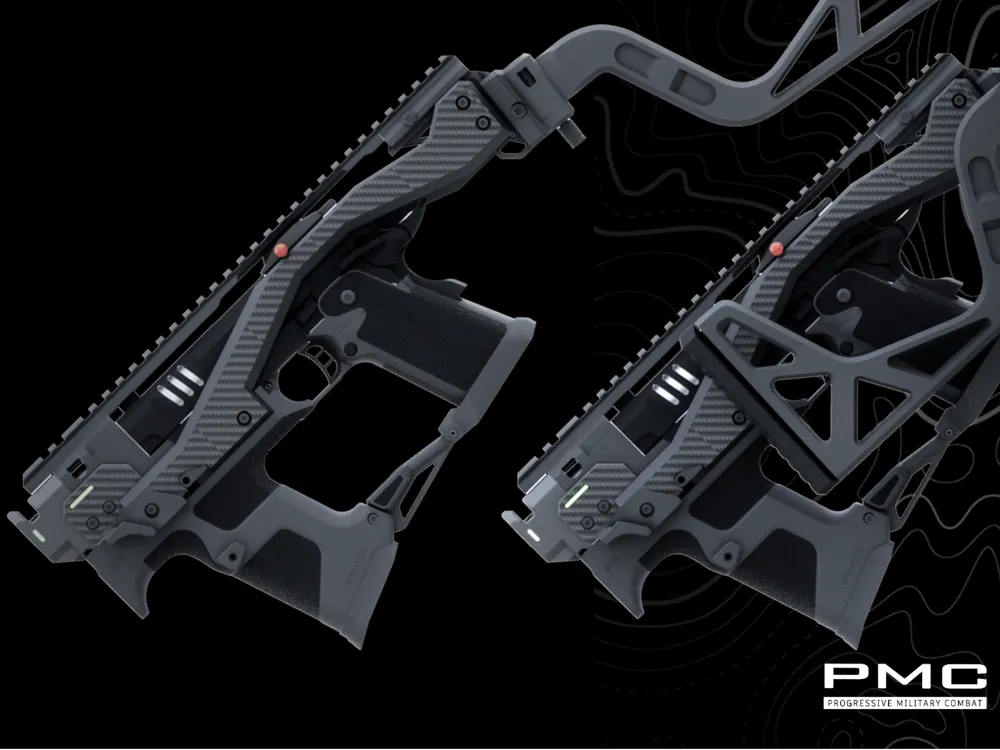

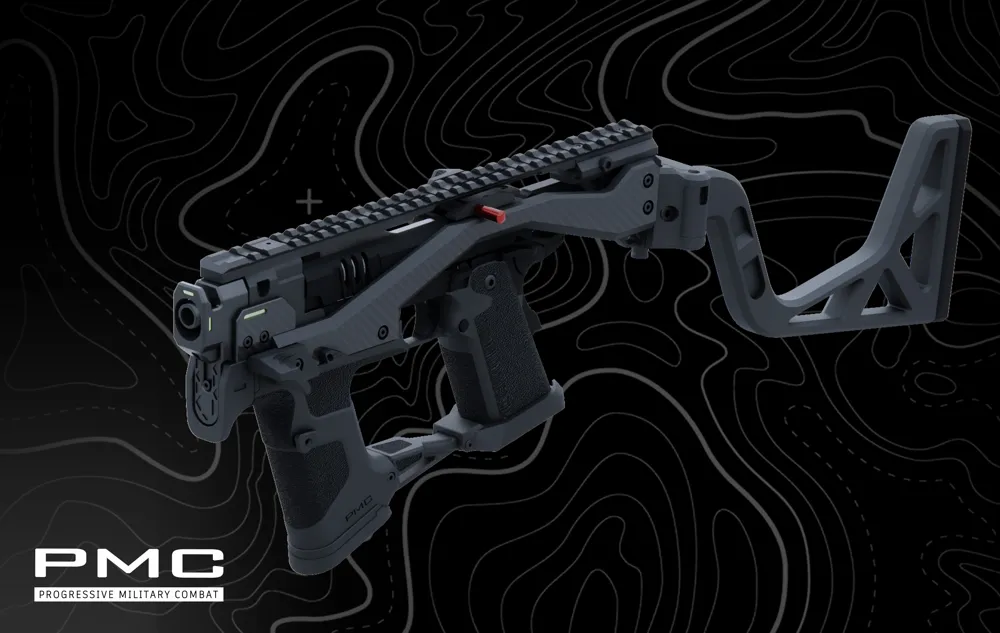

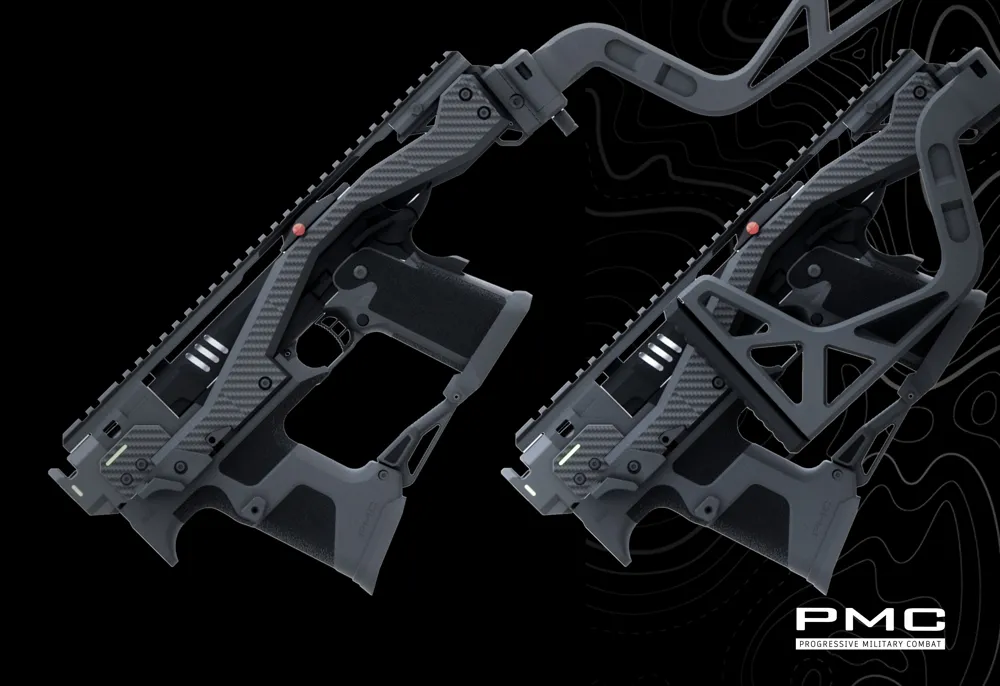

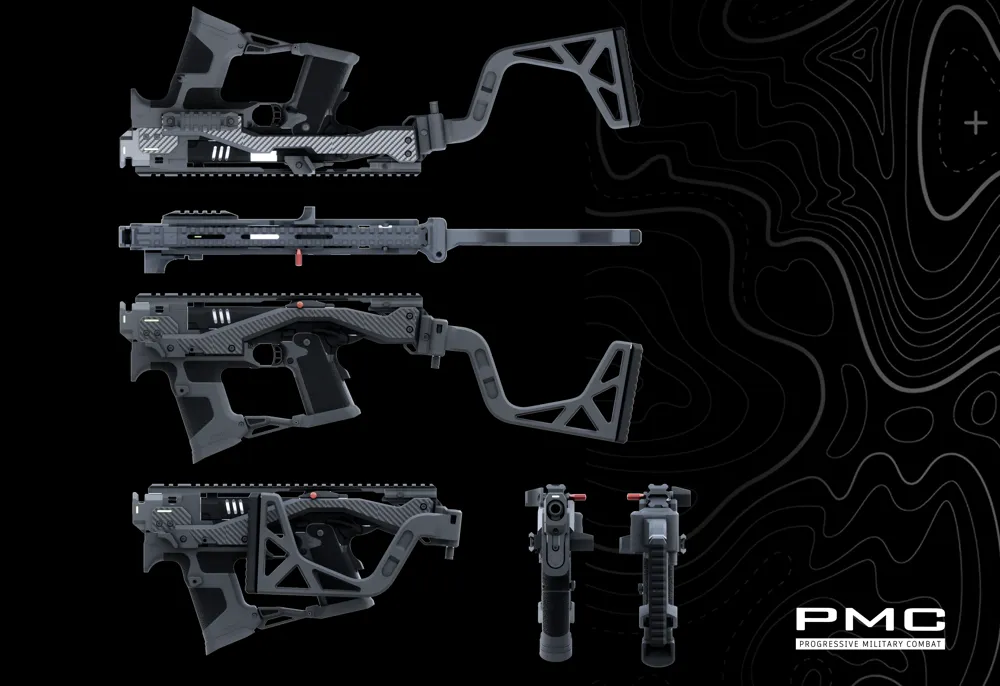

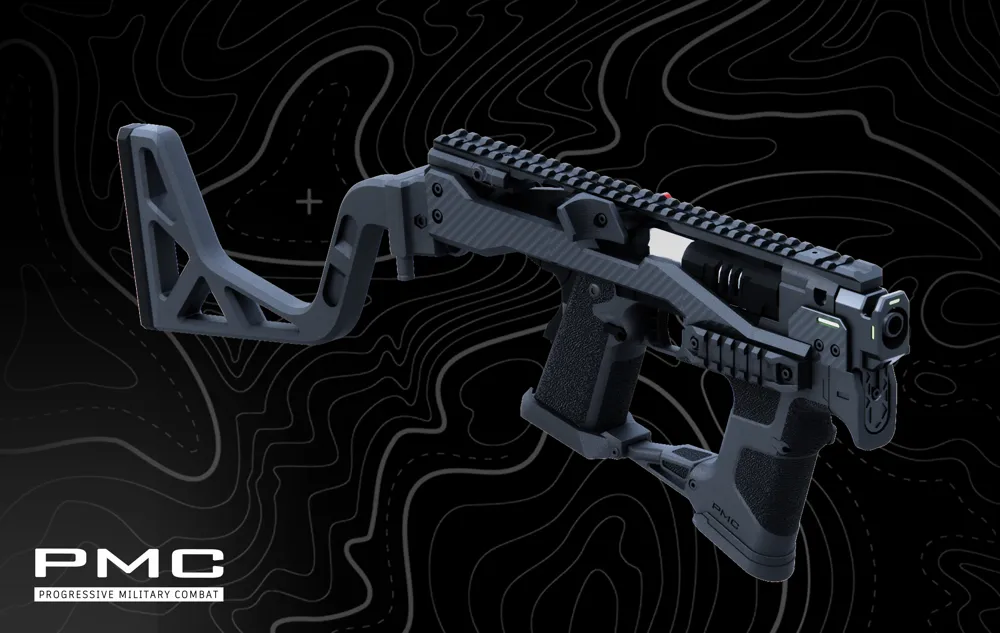

A modular carbine kit project "ALLIGATOR CARBINE KIT 2011" independently developed by PMC Studio for Electric Hand DX2011. This version is V3.1 beta,

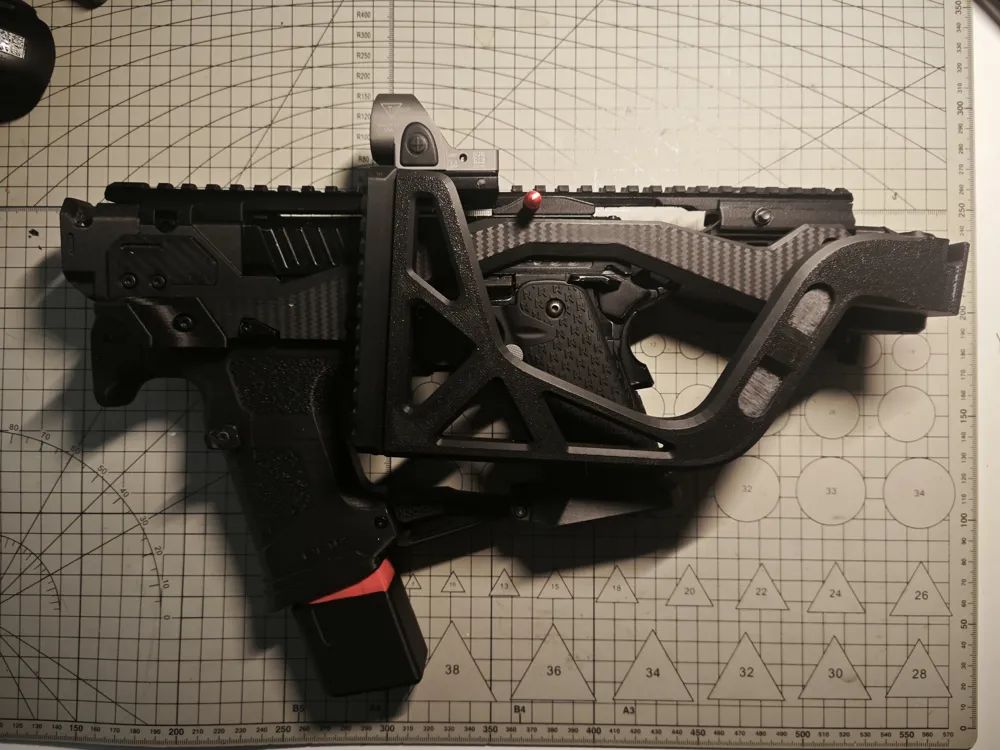

As this version is currently in validation, there are still some tolerance and accessory compatibility issues, and you may encounter areas that require sanding. Suggestions and help to improve the design and proof of concept are welcome.

Don't forget to like! And check out my other cool designs

I would also like to thank several great creators whose open-source models provided much inspiration, and whose secondary creations were incorporated into some basic components of the current project. I specifically thank these great creators for their open-source work. If interested, you can follow the links to their related models for download,

Here are the links to these related models:

gartech 3D TX22 PDW CHASSIS https://makerworld.com/en/models/2121698-tx22-pdw-chassis#profileId-2296670

Super Zach EAP-01 Heavy Kit, compatible with original sleeve, requires adding luminous suppressor for adjusted length https://makerworld.com/en/models/2276173-eap-01-heavy-kit-fits-original-sleeve-requires-add#profileId-2481765

Julien Hoang Custom Hazard Stock https://makerworld.com/en/models/2368408-custom-hazard-airsoft-fixed-folding-stock#profileId-2592017
