Disc Launcher Gun
Print Profile(3)
Bill of Materials
Description
Boost Me (for free)
if you want to support my work help me with a boost that helps me continue creating new and better designs
🚀 UPDATE AVAILABLE! 🚀
Thanks to the incredible support and over 200 comments, I have launched the AXIS-9 V2. In this new version, I corrected all the problems from V1:
✅ No screw: New press-fit assembly piece
✅ Unbreakable magazine: Redesigned in two pieces for greater strength
✅ Total realism: Slide Stop and ejection port added
Download the new version here! 👇
https://makerworld.com/en/models/2716383-axis-9-v2-disc-launcher-gun-improved#profileId-3008483
DESCRIPTION MODEL V1

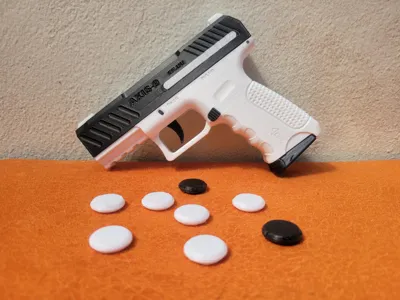

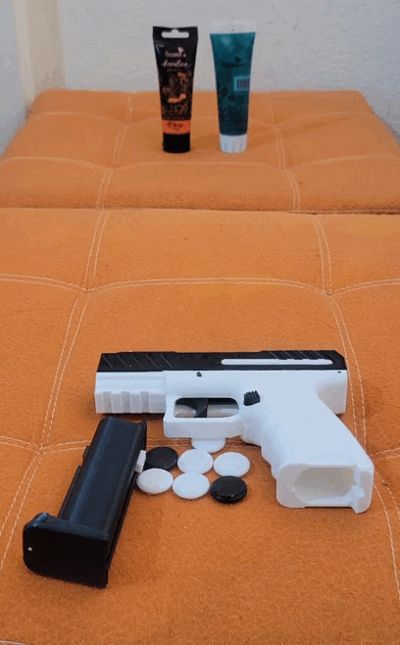

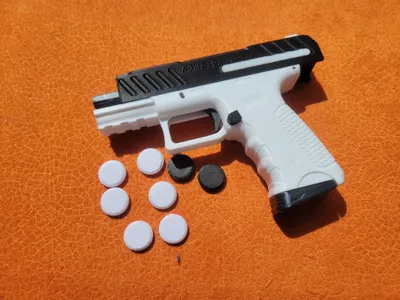

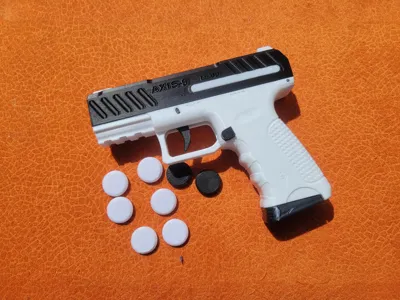

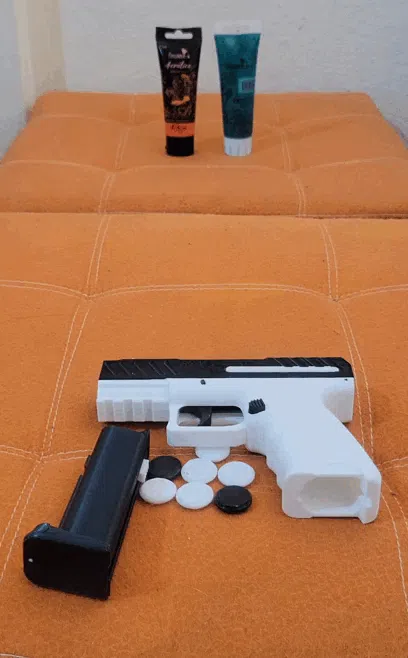

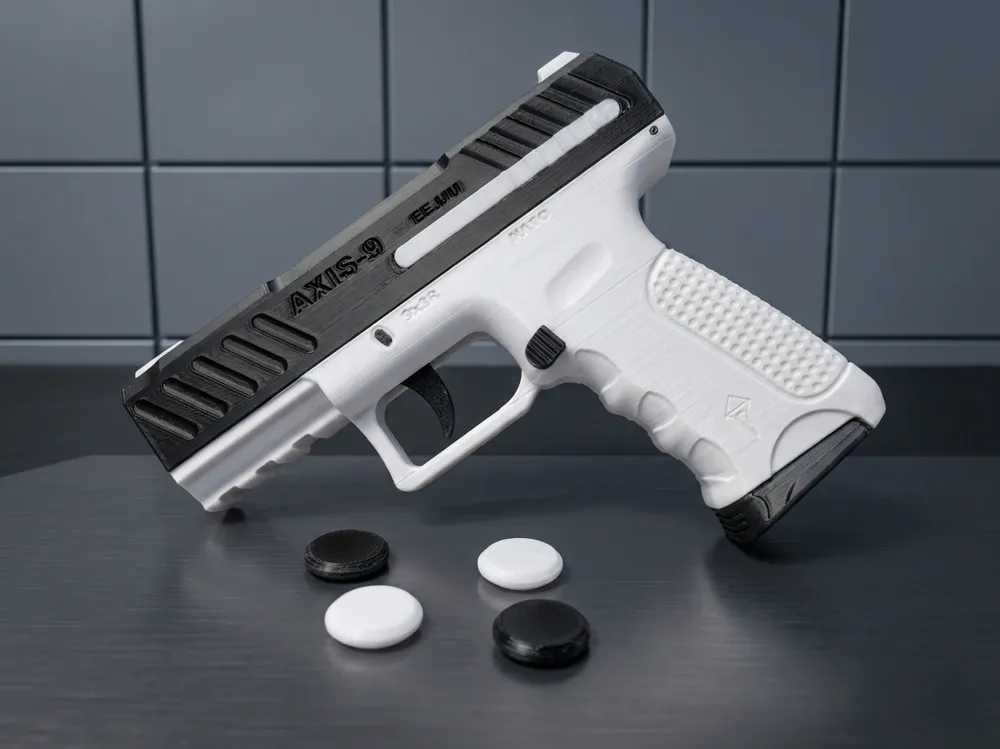

THE IDEA WAS TO MAKE An elegant and optimized design for a semi-automatic rapid-fire disc launcher gun
ASSEMBLY SPECIFICATIONS :
For operation and assembly it requires
ELASTIC BANDS
One large and one small rubber band for the recoil mechanism and for the magazine
SPRING:
A standard pen spring for the magazine safety mechanism
CUSTOM CUT FILAMENT PIECES. to secure moving parts and the structure
PRINTING RECOMMENDATIONS
MATERIAL: PETG is recommended to ensure the firmness, elasticity and durability of components under tension. PLA can be used but does not guarantee durability
SUPPORTS: The design already includes manually integrated supports in the grip (handle) and slide to ensure a clean print
ASSEMBLY LINK
Video of version 2 in which you can see how to use filament as pins
https://youtu.be/Enzp9hWZTlA?si=DBIlXd1dYHw_ZstW
