TSRPN2 Adapter base plate for GSO 200mm - Free 3D Print Model

Search models, users, collections, and posts

CarapauCorrida

Education>Physics & Astronomy

IP Report

Print Profile(2)

All

X1 Carbon

P2S

X1E

P1P

P1S

H2C

A1 mini

H2S

H2D

H2D Pro

X2D

A2L

PET-CF -> 0.2mm layer, 4 walls, 15% infill

Designer

1.1 h

1 plate

PETG -> 0.2mm layer, 4 walls, 15% infill

Designer

1.9 h

1 plate

Open in Bambu Studio

Boost

Released

Description

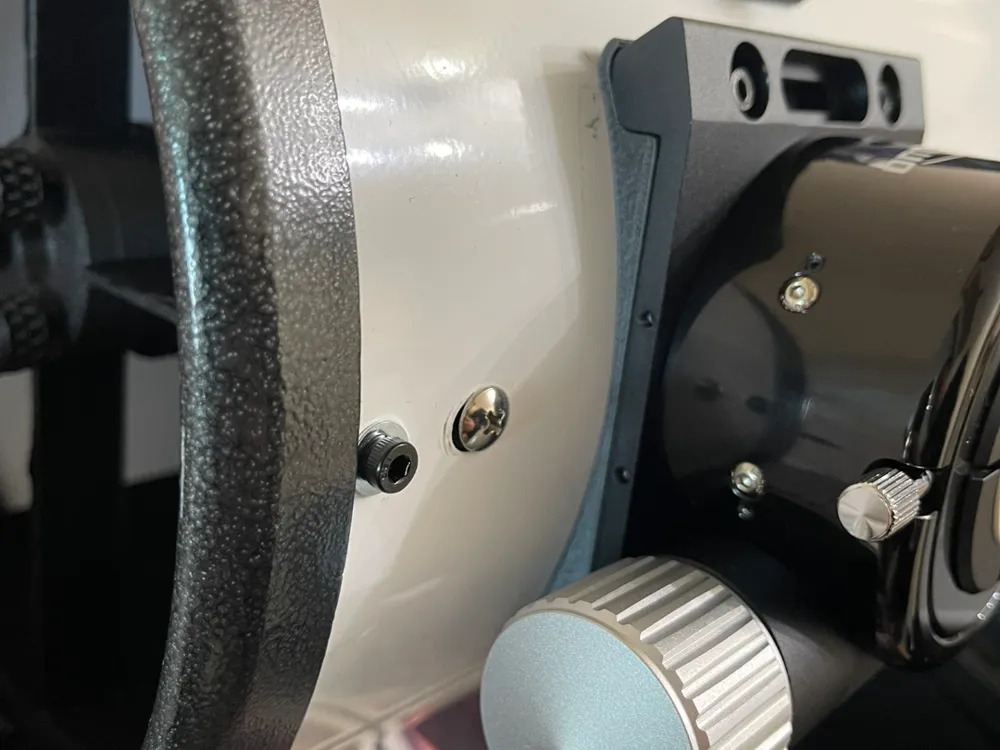

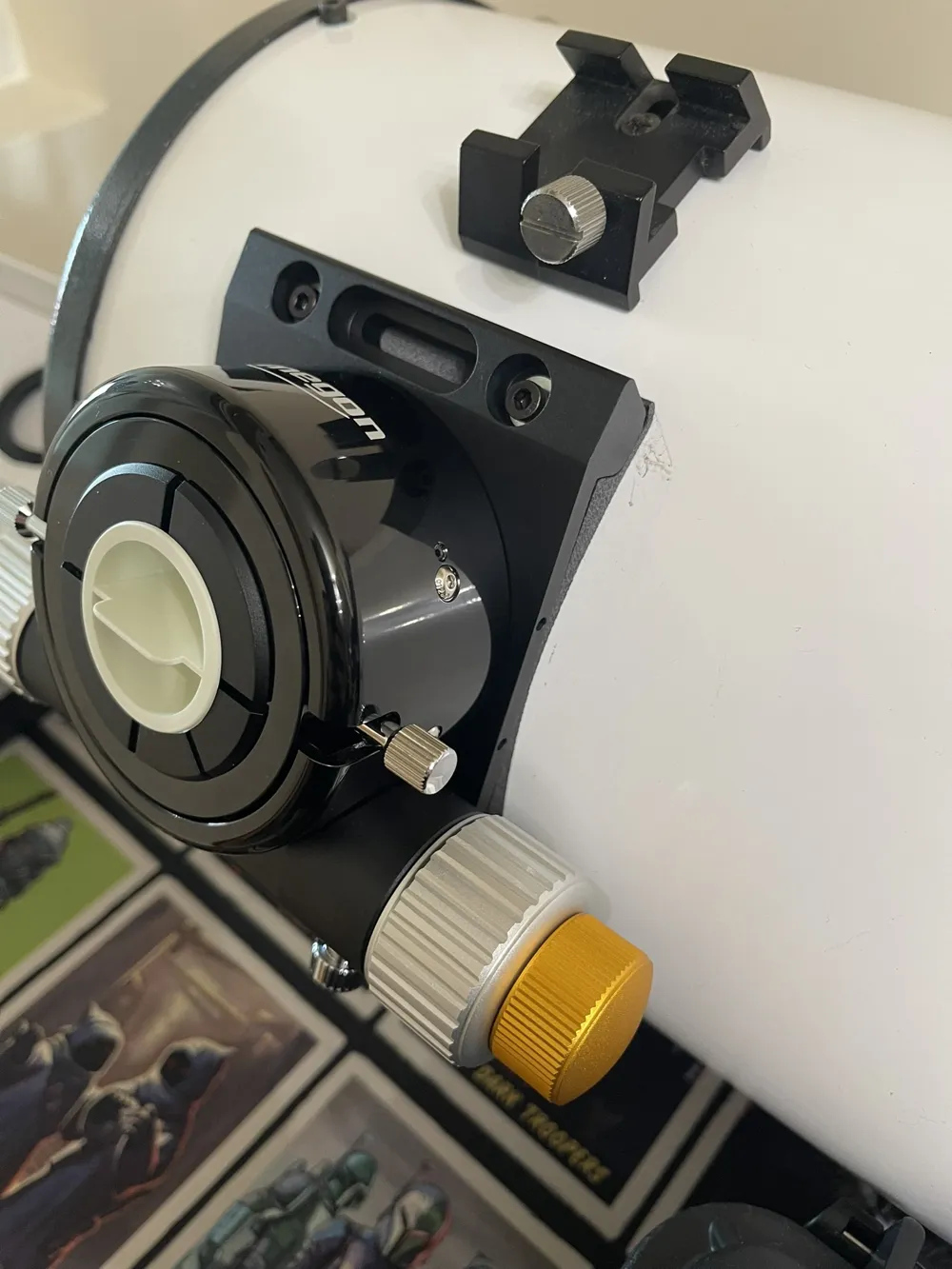

Adapter plate for mounting a TSRPN2 focuser on a 200 mm Newtonian. The plate bolts to the existing tube holes (70 mm along the tube, 73 mm across) and positions new holes to match the TSRPN2 focuser plate (55 mm along the tube, 90 mm across). Designed in Fusion for precise alignment, ensuring the center hole is perfectly centered and safe to drill.
