Connection Adapter Bosch Blower GBL 18-120 to 40mm Pipe

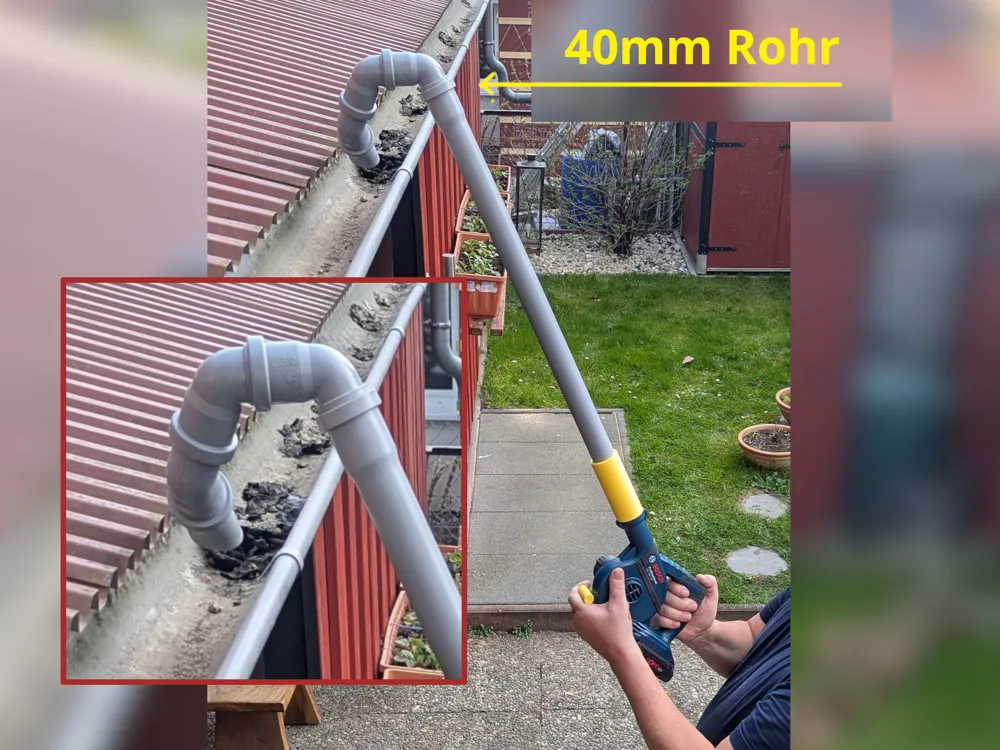

The Bosch blower usually comes with only two small nozzle pipes. However, I also wanted to use it for cleaning the gutter. Without having to climb onto the roof. For this, I designed an adapter for a 40mm sewage pipe.

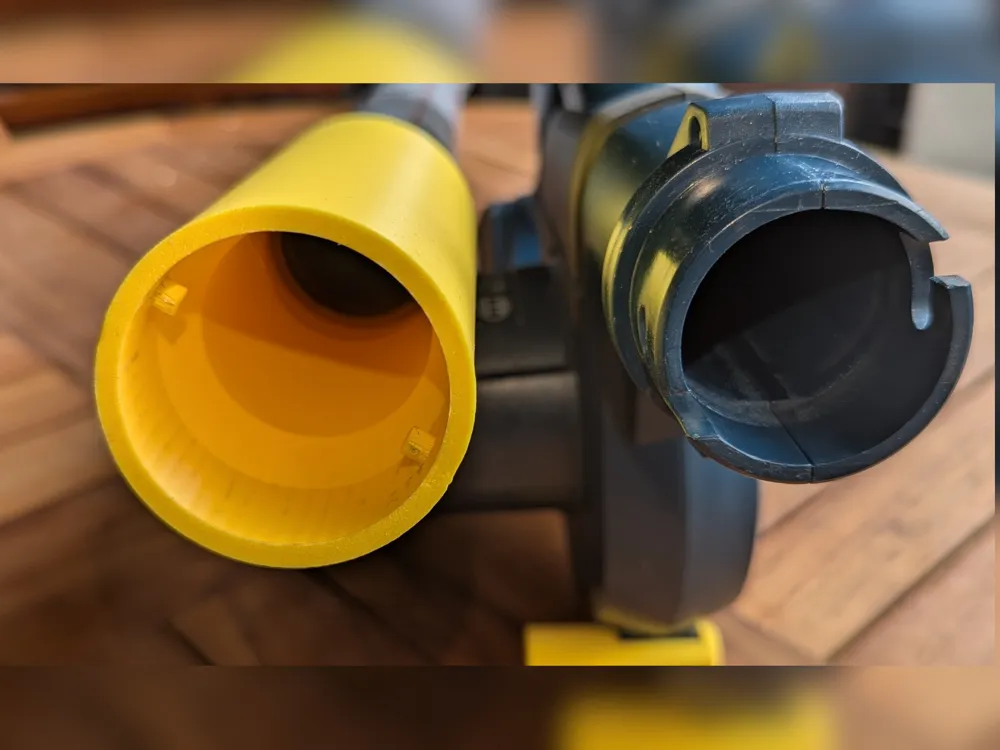

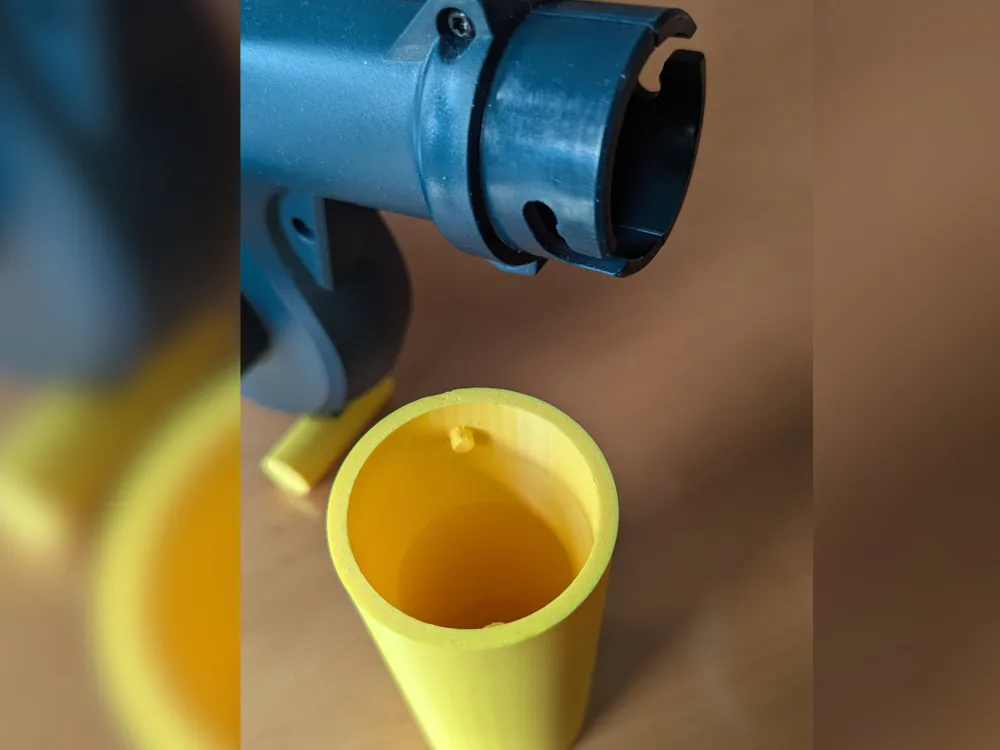

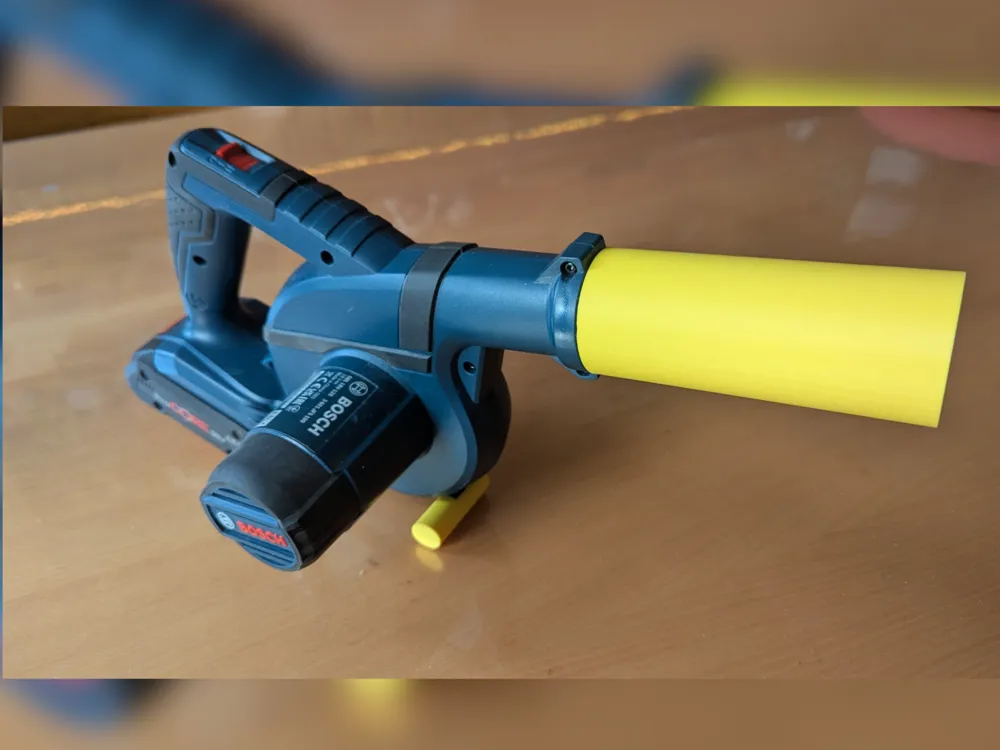

The adapter is placed on the blower, and a 40mm sewage pipe is attached to the outer end. It fits quite snugly, so it doesn't need to be glued and remains permanently on the adapter.

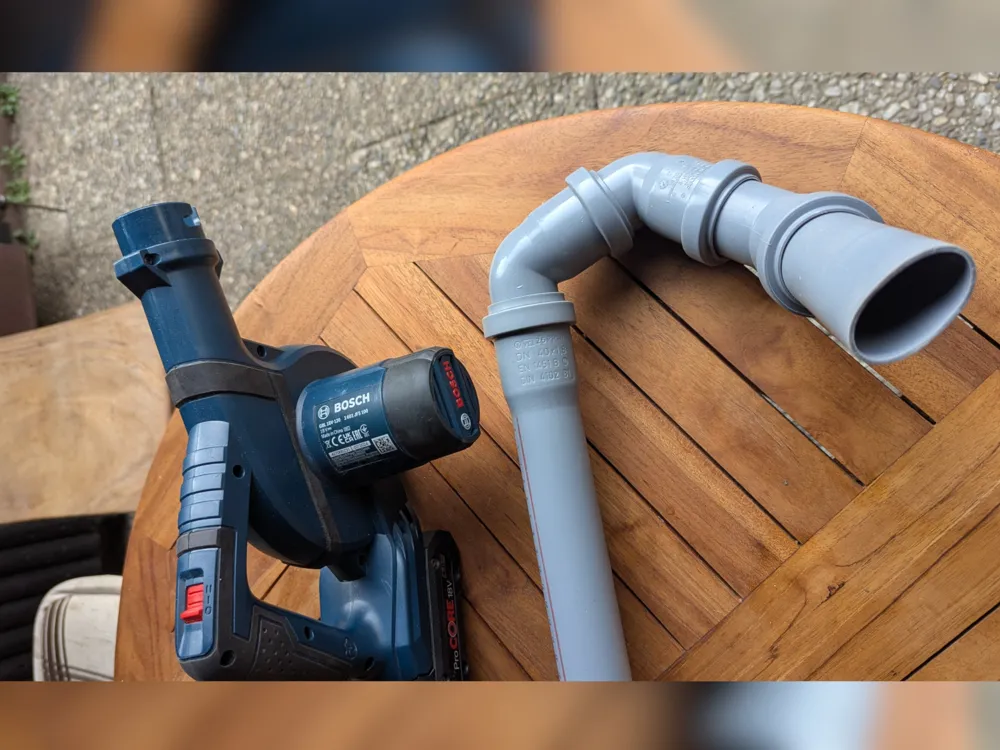

This 40mm pipe can be customized according to your needs. After use, it can be easily detached from the blower, and the original pipe can be used again.



The blower's connections are approximately 43.5mm in diameter, so no standard sewage pipe fits. This adapter creates a connection. This allows you to create any shape and length using inexpensive standard 40mm pipes.
There are certainly other applications for this; feel free to post them here. I'm curious what else can be done with it. Good luck with it.

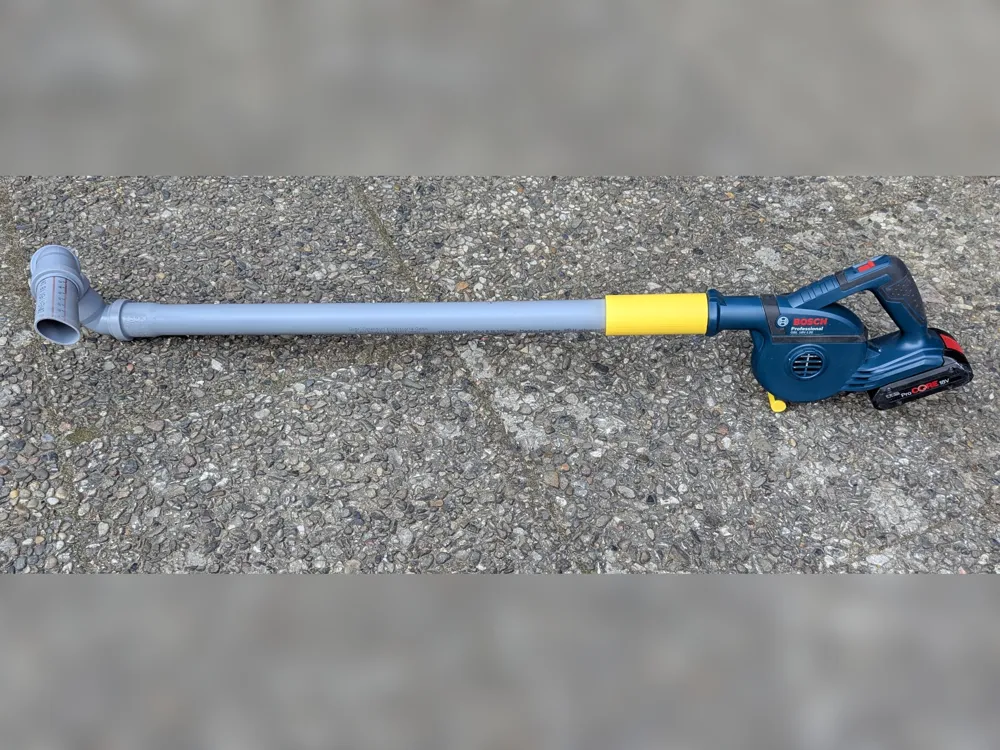

I printed it in Bambu PETG HF, but it will probably also work with PLA. It is designed to be quite stable so that it can hold a long connecting piece firmly. I myself need about 60cm, and it works very well.



Have fun with it.
