BRIO / IKEA Train Track Drawbridge
Print Profile(1)
Description

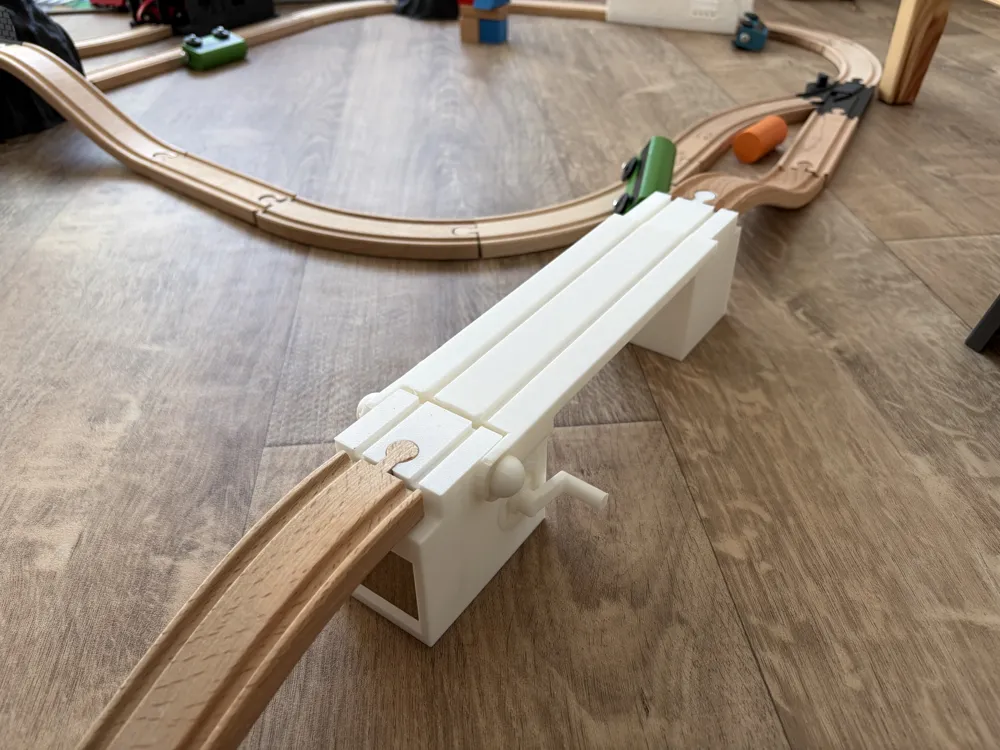

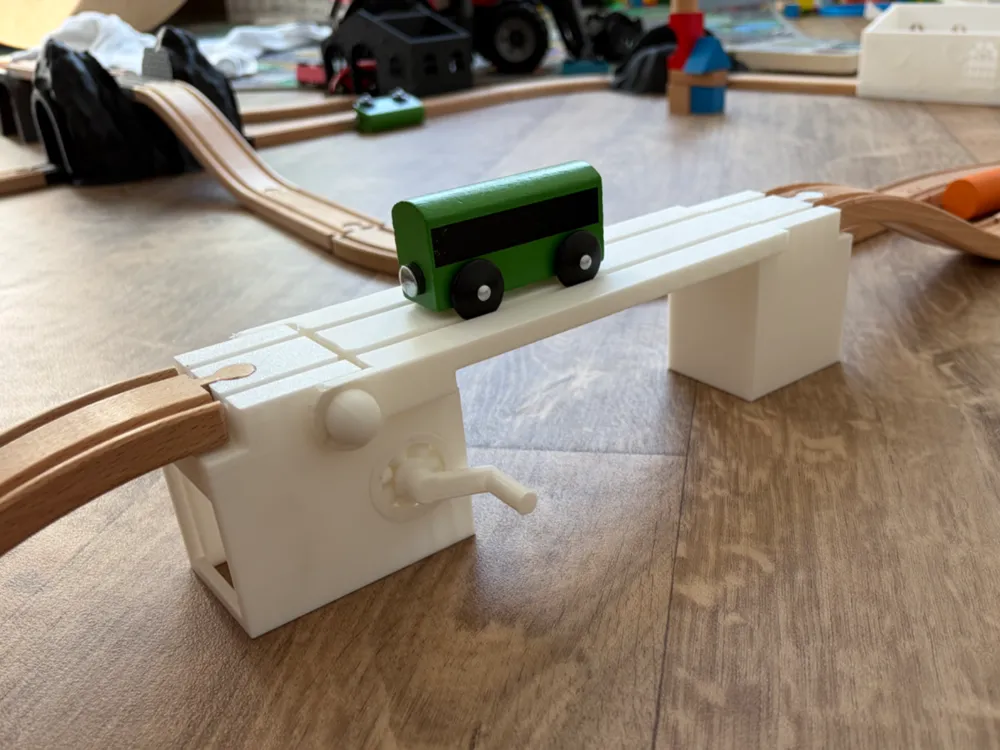

This functional drawbridge is designed for wooden railway systems such as BRIO, IKEA LILLABO and similar train sets.

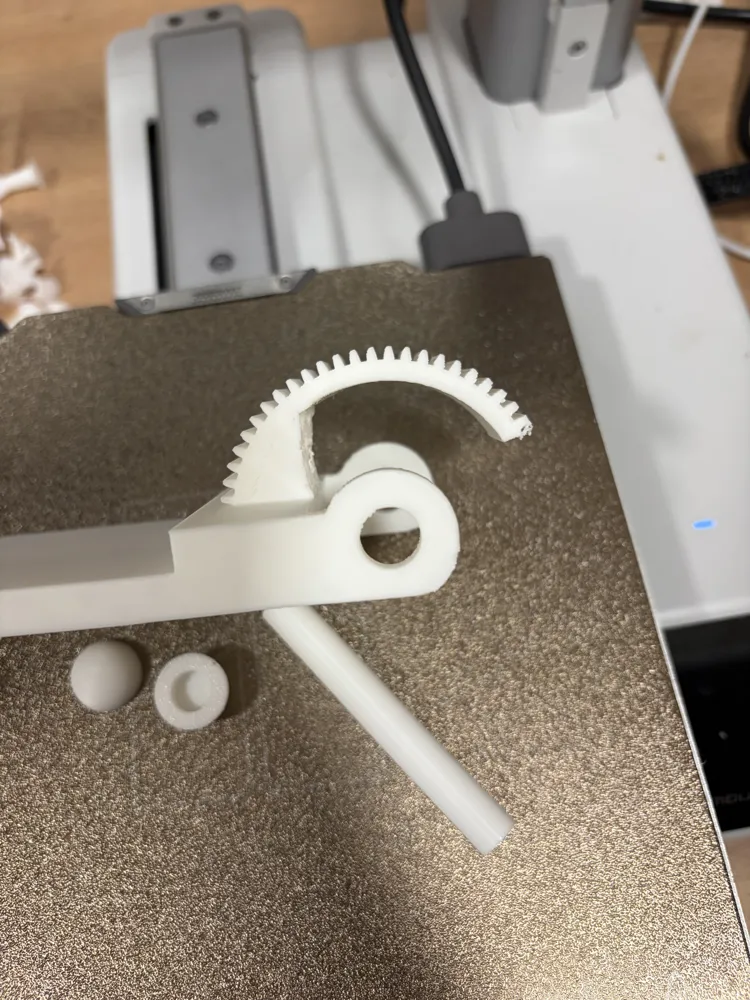

The bridge features a gear-driven lifting mechanism with bearings, allowing smooth and reliable movement when raising and lowering the bridge. It adds an interactive and mechanical element to your railway layout, making play more engaging and dynamic.
This is the first version of the model, created as a base design that will be further improved and expanded over time. Feedback and suggestions are very welcome and will help shape future updates.
The bridge is ideal for building custom layouts, rivers, or obstacle crossings, and works great as a centerpiece in larger railway builds.
Features
- Compatible with BRIO / IKEA LILLABO systems
- Working drawbridge mechanism
- Uses gears and bearings for smooth motion
- Interactive and fun to operate
- Designed for future improvements
Printing Tips
- Print parts separately for best results
- Layer height 0.2 mm
- 15–25% infill
- PLA recommended
For gears, use higher precision (slower speed) for smoother movement.
Assembly

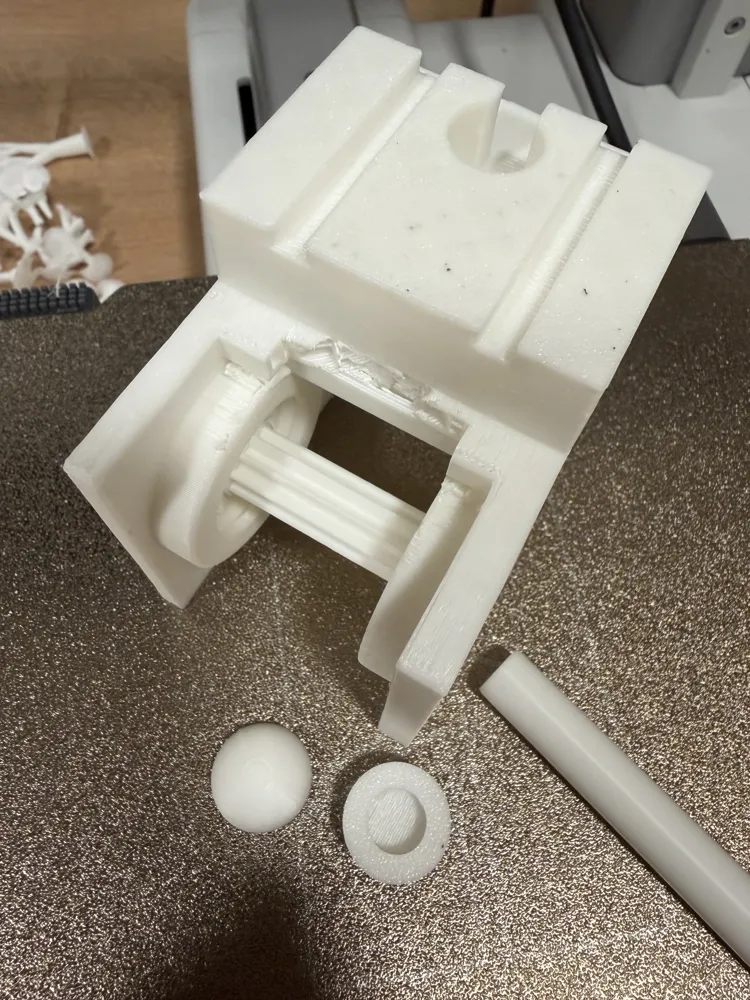

Assembly required. Insert bearings and gears, then mount the bridge mechanism. Ensure smooth rotation before use.
