openGrid Desk Edge Right Angle Channel

Parametric right angle desk edge channel for the Underware 2.0 openGrid system.

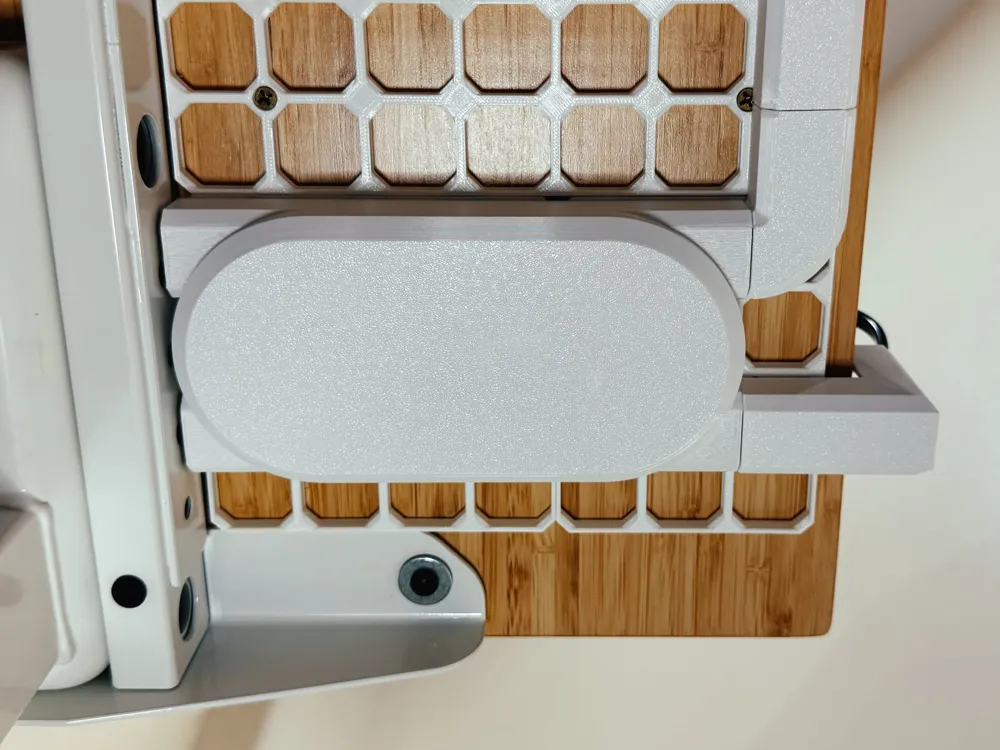

This right-angle channel is designed to route cables cleanly from the openGrid to the top of your desk. It is fully adjustable to fit different desk setups and cable requirements.

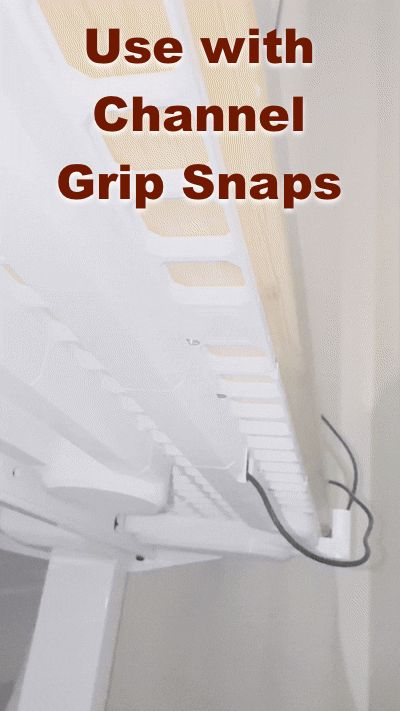

Note: Please use these with channel grip snaps for stable grip, and recommend you customize the model as each desk configuration is unique.


🔧 Features
• Adjustable desk offset to match your desk configuration

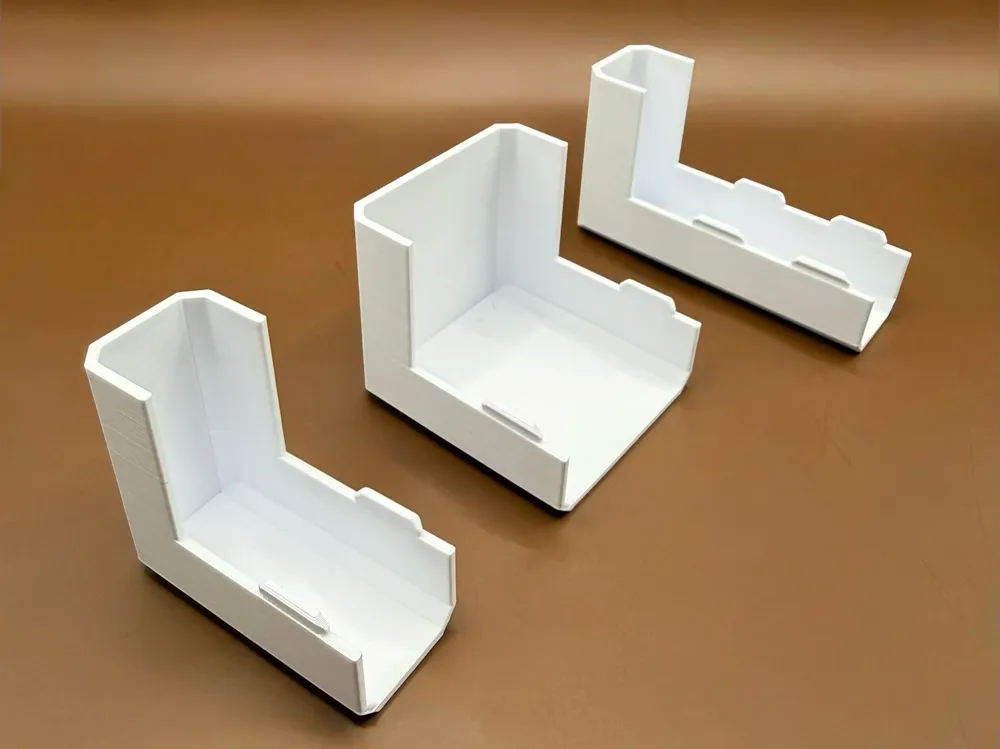

• Customizable channel width for different cable bundles

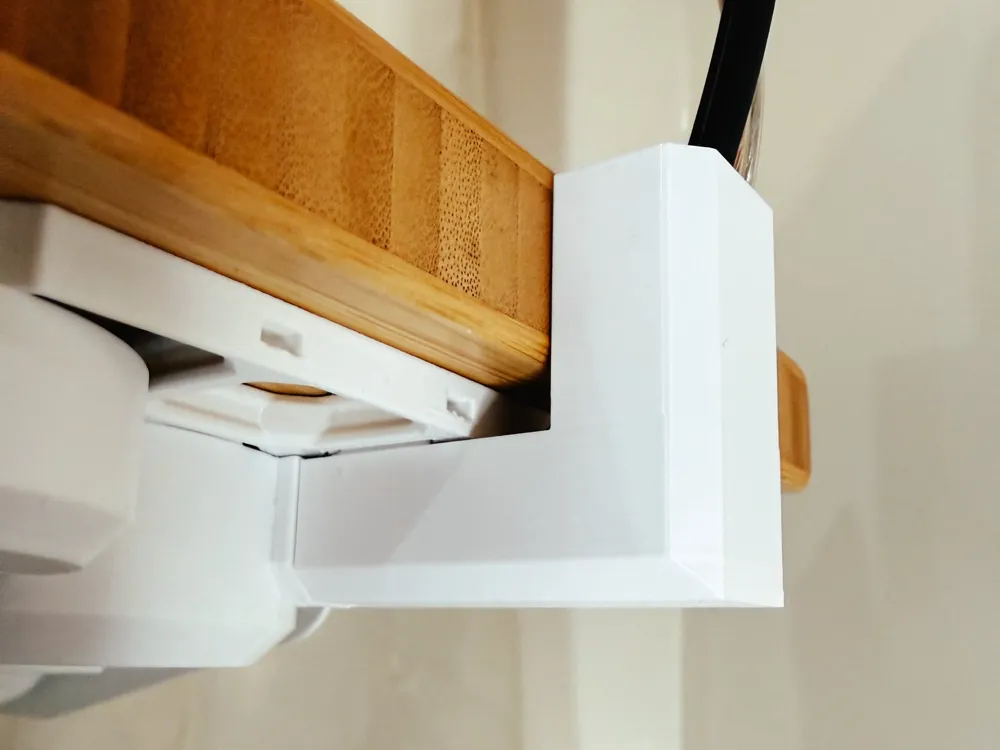

• Clean 90° routing from grid to desk
• Compatible with openGrid channels

🛠 How to customize model

Make sure you access MakerWorld on your computer browser and click on the green “Customize” button.

📏 Parameters (OpenSCAD)
DESK_EDGE_HORIZONTAL_OFFSET (mm)
Distance from end of the openGrid to edge of your desk.

HEIGHT_TO_DESK_EDGE (mm)
Vertical distance from the bottom of the openGrid to the top surface of the desk edge.

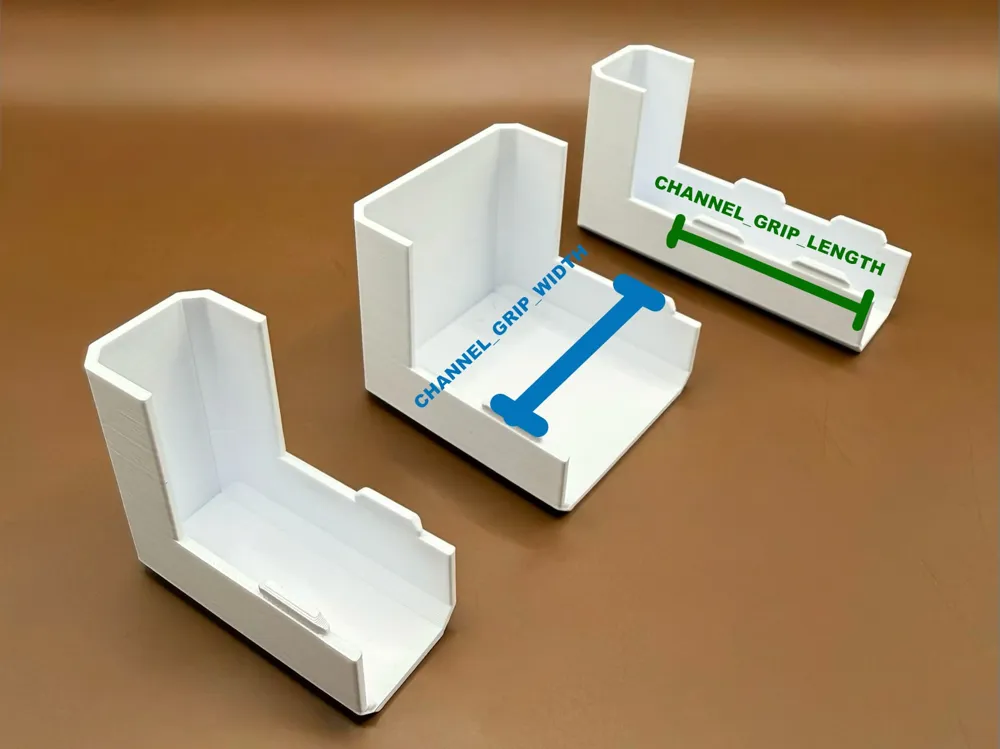

CHANNEL_GRIP_WIDTH (grid units)
Width of the channel section where it attaches to the openGrid, measured in grid units.

CHANNEL_GRIP_LENGTH (grid units)
Length of the channel section that attaches to the openGrid, measured in grid units.

CHANNEL_TOTAL_HEIGHT (mm)
Total grip channel height including connectors.

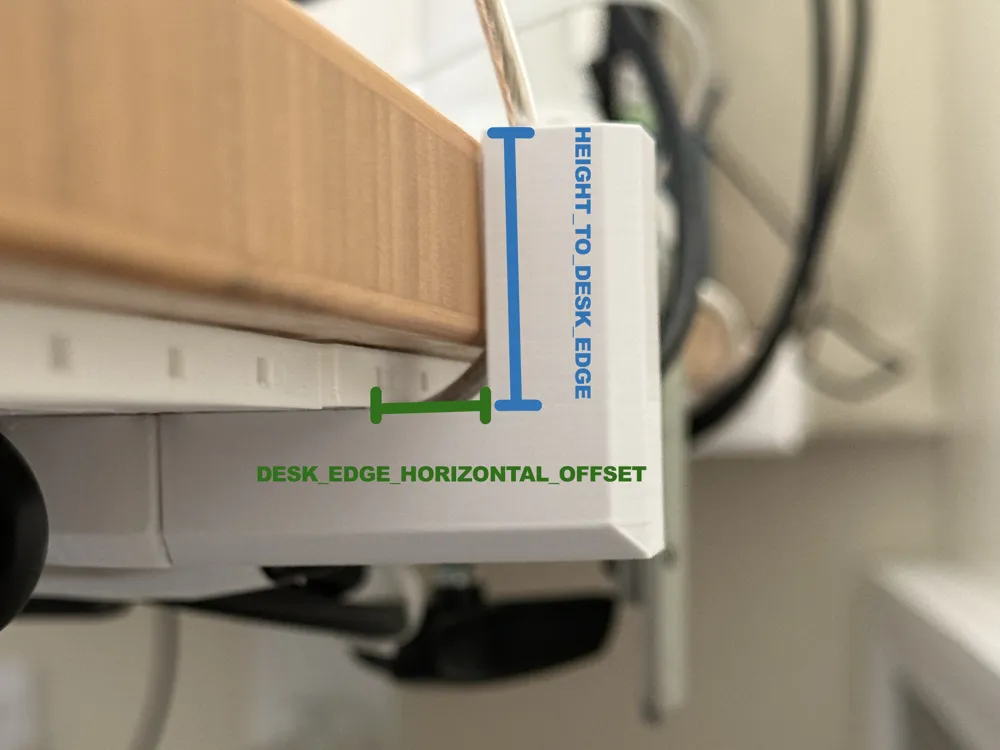

📐 How to measure desk offset

See photos

🧵 Recommended print settings
• Material: PLA or PETG
• Layer height: 0.2mm
• Walls: 2-3 for strength
• Infill: 15%

🙏 Credits
Remix of Underware openGrid system by Hands on Katie and BlackjackDuck
Licensed under CC BY-NC-SA 4.0
