1UP USA Bike Rack Wheel Holder Cones Quick Adjust
Print Profile(1)
Bill of Materials
- 5/16"-18 Thread, 4-1/2" Long Hex Bolt x 1: Medium-Strength Grade 5 Steel Hex Head Screw Zinc-Plated, 5/16"-18 Thread, 4-1/2" Long, Partially Threaded
- 5/16"-18 Thread Size Nut x 1: Zinc-Plated Medium-Strength Steel Hex Nut SAE Grade 5,
Description

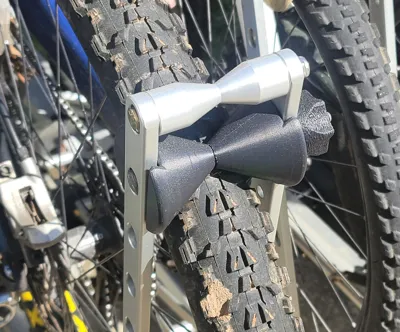

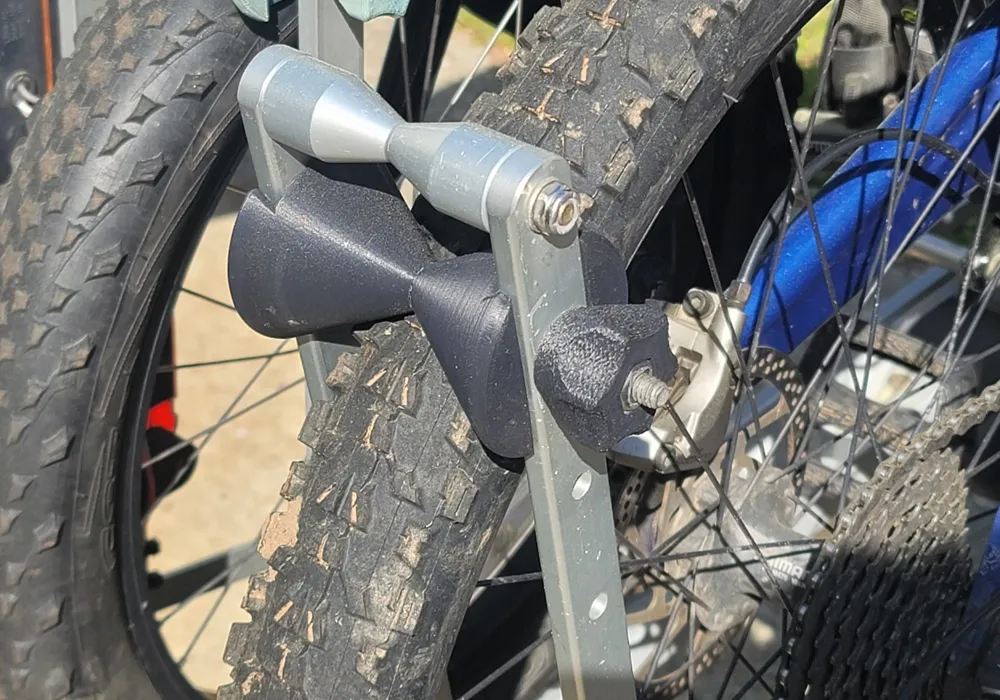

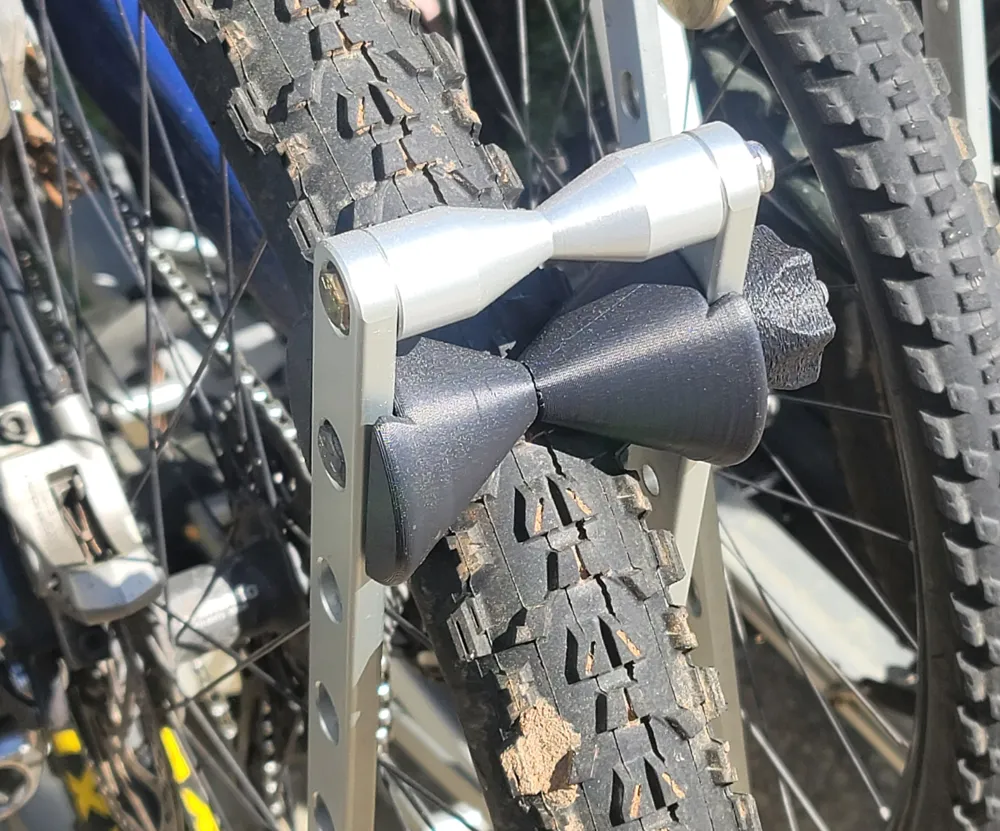

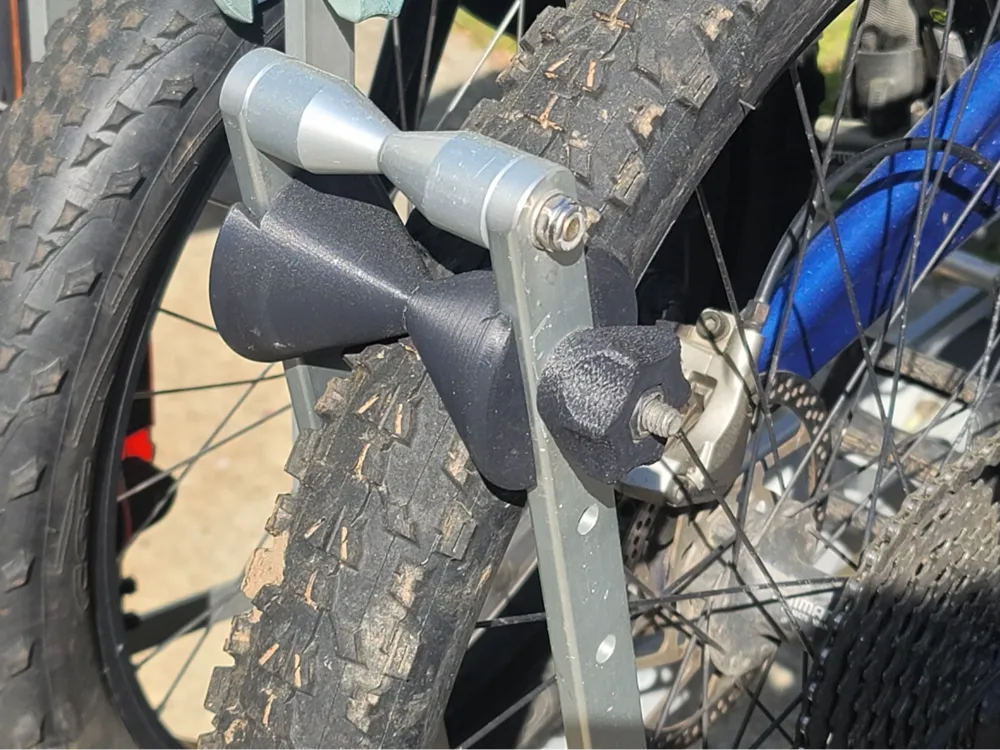

I designed and 3D printed these quick-adjust, toolless tire holders for the 1UP USA bike rack. They also center the tire better and keep the bike more secure. I've used them since installing the rack and they are awesome and have held up well.
You will need a new bolt and nut.
- 5/16"-18 Thread, 4-1/2" Long, Medium-Strength Grade 5 Steel Hex Head Screw Zinc-Plated, Partially Threaded
- 5/16"-18 Thread Size, Grade 5, Zinc-Plated Medium-Strength Steel Hex Nut SAE
Filament
- PETG - PETG is sufficiently strong and durable for this use, although it may fade over time
- ASA - The best material for this use. Does not fade even after years in the sun.
- PLA, PLA+ - Do not use. Not suitable for exposure to sunlight.
Print Settings:
- 0.20mm layer height
- 4-6 wall perimeters
- 15% infill, gyroid
SOUL BUILT is a registered trademark of Engineerable LLC.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
