Orbit Glow Lamp – 3D Printed Donut Light

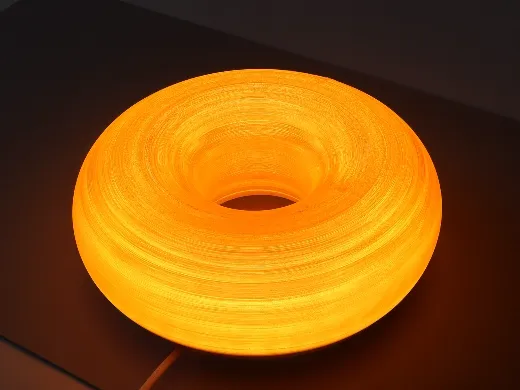

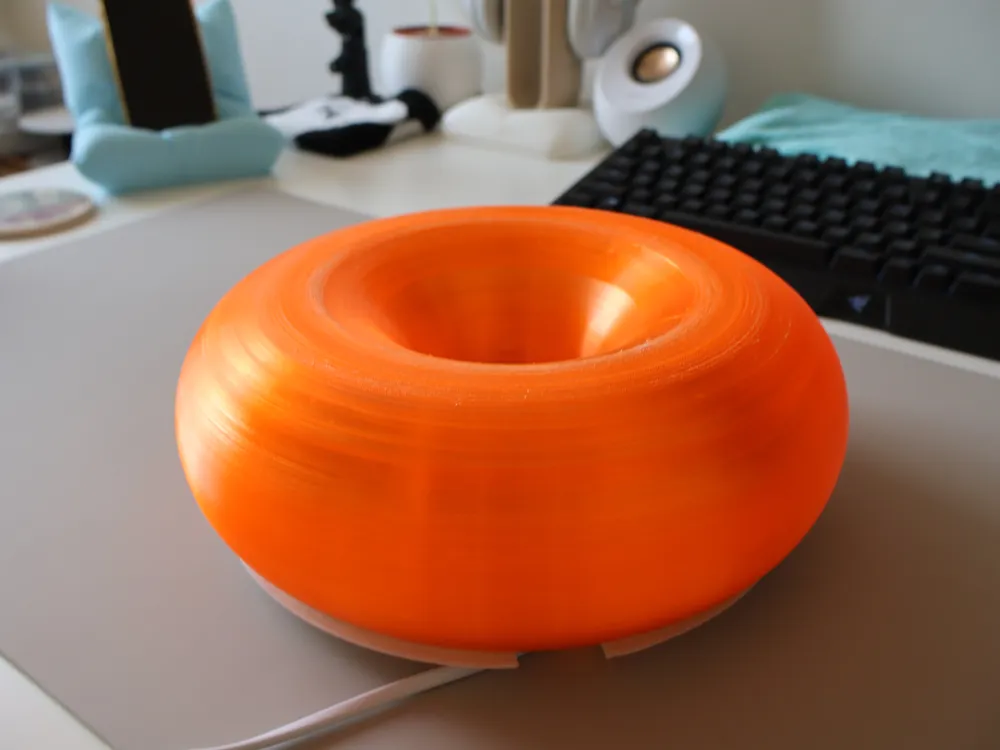

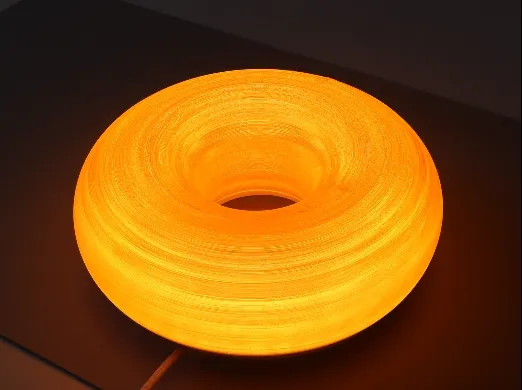

This lamp is inspired by the iconic IKEA VARMBLIXT design,reinterpreted through 3D printing to create a unique interplay of light and layered texture.Its overall form resembles a floating glowing planet,with fine printing layers that produce a warm, softly diffused light when illuminated.More than just a lamp, it is also a stylish decorative piece for your space.


STEP.1

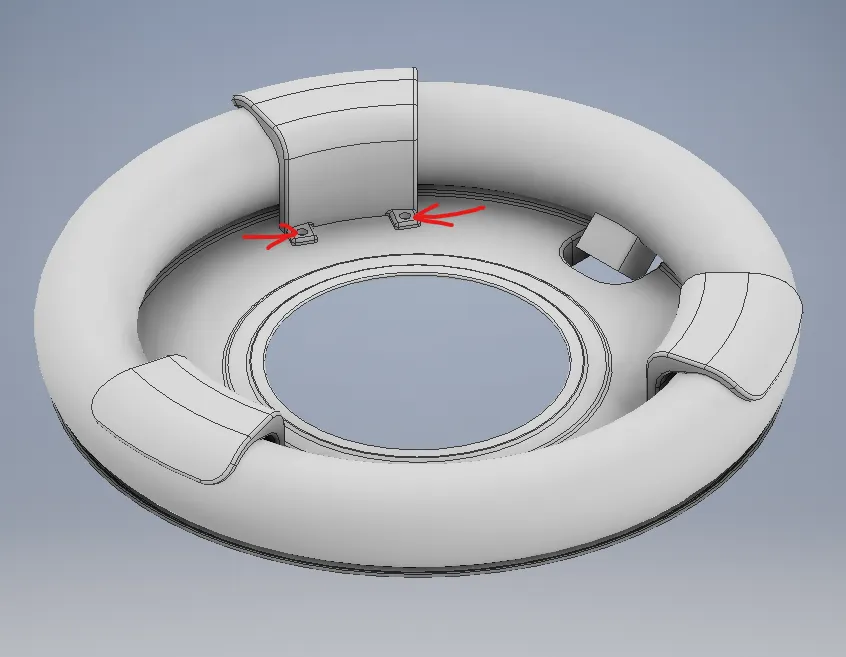

Please note that the base features three slots, while the lampshade has three corresponding locking tabs.
During assembly, align them properly and ensure they are securely fastened to maintain structural stability.

STEP.2

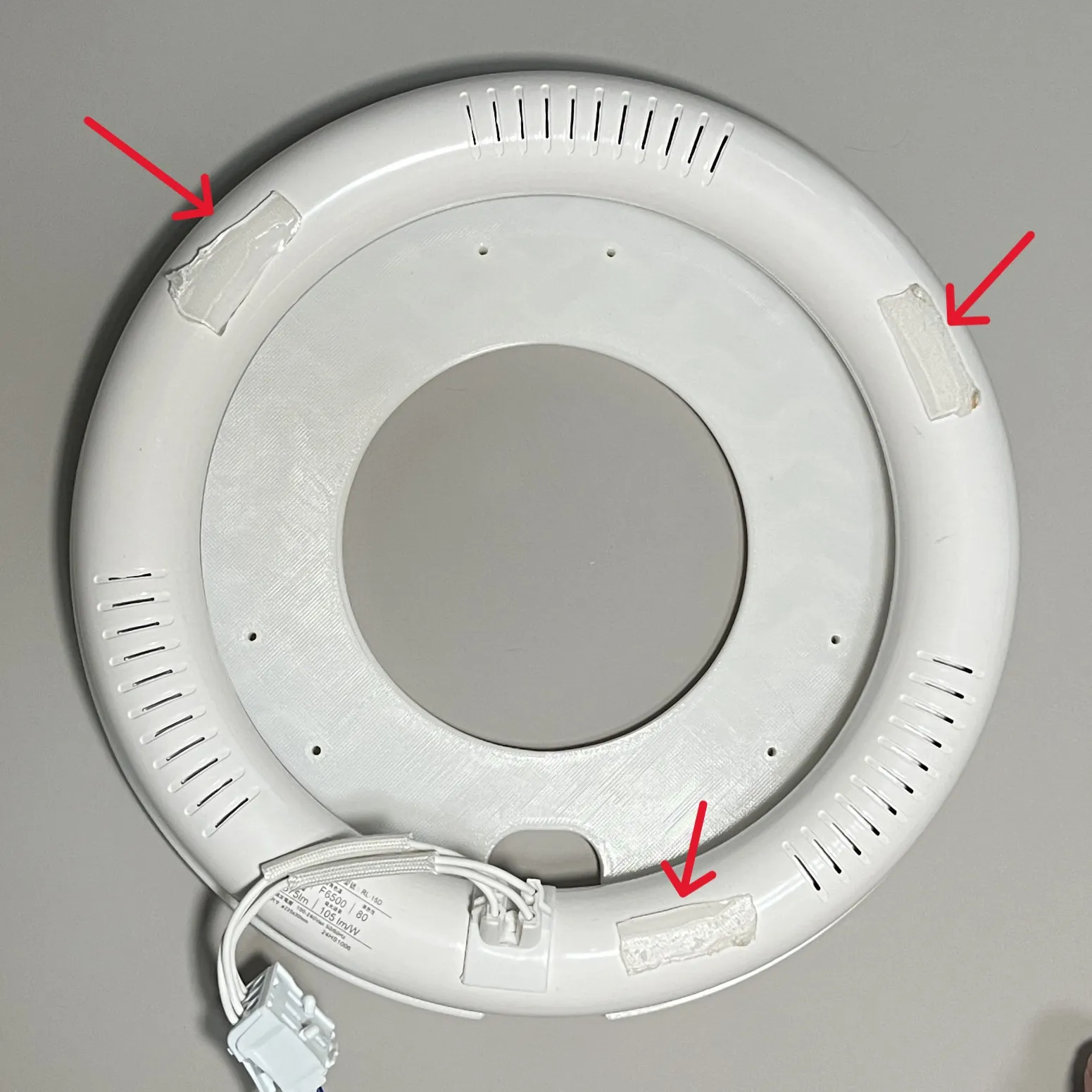

When assembling the lamp, you may use nano adhesive tape to attach the ring light to the back. However, there is a risk of it falling off, so please assess carefully.Alternatively, you can secure it more firmly using M3*6 screws.

STEP.3

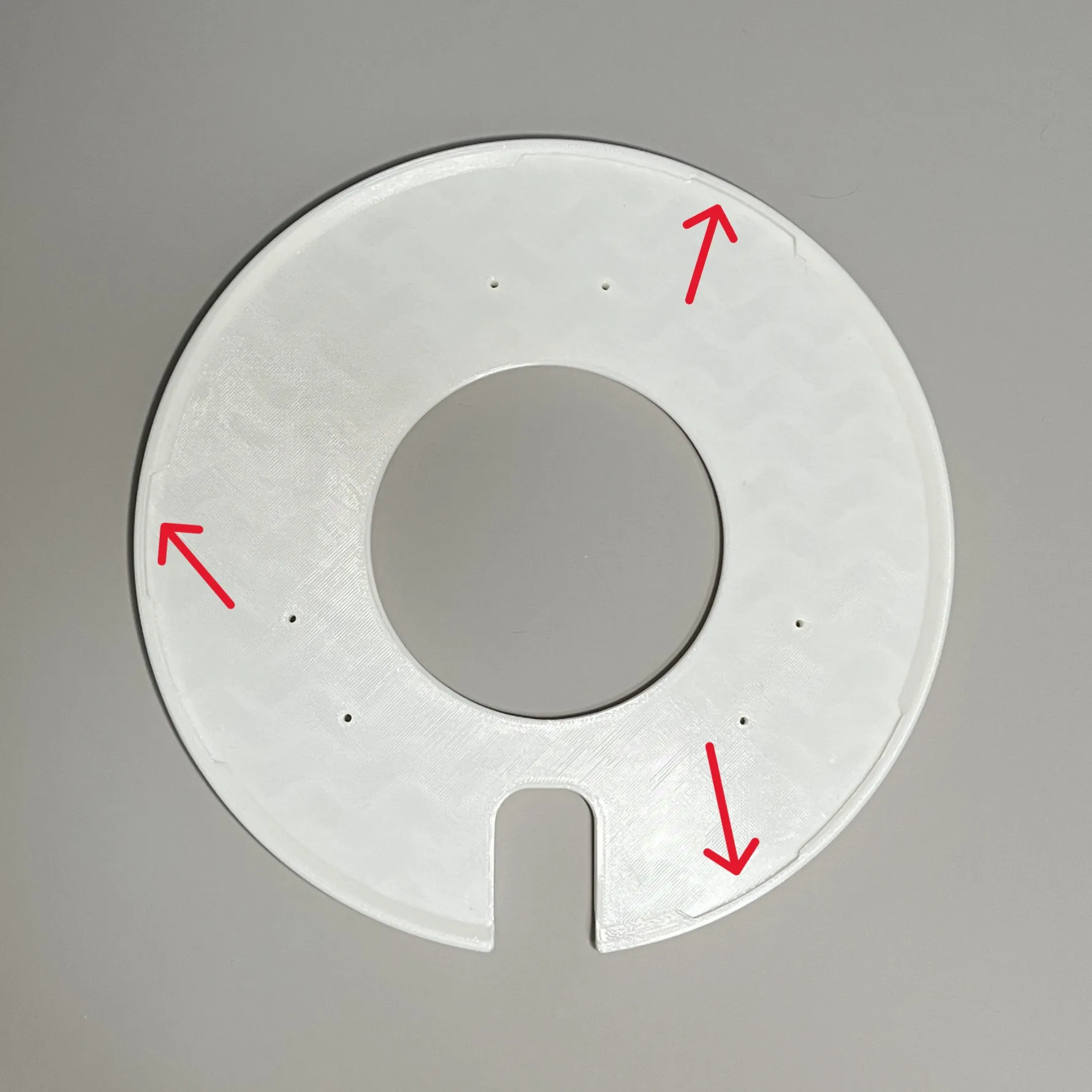

Before placing the lampshade, please ensure that the areas marked in red are properly aligned to avoid any exposed parts.

1.The lampshade may not fit in easily during installation. You may need to adjust the angle slightly to insert it properly.
Avoid using excessive force, as this may cause cracking or damage.

2.If the lampshade and base are not properly secured, the assembly may feel loose.
Please ensure that both parts are fully and correctly fitted to maintain stability.

Notes / Known Issues:

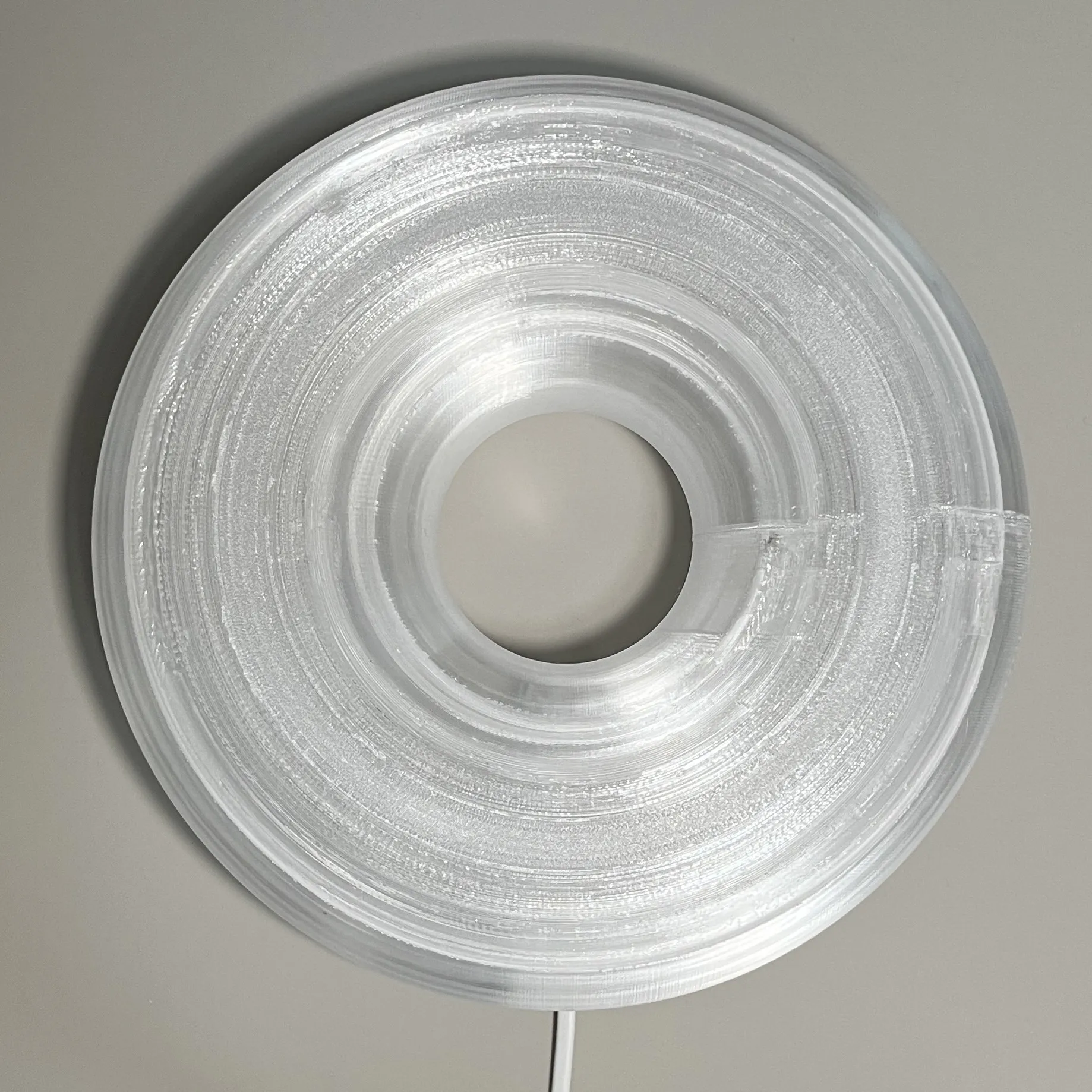

1.The base may currently show minor 3D printing imperfections, and the lampshade may also have slight defects. Users are welcome to refine and improve these parts of the design.

2.There are three circular slots at the bottom (8 mm in diameter) designed for placing anti-slip pads.

3.Please pay attention to the ring light dimensions. The current design is based on a ring light with a maximum outer diameter of 230 mm and a thickness of 31 mm.Different regions may use different models, so adjustments to the design may be required if the dimensions do not fit.

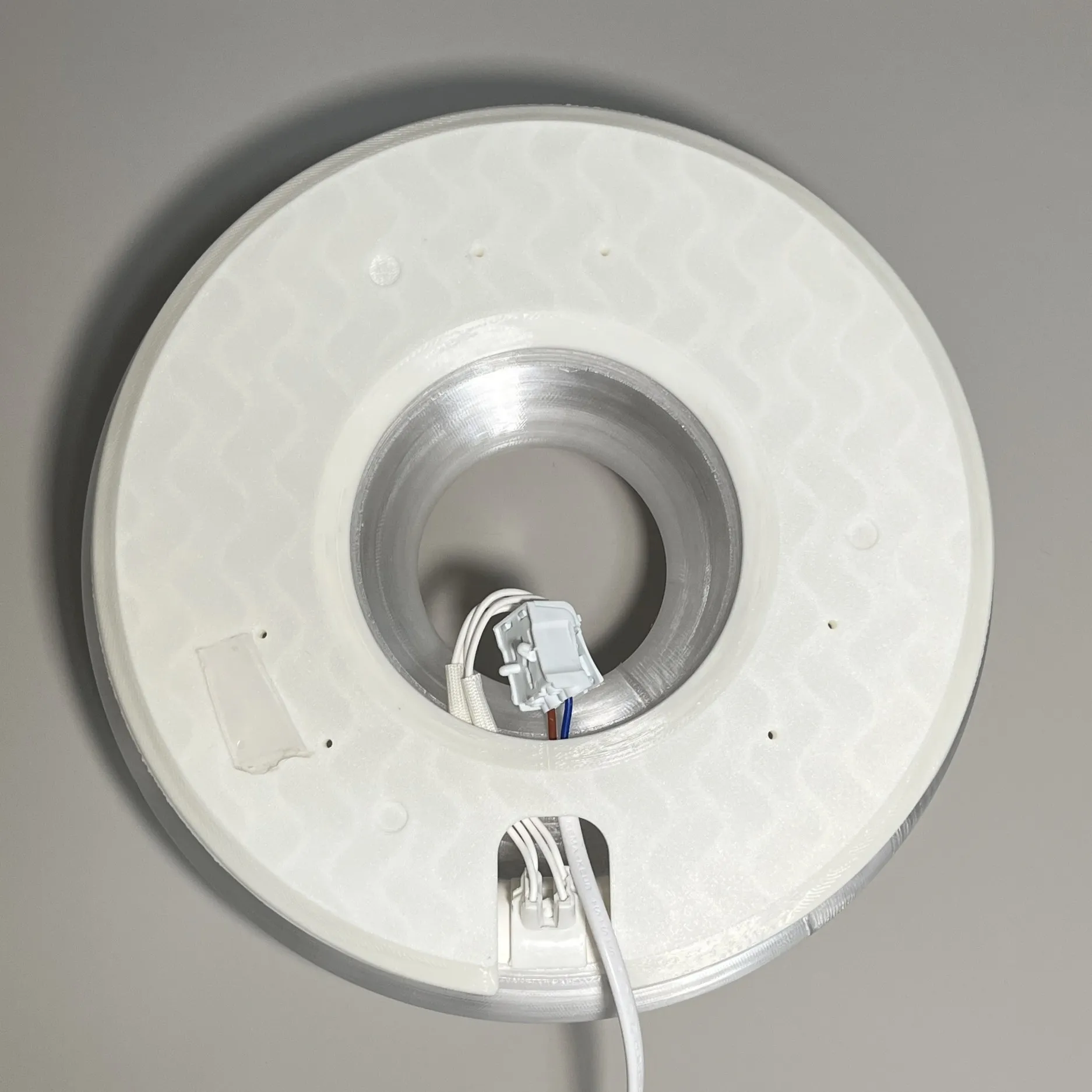

4.Please ensure that the plug’s position and size can fit properly into the designated slot.

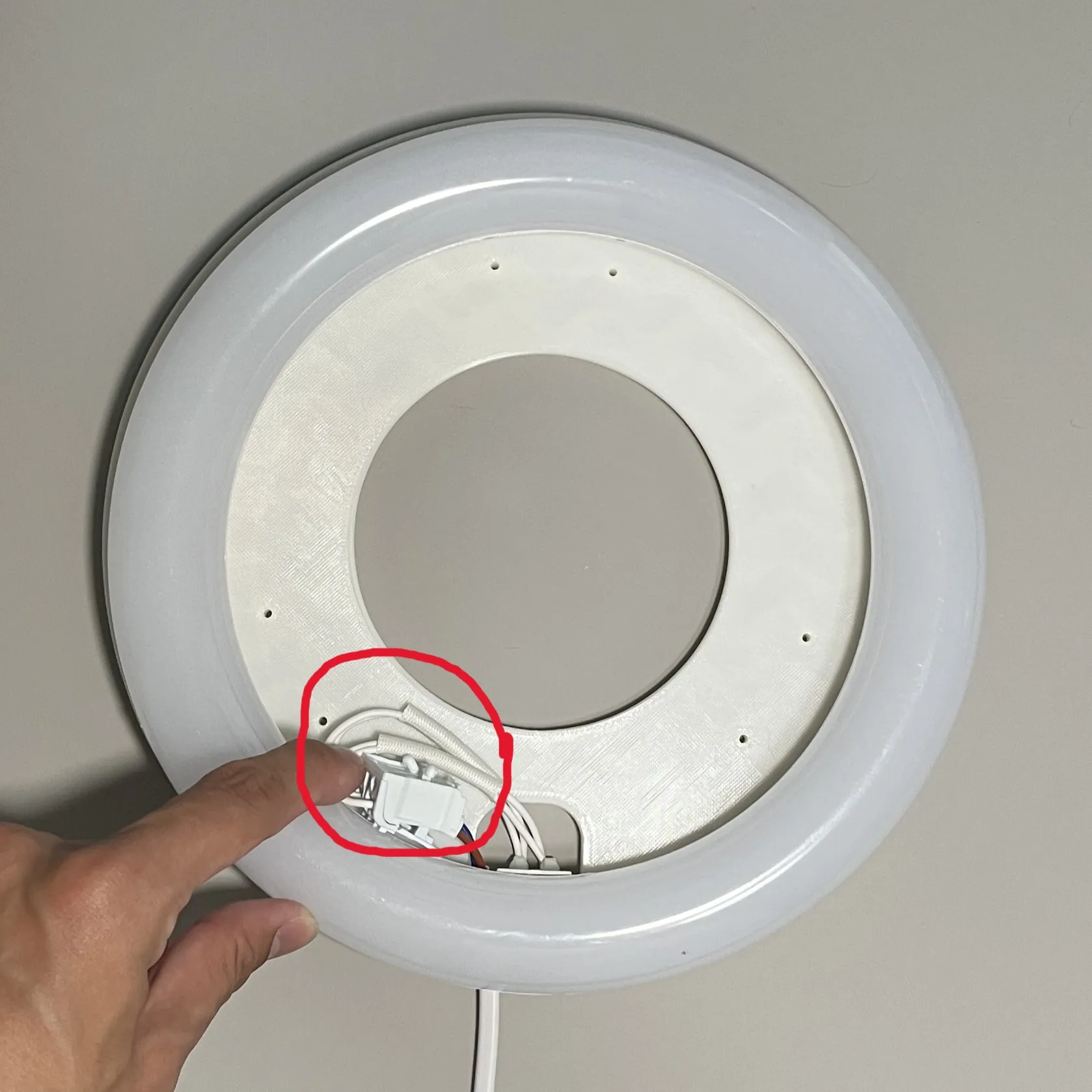

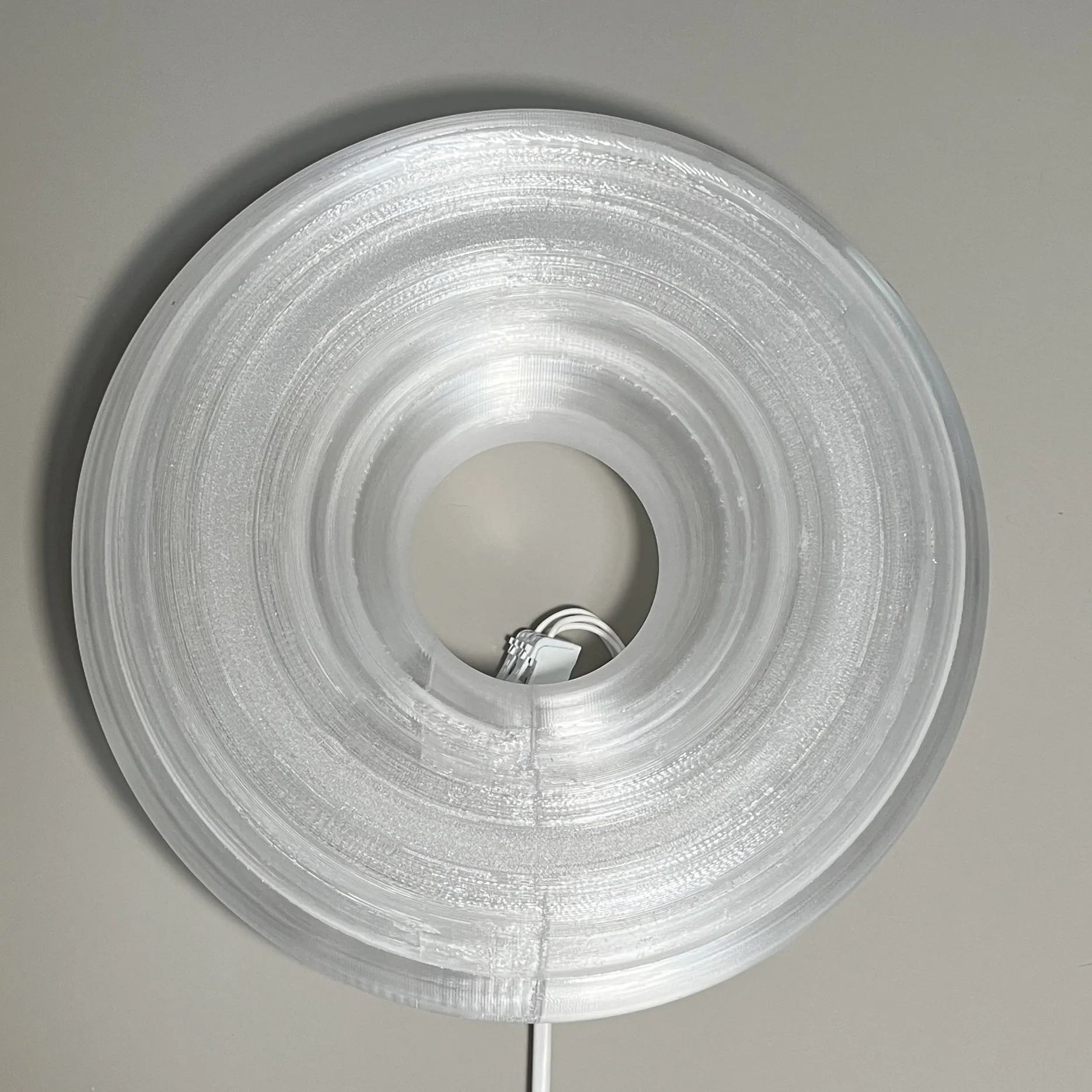

5.If you encounter the situation shown in the image, there is no need to worry. Simply gently push the exposed part back into the lampshade.
Please handle with care—although the lampshade is not easily damaged, it is still recommended to proceed cautiously to avoid any breakage.

6.The print will pause at layer 6 for inspection. If everything is fine, please resume printing.”
