USB-A Female to Type-C Male OTG Enclosure
Print Profile(1)
Description

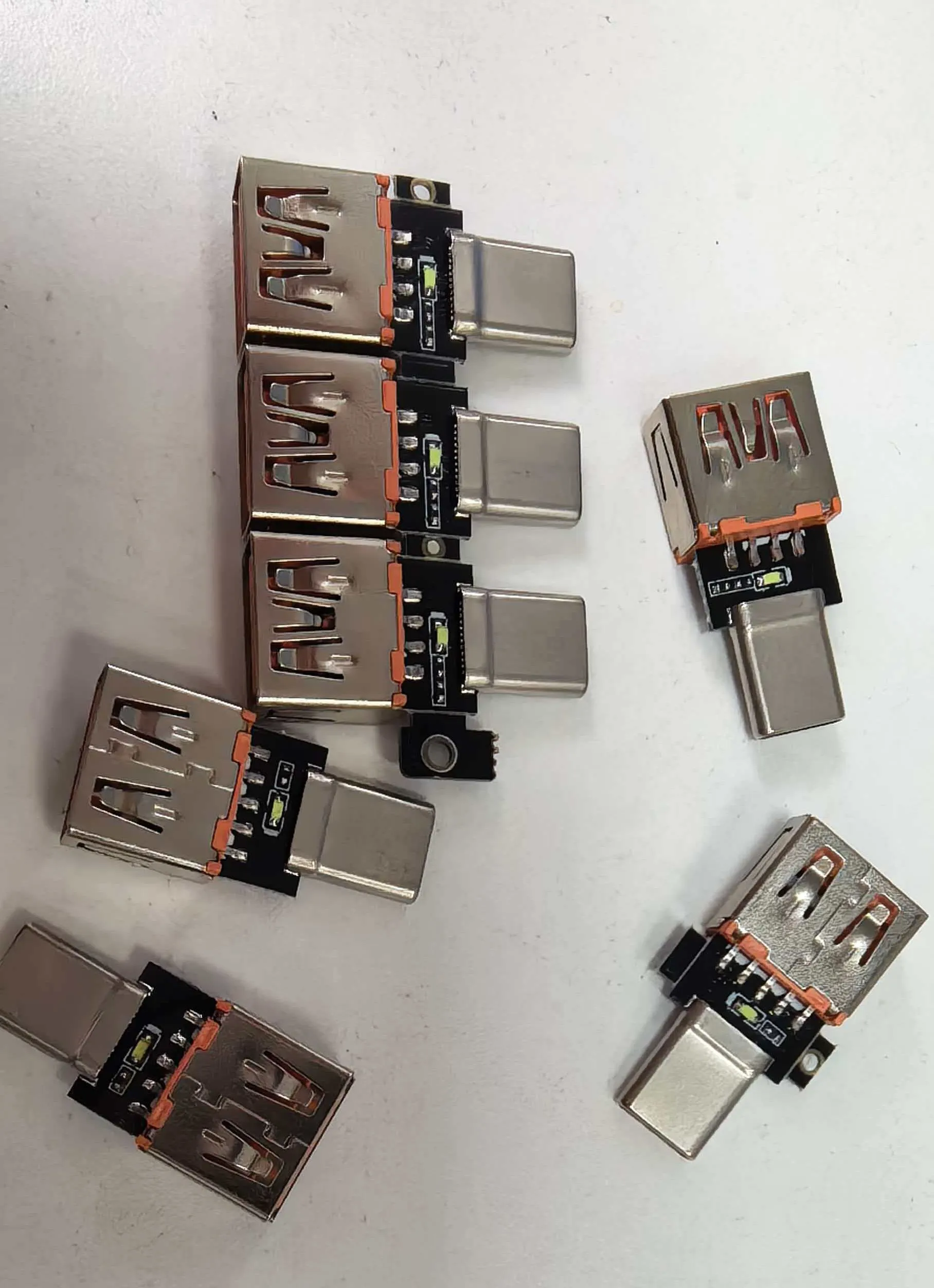

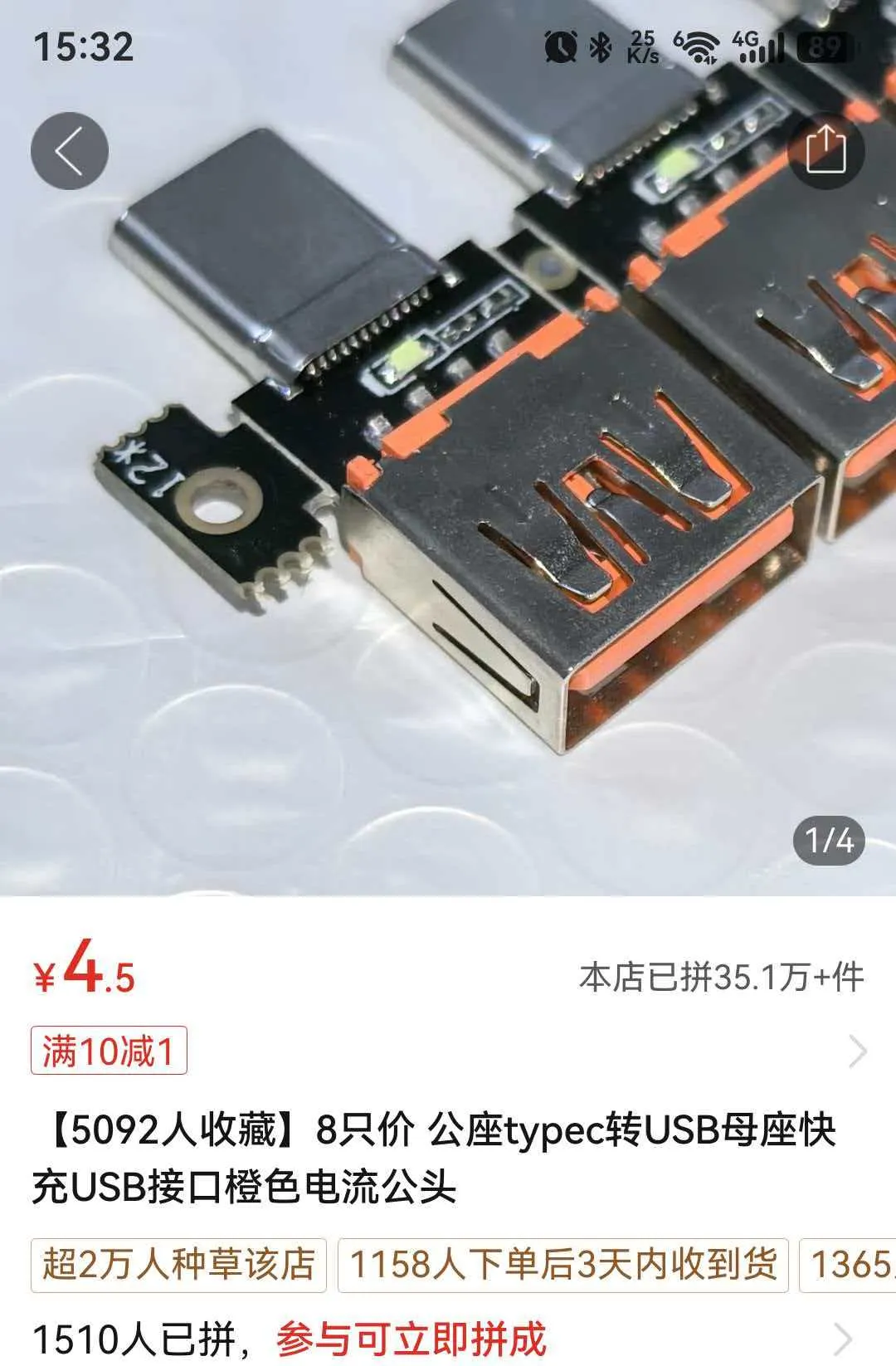

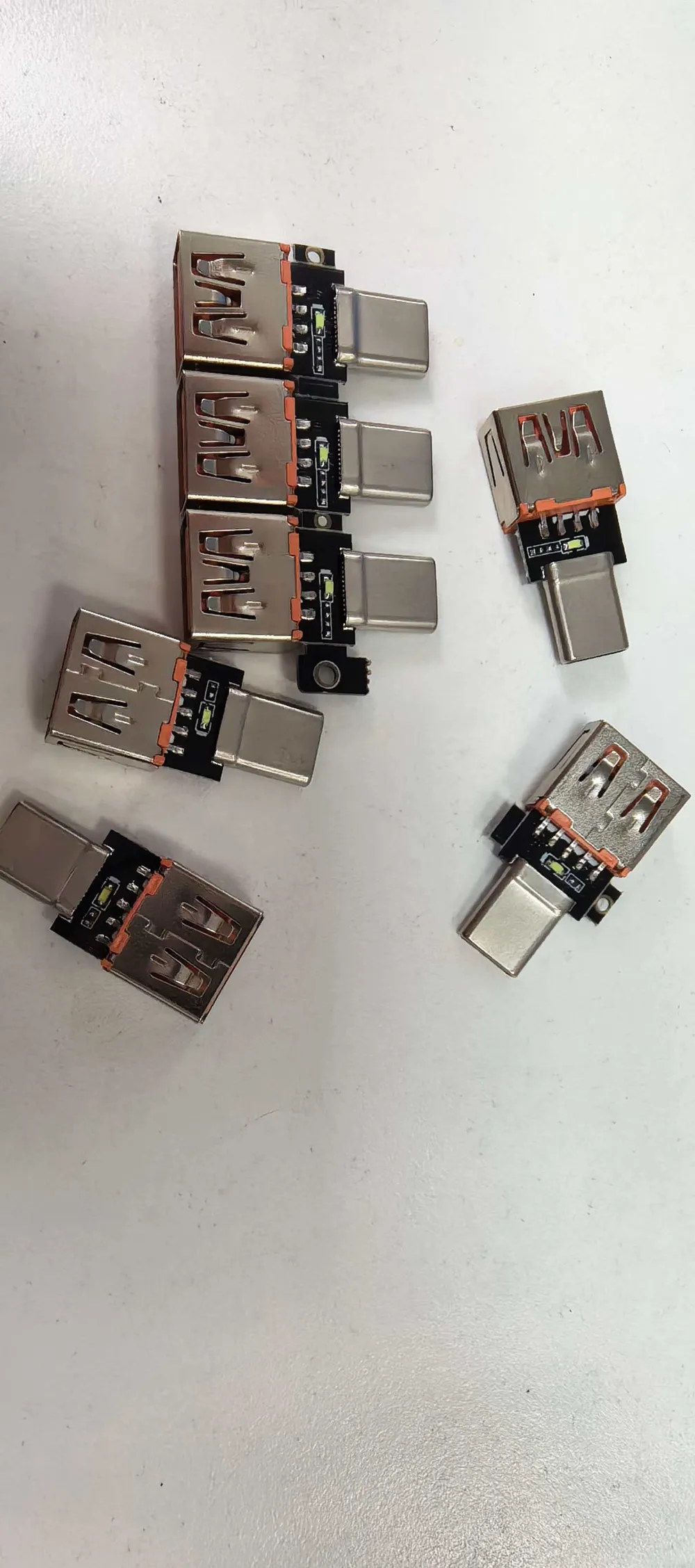

Finished OTG circuit boards can be bought on PDD very cheaply, but they don't have a casing

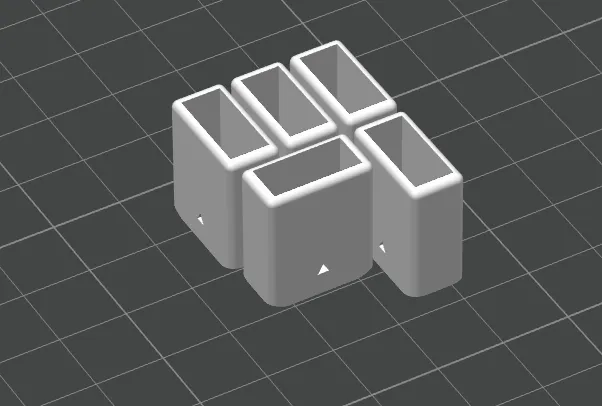

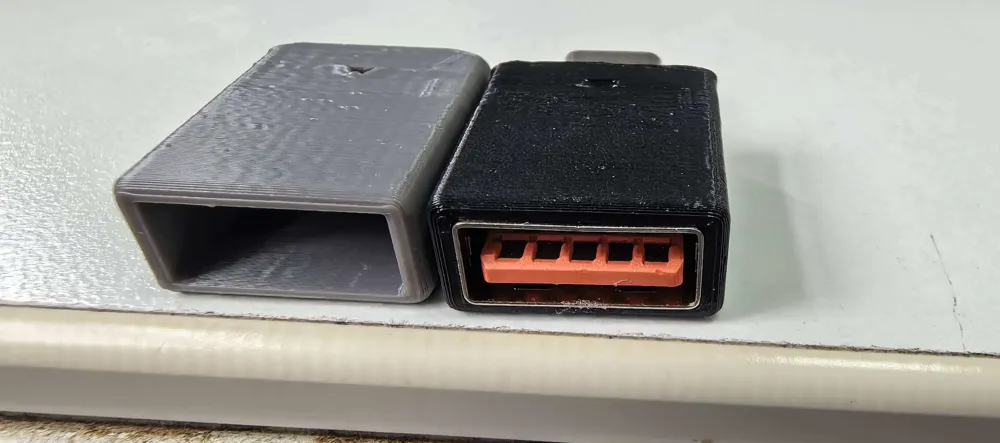

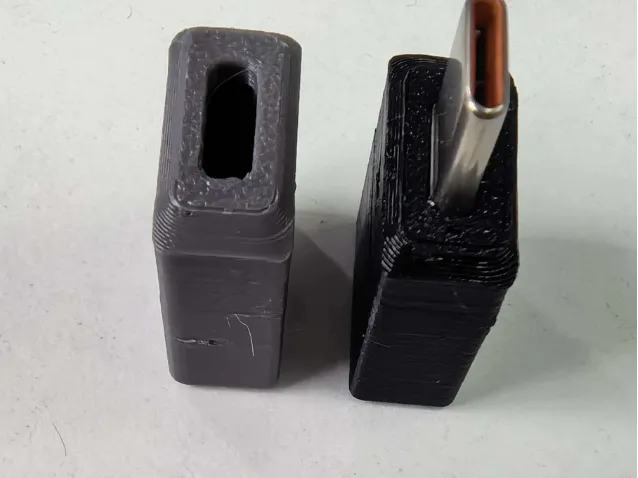

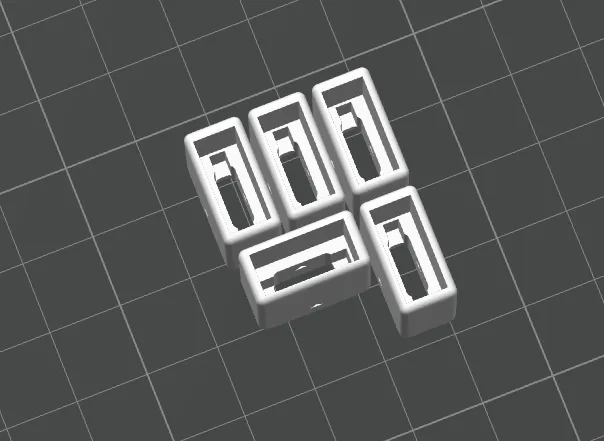

So I designed this casing This way, a USB3.0 OTG connector costs only 0.56 RMB on average
It can be used in many places For example, convert cheap and common USB-A to Type-C fast charging cables into dual Type-C fast charging cables Convert common USB-A flash drives into Type-C interfaces for direct reading by mobile phones

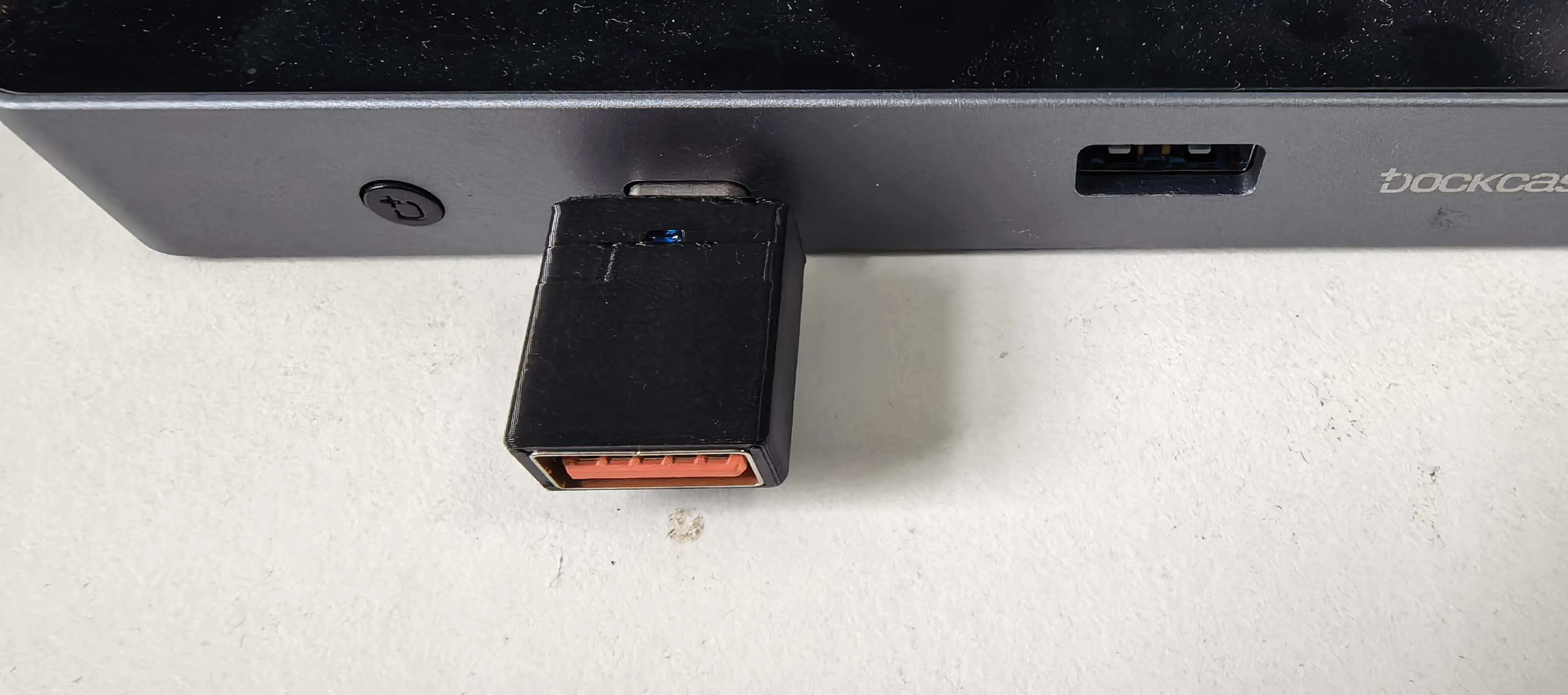

Small holes are reserved on the casing to facilitate the display of indicator lights
After measurement, on the CC signal line, there is a 5.1KΩ resistor connected to GND, which is a standard OTG cable configuration method
