Replacement closure for SIGG Miracle water bottles
IP Report
Print Profile(1)
0.12mm layer, 2 walls, 15% infill
Designer
17 min
1 plate
Open in Bambu Studio
Boost
2
7
2
0
11
8
Released
Description
Content has been automatically translated.

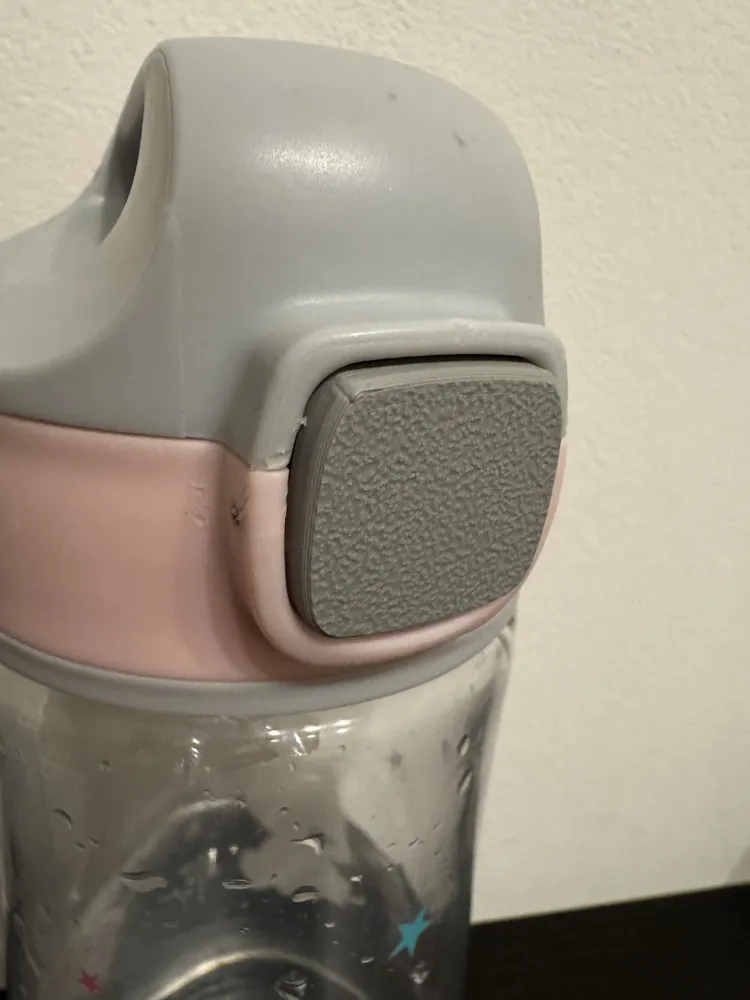

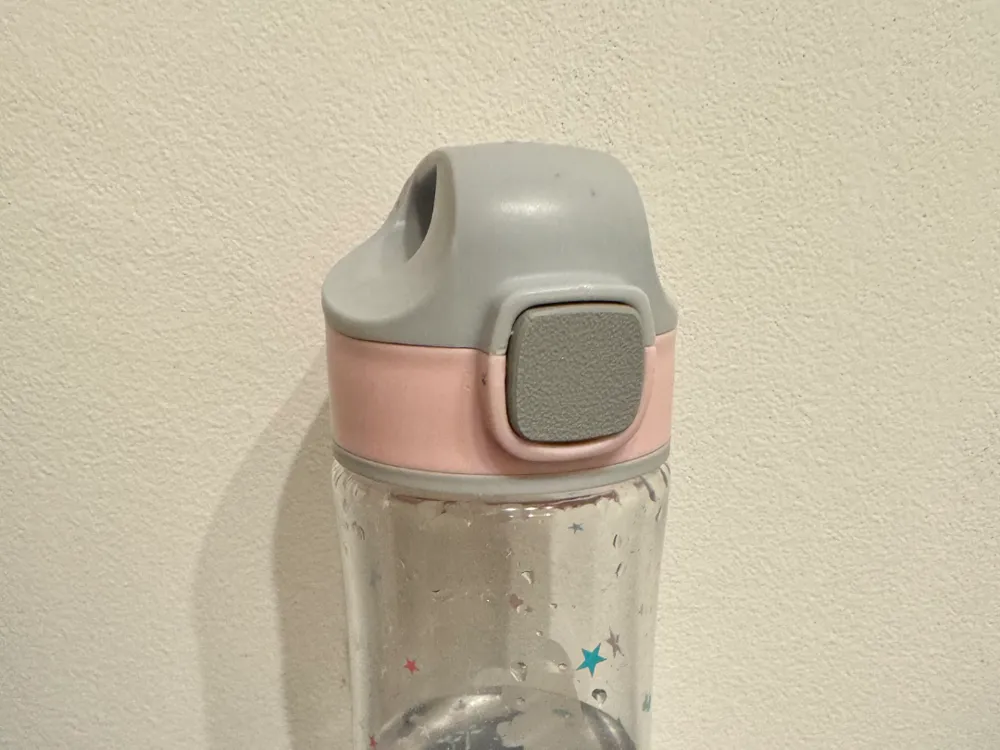

Here is an improved and significantly more robust replacement for the closure of the SIGG Miracle water bottle. Since standard 3D prints often reach their limits under mechanical stress – and due to the orientation on the print bed – this design has been specially optimized for higher durability.
What has been improved?

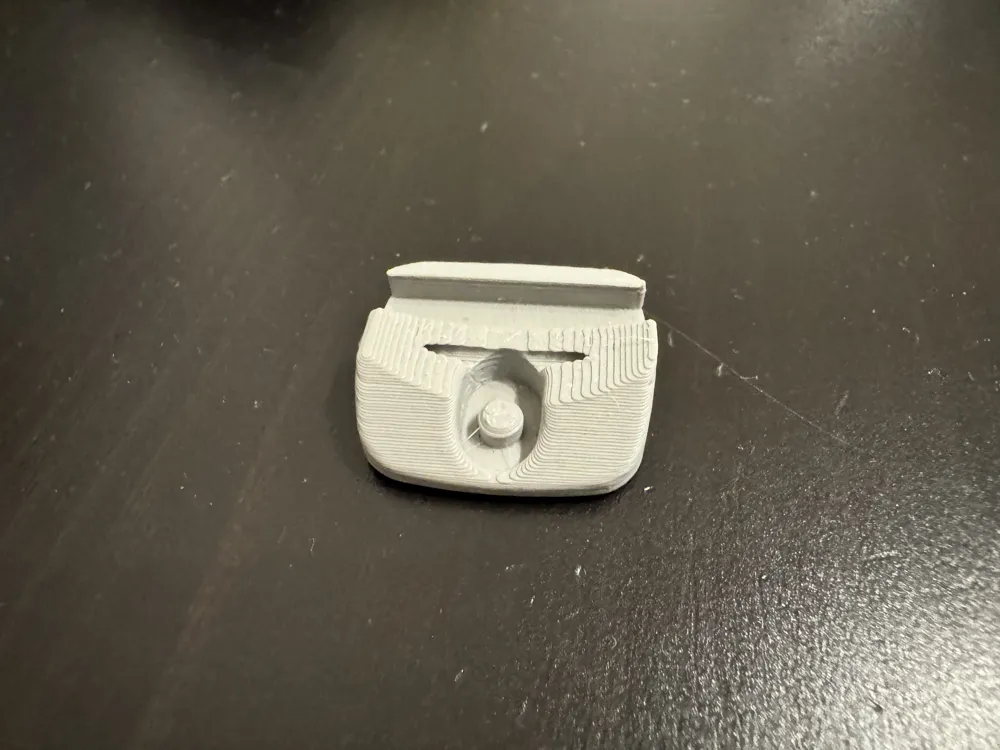

- Reinforced Latching Tabs: The latching tabs are no longer individual but run continuously from one side to the other. This gives the component significantly higher stability.
- Metal Axle instead of Printed Noses: The side locking tabs are often obstructive during printing and a weak point. They have been replaced by a bore into which a 1.5 mm metal rod is pressed.
- Tip: You can also recycle the old axle from the original closure system!
- After pressing, the metal rod must be flattened/filed down to approximately 1 mm residual thickness (see .stp file for details) so that the closing lever finishes flush.
Printing Recommendations
- Material: PETG is highly recommended (e.g., I used Anthracite). It is more heat-resistant and does not deform immediately if the bottle gets warmer.
