09-05-2026: Added possibility to adjust the center hole up to 25mm.
NOTE: I have not inserted a limit on the parametric model, so if you insert vaules over 25mm you can have model disruption. Limit to 25mm maximum.
When you download from parametric generator, after you load it on the slicer, you need to split the model in object before you print it. Splitting the model you will obtain two parts (the main cover and the extension). Clone the main cover and ot the extension to have at least 2 parts to be printed.
Modular Radiator Pipe Cover (12mm - adjustable)

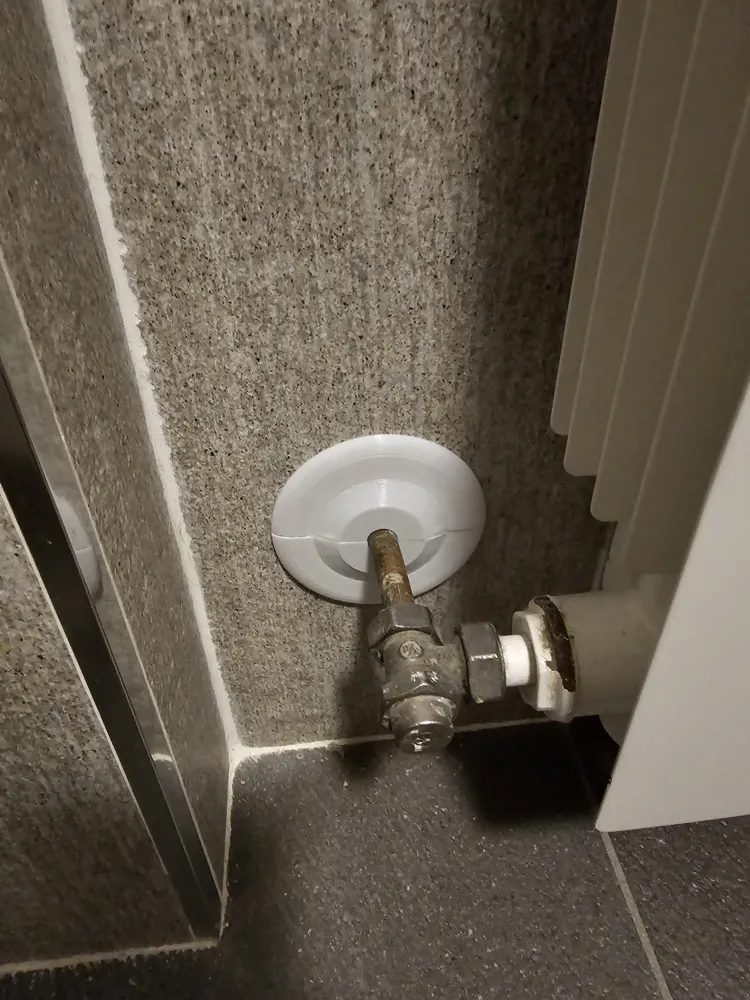

Just finished renovating or painting and that hole around the radiator pipe is ruining the aesthetic? This Modular Radiator Pipe Cover is the definitive clean and customizable solution.
Designed specifically for 12mm pipes (but you can adjust thanks to parametric value), this cover features a smart split design in two symmetrical parts, making installation a breeze without having to disassemble anything.
✨ Key Features

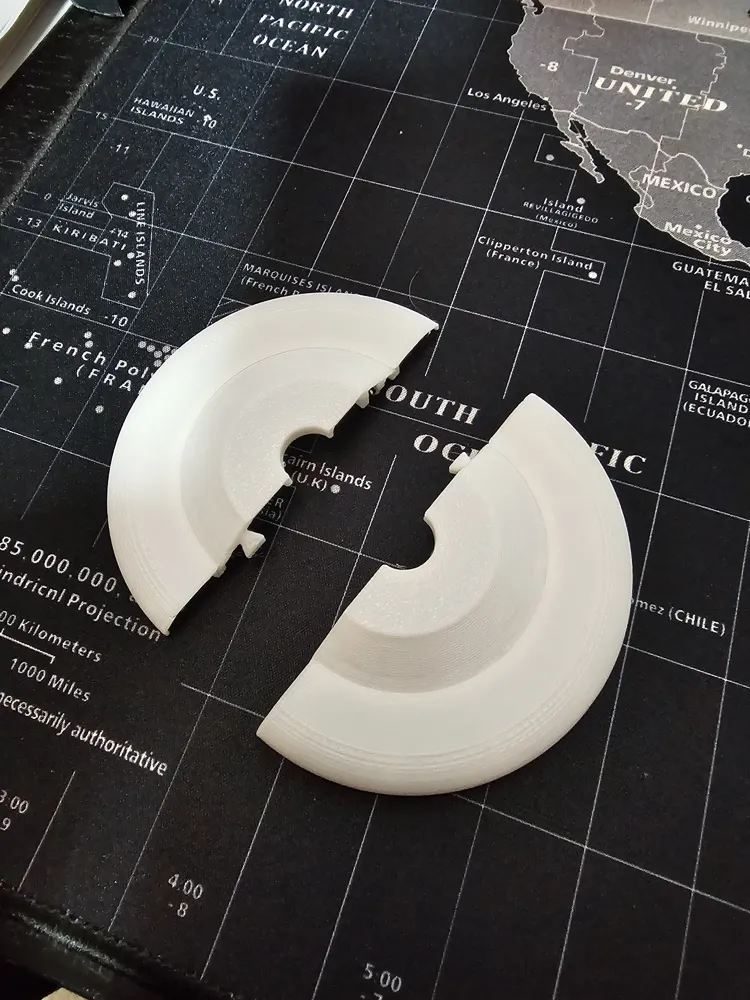

- Split Design (2 Parts): Mounts in seconds around the existing pipe.

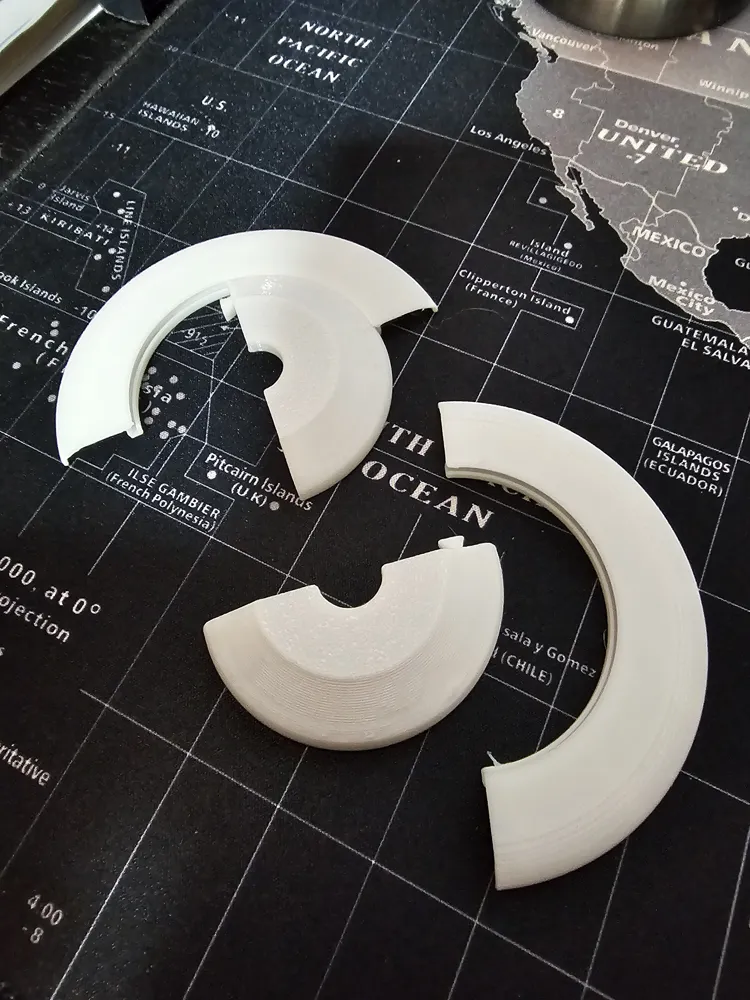

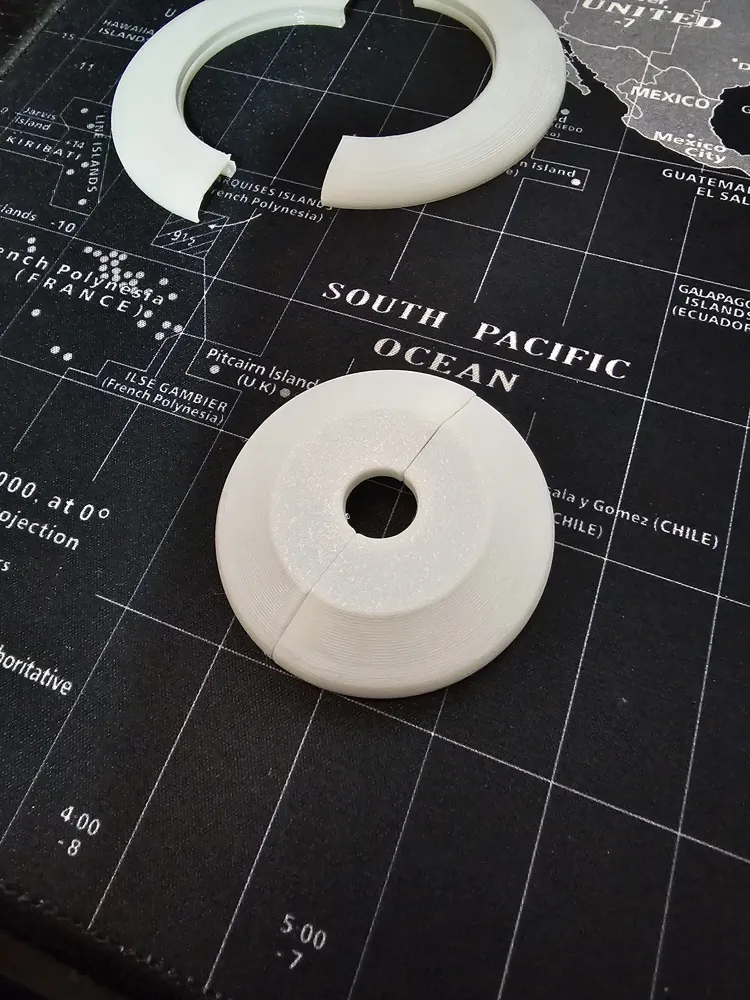

- Modular System: Includes an optional expansion (outer ring) to increase the wall coverage diameter, perfect for hiding uneven plaster or oversized holes.

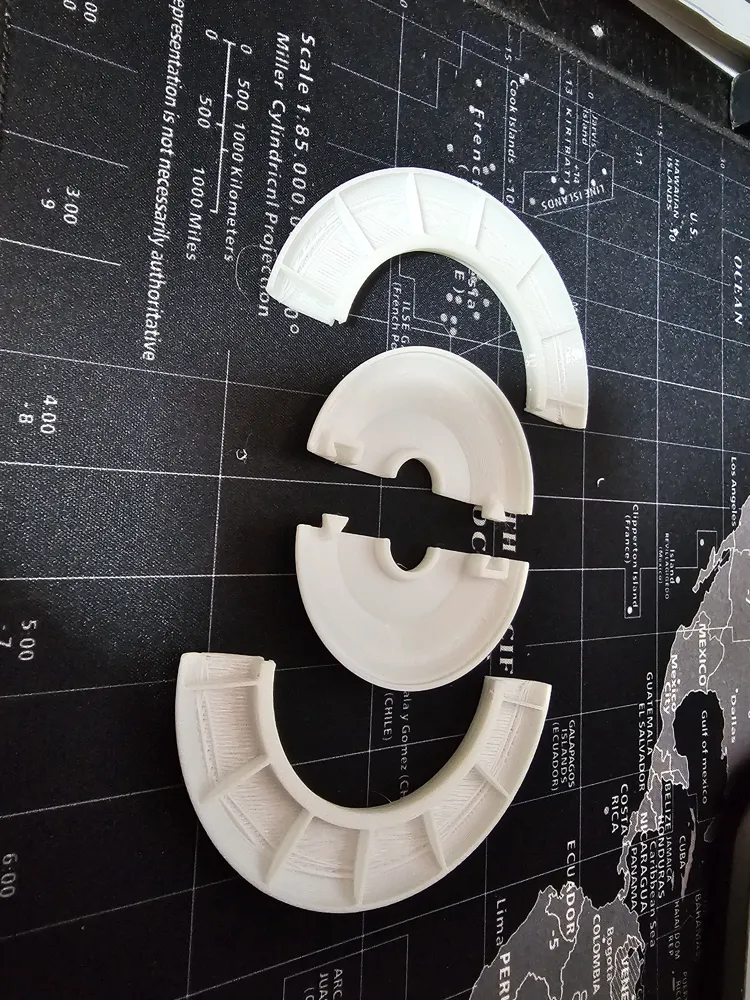

- Snap-Fit Closure: Integrated pins ensure the two halves stay firmly joined.

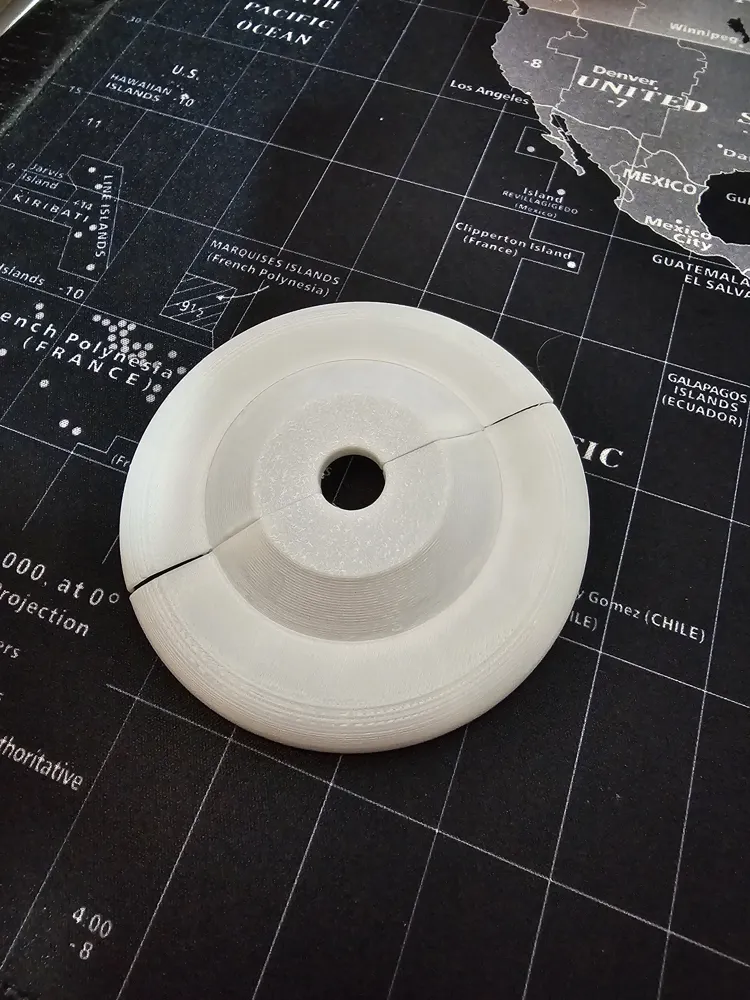

- Clean Profile: Modern conical design that adapts to any environment.
🛠️ Printing Tips
- Material: I suggest PETG or ASA/ABS if the pipes get very hot (over 60°C). PLA is fine for standard temperatures.
- Supports: Not needed
