Trading Card Display Storage Box on Lazy Susan

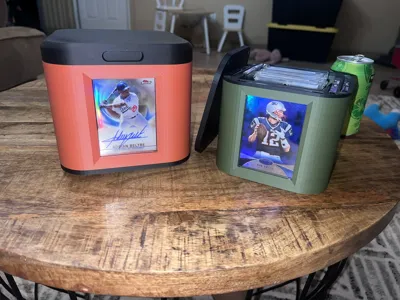

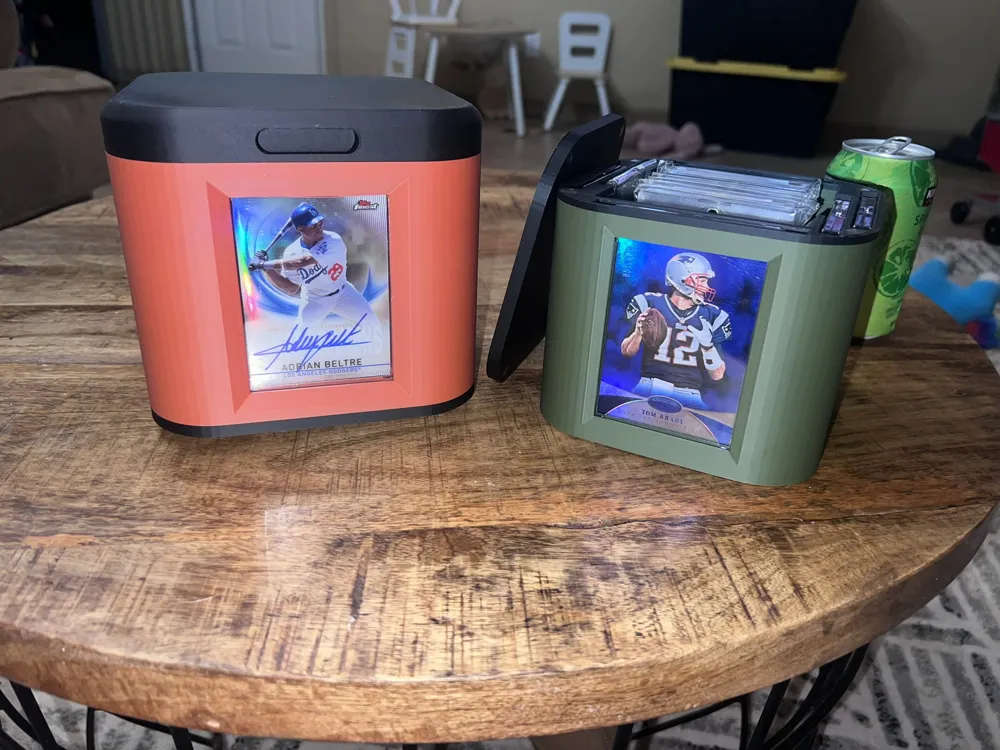

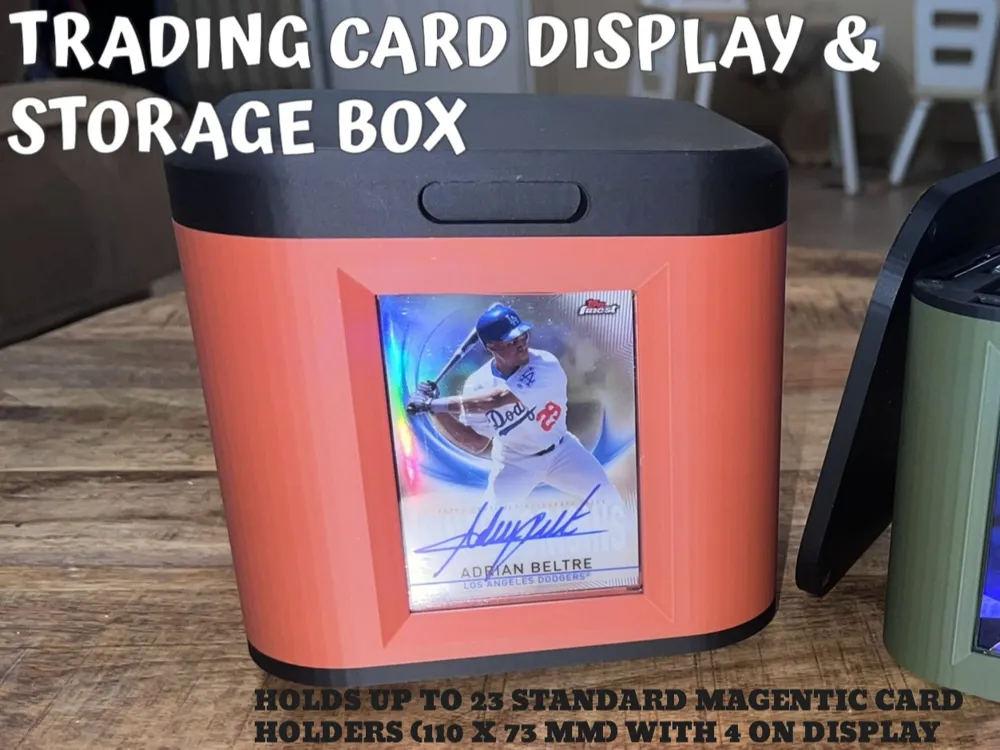

This trading card display and storage box was originally intended for just sports trading cards, but can be used for all types. The box is sized to hold 23 cards that are placed in your standard magnetic display holders (110 x 73 mm) with 4 of those cards on display around the periphery of the box. I found inspiration from this Cults design.

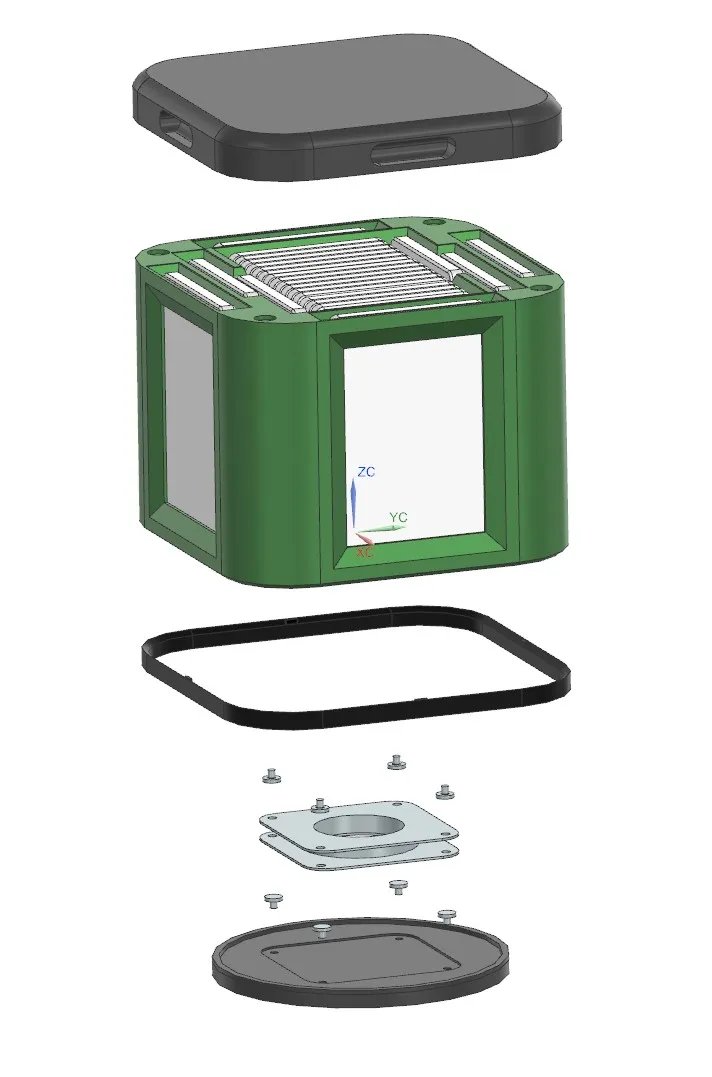

Top Cover: (2.25 hrs print)

The top is held in place with 10x2mm magnets glued into the box and top. Be sure you insert the magnets the right way or you won't be able to close it!

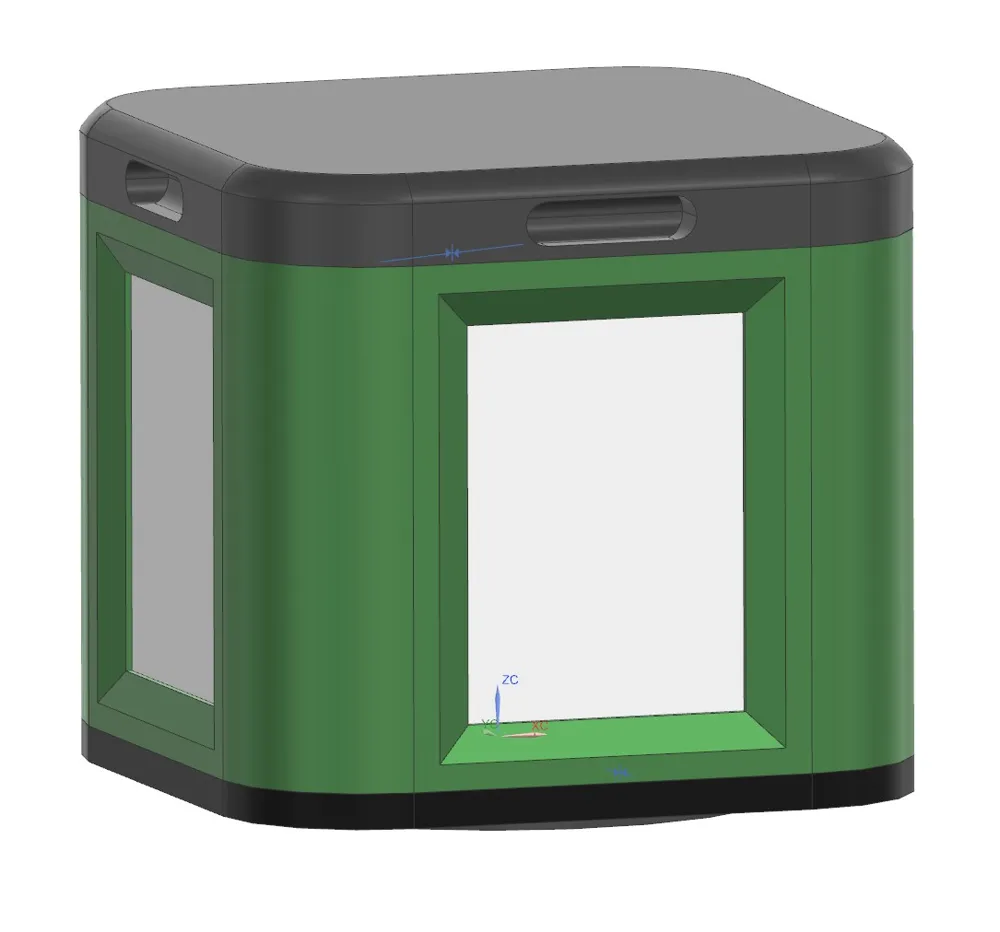

Storage Box: (7.25 hrs print)

This was designed with features to make it easier to remove each card individually without having to flip the box upside down to get it out. The display slots were sized for the specific magnetic display holders, but you could probably make a simple insert if you need to raise smaller sized card holders so it aligns with the display frame.

Box Skirt: (30 min print)

I decided to separate the skirt of the box due to the excessive amount of supports it needed on the bottom of the storage box when printing. The skirt and box both have locating dowels so that you can simply insert to align them or apply some glue to make sure it doesn't fall out later on.

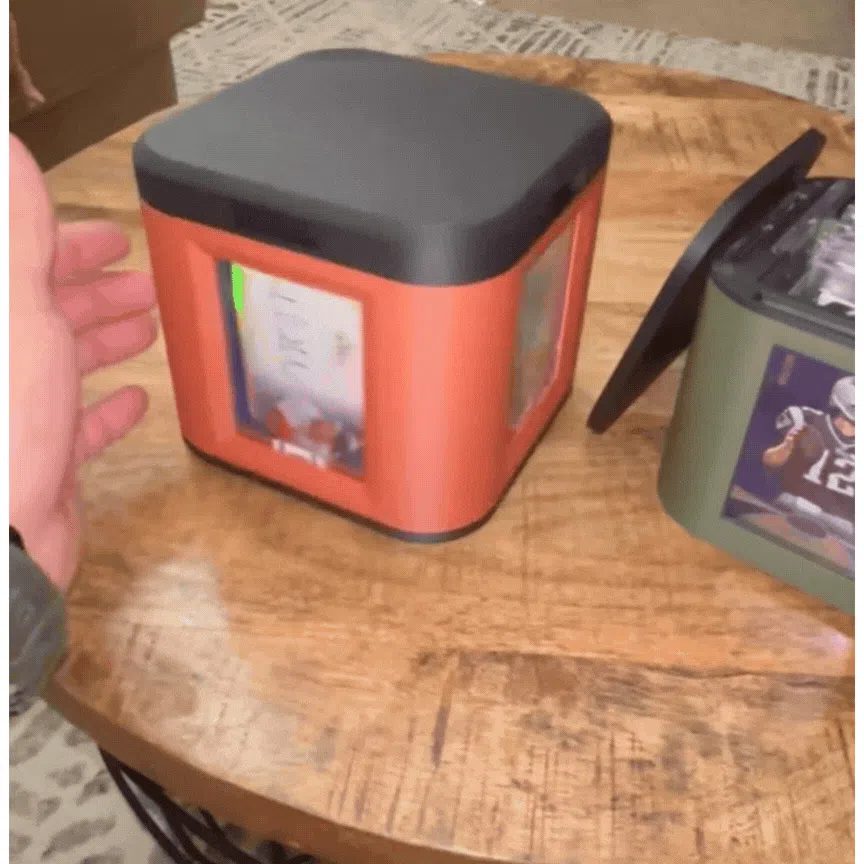

Lazy Susan & Base: (1 hr print)

If you want to elevate your display case, you can opt to printing the Lazy Susan base and pins. You'll also need to order this Lazy Susan 3-Inch Swivel Plate from Amazon. The pins insert through the swivel plate into the holes in both the storage box and base. I recommend adding glue to keep them secure. I also included dowel pins in case you ever wanted to remove the Lazy Susan, you can install the dowel pins into the box and let it just rest on the Lazy Susan instead of permanently secure it.
