Servo Piston – MG995 & SG90 Compatible
Print Profile(2)
Description
Turn your standard hobby servos into a linear piston mechanism.
This 3D printable system converts rotational motion from common servos like MG995, MG90S, SG90 and servos alike into smooth linear movement, making it perfect for robotics, animatronics, and mechanical projects.
also checkout my servo linear actuator kit: https://makerworld.com/en/models/2624964-servo-linear-actuator-kit-sg90-mg995#profileId-2897805
🔧 Features:
- Compatible with MG995, SG90 and servos with the same size

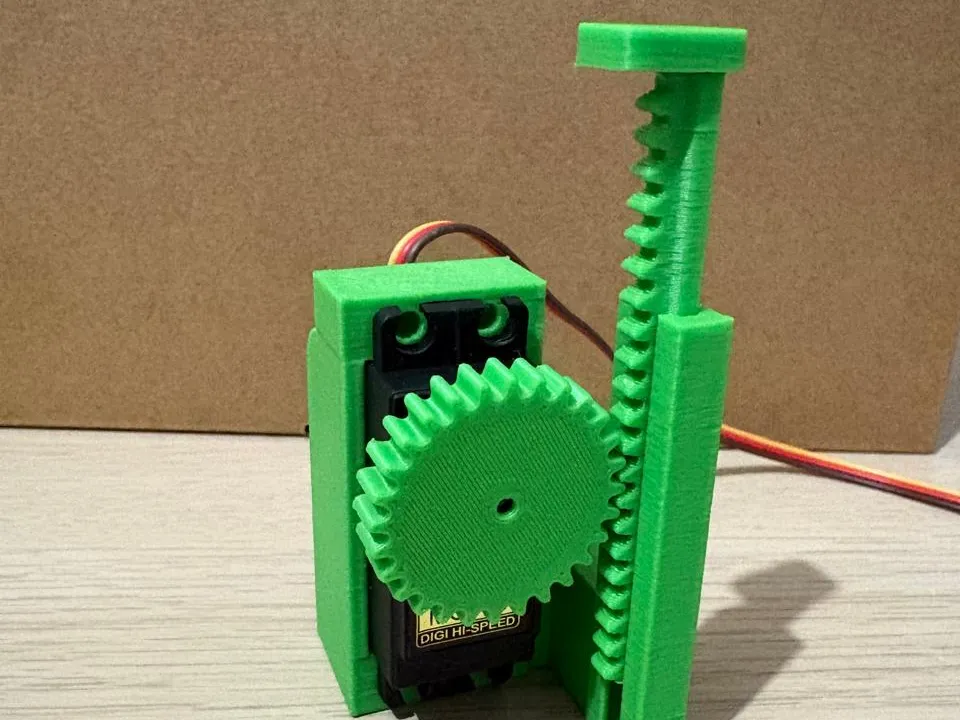

- Converts rotation → linear “piston” motion
- Includes 3 interchangeable shaft lengths:
- 75mm/45mm
- 100mm/60mm
- 150mm/90mm
- Modular design (easy to swap parts)
- Strong and simple gear-driven mechanism
⚙️ Great For:
- Arduino & Raspberry Pi projects
- Robotics arms & mechanisms
- Animatronics
- Custom linear actuators without expensive hardware
🛠️ Included Parts:

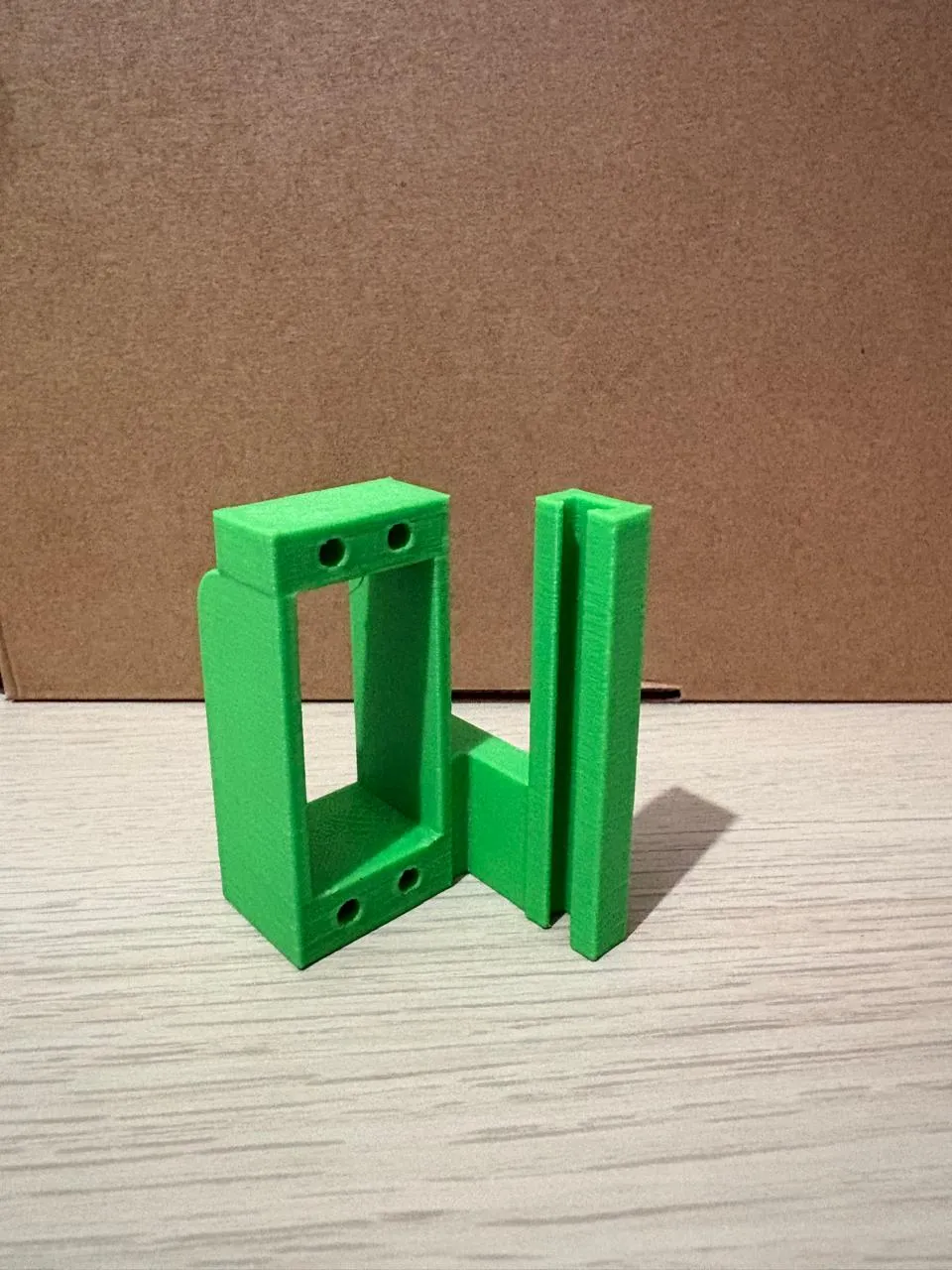

- Base mount

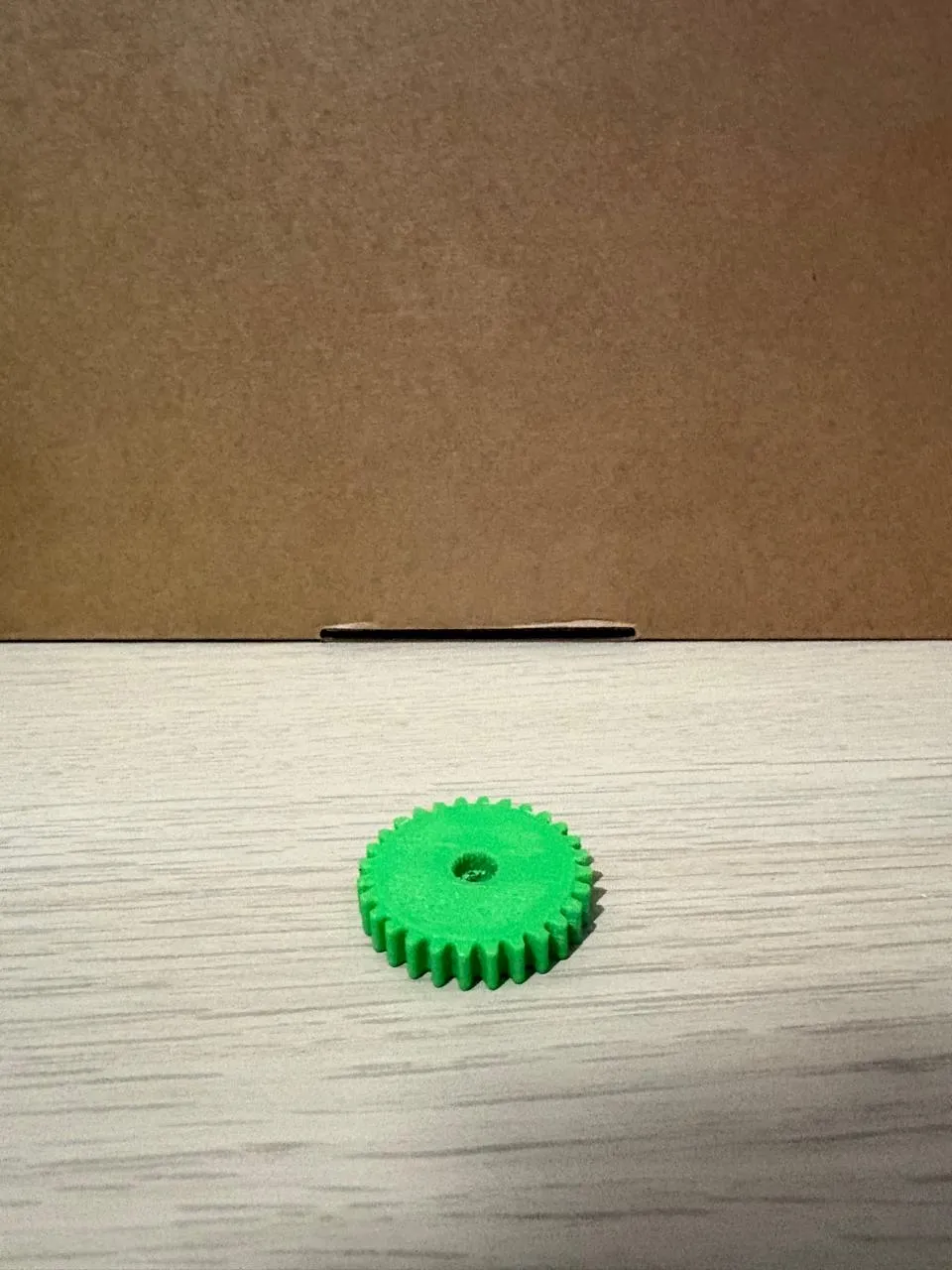

- Servo gear (horn replacement)

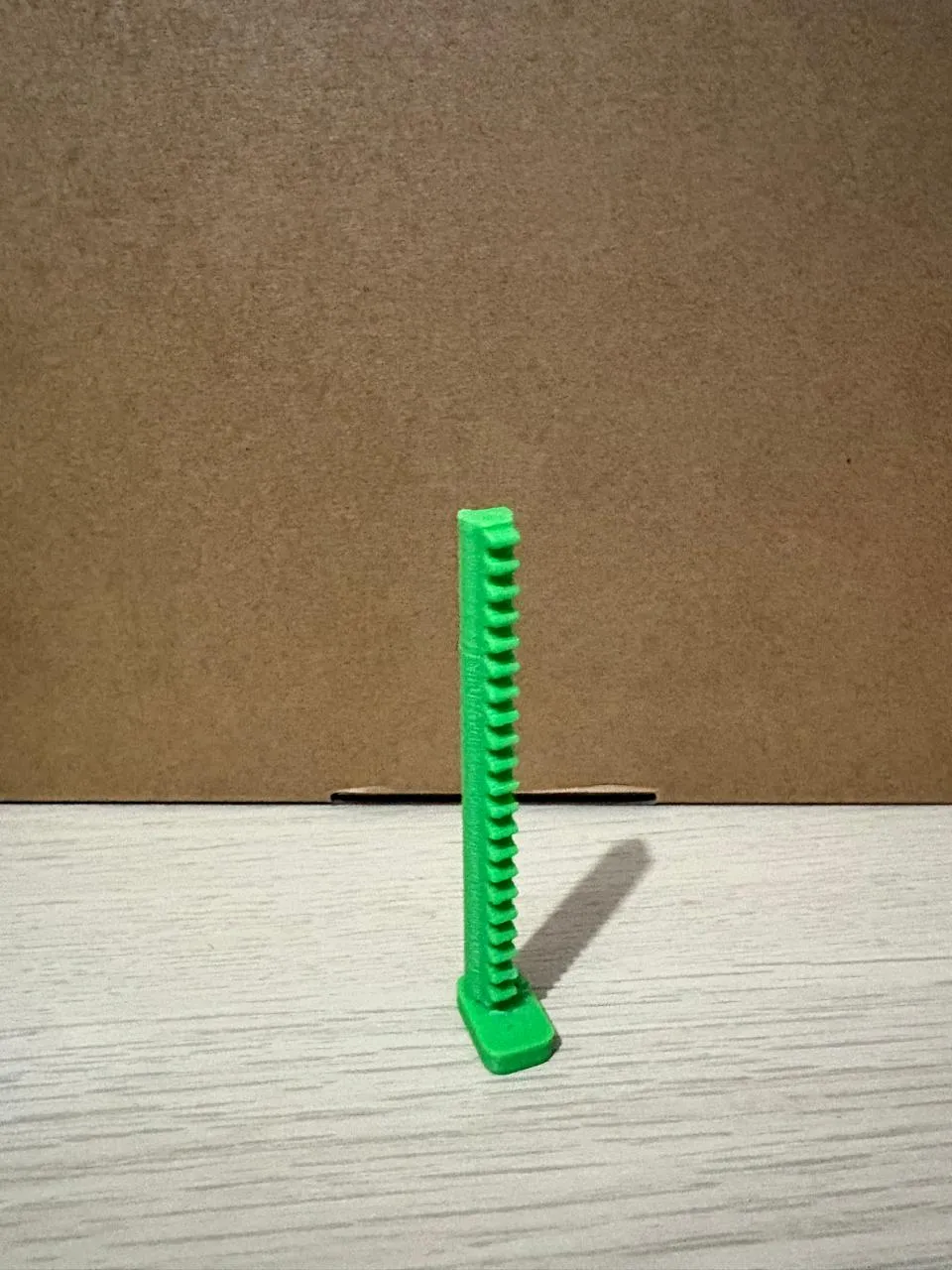

- Piston shafts (3 sizes)
