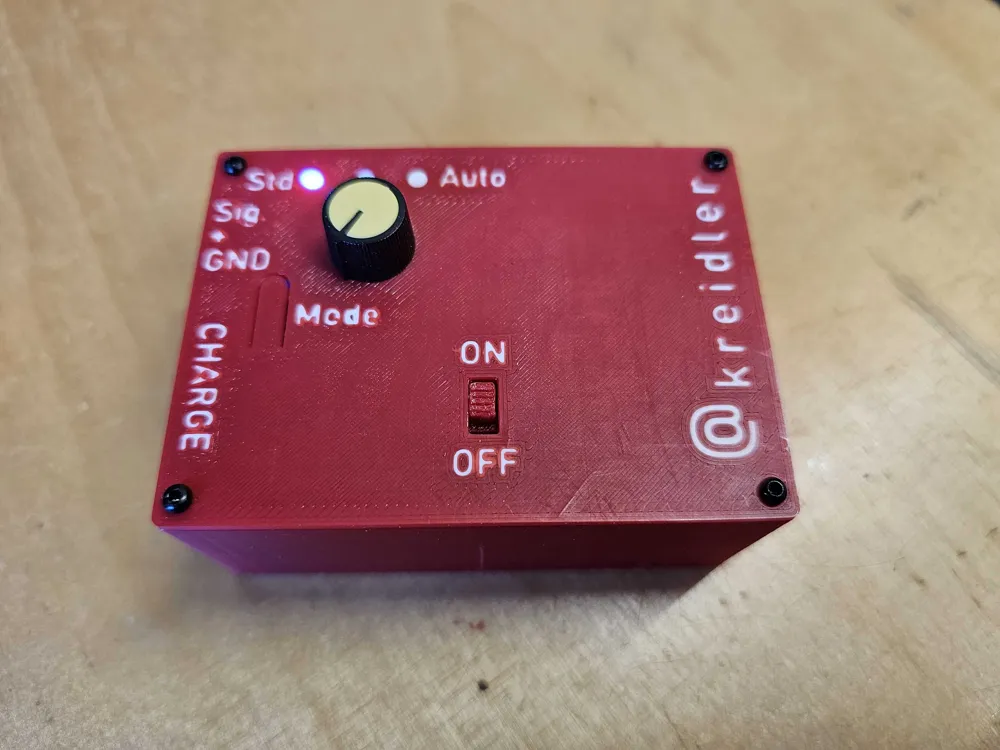

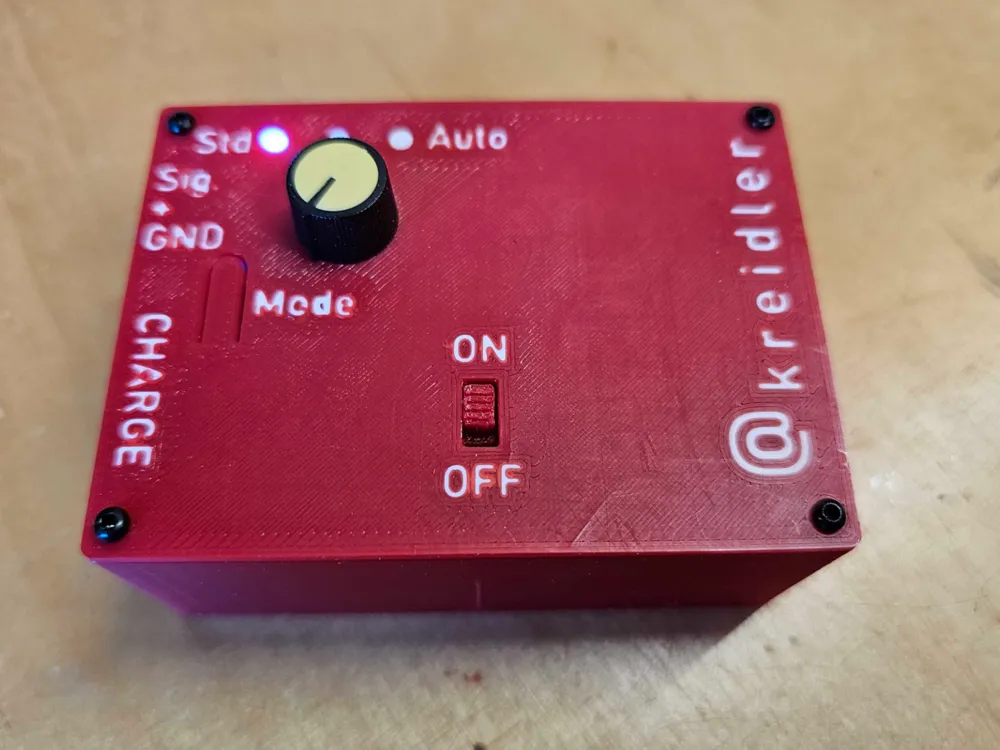

Servo Tester - 18650 battery - Voltage adjustable

Simple stand-alone servo tester. Easy to build. Simple to adjust.

Features:

• Powered by a single 18650 cell

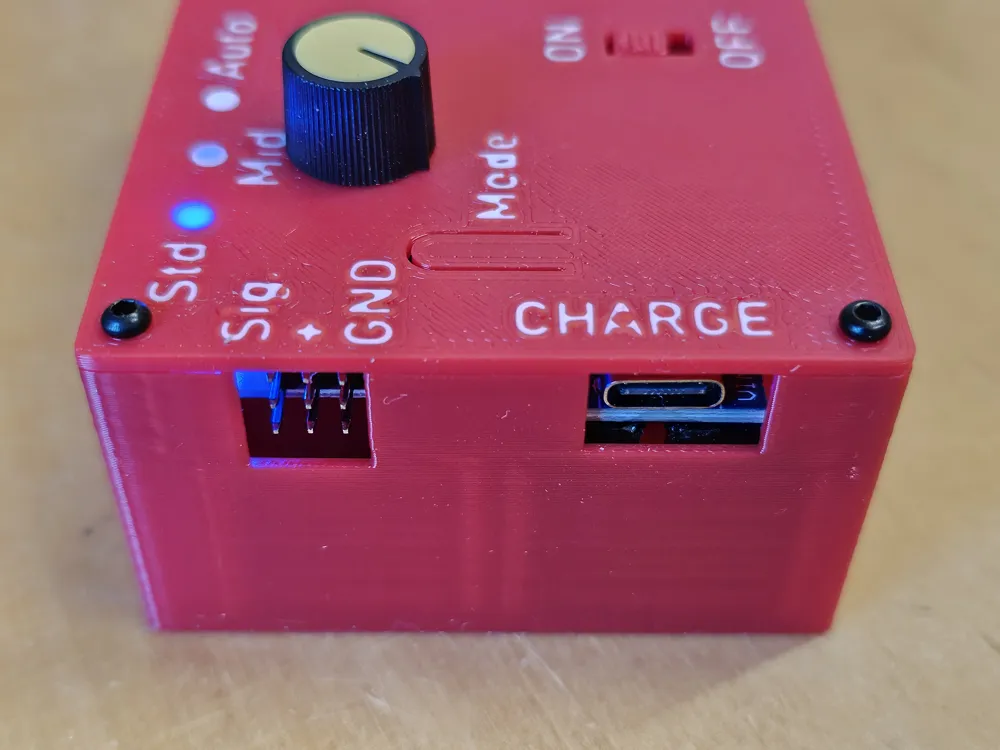

• USB-C charging port
• Boost converter with adjustable output voltage up to 12V
• On/Off switch
• Supports standard 3-pin servo headers including bigger sized Futaba version
• Minimal soldering (2/4 spots)
• Only 2 items from aliexpress or ebay, amazon needed
• Text on cover can be edited as per personal needs e.g. different language

BOM:
You'll need (besides the filament😉):

• 1x servo tester module
• 1x 18650 battery
• 1x 18650 Charger Board - Boost Module
• 1x 2 pin Dupont connector with cable (e.g. servo cable)
• 6x M2x6 screw or self-tapping screws (e.g. servo screws)
• 1 Multimeter to setup output voltage

Aliexpress Links:

Servo Tester RC 3CH: https://de.aliexpress.com/item/1005007840619431.html

3.7V to 9V 12V 18650 Lithium Battery Boost Step Up Module UPS Uninterruptible Power Supply Module Charge Discharge Integrated: https://de.aliexpress.com/item/1005009381238989.html Select Board WITH Battery holder!

ebay Links:

Servo Tester RC 3CH: https://www.ebay.com/itm/235756904398

3.7V to 9V 12V 18650 Lithium Battery Boost Step Up Module UPS Uninterruptible Power Supply Module Charge Discharge Integrated: https://www.ebay.com/itm/267533371756

Links will not be kept actual.

Assembly instruction:

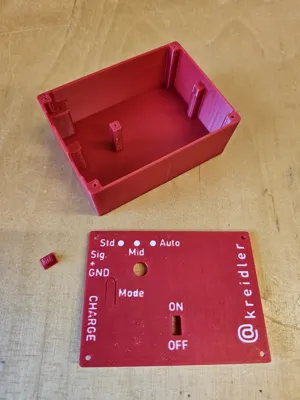

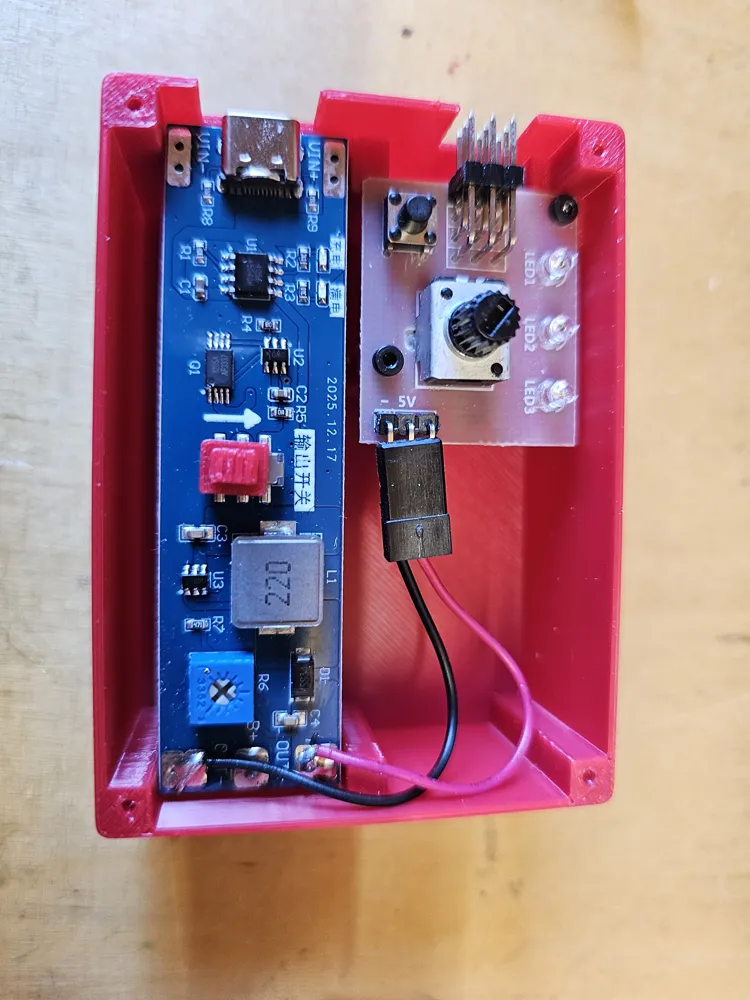

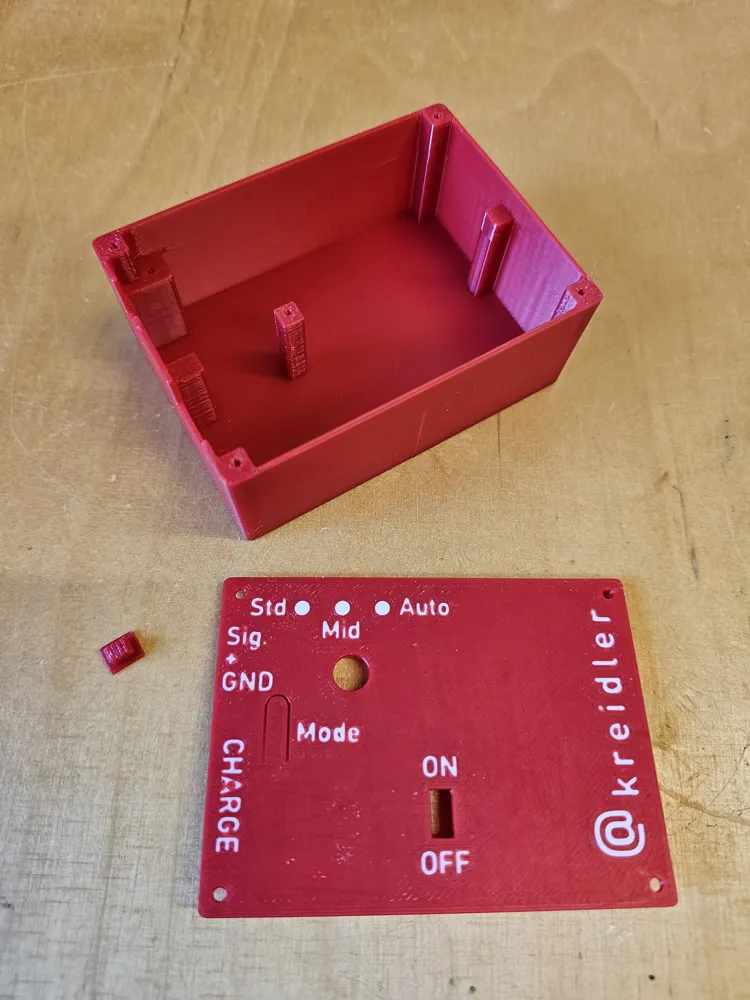

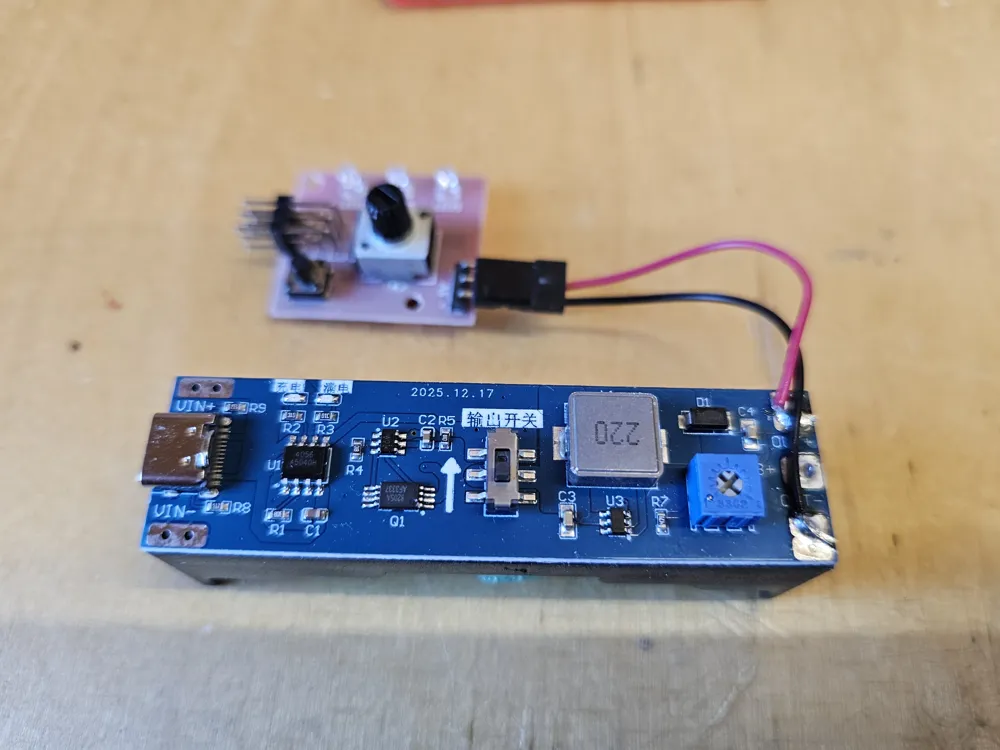

Just print and assemble as per pictures. Use OUT+ and OUT- on the PCB side of the charging board to solder the Dupont connector. When powered up set once the output voltage with the spindle trimmer. As it is a tester only I set mine to 5V. Do not forget this step as the delivery setting will burn most servos!

Print settings:

• Material: PETG recommended
• All settings included in 3MF
