Plywood Dolly. Up to 19mm sheets.
Print Profile(4)
Bill of Materials
- M8 x 100mm threaded bar x 1:
- M8 capped nuts x 2:
- M8x 15mm washers x 4:
- Micro scooter wheels (100mm) x 1:
Description

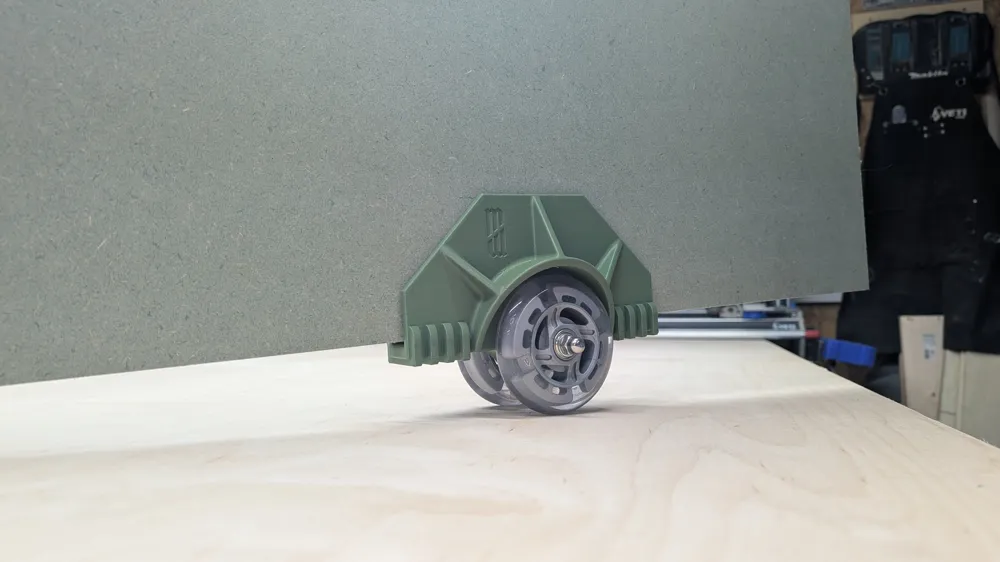

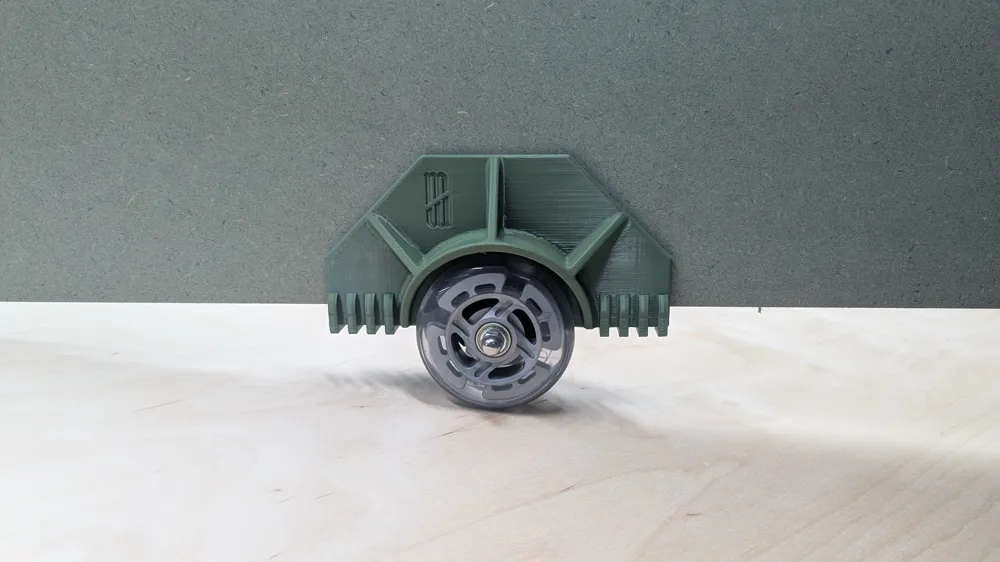

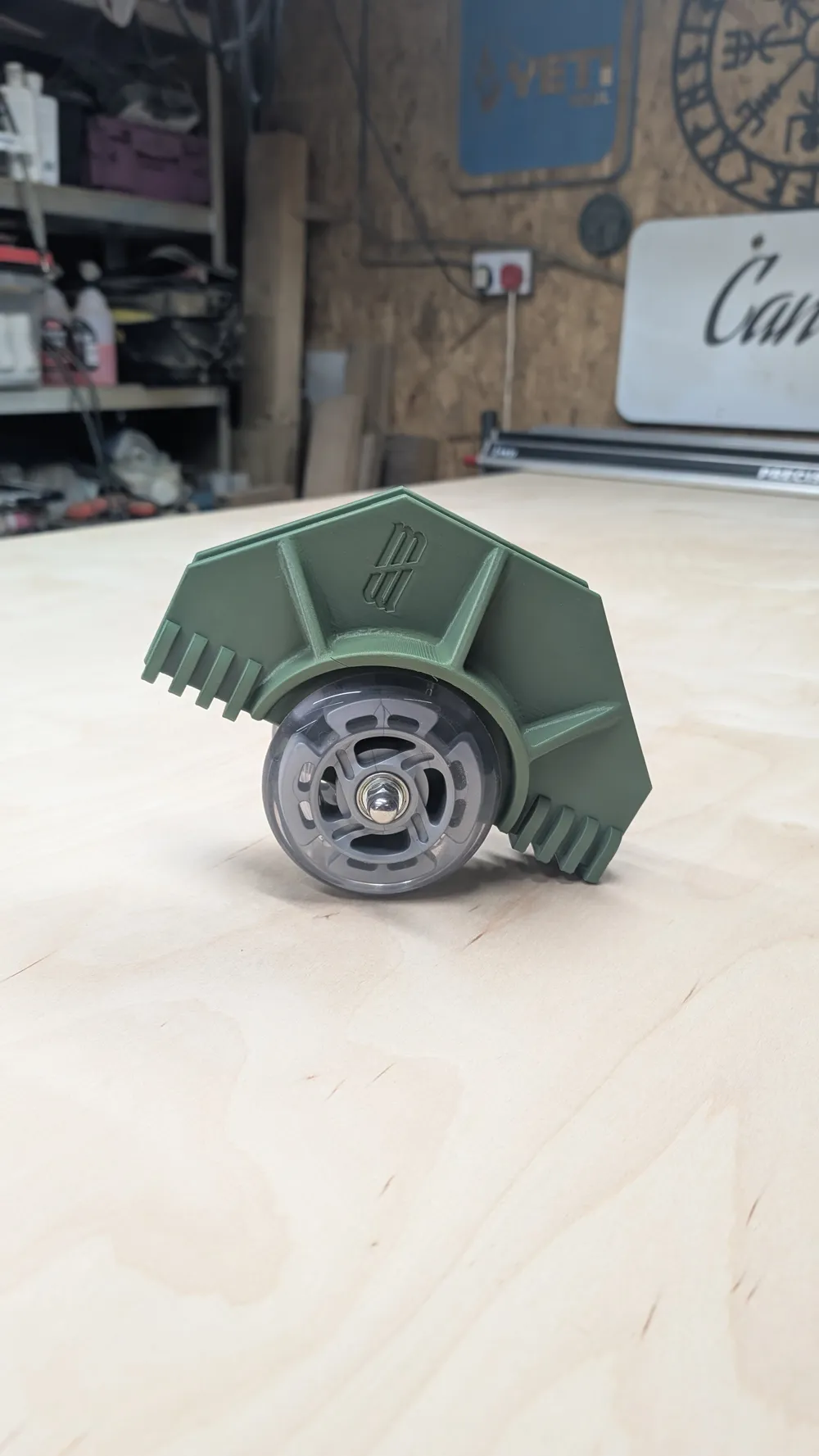

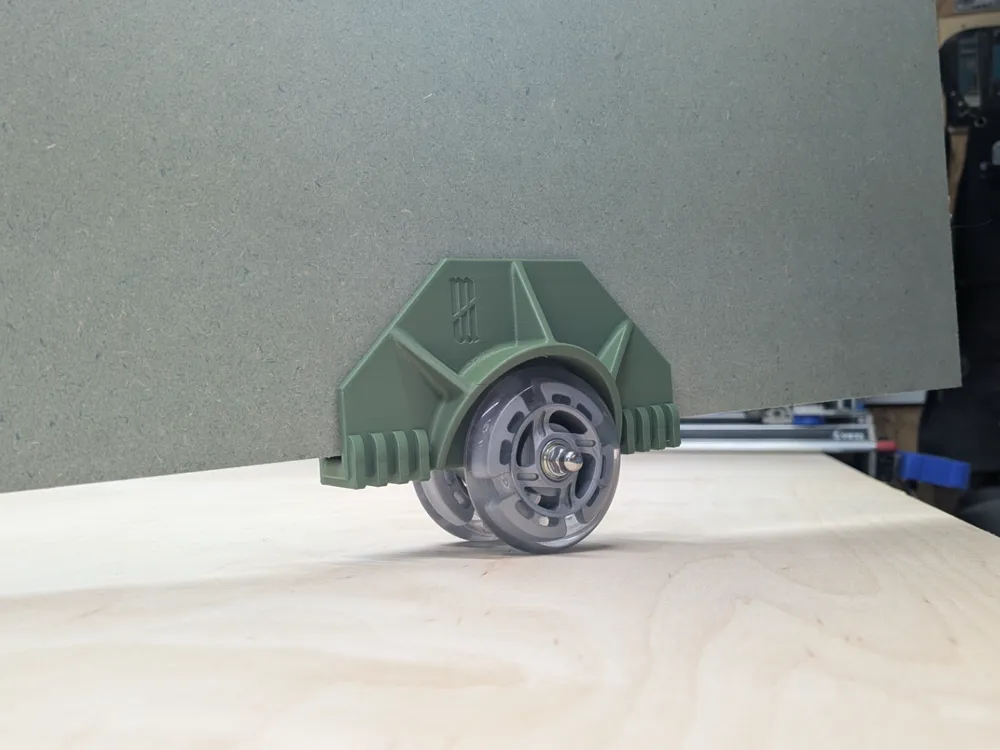

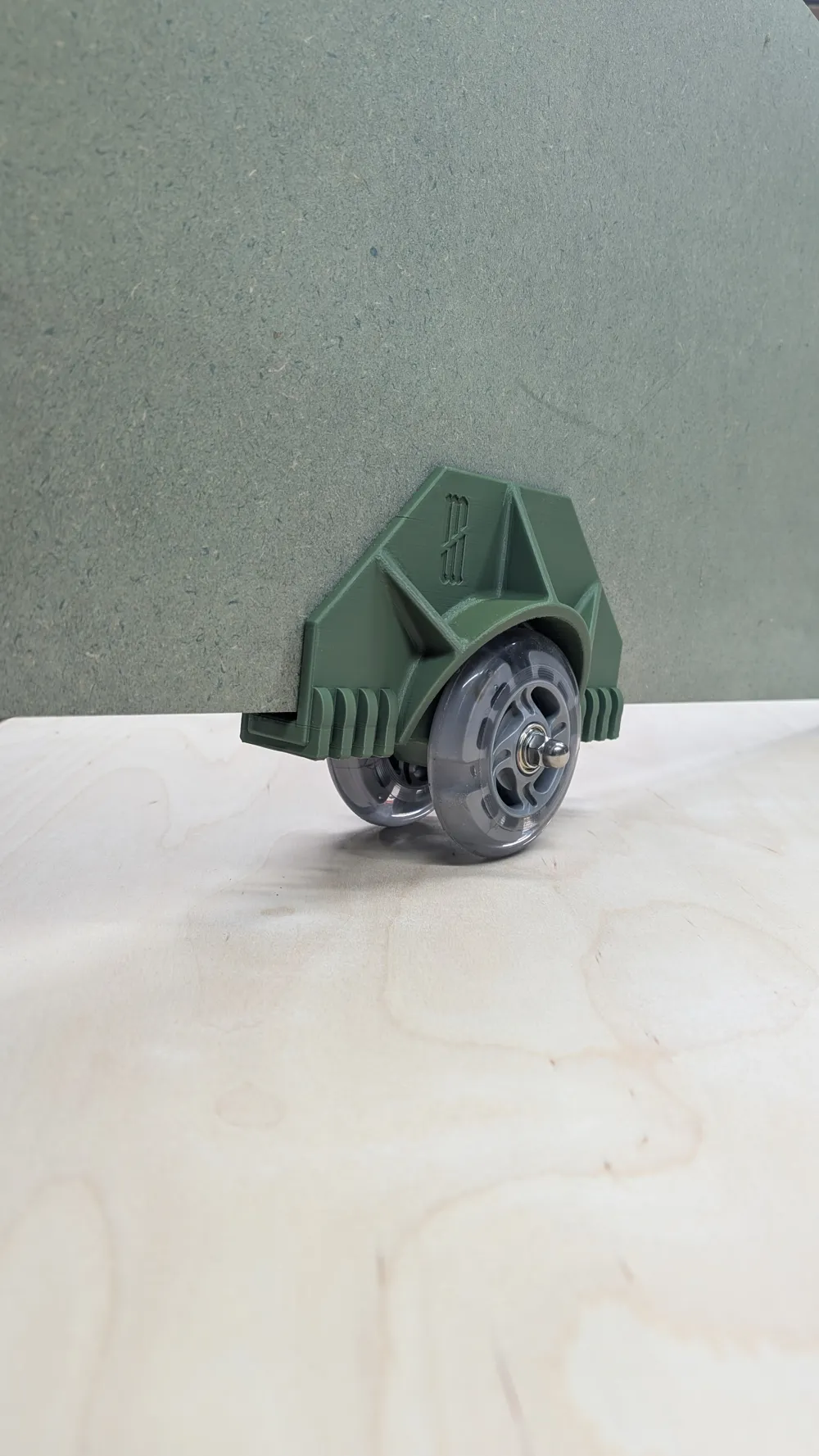

Plywood & MDF Dolly up to 19mm sheets
Smart solution for anybody moving plywood, MDF or similar 8X4' sheets around.
Around a workshop / yard or from the van to a property. These sheets can be heavy and this dolly will reduce the manual handling and make life so much easier. A single Dolly can be positioned in the centre for added manoeuvrability and highest reduction in manual handling or positioned at one end. A pair could even be made for each end. They are small discreet and very handy to have about. I have been using a similar system for 5 years and it has been a god send.
If people want it an XL version can be designed to accommodate things like fire doors, thicker sheet material and other large items. Just drop me a message with some detail if you are in need.

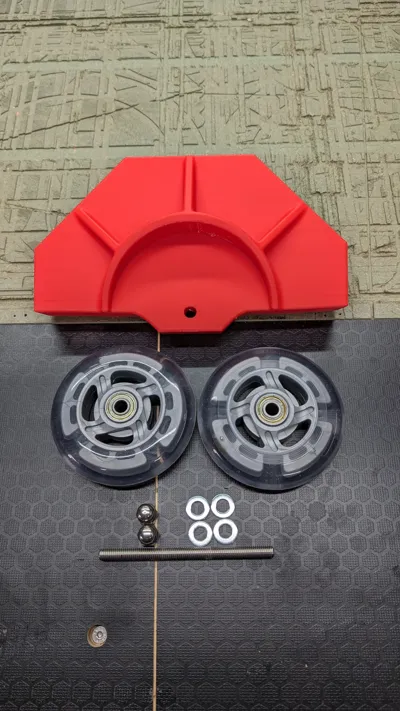

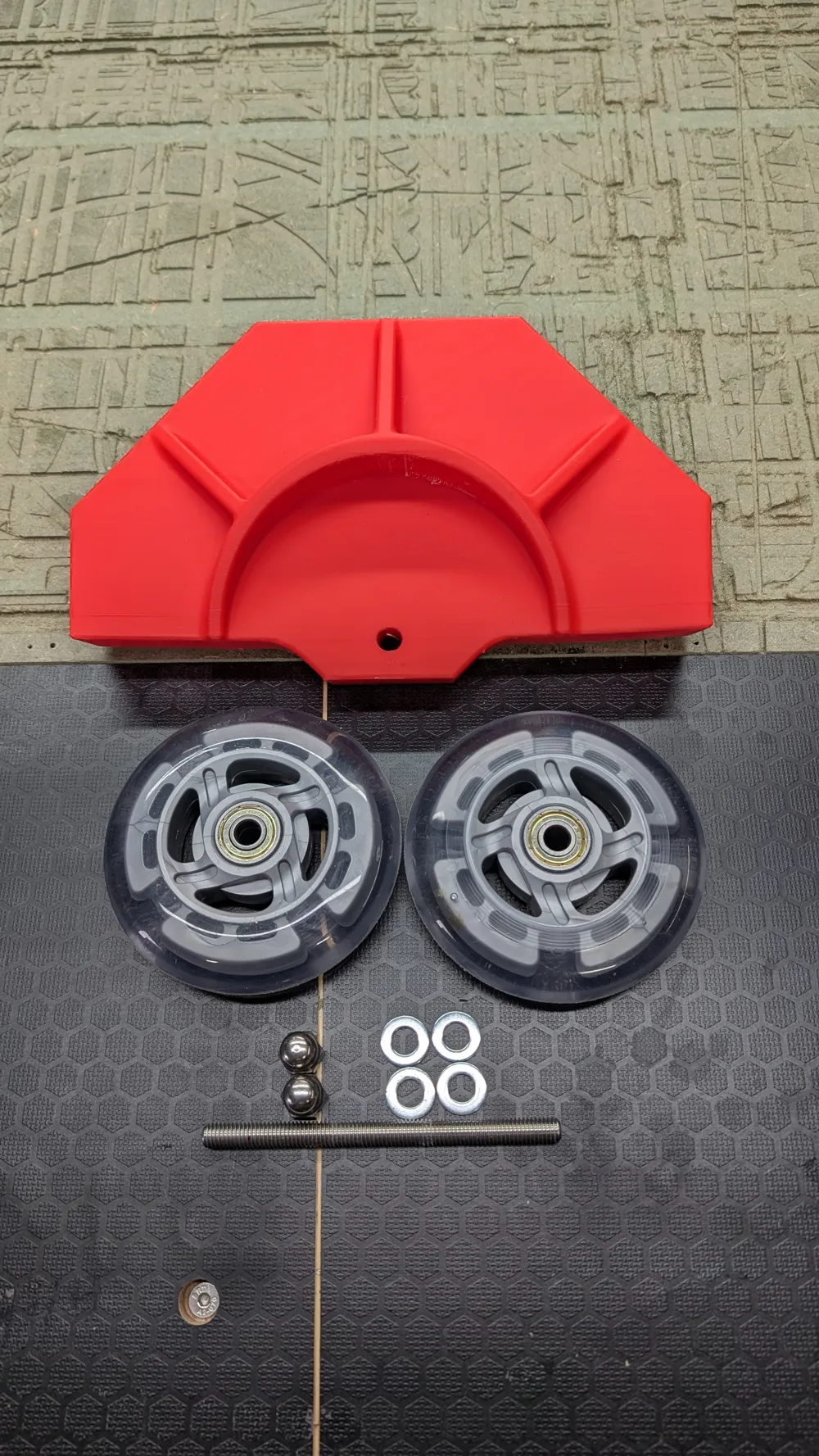

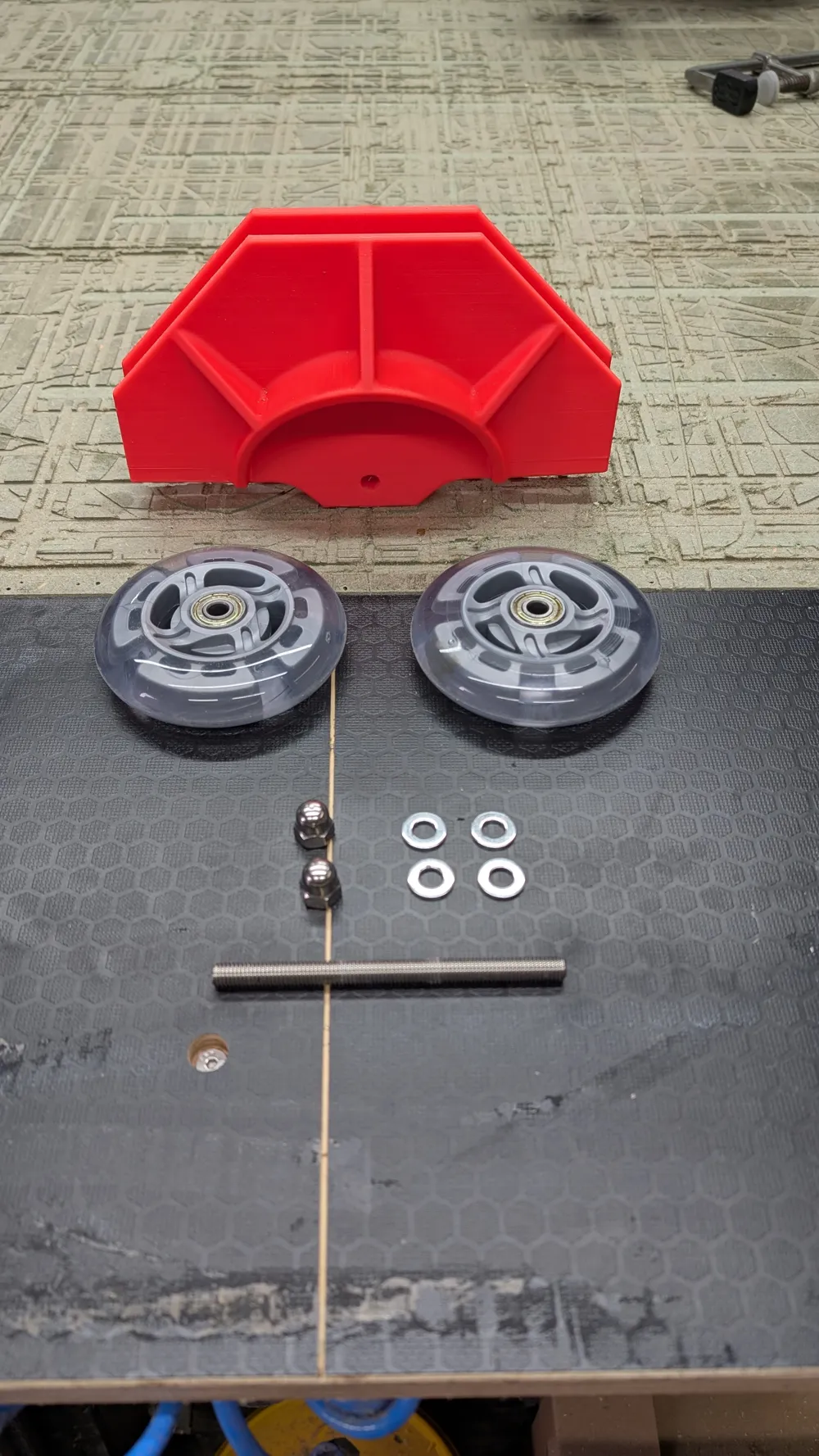

The full build consists of.
1x 100mm M8 threaded bar.
2x M8 capped nuts.
2x 100mm Micro scooter wheels.
4x M8 x16mm washers.
1x 3D printed assembly.
