🎡 Put memories into the Ferris Wheel

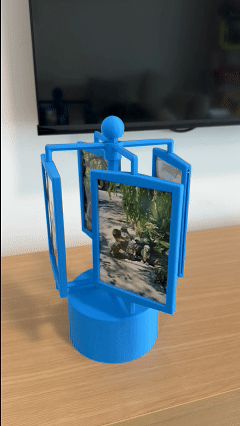

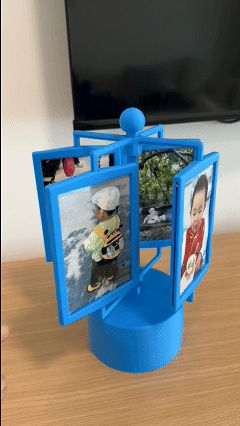

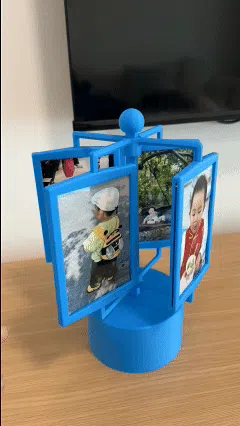

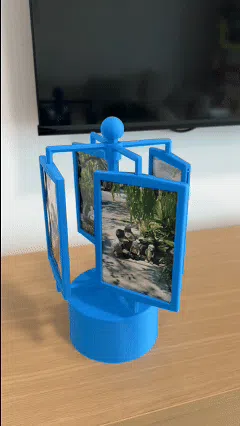

A rotating, singing photo frame

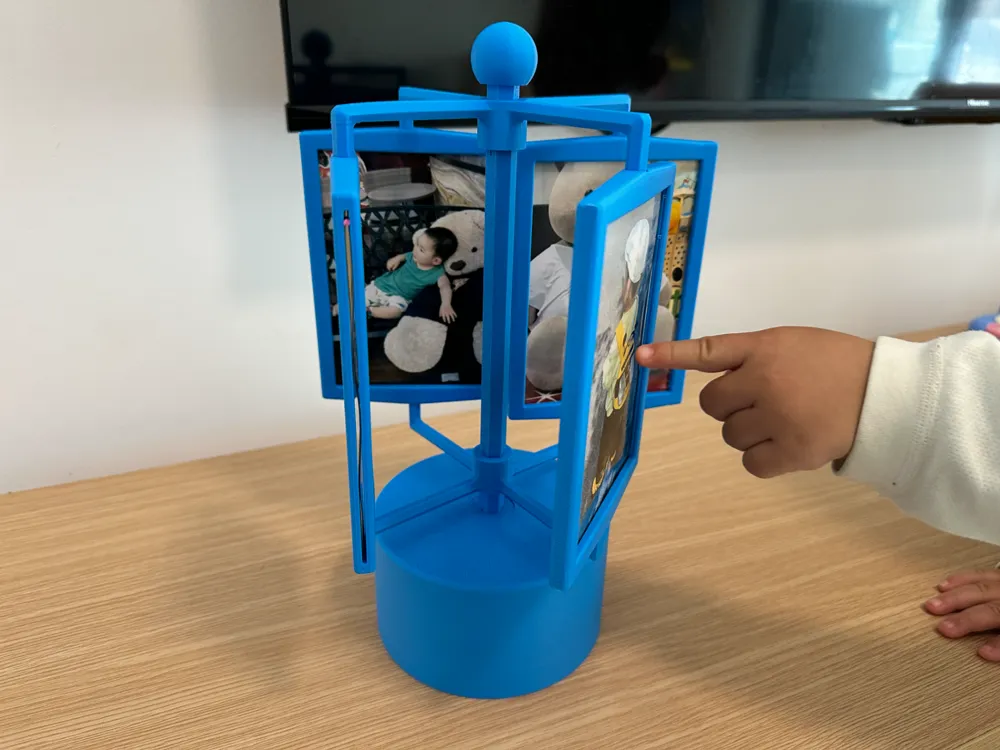

A Ferris wheel-shaped rotating music box that can display multiple 5-inch photos at once. With a gentle flick, the photos slowly rotate with the music — each side is a cherished memory
Watch the video effect here👉 https://b23.tv/4FgJBK6
📐 Design Highlights

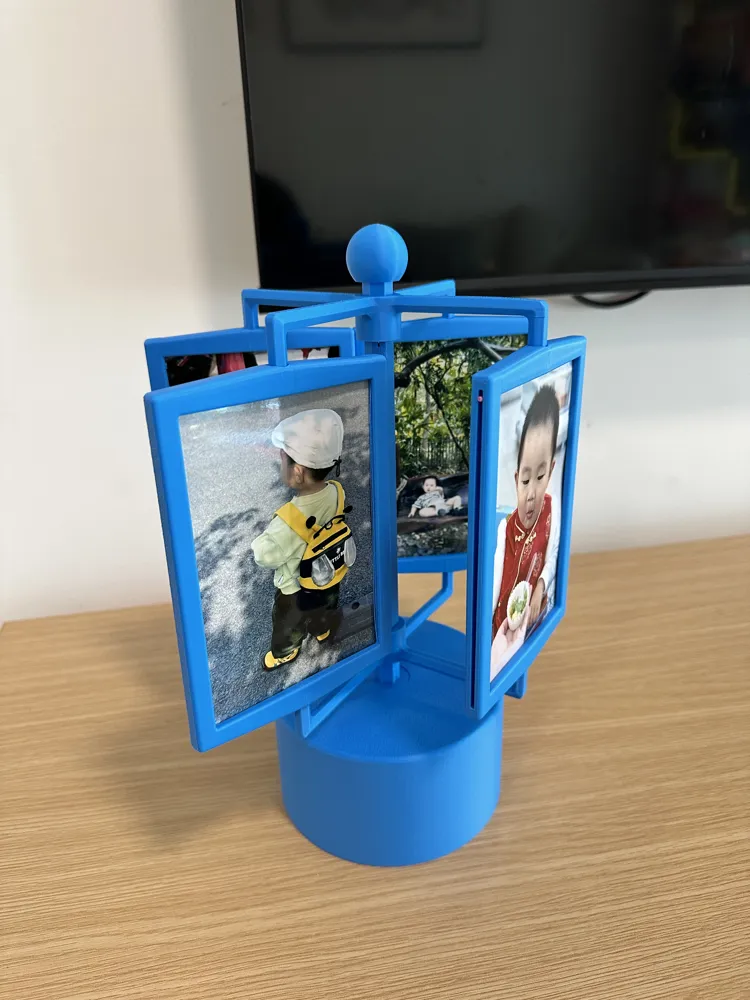

• Ferris wheel structure: Four photo frames evenly distributed, displaying photos 360°
• Built-in music box movement: Automatically plays music when rotating (music box movement needs to be purchased separately)
• Standard 5-inch photos: 127×89mm, directly insert, no cropping required, supports displaying up to 8 photos
• Modular design: Photo frames are detachable, easy to change photos
• Cylindrical base: Stable and not easy to fall over, simple appearance
🎁 Applicable Scenarios
• Baby growth record - from birth to one year old, each photo is a milestone
• Wedding/dating anniversary - turn sweet moments into eternity
• Graduation/birthday gift - more thoughtful than purchased ones
• Office desk/bookshelf decoration - glance at family during work breaks, full of happiness
• Children's room ornament - child's own little memory Ferris wheel
🖨️ Printing Suggestions
Filament: PLA / PETG (PLA recommended for wider color choices)
Layer height: 0.2mm
Infill: 20%
Wall thickness: 3 walls
Supports: Some components require supports (see print profile for details)
Recommended color schemes:

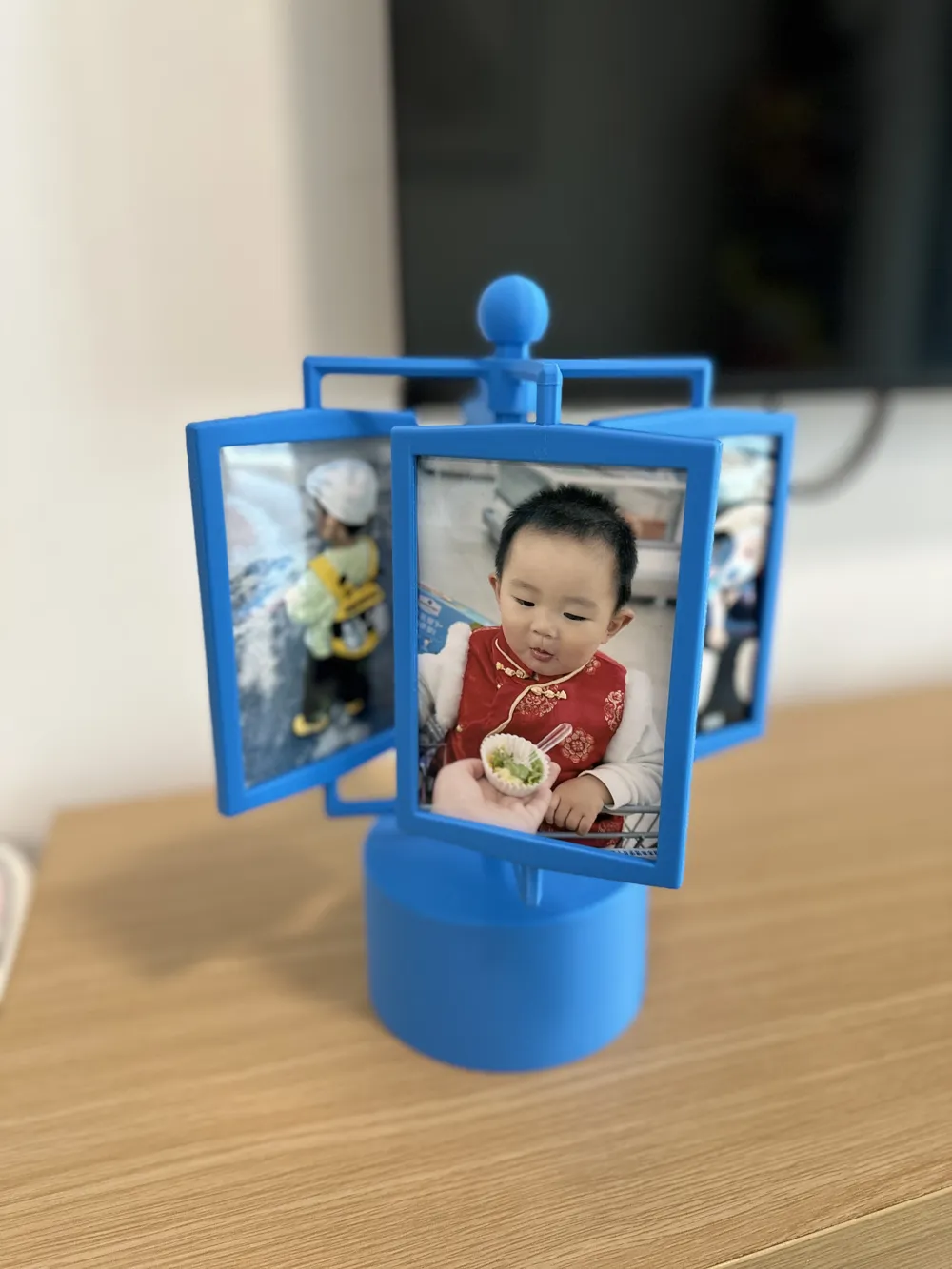

🔵 Classic Blue (as shown)
🩷 Sakura Pink (first choice for girls)
🟡 Bright Yellow (suitable for children's rooms)
⚪ Pure White (versatile and simple)
🌈 Multi-color splicing (Bambu Lab AMS multi-color printing)
🔧 Assembly Instructions

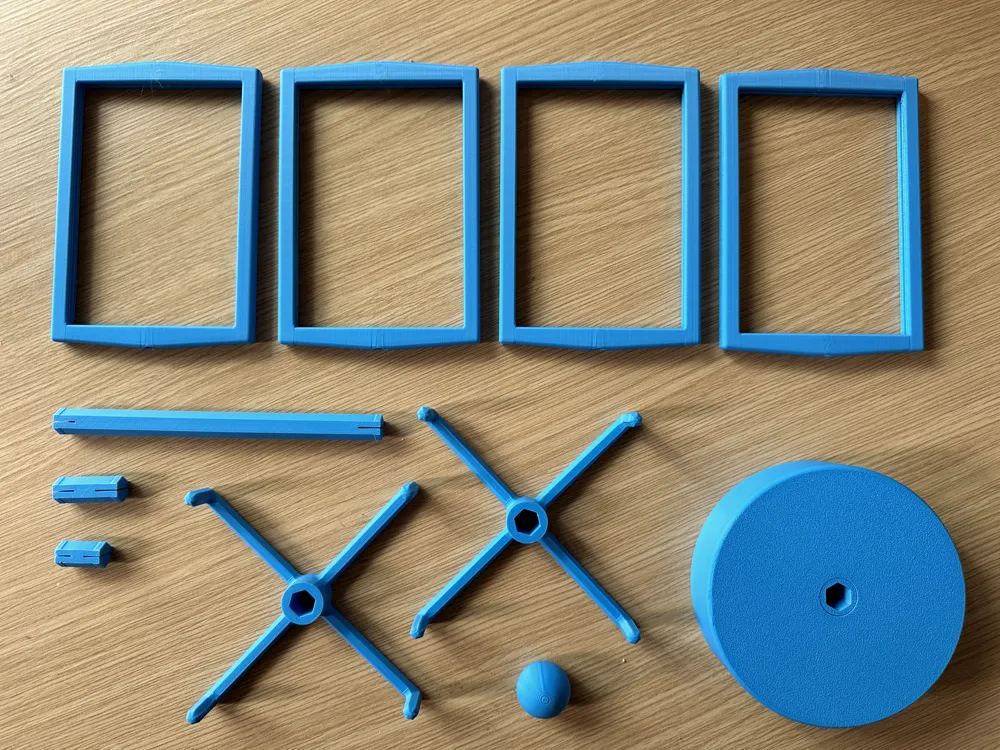

1. Print all components and remove supports

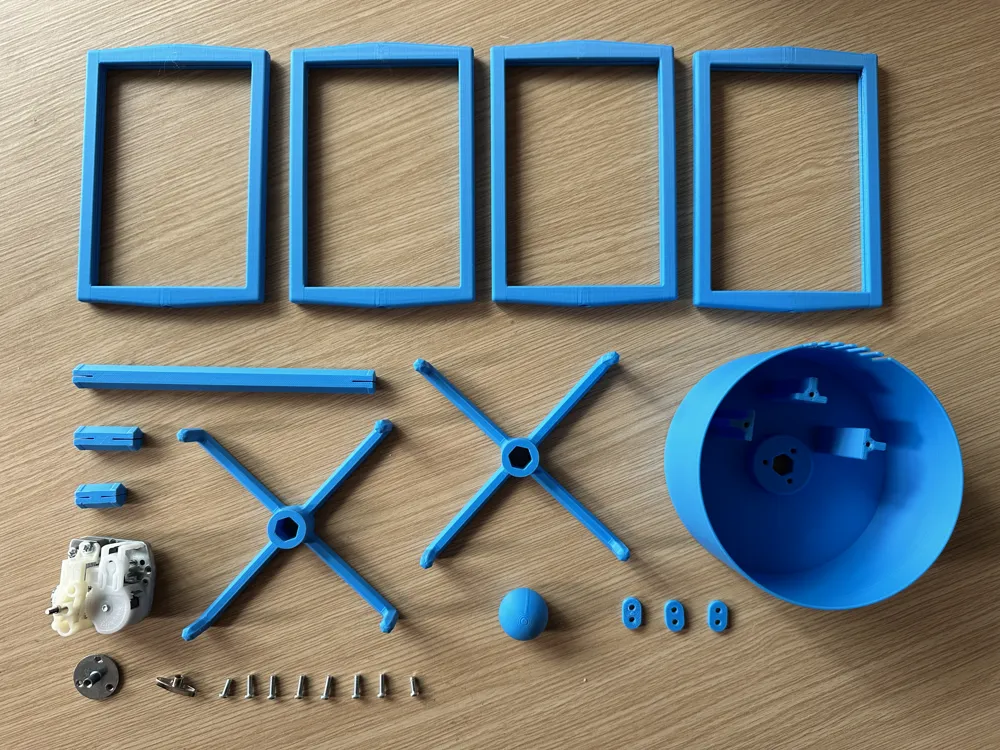

2. Install the music box movement into the cylindrical base (movement size: XX mm)
3. Install the photo frame arms onto the central shaft
4. Insert photos into each frame
5. Gently rotate to test for smooth operation
⚠️ The music box movement needs to be purchased separately. Search for "saiyang music box 18NS35" on Taobao/Pinduoduo, approximately 14 RMB for 2 pieces
💬 Frequently Asked Questions
Q: How are photos secured
A: The photo frame has card slots. 5-inch photos can be directly inserted without glue. To prevent them from falling out, you can insert a small piece of filament to secure them
Q: Can it be used without a music box
A: Absolutely! It can be manually rotated without the movement, used as a pure display photo frame
Q: How many photos can it hold
A: It can display multiple 5-inch photos simultaneously, and each side can hold a photo
Note: Due to Z-seam issues, there might be stuttering or abnormal noises. Activating the rotating structure more will significantly improve this
If you have any questions or suggestions for improvement, please leave a comment in the comments section
Follow my homepage to get update notifications first! If you have custom requests (other sizes/colors/accessories), you are also welcome to leave a comment in the comments section 😊
The connecting rod structure drew inspiration from @造物's work, thank you 🙏
Version Roadmap
| Version | Content | Status |
| V1.0 | 5-inch photo version (current version) | ✅ Released |
| v1.1 | Optimized base rotating structure: addresses stuttering/abnormal noises caused by Z-seam, redesigned rotating contact surface | 🔧 In development |
| v2.0 | Instax Mini version: supports Fujifilm instax mini (86×54mm), retains rotating music box function | 📋 Planned |
| v3.0 | LED light version: built-in LED light groove, glowing effect at night | 💡 Planning |
Boost Me (for free)
👆 If this Ferris wheel photo frame has captivated you, please click the 'Boost' button above to show your support
Future releases:
🔄 v1.1 Optimized base rotating structure — resolves stuttering and abnormal noises caused by Z-seam, smoother rotation
📸 Instax Mini version — supports Fujifilm instax mini size, full of artistic flair
💡 LED light version — enjoy rotating memories even at night
Every boost brings me closer to the new version 💪
