M4 Heat Set Cupholder for Dugout Organizer (Remix)

Upgraded remix of a dugout organizer cup holder designed for baseball & softball teams.

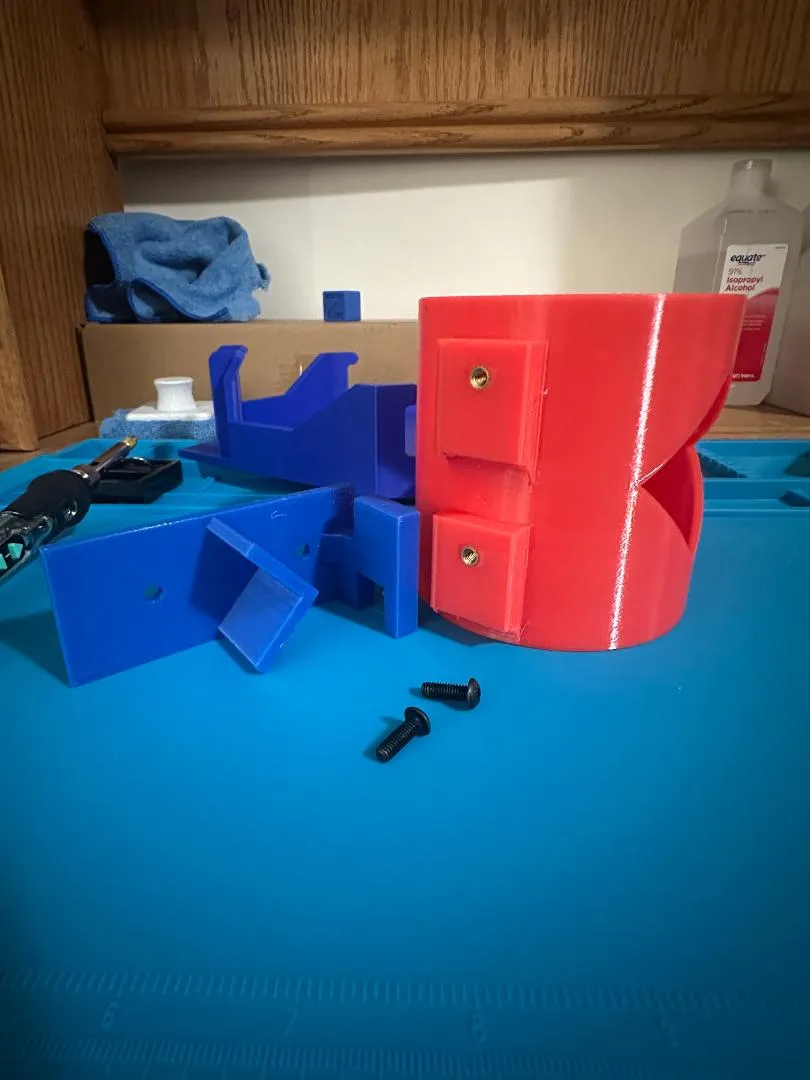

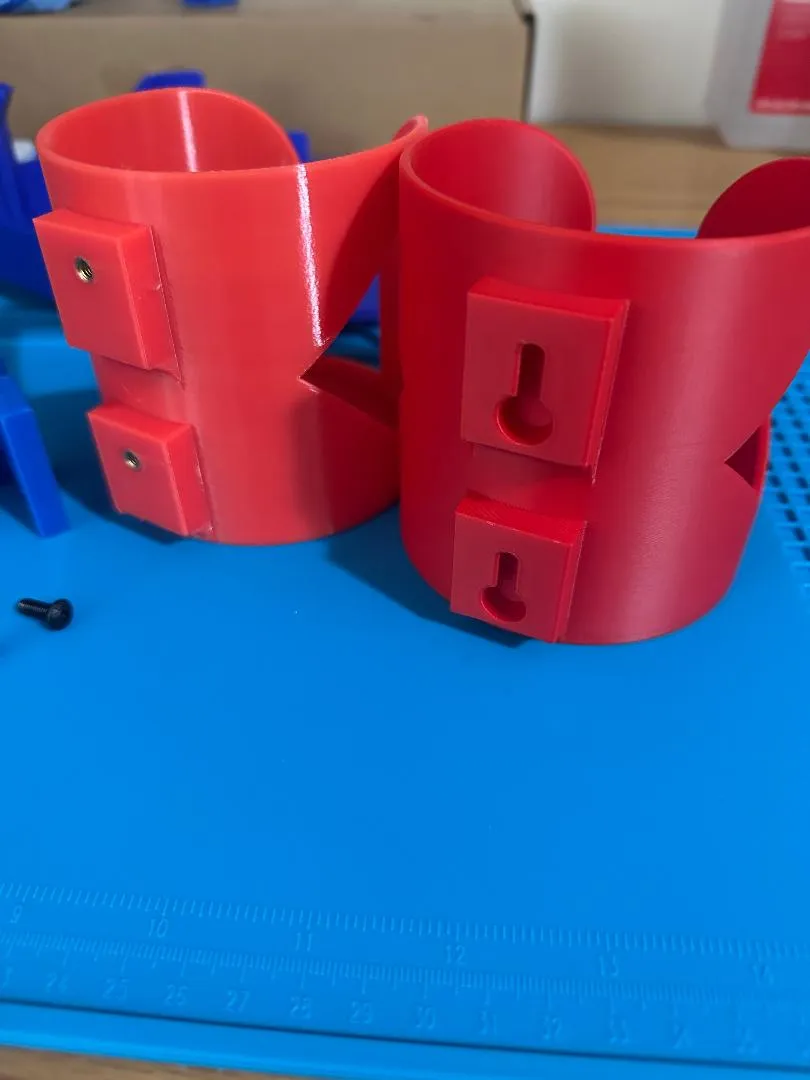

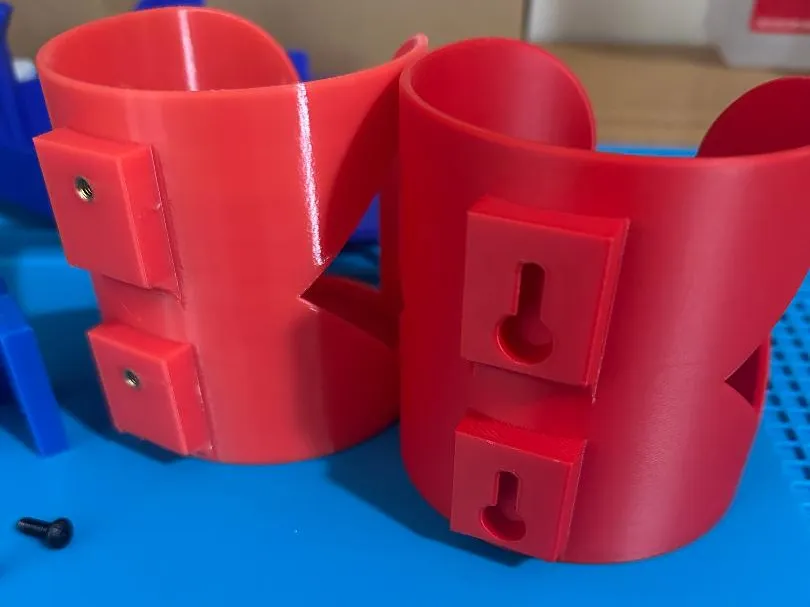

This version improves durability and long-term use by replacing the slide on keyhole mount with M4 heat set threaded inserts—no more fighting to get the cupholder slotted correctly or loose mounts over time.

Perfect for organizing water bottles, sports drinks, hats, gloves, and bats while keeping everything secure and easy to access.

🖨️ Print Settings

• Material: PETG recommended (PLA works but less durable in heat)
• Layer height: 0.2mm
• Walls: 3–4 at least
• Infill: 30% (Gyroid or Grid)
• Supports: Tree slim

🔧 Key Features

• Uses M4 heat set inserts for strong, reusable threads

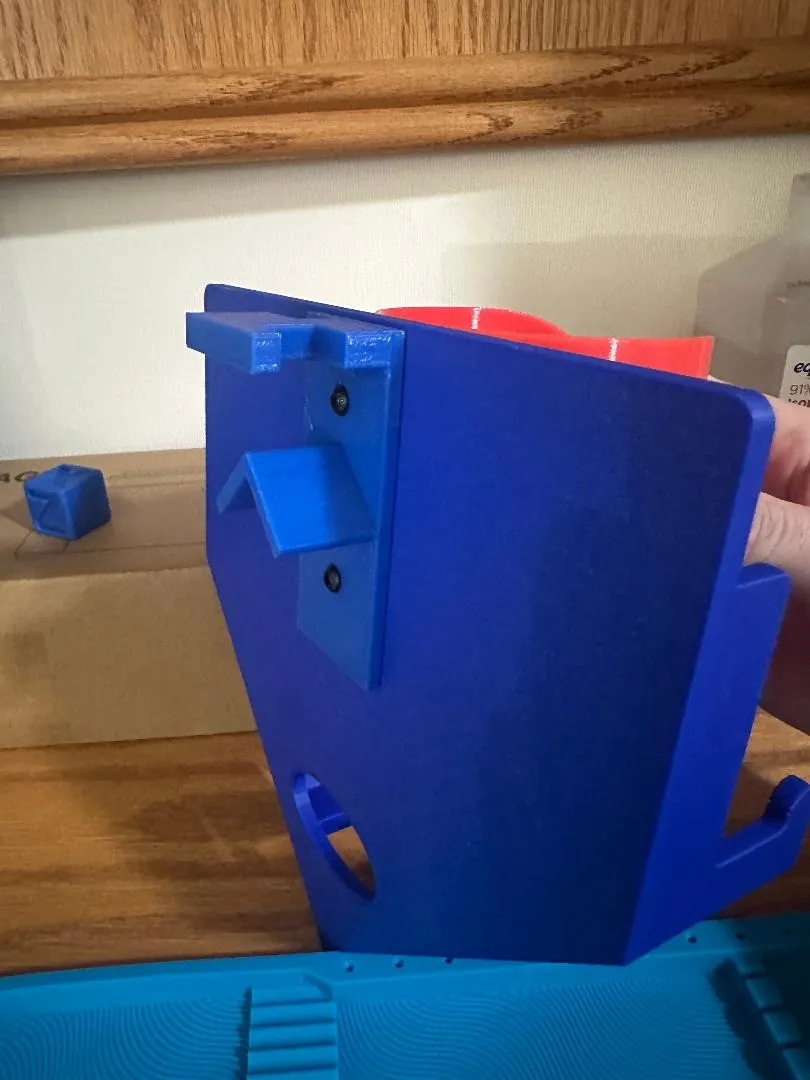

• Reinforced mounting points for dugout / fence / wall installs
• Holds standard water bottles & sports drink containers

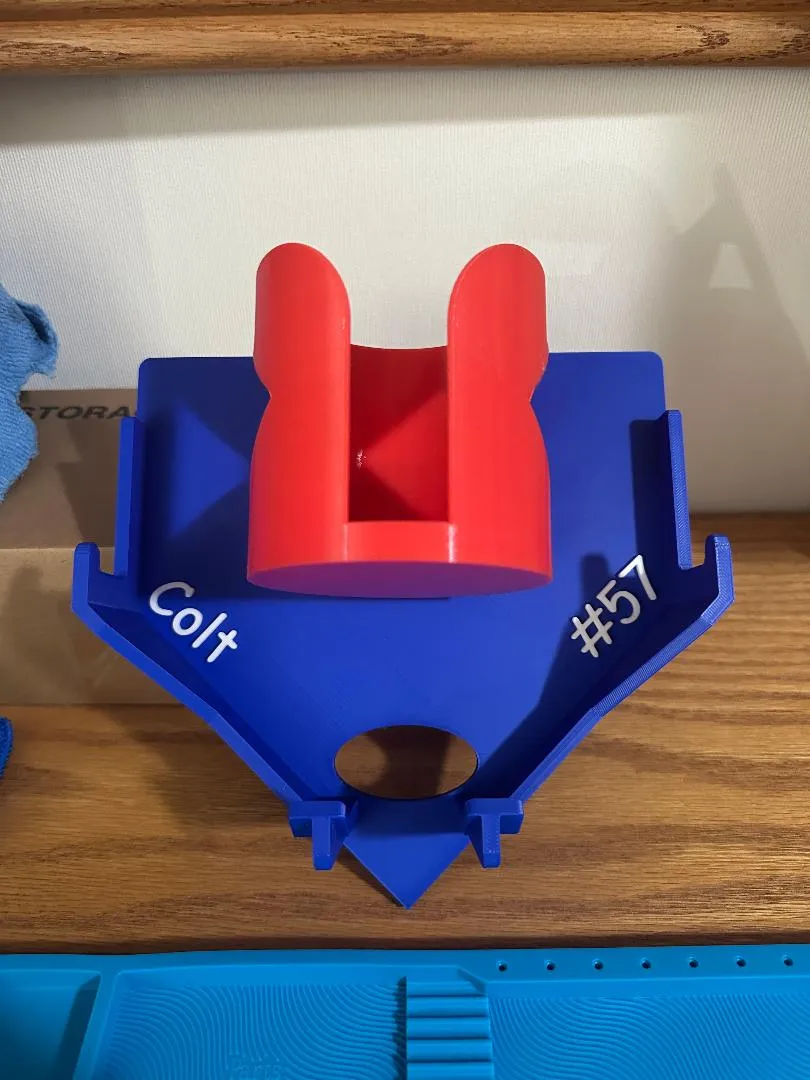

• Clean layout with space for team name & player number
• Designed for durability in outdoor and team environments

🔥 Hardware Required

• M4 heat set threaded inserts (I used these Amazon.com: 150 Pcs M4 Threaded Inserts for Plastic with Heat Set Tip,M4*(6mm-10mm Hight)*5.5mm Heat Set Inserts Kit,Brass Inserts for 3D Pringting : Industrial & Scientific )
• M4 screws (length depends on your mounting surface but M4x12mm~16mm should be fine)

🛠️ Assembly Notes

• Install inserts with a soldering iron + insert tip
• Take your time to keep them straight for best fit
• Once installed, mounting is solid and repeatable

⚾ Perfect For

• Baseball & softball dugouts
• Travel teams & little league
• Coaches organizing team gear
• Anyone tired of bottles rolling around the bench

🙌 Remix Info

This is a remix of an existing design, modified to improve strength and usability with threaded inserts.

Find the inspiration for the remix here Baseball-Softball Dugout organizer - Free 3D Print Model - MakerWorld
