Replacement pivot guide for Artweger shower-bathtub

Replacement Pivot Guide for Artweger Shower-Bathtub with Door

This model is a lifesaver for owners of an Artweger shower-bathtub with a door. Since the availability of spare parts for these special bathtubs is often difficult, I developed this part myself.

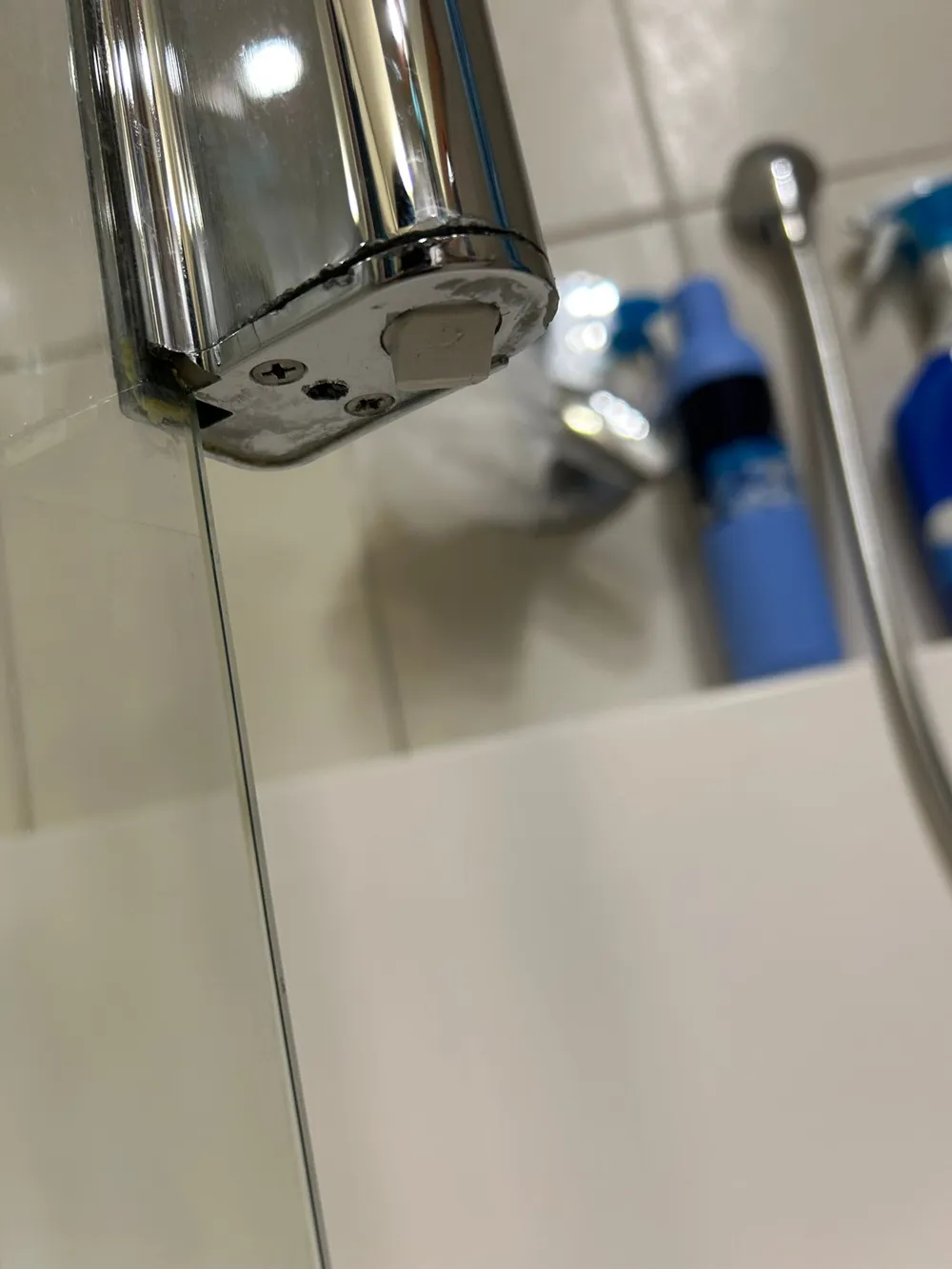

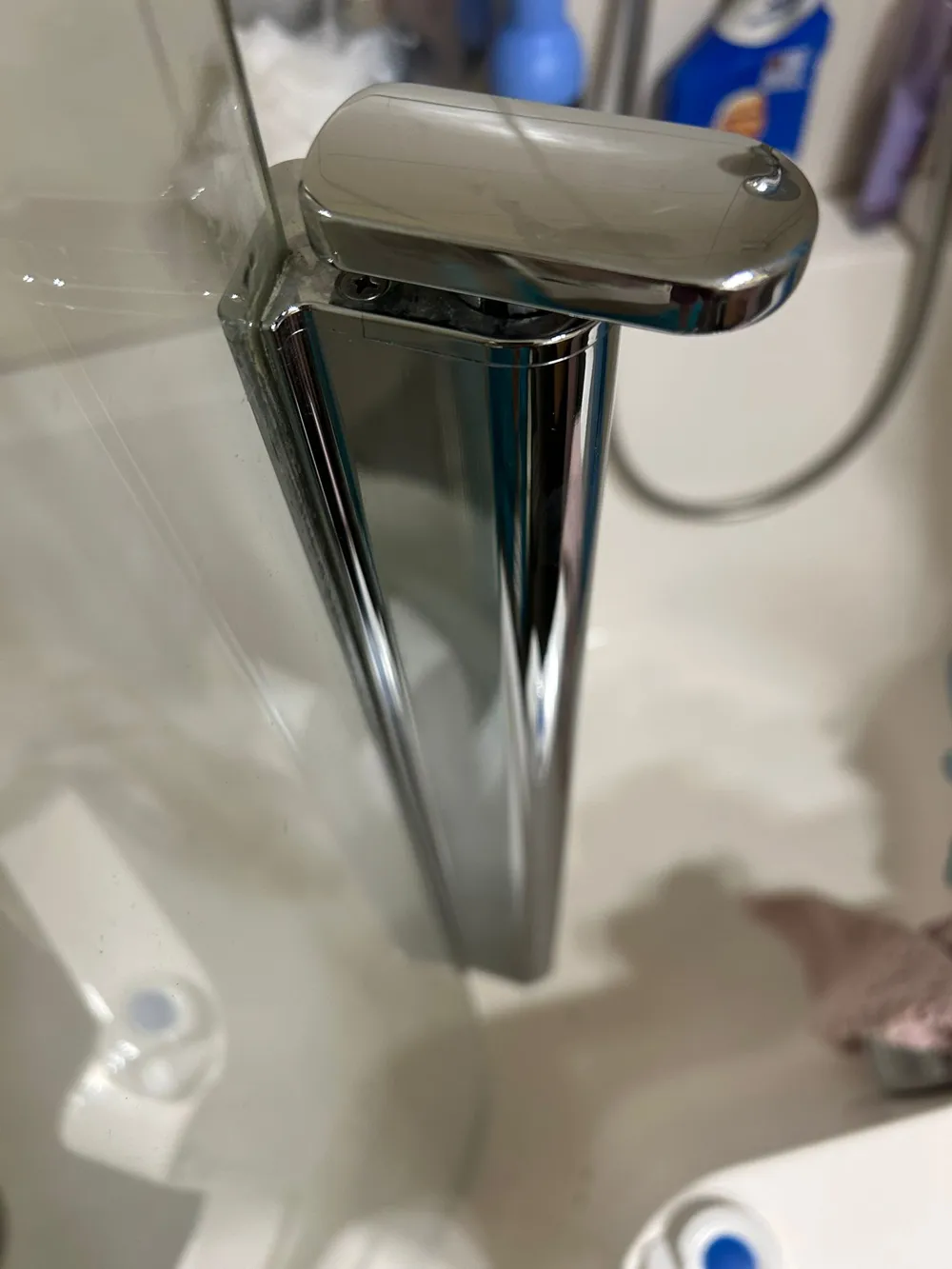

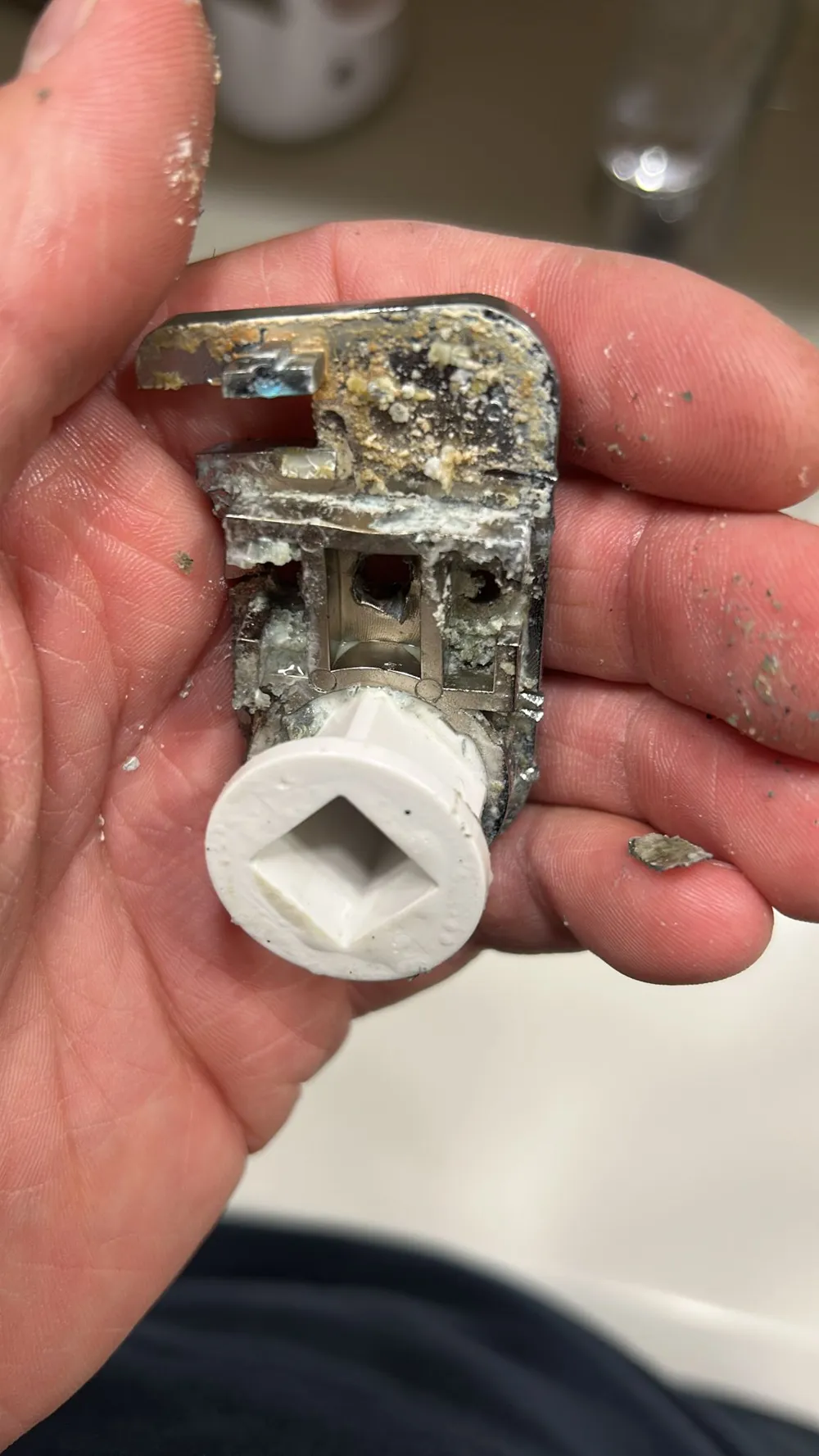

The Problem: The shower door kept jamming more and more, and the locking latch barely came down. Eventually, the door could no longer close properly. After disassembling the lower pivot guide, it became clear: the original metal part was extremely oxidized, the chrome was peeling off, and everything was mechanically jammed.

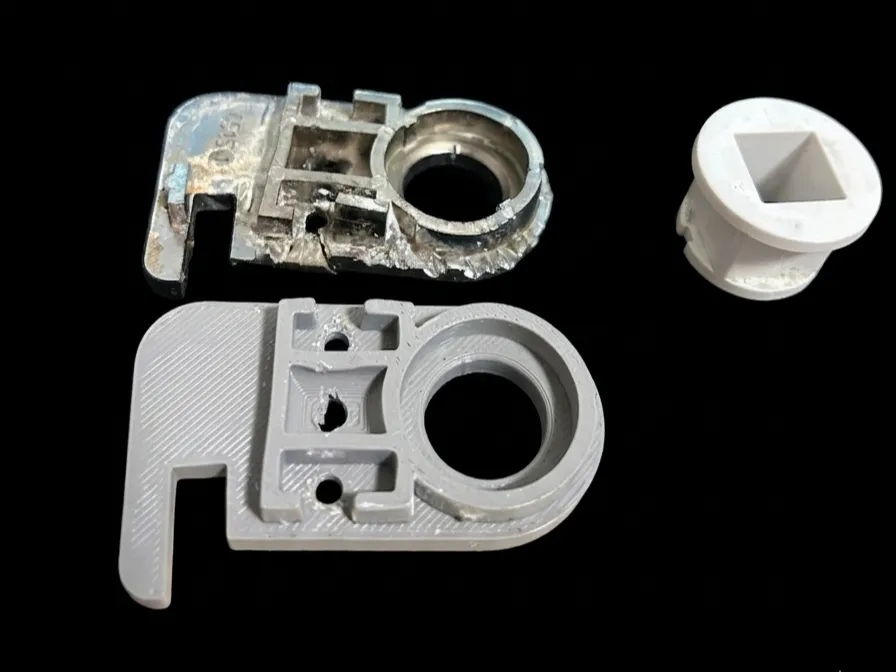

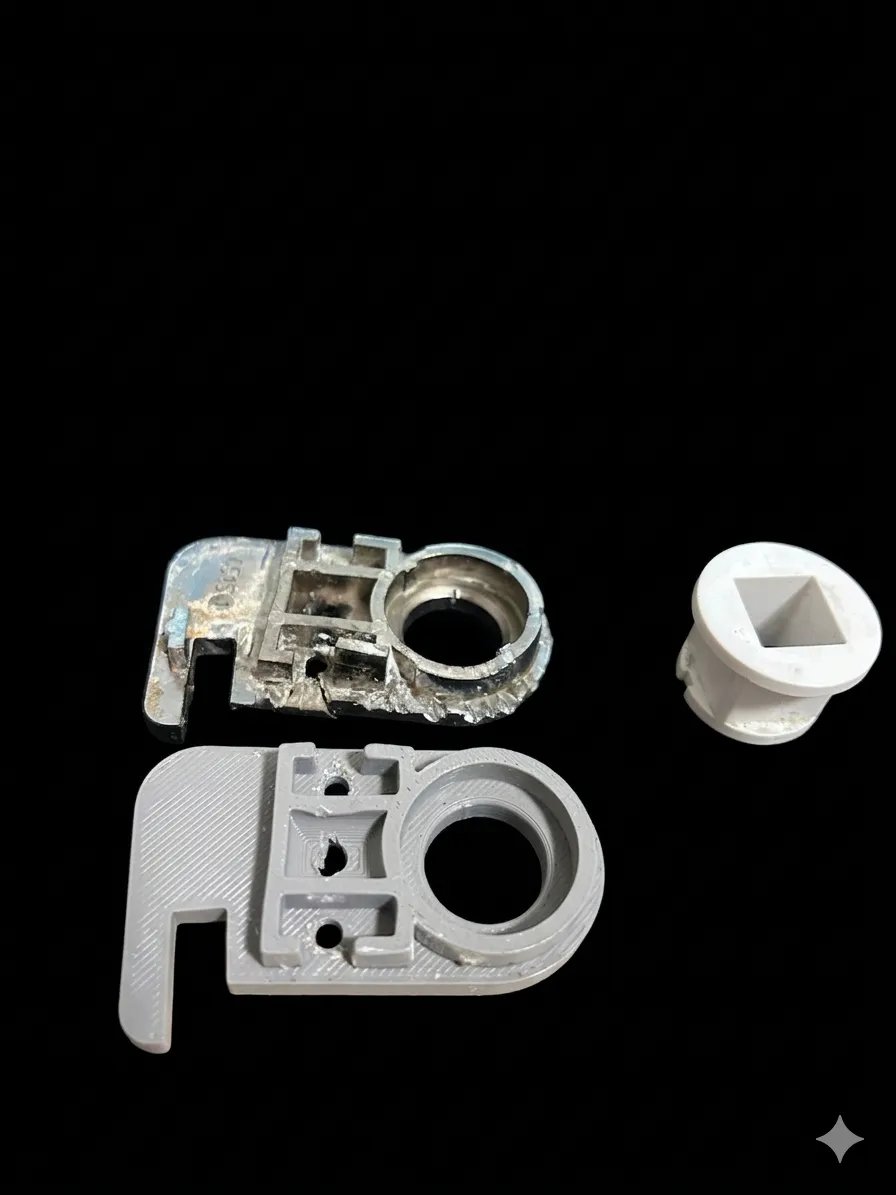

The Solution: I re-engineered the part and perfected it over several iterations. This design has been in daily use for over a year and has proven absolutely reliable!

Important Installation Note: The model is designed to be very precise so that it sits completely without play during operation. Therefore, the part must be pressed in with light pressure during installation.

• Tip: If it fits too snugly, you can carefully heat the printed part to approx. 50°C (e.g., with a hairdryer). Then it will be easier to push into the guide.

Print Recommendations:

• Material: Since the part is constantly in contact with water, I strongly recommend PETG, PETG-HF, or ABS. (Normal PLA is not suitable here).
• Settings: Can be easily printed with standard settings.
• Infill: I recommend a slightly higher infill (approx. 25–40%) or more wall lines for additional stability.

I hope this model helps other Artweger owners get their high-quality bathtub working again without expensive original spare parts!
