Tumbler Rotary Jig Eufymake E1 Uv print Parametric

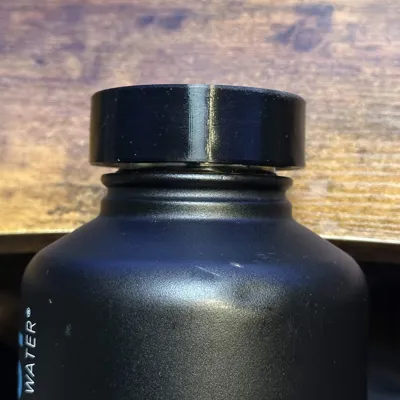

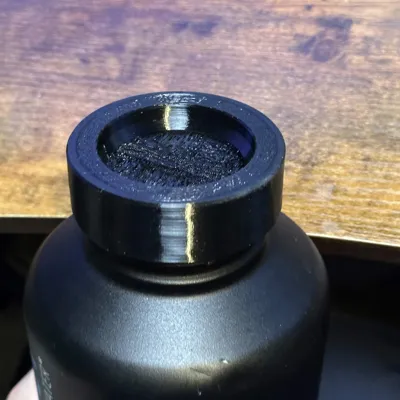

Designed for use with Tumblers and the Eufymake E1 Uv printer Rotary system.
Please Adjust parameters to your Tumbler, Adding a 0.1- 0.2mm of extra spacing can also help with fitting better. example  “57.15 mm ” may fit better if its printed as "57.25"mm"

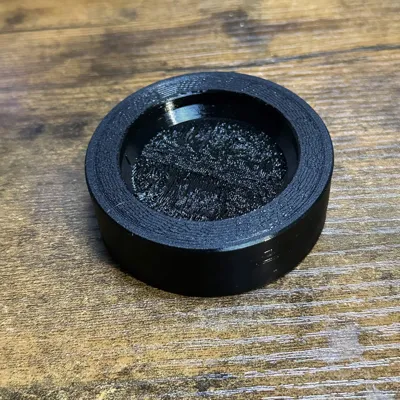

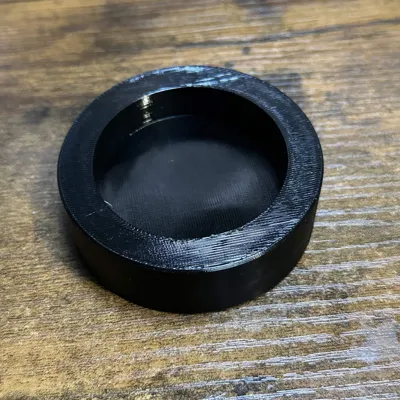

please print in TPU for less chances of your tumbler from moving separately from jig.
please calibrate your settings and dry your filament for best printing results. may need a little bit of supports depending on your bridge settings and more.

Editable parameters.
Outer_Diameter  = your tumblers outer diameter that you will be printing on.
Taper_Outer_Diameter = Your tumblers mouth or taper's outer diameter like there the lid screws in on the outside that's smaller than the outer diameter.
Taper_Height =Total Height of ring that goes over taper or mouth.
Taper_Height_Before_Angle = Height of ring before angle begins. keep number below Taper_Height.
Tapper_Angle = Angle of taper try to keep it between 90% - 160% may cause errors with model or text depending on other parameter that you can edit.
Text = Text for around the ring top.    Stock input  for Text is  " 'OD ' + Outer_Diameter + ' ID ' + Taper_Outer_Diameter ".
Text_Size = Size of Text smaller text may be more difficult to print.   stock settings is 4.
Text_Depth = Depth of text into item. stock is -0.4.

If anything needs to be fixed or changes please let me know!
your feedback and help is very important to me for i can help you and this community!
If you liked the model or found it useful please leave a like and comment! ☻♥
