ZimaBlade + Intel x520-DA2 on HomeRacker
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
10.1 h
1 plate
Open in Bambu Studio
Boost
4
3
0
0
3
0
Released
Description

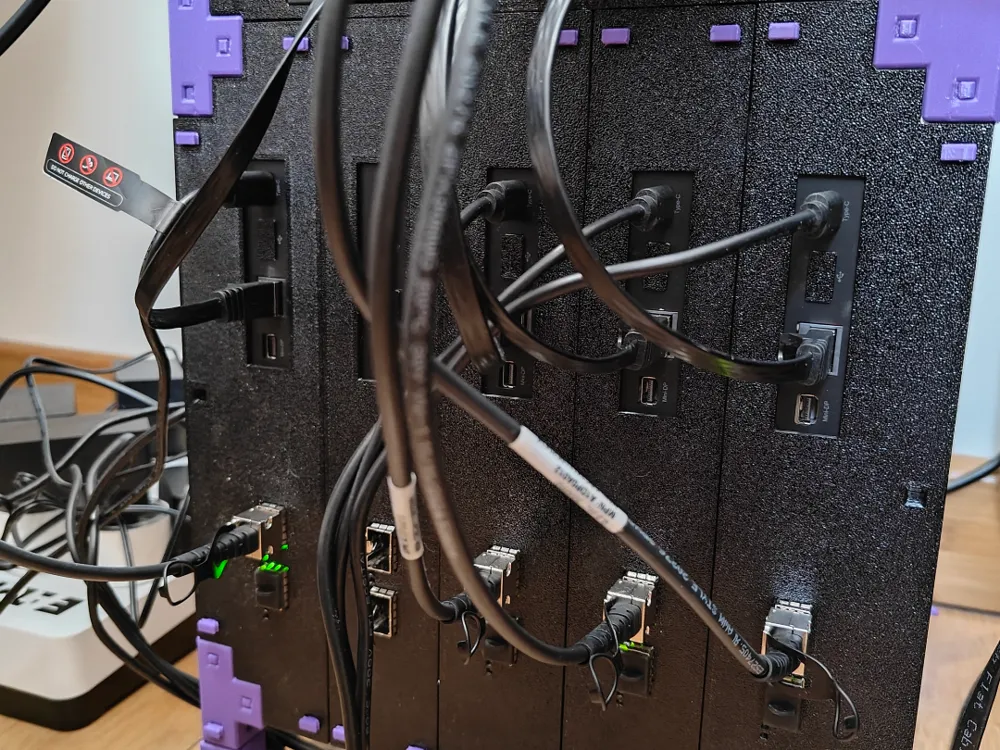

Fits in a 10-inch rack assembled using HomeRacker (17 holes wide).
You must remove the bracket from the network card.

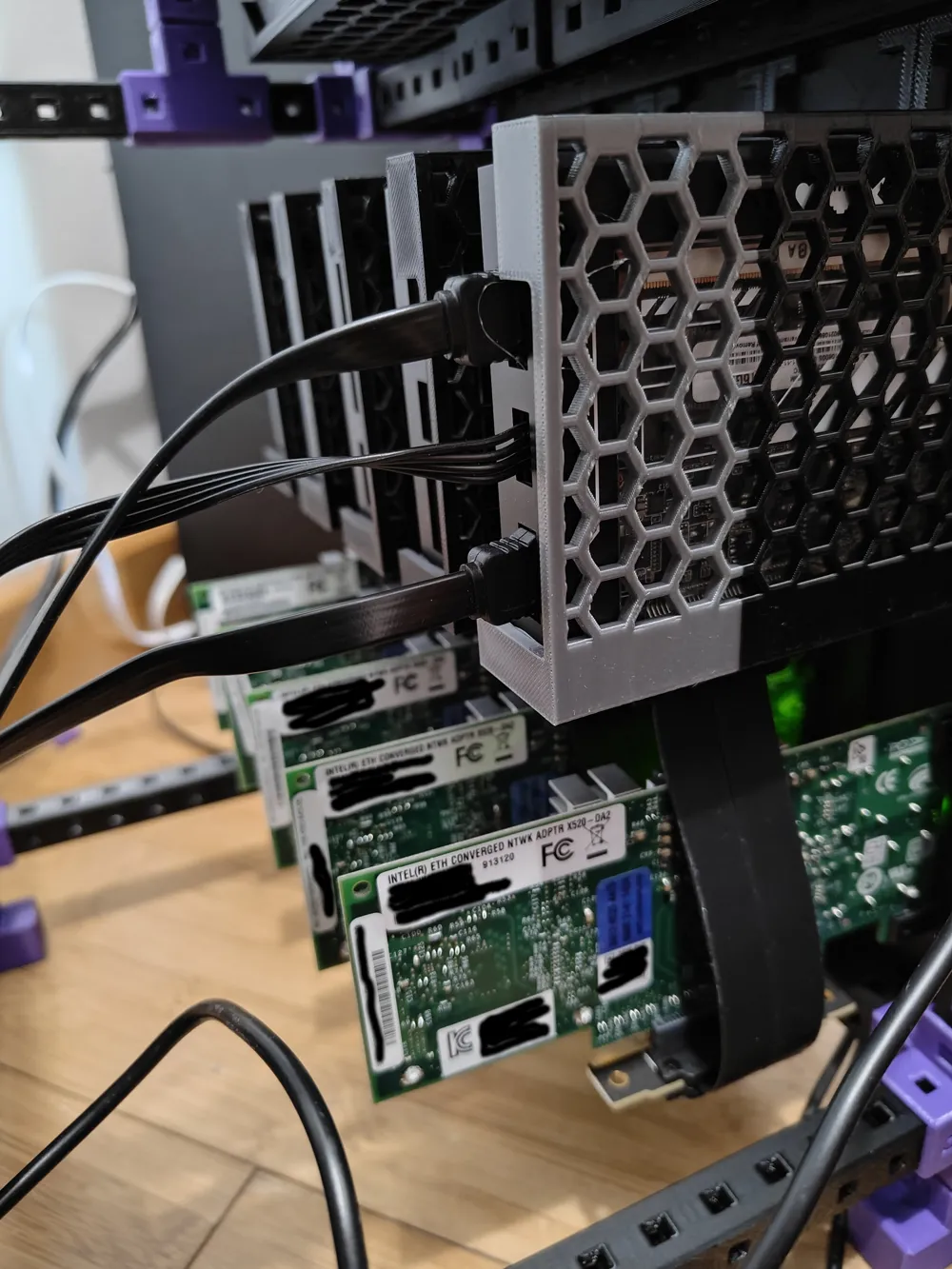

The assembly is configured to ensure proper heat dissipation:
- ZimaBlade at the top with its heatsink facing upward
- Network card at the bottom, with the heatsink oriented in the same direction as the ZimaBlade’s
A PCI-e riser at least 5 cm long is required to connect the ZimaBlade to the Intel x520-da2 card.
Print settings:
- PETG
- enable support
- on build plate only
- support critical region only
- remove small overhangs
- initial layer extension: 5mm
- wall loops: 3
- detect thin wall
- sparse infill pattern: gyroid
