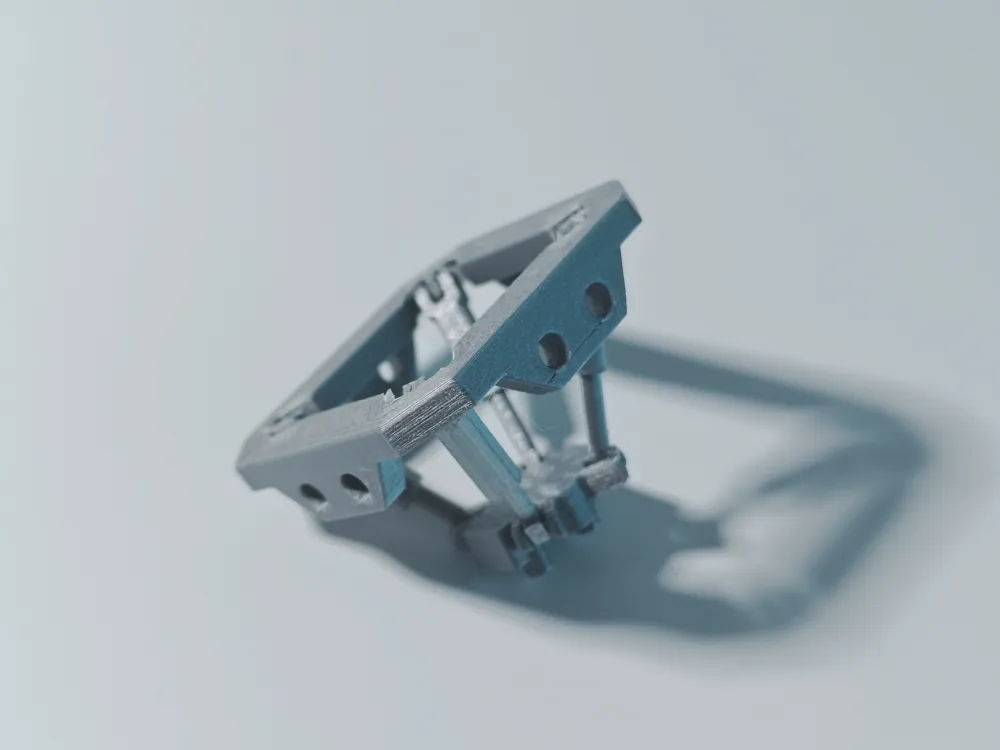

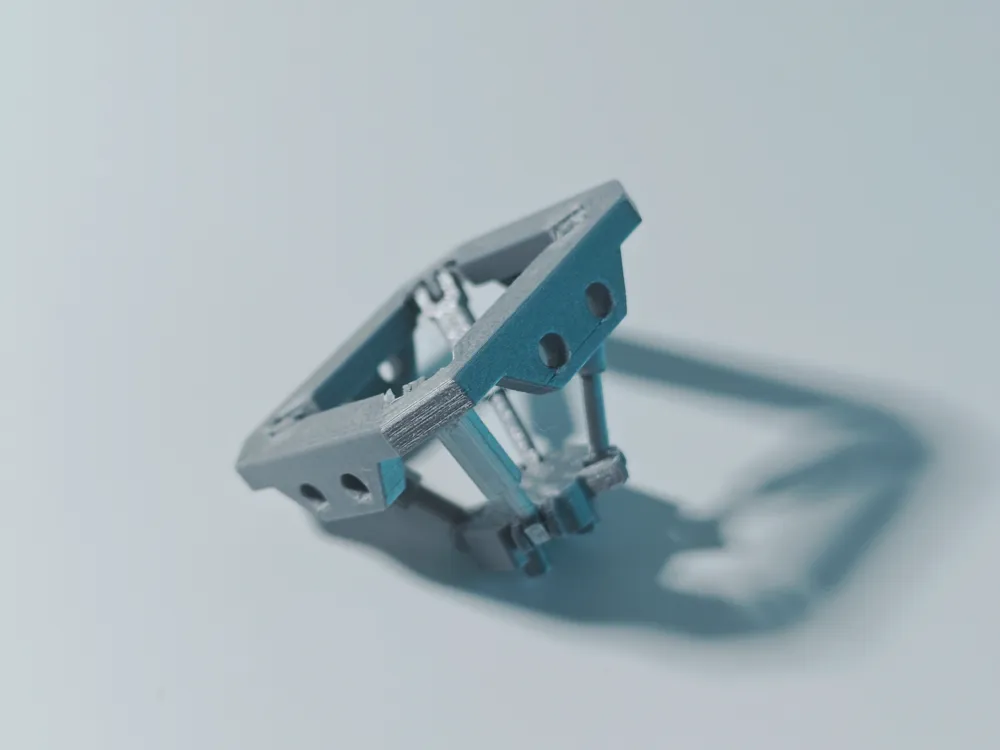

Machine Module [Hydraulic Gimbal]
Print Profile(1)
Description
>Θ Assembly Manual:
1 Specifications:
- Scale size: 1/10 (38mm length and width)
- Internal structure:
· Print in Place articulated joints: 8 locations
- Universal interface:
· 3mm pins: 2
· 3mm holes: 8
2 Printing essentials:
- Recommended settings:
· nozzle: 0.4mm or 0.2mm
· Layer height: 0.08mm
- Material: Default is PLA
· Other materials such as PETG/TPU have not been tested, scaling tolerance needs to be determined by yourself
3 Assembly instructions:

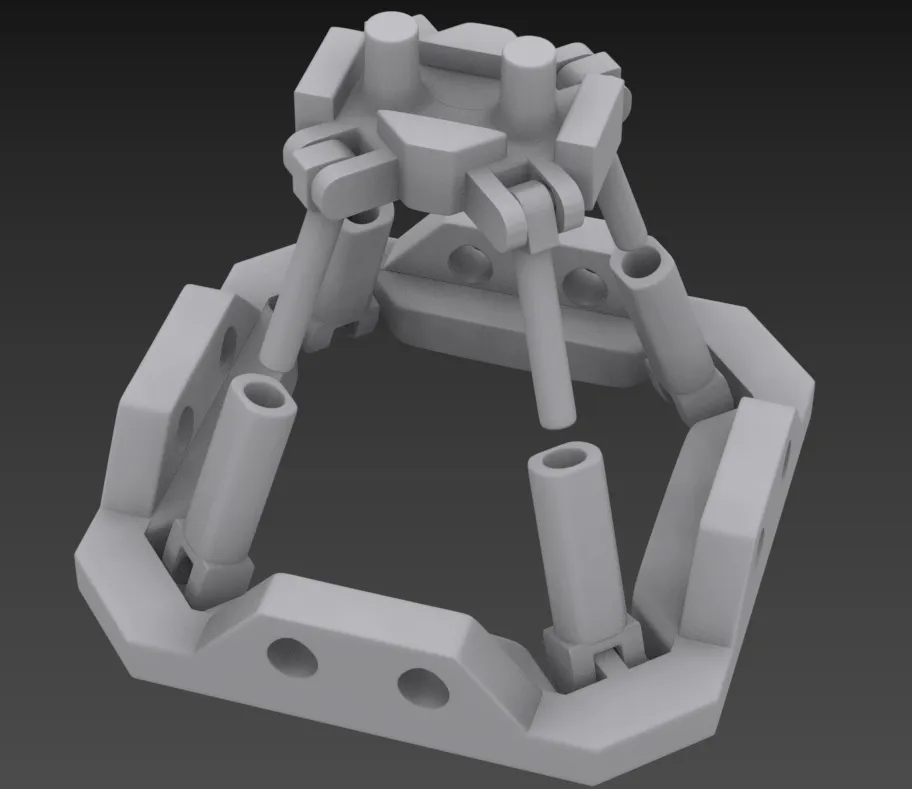

- Align and insert the support rod into the cylinder

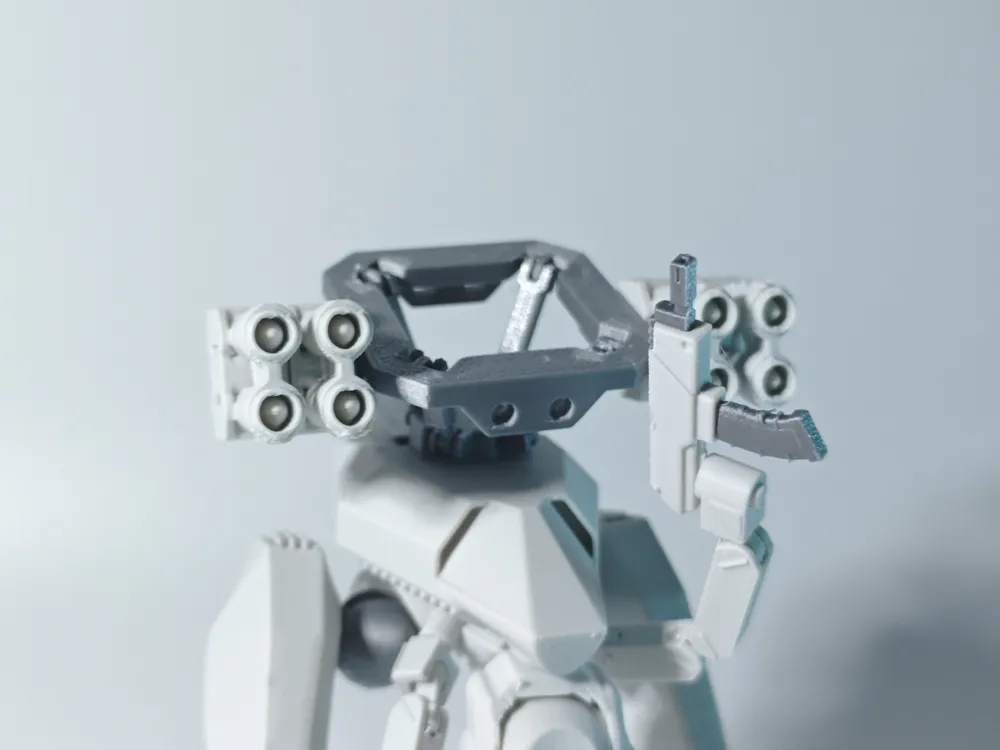

- Can be installed in the👉[Bugong] top 3mm holes
---
☟ ☟ ☟
☟ ☟ ☟
☟ ☟ ☟
>☀ Background setting:
A platform for confidential cargo and various accessories Perhaps people can also sit on it, but swinging legs can easily interfere with some bipedal robots, causing them to be thrown off
---
☟ ☟ ☟
☟ ☟ ☟
☟ ☟ ☟
>✎ Author's message:
For other works by the author, you can check the author's homepage, or click the links below to jump:
-
Mecha Girl series—>👉（Chinese） / 👉（Global）
-
Mecha Girl accessories—>👉（Chinese） / 👉（Global）
-
Machine series—>👉（Chinese） / 👉（Global）
-
If you think the author's creations are valuable to you, you can also support the author through👉Afdian (Chinese) or👉Patreon (Global)
