Description

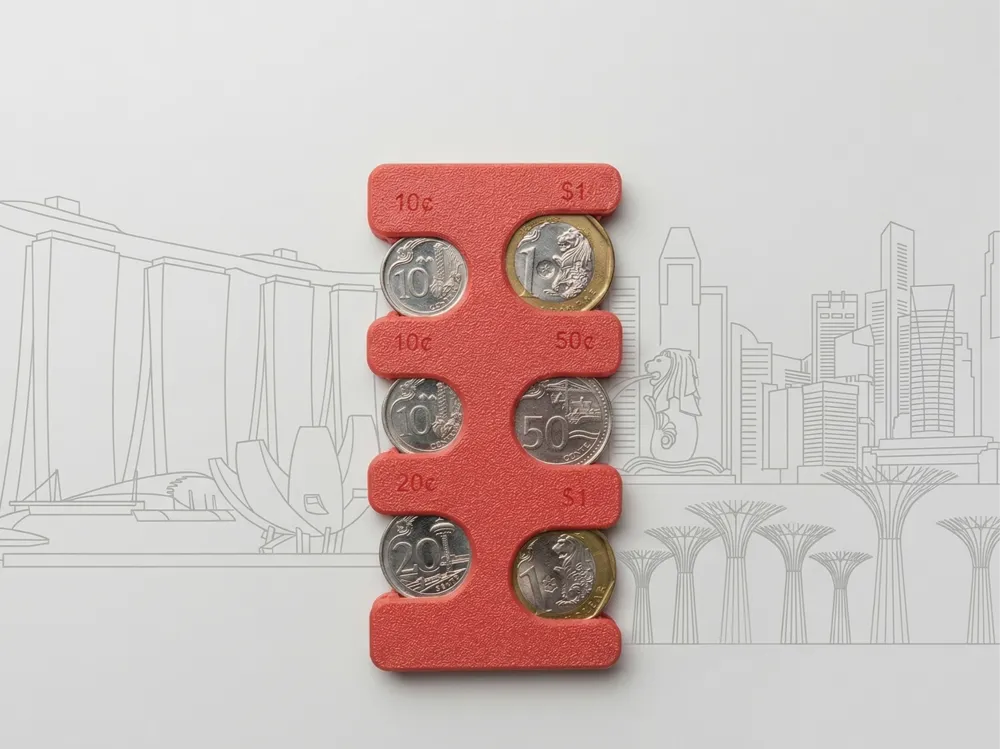

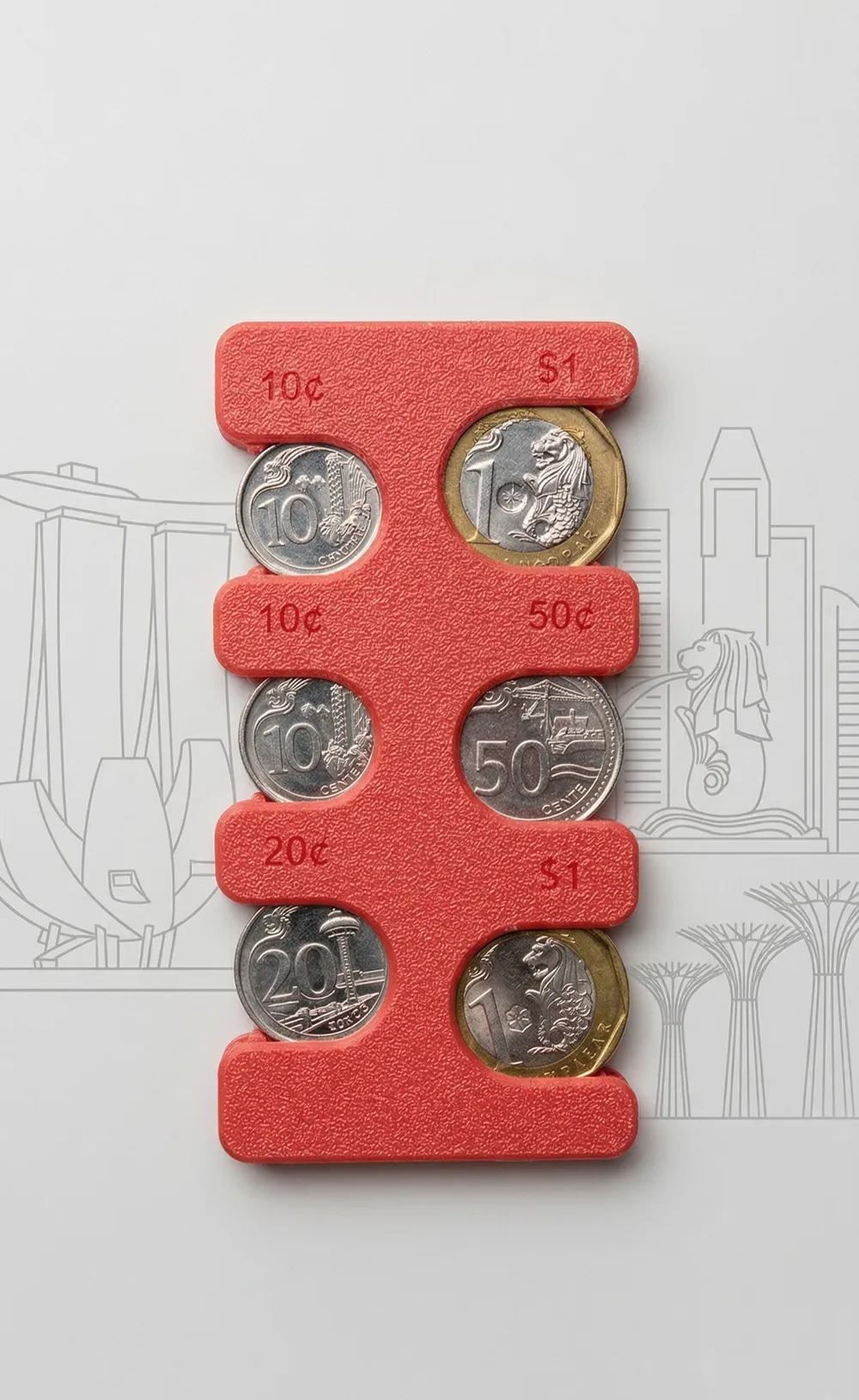

A pocket-sized coin holder for Singapore coins, providing quick and easy access.
The model consists of 3 parts: a bottom cover, a top cover, and a frame.
All parts are held together through a friction fit; no supports or additional hardware are necessary.
This is based on JA Design amazing design and mechanism! I liked using his prints and decided to tinker to fit Singapore coins for my daily use as well! It was a project for me to teach myself new things! I have used the Euro coins design and edited based off the Singapore coin dimensions, which I had to cater for old $1 and $0.50 coins as well.
Specifications
Max Capacity: $12.40
Up to 7 Coins (2 Slots): 10c
Up to 5 (1 Slot): 20c
Up to 4 Coins (3 Slots): 50c(New) / $1(old), $1(New) / 50c(old)
Dimensions: Approx. 102.15 mm x 51.5 mm x 13.85 mm (4.02 in x 2.03in x 0.55in)
Assembly Instructions

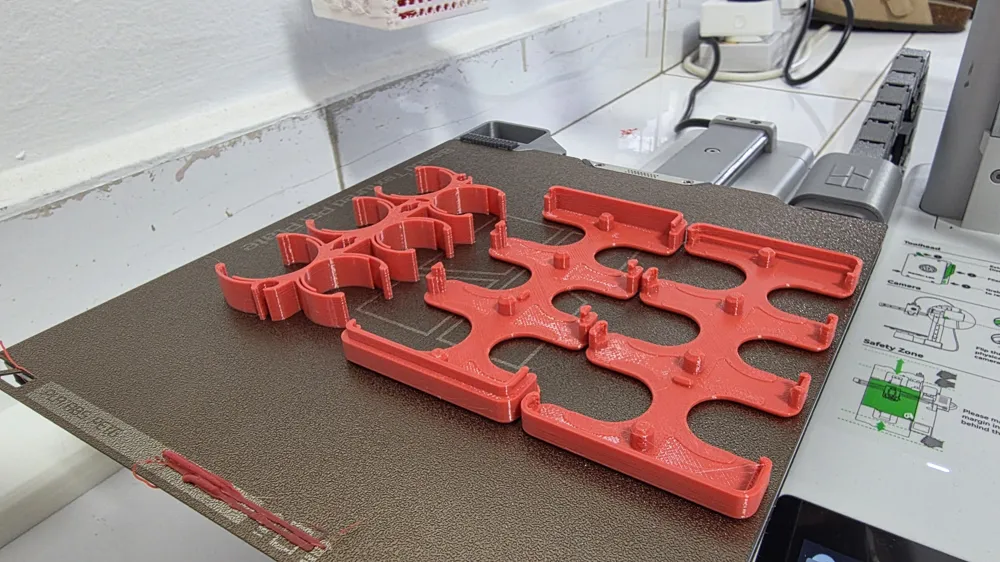

Wait until the print has fully cooled before removing it from the build plate to prevent warping.
- Identify the respective bar and slot orientation on the frame and covers for proper alignment.
- Snap the bottom cover to the frame, pushing down on the pegs.
- Snap the top cover to the frame, pushing down on the pegs.
A cuppa for me if you enjoyed the model!
